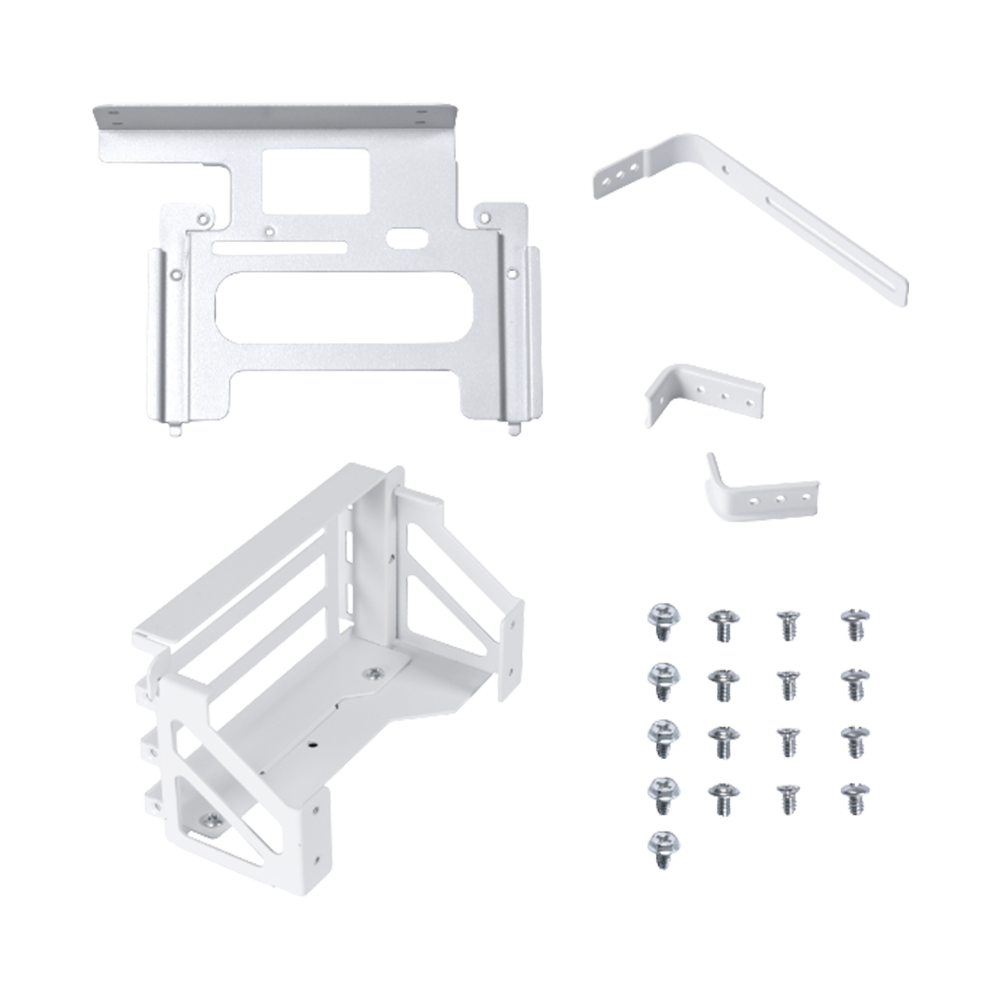

Lian LI O11D EVO UPRIGHT GPU KIT for GPU Bracket Only ( Compatible with 40 Series GPU) - White

Key Features:

• Upright graphics card accessories for O11D EVO & O11D EVO RGB

• New mounting angle for GPU opens room for unrestricted chimney-style configuration.

• Designed for large GPUs such as 40 series GPUs

Upright GPU Bracket for 40 Series GPU

Mount large graphics cards in a unique way for better cooling performance with the upright GPU bracket.

AVAILABLE AS UPGRADE KIT

Users who own the original upright GPU bracket (O11DE-2/ O11DE-6) can purchase the add-on supplemental kit to ideally hold the longer and thicker 40 series GPU at the upright position.

OPTIMIZED FOR DIRECT COOLING

The GPU standing upright next to the motherboard creates a chimney-style airflow, moreover the ability to mount intake fans behind the GPU effectively controls the GPU temperature.

SIMPLE INSTALLATION

The new upright GPU kit mounts directly to the side fan bracket, which makes the installation easier and slightly shifts the GPU position to prevent the upright GPUs from interfering with top/bottom mounted fans/radiators.

SUPPORTS WIDE VARIETY SIZES OF GPU

The adjustable bracket can hold all kinds of GPUs which within 3 slots thick.

1. Length ≤ 348mm
   2. Width 135mm~150mm
   3. Thickness ≤75mm

RECOMMEND SET UP FOR SOME GPUS

Due to GPU cooler design, some GPUs have been found to perform significantly better with GPU IO facing down when using an upright GPU kit.
Test results are as follows:

Specifications

• PRODUCT NAME : O11D EVO Upright GPU Bracket for 40 Series GPU O11D EVO Upright GPU

• MODEL : O11DE-9W

• COLOR : White

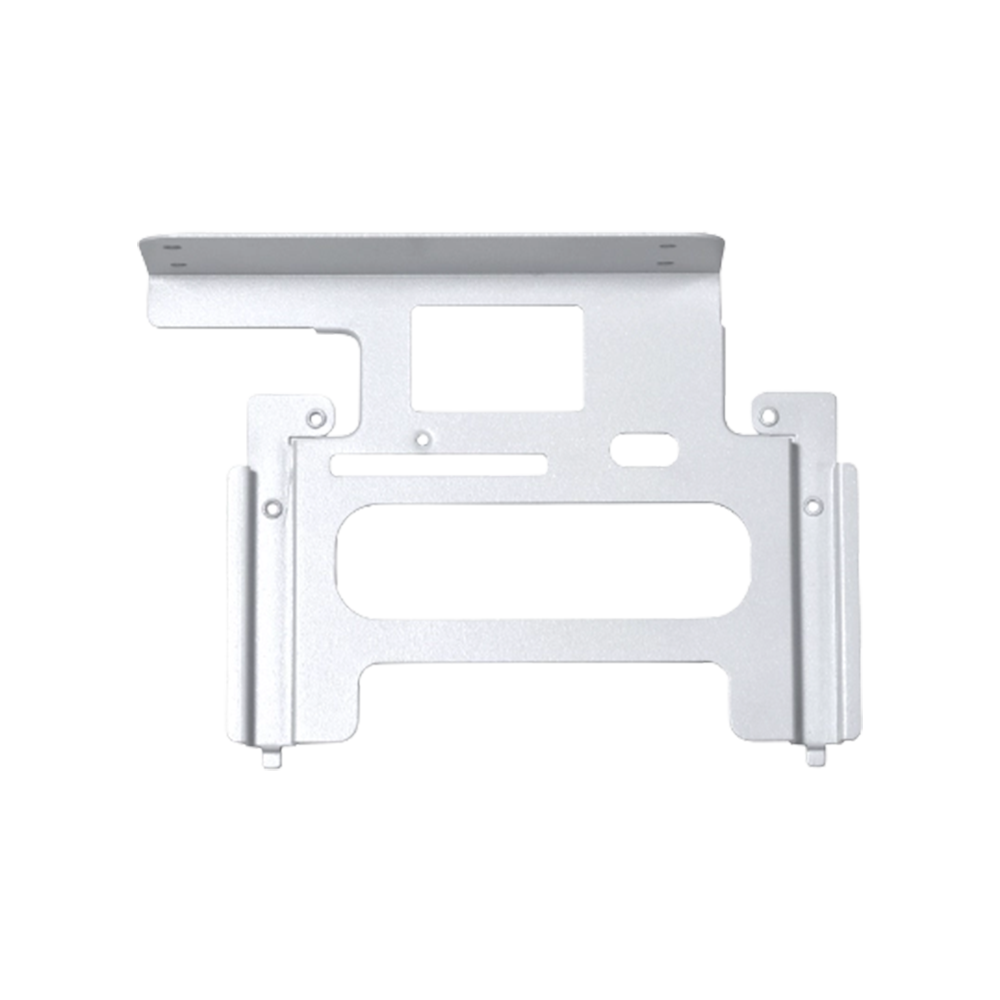

• BRACKET DIMENSION : Mounting frame: 115.8mm(L) x 158.8mm(D) x 50mm(H)

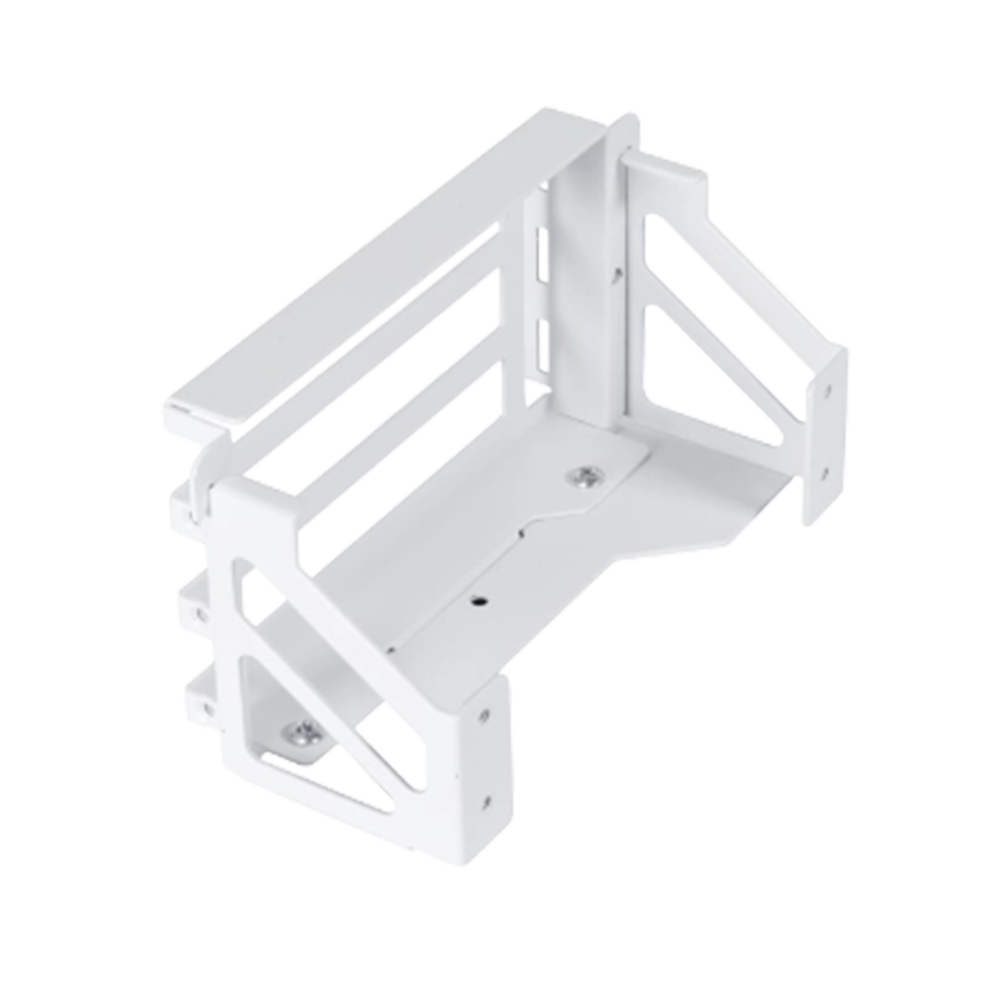

• Support frame: 70mm(L) x 81mm(D) x 10 mm(H)

• MATERIAL : 1mm STEEL

• EXPANSION SLOT : 3 slots –

• GPU COMPATIBILITY : Length: Maximum 348MM

• Thickness: Maximum 75MM thick

• Width: 135MM~150MM
