Quadra Stores

MSI MEG X870E GODLIKE DDR5 Motherboard - Black

MSI MEG X870E GODLIKE DDR5 Motherboard - Black

911-7E48-006

QR Code : 1330160

Low stock

KWD 419.000
KWD 419.000
Sale
Manufacturer

Description

Key Features:

  • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors

  • Supports DDR5 Memory, Dual Channel DDR5 9200+MT/s (OC)

  • Dynamic Dashboard III: A 3.99-inch LCD for real-time hardware monitoring, troubleshooting, BIOS updates, and personalized display options, enhancing the overall user experience.

  • M.2 XPANDER-Z SLIDER GEN5: The one-slot-thick M.2 expansion card features dual high-speed Gen5 M.2 slots, and the EZ Slide design makes SSD upgrades effortless.

  • Ultra Performance: 24+2+1 Duet Rail Power System, 110A SPS, OC Engine, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 10-layer PCB made by 2oz thickened copper and server-grade level material.

  • Frozr Guard: Wavy fin design, Direct Touch Cross Heat-pipe, MOSFET Baseplate, 9W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature.

  • EZ DIY: EZ Link, EZ PCIe Release, EZ Magnetic M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna.

  • Ultra Connect: 10G LAN + 5G LAN, Full-speed Wi-Fi 7 Solution and USB4 - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission.

  • Lightning Fast Game Experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Front USB 20G with 60W USB Power Delivery.

  • Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.

Built for unparalleled performance on the AMD X870E chipset and Ryzen 9000 processors, the MEG X870E GODLIKE equips true Wi-Fi 7, 10G Super LAN, high-speed USB4, Supplemental PCIe Power, and the revolutionary Dynamic Dashboard III. Dominate tournaments and immerse in extreme gaming with the MEG X870E GODLIKE.

Whether it’s record-breaking overclocking, ultra-customization of ARGB lighting with touch control LCD, or simply the desire to build the most powerful system imaginable, the MEG Z690 GODLIKE E-ATX motherboard is ready for every challenge

Dynamic Dashboard III
A 3.99-inch full-color LCD offers real-time hardware monitoring, troubleshooting, BIOS update status, clock display, and personalization options, significantly enhancing the overall user experience.

EZ LINK
The GODLIKE-exclusive EZ Link design consolidates most of the case front panel headers, fan headers, and RGB headers into the EZ Bridge and EZ Control Hub, simplifying installation and creating a cleaner aesthetic.

M.2 XPANDER-Z SLIDER GEN5
In addition to the 5 built-in M.2 slots, the MEG X870E GODLIKE also comes with the all-new M.2 XPANDER-Z SLIDER GEN5 card, providing even more high-speed storage expansion options.

Specifications

  • Chipset AMD X870E

  • CPU Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors

  • Socket AM5

  • Memory 4x DDR5 UDIMM, Maximum Memory Capacity 256GB

  • Memory Support DDR5 9200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s

  • Ryzen™ 9000 Series Processors max. overclocking frequency:

  • • 1DPC 1R Max speed up to 8400+ MT/s

  • • 1DPC 2R Max speed up to 6400+ MT/s

  • • 2DPC 1R Max speed up to 6400+ MT/s

  • • 2DPC 2R Max speed up to 6400+ MT/s

  • Supports AMD POR Speed and JEDEC Speed

  • Supports Memory Overclocking and AMD EXPOTM

  • Supports Dual-Channel mode

  • Supports Non-ECC, Un-buffered memory

  • Supports CUDIMM, Clock Driver bypass mode only*

  • * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.

  • Onboard Graphics 2x Type-C DisplayPort

  • USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz*

  • * Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

  • Slot 2x PCI-E x16 slot

  • 1x PCI-E x4 slot

  • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

  • PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)

  • PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

  • PCI_E1 & PCI_E2 slots

  • • Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™9000/ 7000 Series processors)

  • • Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors)

  • • Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors)

  • PCI_E3 slot

  • • Supports up to PCIe 4.0 x4

  • * PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot.

  • Please refer to the PCIe configuration table in the manual for more details.

  • Audio Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA

  • 7.1-Channel USB High-Performance Audio

  • Supports S/PDIF output

  • Supports up to 32-Bit/384 kHz playback on front panel

  • Storage 7x M.2

  • M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices

  • M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices

  • M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices

  • M.2_4 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices

  • M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

  • 4x SATA 6G

  • M.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices

  • M.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices

  • M.2_1:

  • • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)

  • • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)

  • M.2_2:

  • • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)

  • • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)

  • • The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors.

  • M2_4:

  • PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot.

  • * Supports onboard 5x M.2 slots and additional 2x M.2 slots via M.2 card.

  • ** Please refer to the manual for M.2 SSD heatsink restrictions.

  • RAID Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices

  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

  • *RAID 5 configuration is only supported by Ryzen™ 9000 series processors.

  • **RAID 10 for M.2 NVMe storage devices is only supported by Ryzen™ 9000/7000 series processors.

  • USB 4x USB 2.0 (Front)

  • 4x USB 5Gbps Type A (Front)

  • 8x USB 10Gbps Type A (Rear)

  • 5x USB 10Gbps Type C (Rear)

  • 1x USB 10Gbps Type C (Front)

  • 1x USB 20Gbps Type C (Front)

  • 2x USB 40Gbps Type C (Rear)

  • * USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports. The USB4 host controller supports up to PCIe 4.0 x4.

  • ** USB 40Gbps Type-C ports on the back panel only run PCIe 4.0 x2 when install Ryzen™ 8500/ 8300 Series processors.

  • LAN 1x Marvell® AQC113CS 10Gbps LAN

  • 1x Realtek® 8126 5Gbps LAN

  • Internal IO 1x Power Connector(ATX_PWR)

  • 2x Power Connector(CPU_PWR)

  • 1x Power Connector(PCIE_PWR 8pin)

  • 1x Front Type-C Quick Charge Connector(PD_PWR1)

  • 1x CPU Fan

  • 2x Combo Fan (Pump_Sys Fan)

  • 1x EZ Conn-header (JAF_2)

  • 2x Front Panel (JFP)

  • 1x Chassis Intrusion (JCI)

  • 1x Front Audio (JAUD)

  • 2x Thermal Sensor connectors(T_SEN)

  • 1x Tuning Controller connector(JDASH)

  • 1x Addressable V2 RGB LED connector (JARGB_V2)

  • V-check point

  • 4x USB 2.0 ports

  • 4x USB 5Gbps Type A ports

  • 1x USB 10Gbps Type C ports

  • 1x USB 20Gbps Type C ports

  • WIRELESS LAN & BLUETOOTH Wi-Fi 7 Solution

  • The Wireless module is pre-installed in the M.2 (Key-E) slot

  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps

  • Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

  • Supports Bluetooth® 5.4**, MLO, 4KQAM

  • * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.

  • ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.

  • LED FEATURE 1x Dynamic Dashboard III

  • 1x EZ Digi-Debug LED

  • 1x EZ LED Control switch

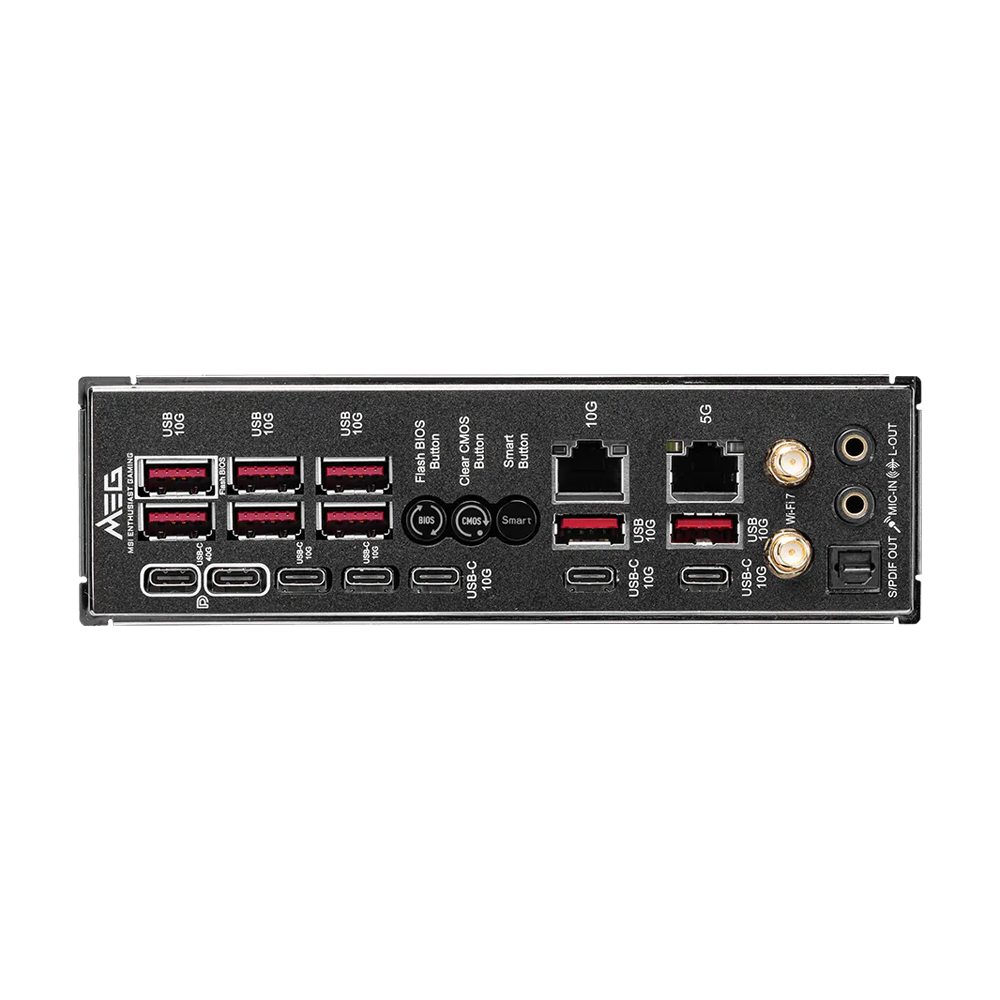

  • BACK PANEL PORTS

  • USB 10Gbps (Type-A)

  • Flash BIOS Button

  • Clear CMOS Button

  • Smart Button

  • 10G LAN

  • 5G LAN

  • Wi-Fi / Bluetooth

  • HD Audio Connectors

  • USB 40Gbps (Type-C)

  • USB 10Gbps (Type-C)

  • USB 10Gbps (Type-A)

  • Optical S/PDIF-Out

  • OPERATING SYSTEM Support for Windows® 11 64-bit

  • BOX CONTENT

  • PCB Info E-ATX

  • 304.8mmx277mm
