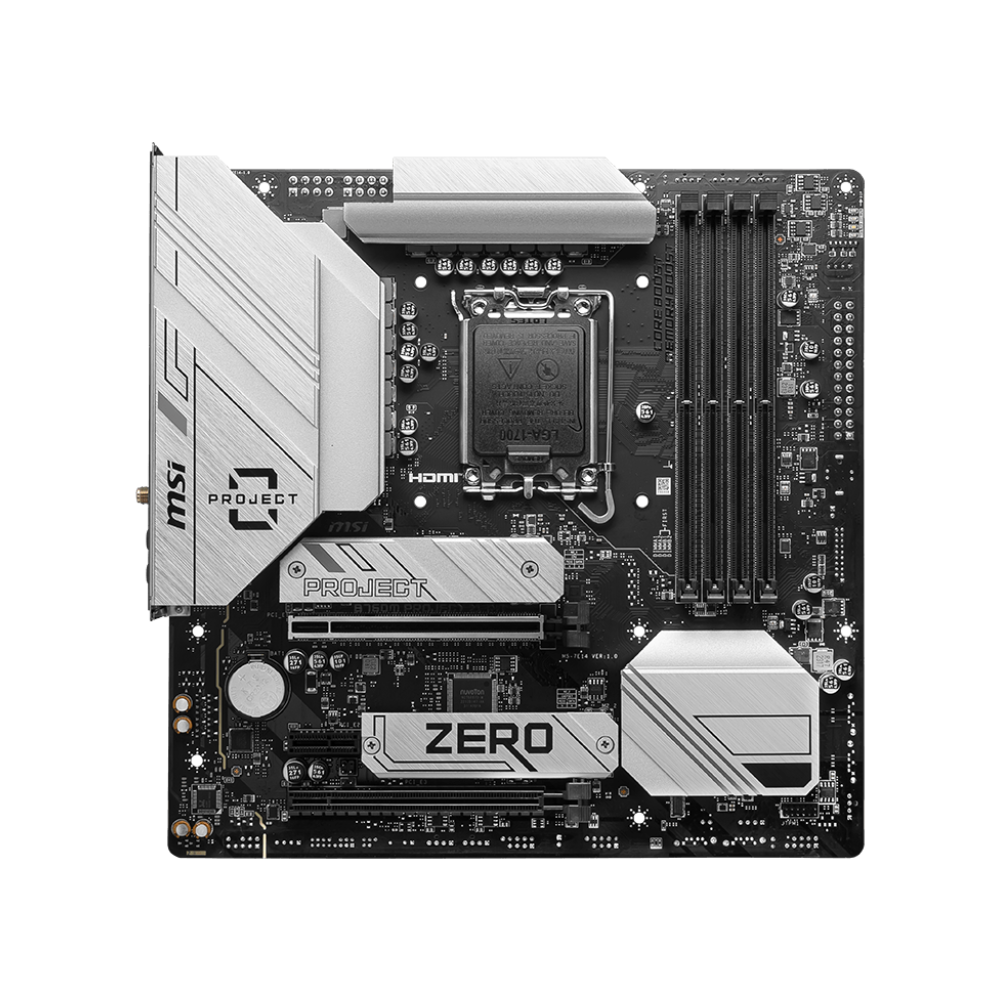

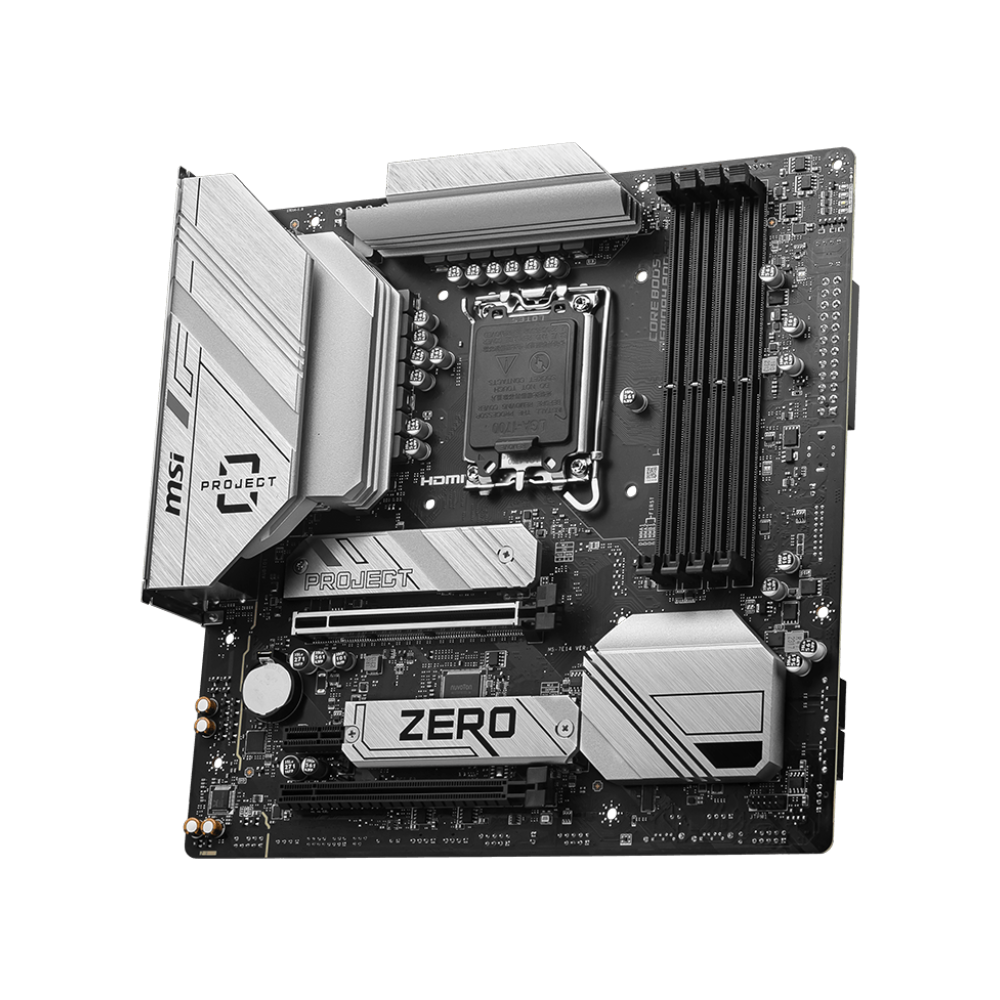

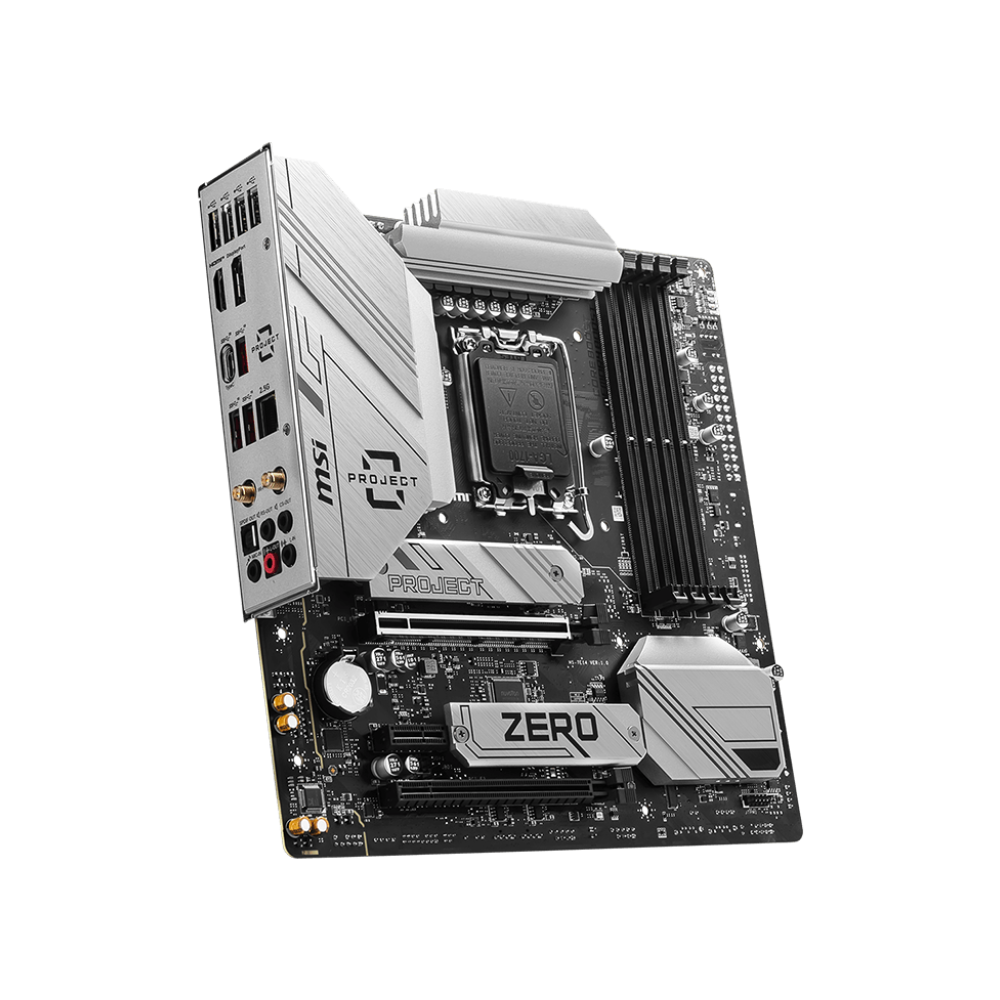

MSI B760M PROJECT ZERO DDR5 Motherboard - White

MSI B760M PROJECT ZERO DDR5 mATX Motherboard - White

B760M PROJECT ZERO

The B760M PROJECT ZERO features a unique back-connect design that reduces the complexity of cable management, resulting in a neater and more aesthetically pleasing appearance for the system. It’s compatible with Intel 14th/13th/12th Processors, supports DDR5, and comes equipped with a 2.5G LAN and Wi-Fi 6E solution. This makes it an excellent choice among mATX motherboards.

ABSOLUTE SIMPLICITY

B760M PROJECT ZERO moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card's aesthetic design to be fully displayed.

HARDWARE

Power Solution

12+1+1 DUET RAIL POWER SYSTEM

Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, B760M PROJECT ZERO is ready to sustain heavy gaming loadings.

Back-Connect Design

The B760M PROJECT ZERO features a back-connect design, which relocates the motherboard power, CPU power, fan pins, SATA, and other interfaces to the back of the motherboard. This allows for simpler cable management, while also providing a cleaner and more aesthetically pleasing appearance for the system.

Protection

solid pin design

The 4-pin, 8-pin, and 24-pin power connectors of MSI motherboards are all designed with solid pins. The solid pin design allows for a more stable transmission of 12V power to the CPU, even when handling high current loads.

Advantages of Solid Pin Power connector

    Improved stability : Larger contact area enhances stability during power delivery.

    Low impedance : Solid pins offer low impedance, enabling efficient power flow.

    Strong durability : The solid pin design ensures strong durability, capable of withstanding demanding conditions.

    Suitable for high-current applications.

PERFORMANCE

Expansion

Lightning Gen 5 PCI-e with Steel Armor

LIGHTNING GEN 5 PCI-E

Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.

SMT PCIE 5.0 SLOT

The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

Memory

LATEST DDR5 MEMORY WITH SMT SLOT

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, B760M PROJECT ZERO is ready to deliver the world class memory performance.
The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.

Bios & software

Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records

• XMP

  Choose from a preset XMP profile and automatically overclock compatible DDR memory.

• VMD (Volume Management Device)

  Enable direct control and management of NVMe SSDs from the PCIe bus without additional hardware adaptors.

• M-FLASH

  Conveniently flash or upgrade the BIOS in a few minutes from the CMOS Setup Utility.

• HARDWARE MONITOR

  Get immediate access to your critical hardware information in real-time including temperature, memory capacity, clock speed, and voltage.

• MEMORY TRY IT

  Get extreme speed out of your system memory and get more performance.

• SEARCH & FAVORITES

  A permanent search & favorite option in the top right corner moves you through the BIOS menus quickly.

Connectivity

mystic light

EXTEND YOUR RGB EXPERIENCE WITH EASE

Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

Networking
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.

• Wi-Fi 6E

• Bluetooth 5.3

• 2.5G LAN

Specifications

• Chipset  : INTEL B760

• CPU : Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors

                LGA1700

• Memory  : 4x DDR5, Maximum Memory Capacity 256GB

• Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

• Max. overclocking frequency:

                • 1DPC 1R Max speed up to 7800+ MHz

                • 1DPC 2R Max speed up to 6600+ MHz

                • 2DPC 1R Max speed up to 6400+ MHz

                • 2DPC 2R Max speed up to 5600+ MHz

• Supports Dual-Channel mode

• Supports non-ECC, un-buffered memory

• Supports Intel® Extreme Memory Profile

            Onboard Graphics  : 1x HDMI™

• Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*

• 1x DisplayPort

• Support DP 1.4, maximum resolution of 4K 60Hz*

• *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

            Slot : 2x PCI-E x16 slot

• 1x PCI-E x1 slot

• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

• PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

• PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

        Storage : 2x M.2

• M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

• M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

• 4x SATA 6G

        RAID : Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

        USB  : 4x USB 2.0 (Rear)

• 4x USB 2.0 (Front)

• 2x USB 5Gbps Type A (Front)

• 3x USB 10Gbps Type A (Rear)

• 1x USB 10Gbps Type C (Front)

• 1x USB 20Gbps Type C (Rear)

        LAN  : Realtek® 2.5Gbps LAN

        WIRELESS LAN & BLUETOOTH  :  Intel® Wi-Fi 6E

• The Wireless module is pre-installed in the M.2 (Key-E) slot

• Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps

• Supports 802.11 a/ b/ g/ n/ ac/ ax

• Supports Bluetooth® 5.3, FIPS, FISMA

• * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.

• ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

• Audio :  Realtek® ALC897 Codec

• 7.1-Channel High Performance Audio

• Supports S/PDIF output

• Internal IO  :  1x Power Connector(ATX_PWR)

• 2x Power Connector(CPU_PWR)

• 1x CPU Fan

• 1x Pump Fan

• 4x System Fan

• 2x Front Panel (JFP)

• 1x Chassis Intrusion (JCI)

• 1x Front Audio (JAUD)

• 1x TBT connector (JTBT, supports RTD3)

• 1x Tuning Controller connector(JDASH)

• 2x Addressable V2 RGB LED connector (JARGB_V2)

• 2x RGB LED connector(JRGB)

• 1x TPM pin header(Support TPM 2.0)

• 4x USB 2.0 ports

• 2x USB 5Gbps Type A ports

• 1x USB 10Gbps Type C ports

• LED FEATURE     4x EZ Debug LED

• BACK PANEL PORTS

                        USB 2.0

                        DisplayPort 1.4

                        USB 10Gbps Type-A

                        2.5G LAN Port

                        Wi-Fi / Bluetooth Antenna

                        HD Audio Connectors

                        HDMI™ 2.1 Port

                        USB 20Gbps Type-C

                        Optical S/PDIF OUT

• OPERATING SYSTEM : Support for Windows® 11 64-bit, Windows® 10 64-bit

• PCB Info : mATX

                                  243.84mmx243.84mm
