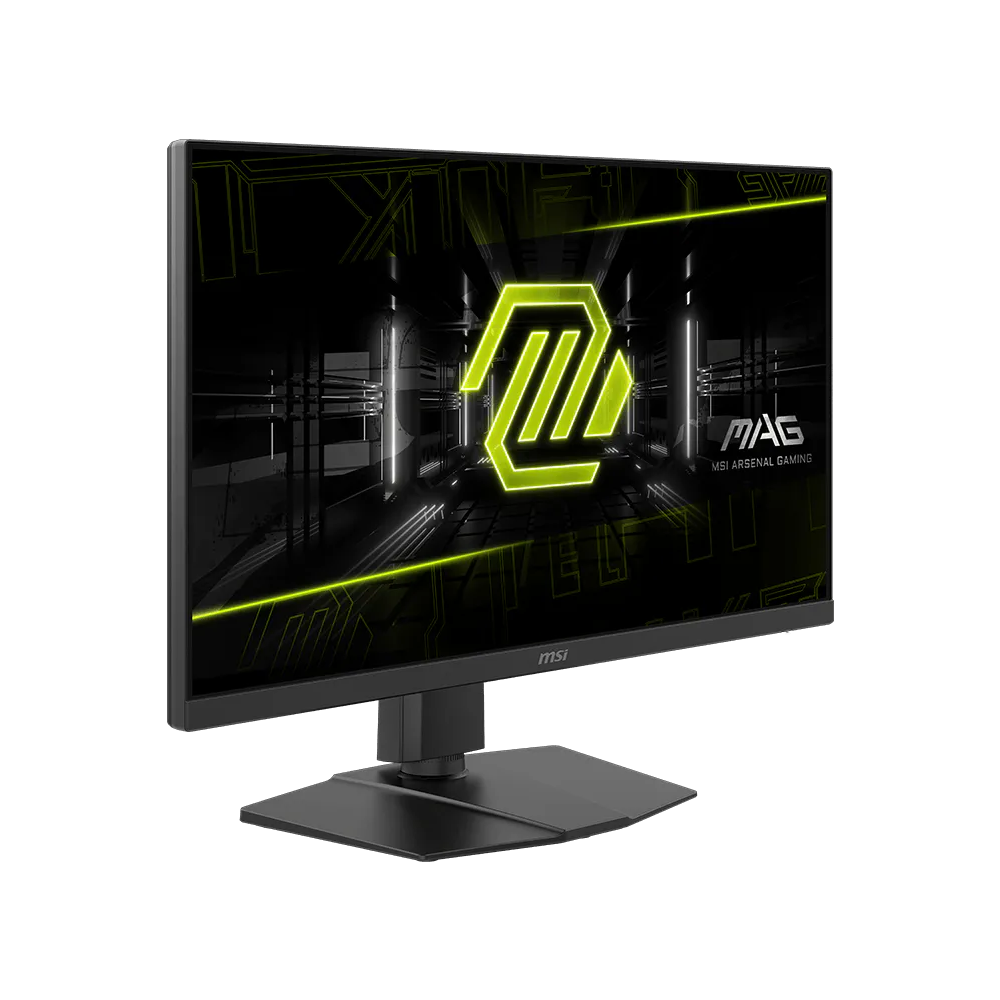

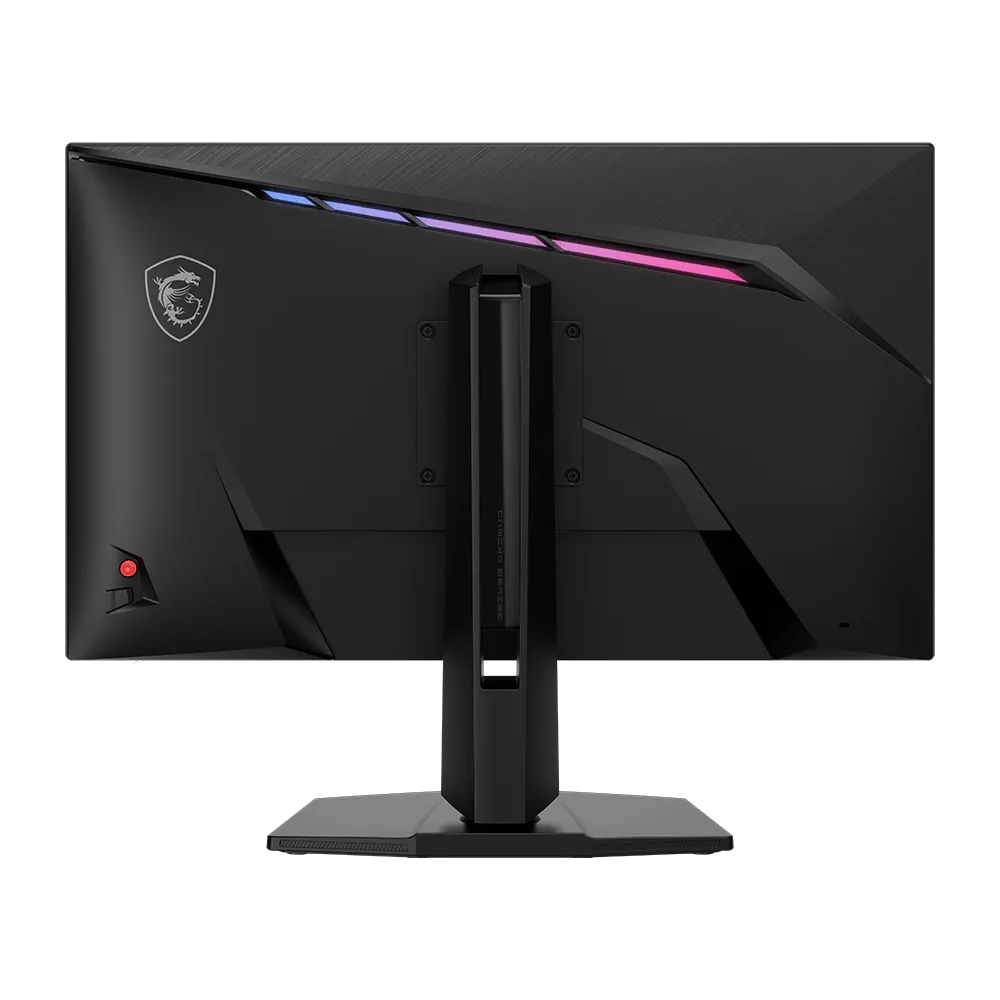

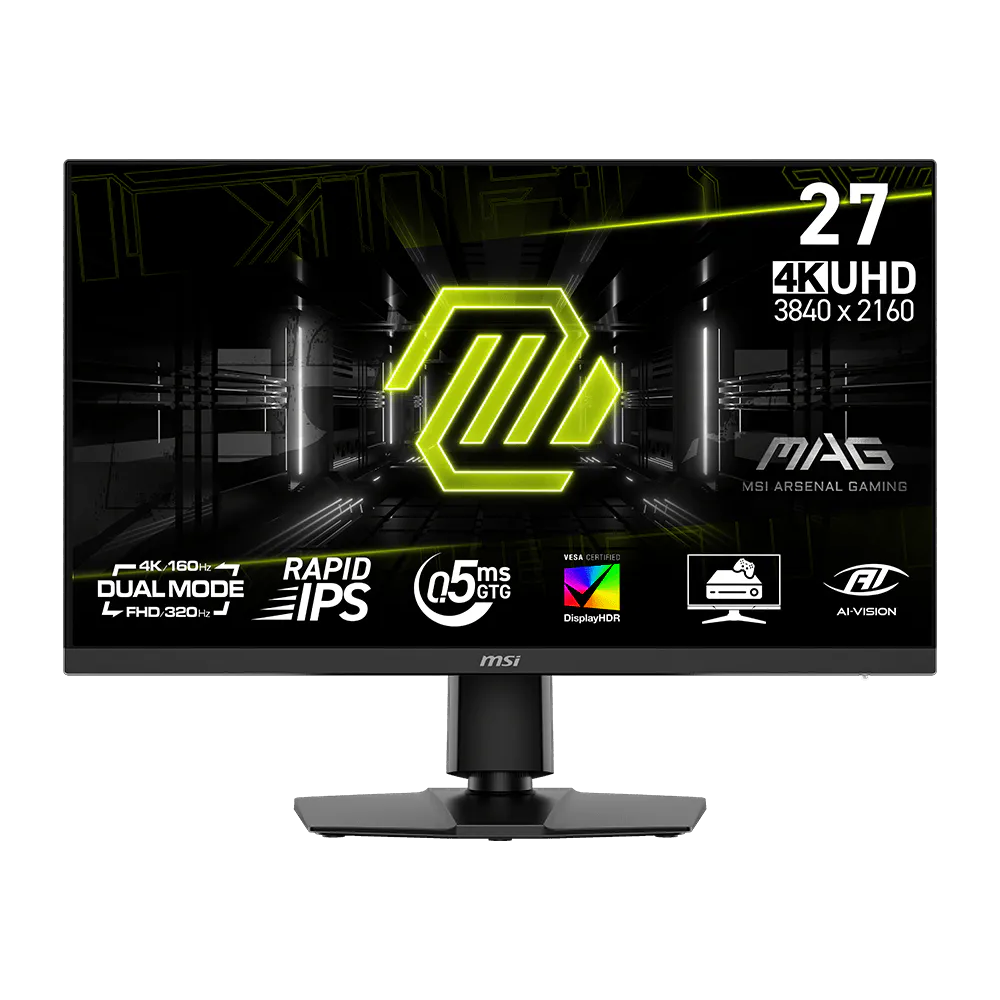

MSI MAG 272URDF E16 27 Inch 160Hz/320Hz Dual Mode 4K UHD HDMI 2.1 0.5ms Gaming Monitor - Black

Key Features

• Dual Mode – Easily switch between different resolutions and refresh rates, allowing user to adjust settings based on the game.
• Rapid IPS – Ensures the intensity and purity of colors when gaming.
• 0.5ms (GtG, Min.) Response Time – Eliminates screen tearing and choppy frame rates.
• VESA DisplayHDR 400 – VESA-certified eye-catching details through precise contrast and shadow adjustment.
• Console Mode – Optimized for seamless compatibility with gaming consoles like PS5 and Xbox Series X|S.
• Aspect Ratio Options – Choose between multiple aspect ratios for a more personalized gaming experience.

Experience immersive gaming with the MAG 272URDF E16 gaming monitor. Featuring Dual Mode with UHD 160Hz and FHD 320Hz, along with AI Navigator for an enhanced gaming experience, it delivers exceptional performance. Certified with VESA DisplayHDR 400, it refines contrast and shadows for stunning visual clarity. Designed for competitive FPS, first-person RPG/MMORPG, and flight/racing simulators, the MAG 272URDF E16 redefines casual gaming, pushing players to see beyond the game.

MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.

Dual Mode
Dual Mode allows you to select the resolution and refresh rate that best suit your game—choose a higher refresh rate with lower resolution for fast-paced FPS games or enjoy crisp 4K visuals with a lower refresh rate. Designed with a user-centric approach and ergonomic convenience, it features a 5-way Joystick Navigator on the right side of the screen and a one-click switch button, making it easy to toggle Dual Mode settings and providing a seamless, user-friendly experience.

ASPECT RATIO OPTIONS
Supports a variety of aspect ratios, allowing selection of 24.5” imagery. Choose the size you want at your leisure, and elevate your gaming experience to the utmost.

Specifications

• Panel Size : 27"

• Active Display Area (mm) : 596.736 (H) x 335.664 (V)

• Curvature : Flat

• Panel Type : Rapid IPS

• Panel Resolution

  • Normal: 3840 x 2160 (UHD)

  • Dual Mode: 1920 x 1080 (FHD)

• Pixel Pitch (H x V) : 0.1554(H) x 0.1554(V)

• Aspect Ratio : 16:9

• Brightness (nits)

  • SDR: 400 cd/m² (Typ.)

  • HDR: 400 cd/m² (Peak)
• Contrast Ratio : 1000:1 (Typ.)

• DCR : 100000000:1

• Signal Frequency

  • Normal: 146.9~354.5KHz(H) / 48~160Hz(V)

  • Dual Mode: 146.9~356.6KHz(H) / 48~320Hz(V)

• ACTIVATED RANGE

  • Normal: 48~160Hz

  • Dual Mode: 48~320Hz

• Refresh Rate

  • Normal: 160Hz

  • Dual Mode: 320Hz

• Response time : 0.5ms (GtG, Min.)

• DYNAMIC REFRESH RATE TECHNOLOGY : AMD FreeSync™ Premium

• HDR Support : VESA DisplayHDR 400

• Video ports

  • 1 x DisplayPort 1.4a (HBR3)

  • 2 x HDMI™ 2.1 (4K@160Hz)

• USB ports

  • 2 x USB 2.0 Type-A

  • 1 x USB 2.0 Type-B

• Audio ports : 1x Headphone-out
• Viewing Angle : 178° (H) / 178° (V)

• Adobe RGB / DCI-P3 / sRGB : 88% / 93% / 131% (CIE1976 Standard)

• Surface Treatment : Anti-glare

• Display Colors : 1.07B, 10 bits (8 bits + FRC)

• Console Mode

  • Supported Resolution & Refresh Rate:

  • 1080p: 60Hz and 120Hz

  • 1440p: 60Hz and 120Hz

  • 2160p: 60Hz and 120Hz

  • HDMI™ CEC: Supported

  • VRR: PS5 and Xbox Supported

• Power Type : Internal Power Board

• Power Input : 100~240V, 50/60Hz

• Adjustment (Tilt) : -5° ~ 20°

• Adjustment (Swivel) : -30° ~ 30°

• Adjustment (Pivot) : -90° ~ 90°

• Adjustment (Height) : 0~130 mm

• Kensington Lock : Yes

• VESA Mounting : 100 x 100 mm

• Dimension with Stand (W x D x H) : 613.5 x 227.9 x 536.3mm (24.1 x 8.9 x 21.1 inch)

• Dimension without Stand (W x D x H) 613.5 x 54.6 x 365.4mm : (24.1 x 2.1 x 14.3 inch)

• Weight (NW / GW) : 7.4 kg (16.3lbs) / 10 kg (22 lbs)

• Carton Dimension (W X D X H) : 840 x 148 x 475mm (33 x 5.8 x 18.7 inch)

• Accessories

• 1x DisplayPort Cable (1.4a), 1x USB TypeB to A Cable, 1x Power Cord (C13), 1x Quick Guide, 4x Stand Screw

• Note

  • HDMI™: Normal(UHD) : 3840 x 2160 (Up to 160Hz)

  • Dual(FHD) : 1920 x 1080 (Up to 320Hz)

  • DisplayPort: Normal(UHD) : 3840 x 2160 (Up to 160Hz)

  • Dual(FHD) : 1920 x 1080 (Up to 320Hz)

  • Support: HDMI™ CEC, PIP/PBP; Non

  • Support: KVM
