MSI MAG B760M MORTAR WIFI DDR4 mATX Motherboard - Black

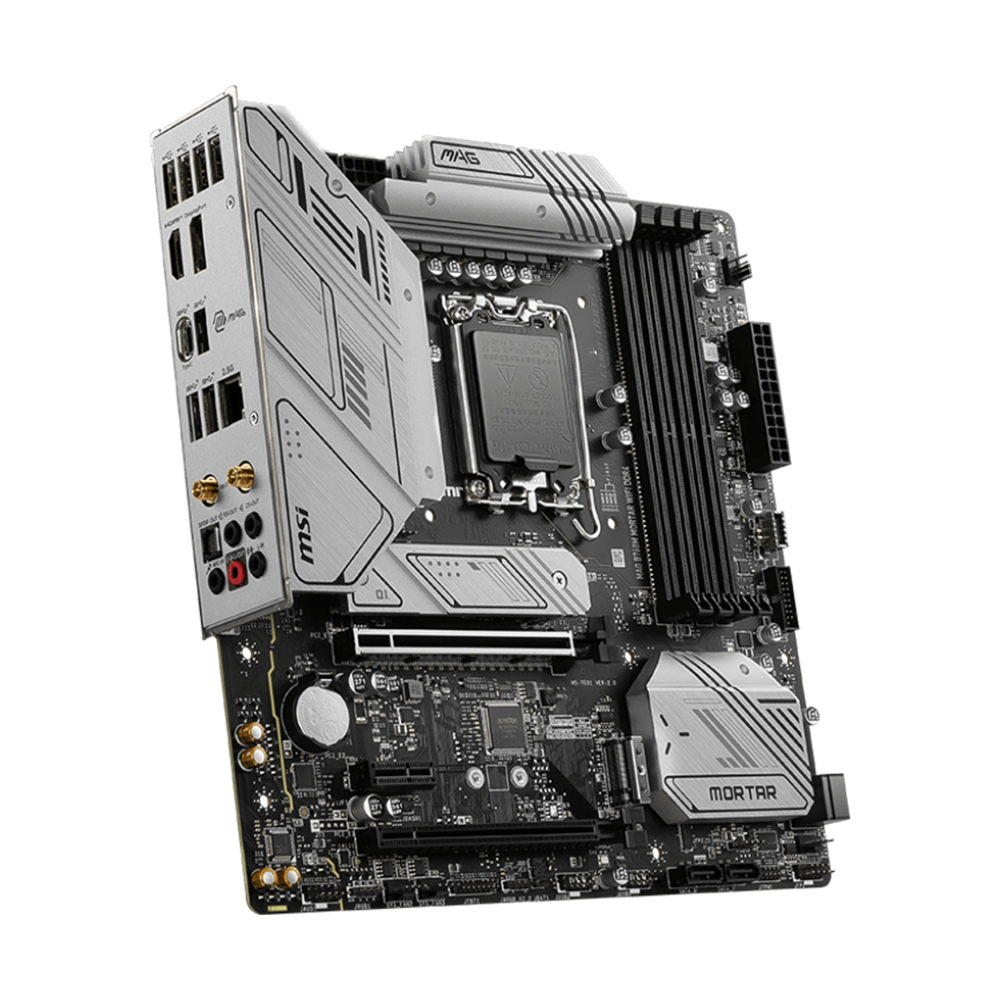

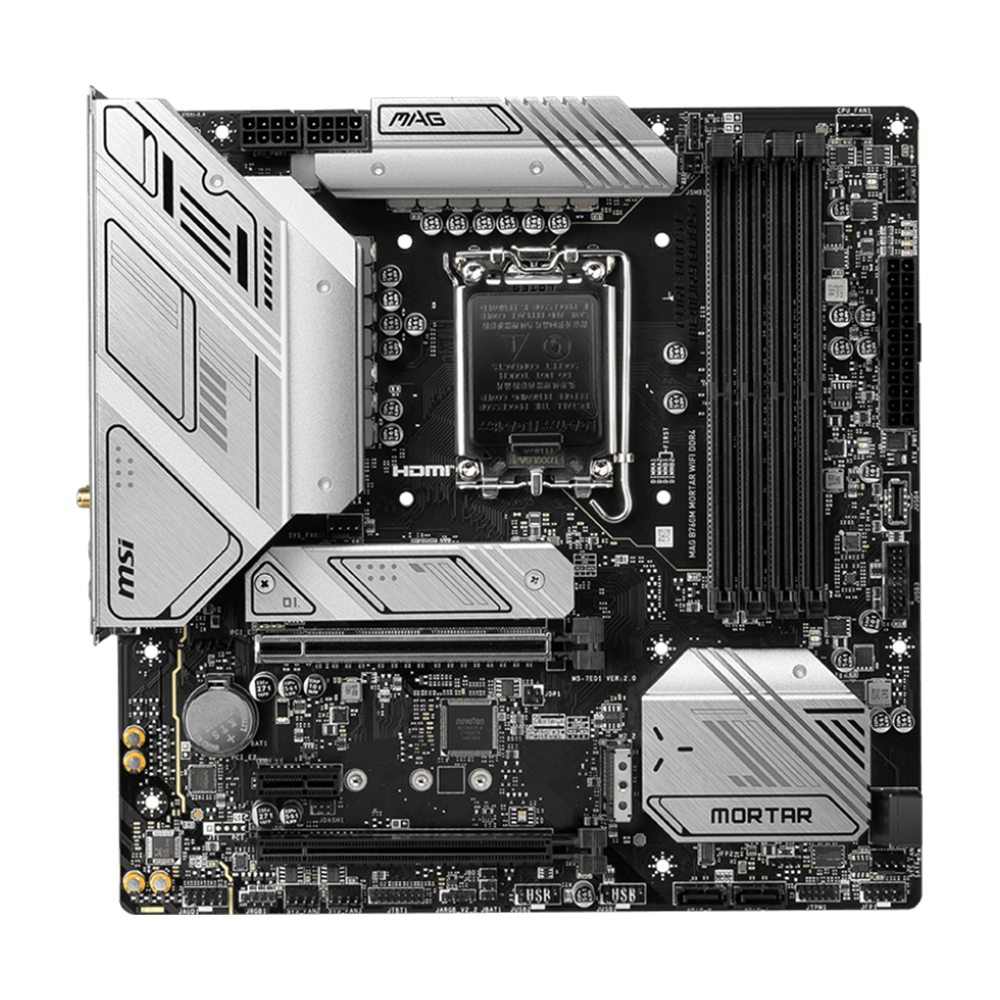

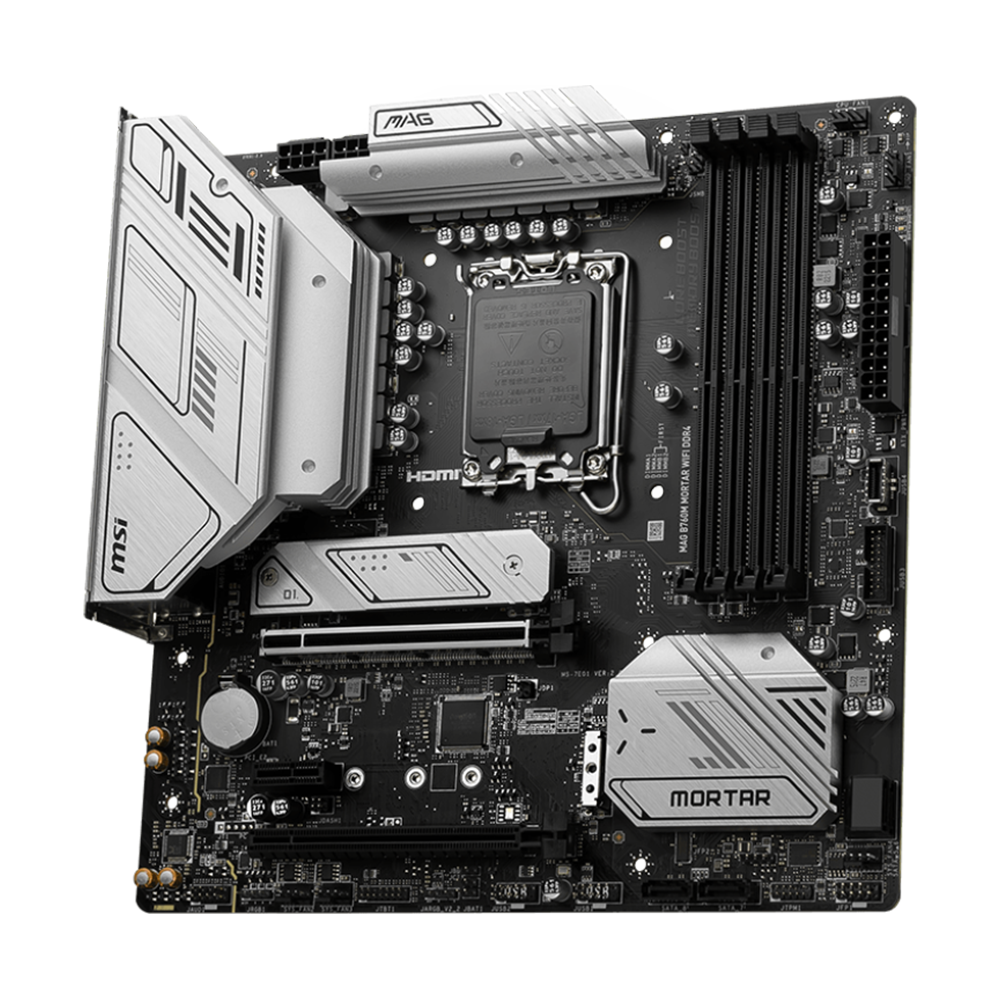

MSI MAG B760M MORTAR WIFI DDR4 mATX Motherboard

The MAG series fights alongside gamers in pursuit of honor.

With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.
msi fully control software

PERFORMANCE

A HUGE STEP OF DDR PERFORMANCE

MSI OC LAB does not merely work hard on extreme overclocking. The XMP memory profile has great improvement on performance and efficiency for B760. Easy to enable XMP profile with auto power settings to get the best memory speed and stability.
MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.

Connectivity

EXTEND YOUR RGB EXPERIENCE WITH EASE

Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

2.5G LAN & WI-FI 6E

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI's premium network solution provides incredible data transfer speed for demanding users.

    Wi-Fi 6E

    Bluetooth 5.3

    2.5G LAN

Specifications

• Chipset : INTEL B760

• CPU SUPPORT : Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors

                                                LGA 1700

• Memory : 4x DDR4, Maximum Memory Capacity 128GB

              Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
    Max. overclocking frequency:
        • 1DPC 1R Max speed up to 5333+ MHz
        • 1DPC 2R Max speed up to 4800+ MHz
        • 2DPC 1R Max speed up to 4400+ MHz
        • 2DPC 2R Max speed up to 4000+ MHz
        Supports Dual-Channel mode
        Supports non-ECC, un-buffered memory
        Supports Intel® Extreme Memory Profile (XMP)

• Onboard Graphics : Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*

                                                    Support DP 1.4, maximum resolution of 4K 60Hz*
        *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
                                                    1x HDMI™
                                                    1x DisplayPort

• EXPANSION SLOT : 2x PCI-E x16 slot

                                                1x PCI-E x1 slot
                                                PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
                                                PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
                                                PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)

• Storage : 2x M.2 slot

                                                M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
                                                M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
                                                4x SATA 6G port

• RAID : Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• USB : 4x USB 2.0 (Rear)

                                                4x USB 2.0 (Front)
                                                2x USB 3.2 Gen1 Type A (Front)
                                                3x USB 3.2 Gen2 Type A (Rear)
                                                1x USB 3.2 Gen2 Type C (Front)
                                                1x USB 3.2 Gen2x2 Type C (Rear)

• LAN : Realtek® 2.5Gbps LAN

• WIRELESS / BLUETOOTH    : Intel® Wi-Fi 6E

              The Wireless module is pre-installed in the M.2 (Key-E) slot
              Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
               Supports 802.11 a/ b/ g/ n/ ac/ ax
                Supports Bluetooth® 5.3, FIPS, FISMA
            * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11."

• Audio : Realtek® ALC897 Codec

                            7.1-Channel USB High Performance Audio

• Internal I/O : 1x Power Connector(ATX_PWR)

                                    2x Power Connector(CPU_PWR)
                                    1x CPU Fan
                                    1x Pump Fan
                                    4x System Fan
                                    2x Front Panel (JFP)
                                    1x Chassis Intrusion (JCI)
                                    1x Front Audio (JAUD)
                                    1x TBT connector (JTBT, supports RTD3)
                                    1x Tuning Controller connector(JDASH)
                                    2x Addressable V2 RGB LED connector (JARGB_V2)
                                    1x RGB LED connector(JRGB)
                                    1x TPM pin header(Support TPM 2.0)
                                    4x USB 2.0
                                    2x USB 3.2 Gen1 Type A
                                    1x USB 3.2 Gen2 Type C

• LED FEATURE : 4x EZ Debug LED

• BACK PANEL PORTS : USB 2.0

                                                        Display Port
                                                        USB 3.2 Gen 2 10Gbps
                                                        2.5G LAN
                                                        Audio Connectors
                                                        HDMI™
                                                        USB 3.2 Gen 2x2 20Gbps (Type-C)
                                                        USB 3.2 Gen 2 10Gbps
                                                        Wi-Fi / Bluetooth
                                                        Optical S/PDIF OUT

• OPERATING SYSTEM  : Support for Windows® 11 64-bit, Windows® 10 64-bit
• PCB Dimension  : mATX

                                                243.84mmx243.84mm
