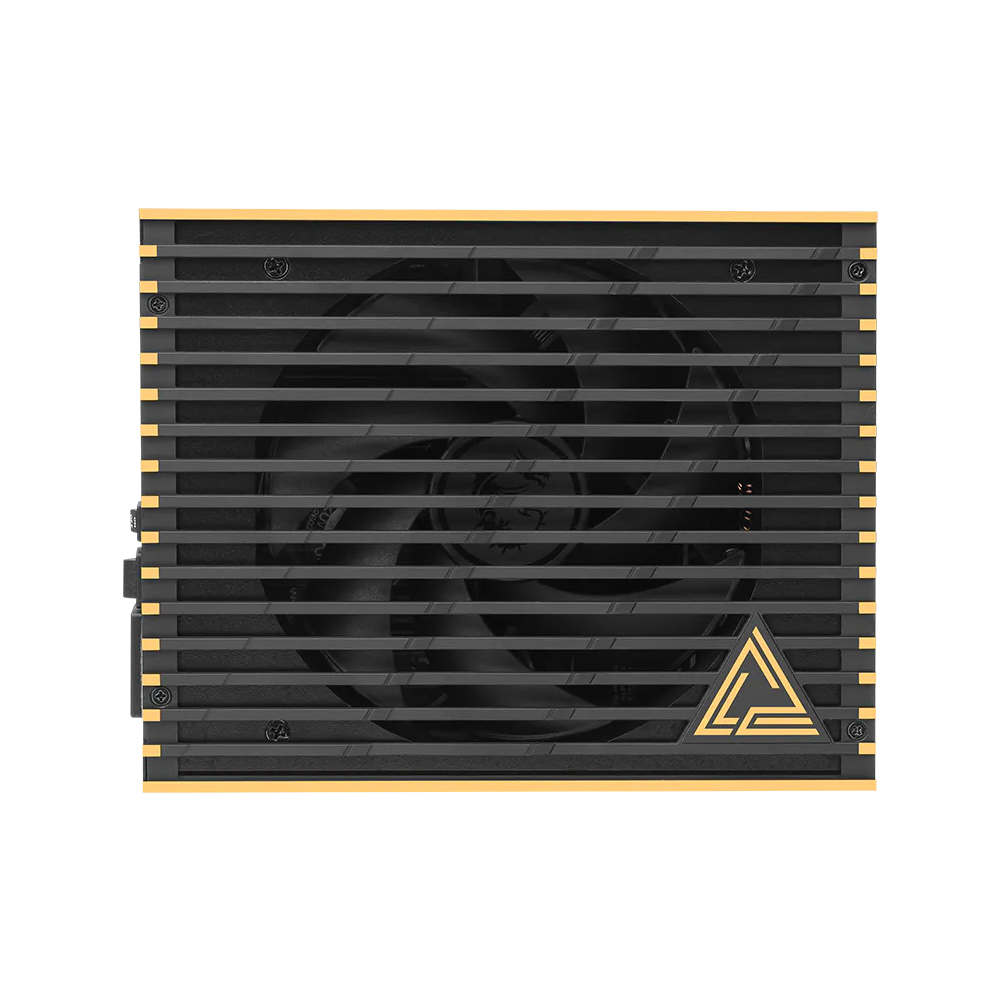

MSI MEG Ai1600T 1600W Fully Modular PCIE5 ATX 3.1 80 Plus Titanium Power Supply - Black

Key Features

• Supports Nvidia^® GeForce RTX^TM 50 Series graphics cards
• Dual-native 12V-2x6 Connectors
• Server-grade materials, SiC interleaved PFC MOSFET
• Tri-certified Titanium certification (80 PLUS / Cybenetics / PPLP)
• PCIe 5.1 and ATX 3.1 Ready
• Dual-color 12V-2x6 cables
• 100% all Japanese 105^oC capacitor
• Full digital design with control MCU
• Industrial level protection with OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO

MSI's flagship MEG series exemplifies relentless innovation, continuously setting new benchmarks in the gaming hardware space. This trailblazing series employs pioneering technology to push the boundaries of gaming, consistently leading with innovations that redefine what gamers expect.

Quality Test Challenges
Each product undergoes hundreds of strict quality checks before leaving the factory to ensure it reaches consumers with assured quality. The MEG Ai1600T PCIE5 reveals the most important items result, users can witness each test, showcasing its quality.

Specifications

• Efficiency Rating : 80 PLUS Titanium (up to 94%)

• Modular : Yes (Fully Modular)

• Fan Size : 135 mm

• Fan Bearing : Double Ball Bearing

• Dimensions (DxWxH) : 190 x 150 x 86 mm

• PFC Type : Interleaved PFC

• Input Voltage Range : 100-240

• Power Watt : 1600W

• Power Excursion : 3840W (*up to 240% of the PSU's rated power for 100μs)

• Input Frequency Range : 50~60 Hz

• Protection : OCP / OTP / OPP / SCP / OVP / UVP / SIP / NLO

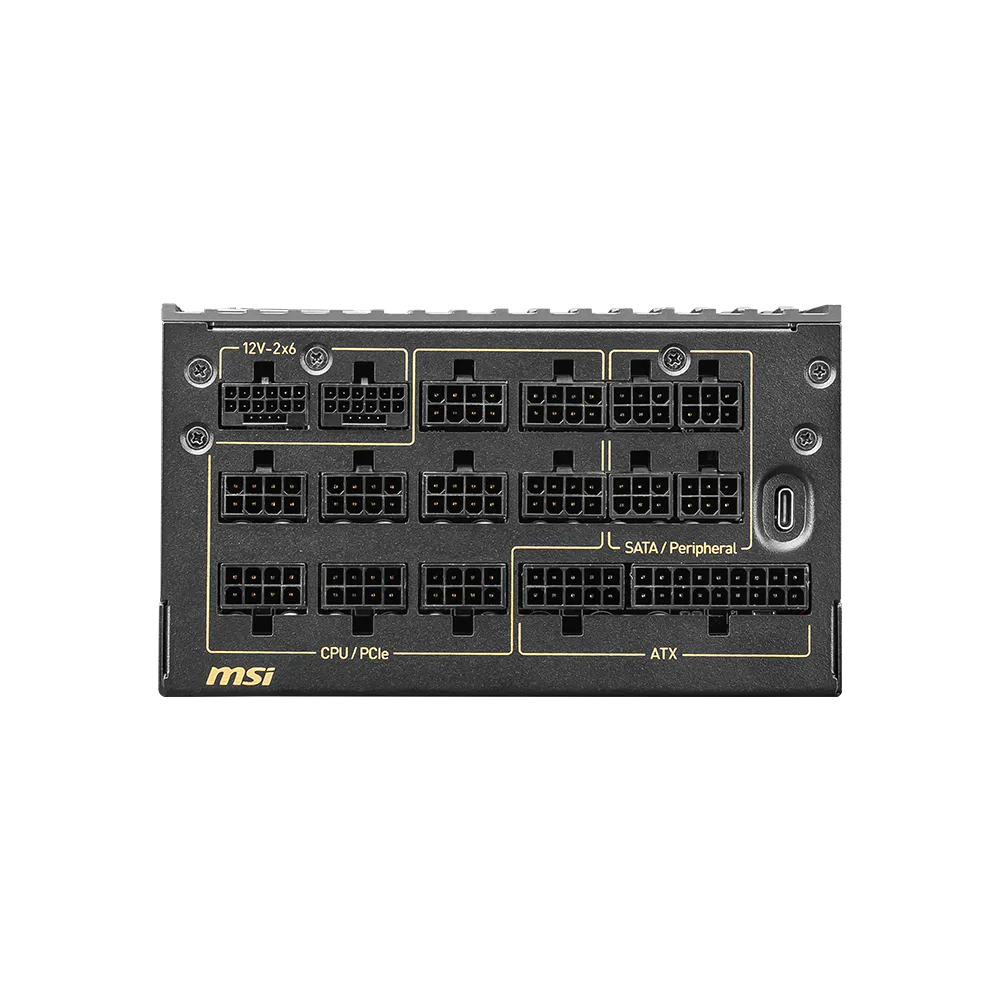

• ATX (24 pin) : 1

• EPS (4+4 pin) : 2

• PCI-E 5.1 (16 pin) : 2 (600W)

• PCI-E (6+2 pin) : 9

• SATA (15 pin) : 8

• PERIPHERAL (4 pin) : 8
