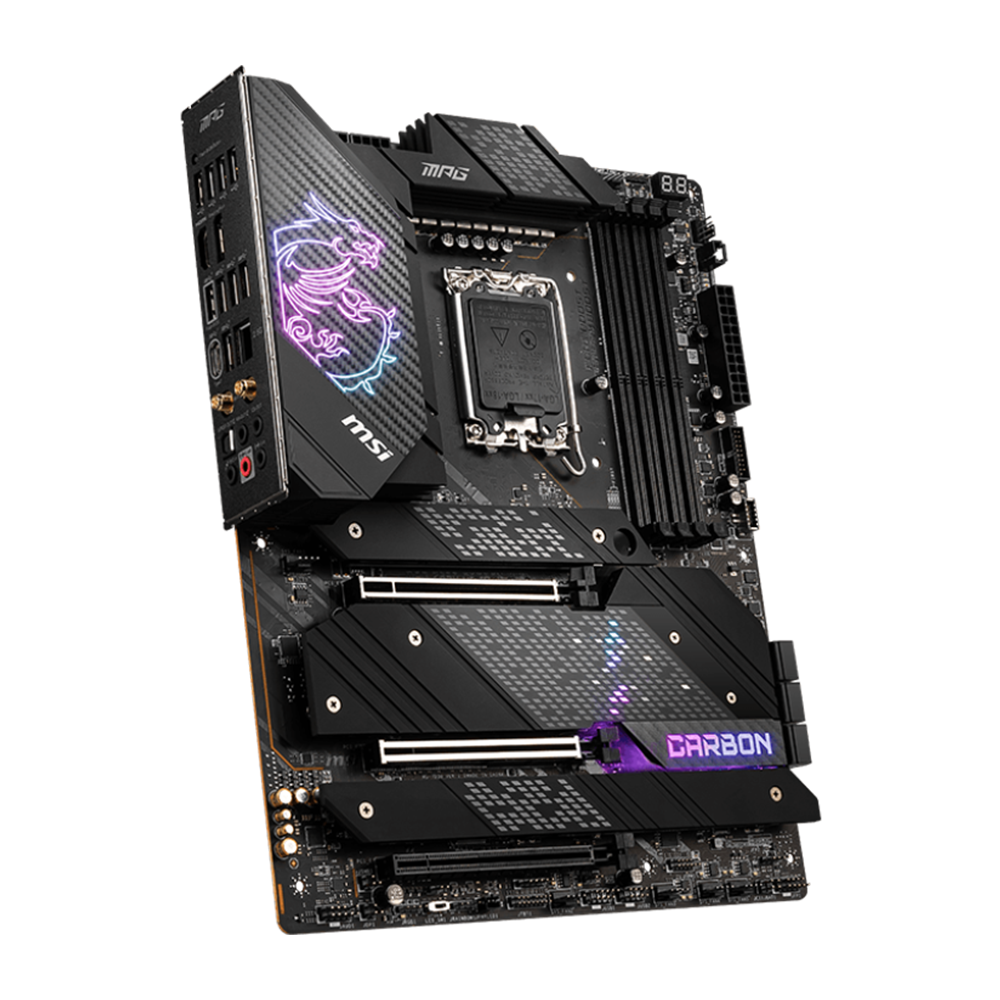

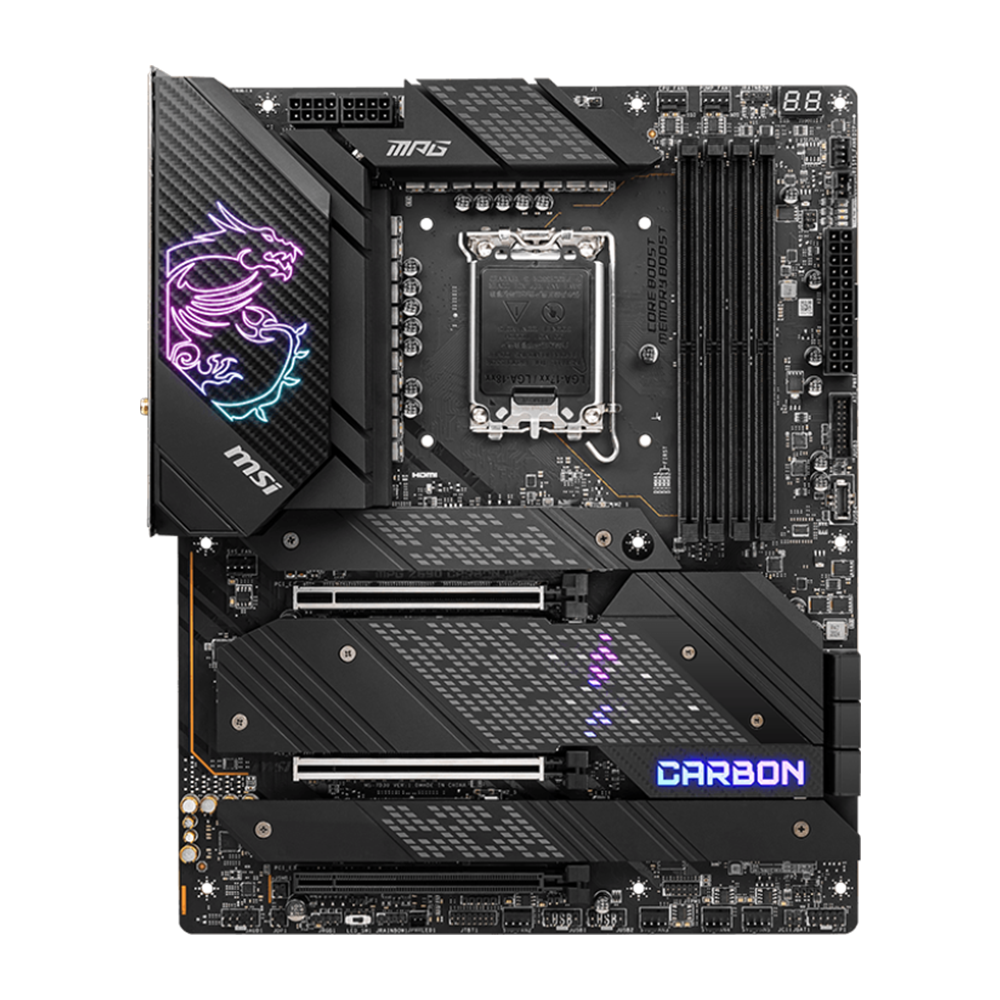

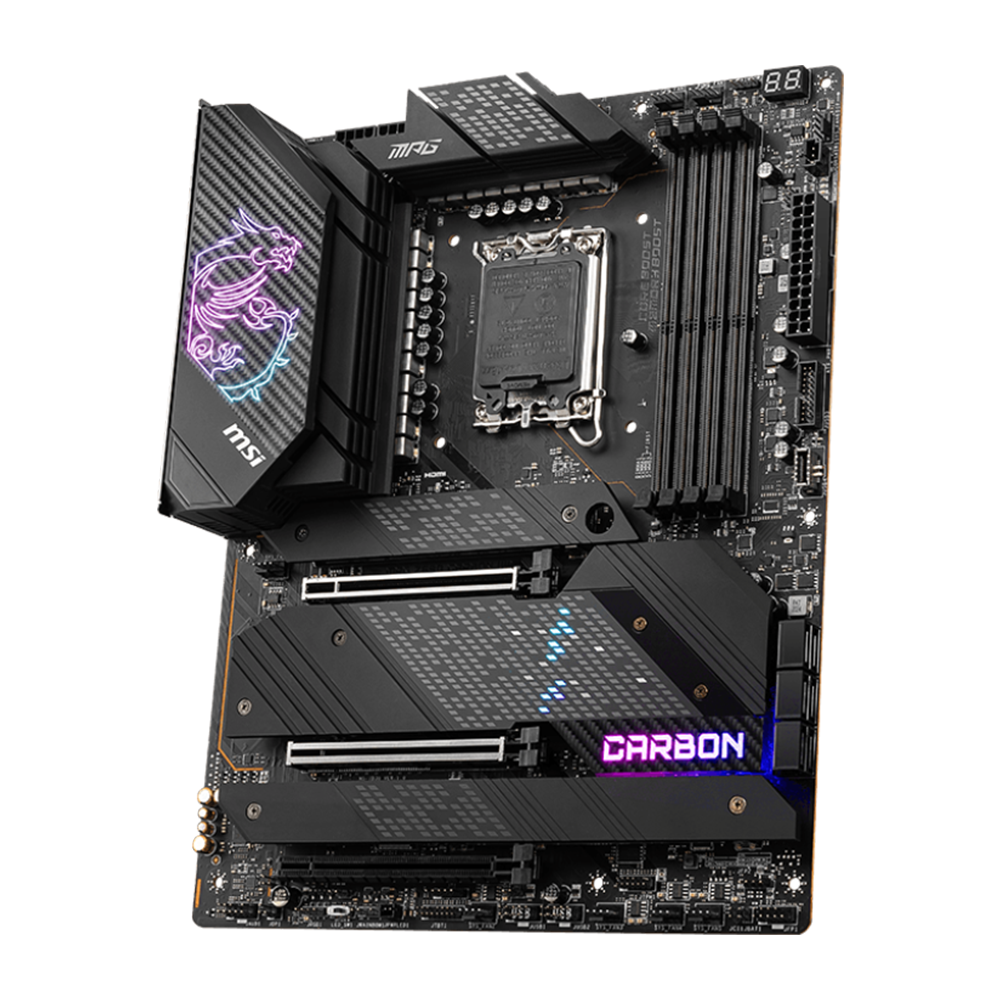

MSI MPG Z690 CARBON WIFI DDR5 ATX Motherboard - Black

MSI MPG Z690 Carbon WIFI DDR5 ATX Motherboard

Premium Thermal Design
Heavy plated MOSFET heatsink with heat-pipe, high quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.

Core Boost Technology
Combining 2x 8 pin power connectors and premium layout design, that is ready for unleashing the maximum performance.

M.2 SHIELD FROZR

World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.

FROZR AI COOLING

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

FULLY CONTROLLABLE IN BIOS AND SOFTWARE

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT

Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

LATEST DDR5 MEMORY

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MPG Z690 CARBON WIFI is ready to deliver the world class memory performance.
EXTREME STABILITY & COMPATIBILITY TESTING

MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules, configurations and even improve overclocking.

SMT DDR5 MEMORY SLOT

The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.

EASY OVERCLOCKING WITH XMP PROFILE

The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

SURFACING WITH THE REAL MU-MIMO TECHNOLOGY

The latest Wi-Fi 6E solution supports 6GHz spectrum, Bluetooth 5.2, two-way MU-MIMO and BSS color technology, provide up to 4X network capacity and efficiency in the high signal density environment, delivering speeds up to 2400Mbps.

OPTIMIZE ONLINE GAMING TRAFFIC FOR LOWER LATENCY!

MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.

MSI LAN MANAGER

    - Automatically prioritizes games above other applications -

    - Allows you to change applications' traffic priority -

    - Allows you to customize bandwidth for each application -

Specifications

• CPU (MAX SUPPORT) : i9

• SOCKET : 1700

• CHIPSET : Intel ® Z690 Chipset

• DDR5 MEMORY : 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6133(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(JEDEC) MHz

• MEMORY CHANNEL : Dual

• DIMM SLOTS : 4

• MAX MEMORY (GB) : 128

• PCI-E X16 : 3

• SATAIII : 6

• M.2 SLOT : 5

• RAID : 0/1/5/10

• LAN : 1x Intel ® I225V 2.5Gbps LAN controller

• WIFI & BLUETOOTH : Intel ® Wi-Fi 6E module

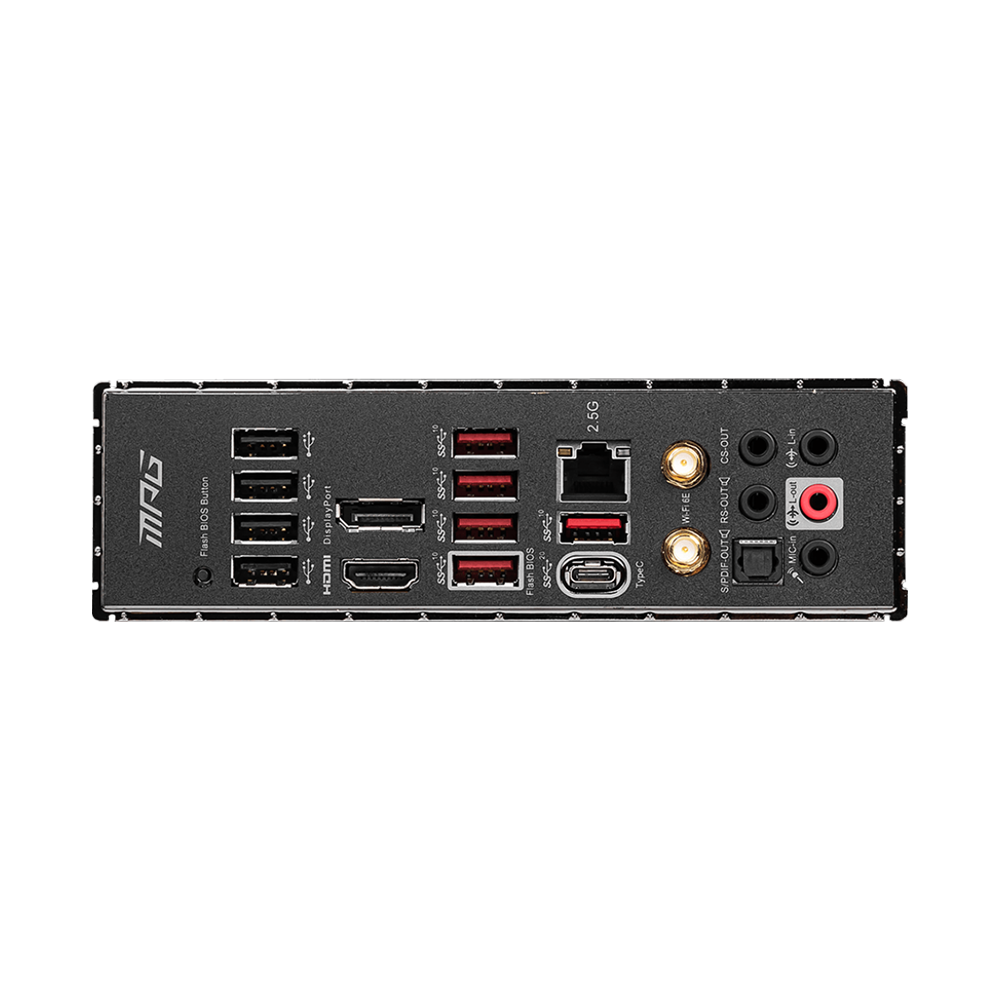

• USB 3.2 PORTS (FRONT) : 1(Gen 2, Type C), 2(Gen 1, Type A)

• USB 3.2 PORTS (REAR) : 1(Gen 2x2, Type C), 5(Gen 2, Type A)

• USB 2.0 PORTS (FRONT) : 4

• USB 2.0 PORTS (REAR) : 4

• DIMENSION : 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

• AUDIO PORTS (REAR) : 5+ Optical S/PDIF (Realtek ® ALC4080 Codec)

• DISPLAYPORT : 1

• HDMI : 1

• DIRECTX : 12

• FORM FACTOR : ATX

• CROSSFIRE : Y

• OPERATING SYSTEM : Support for Windows ® 11 64-bit, Windows ® 10 64-bit
