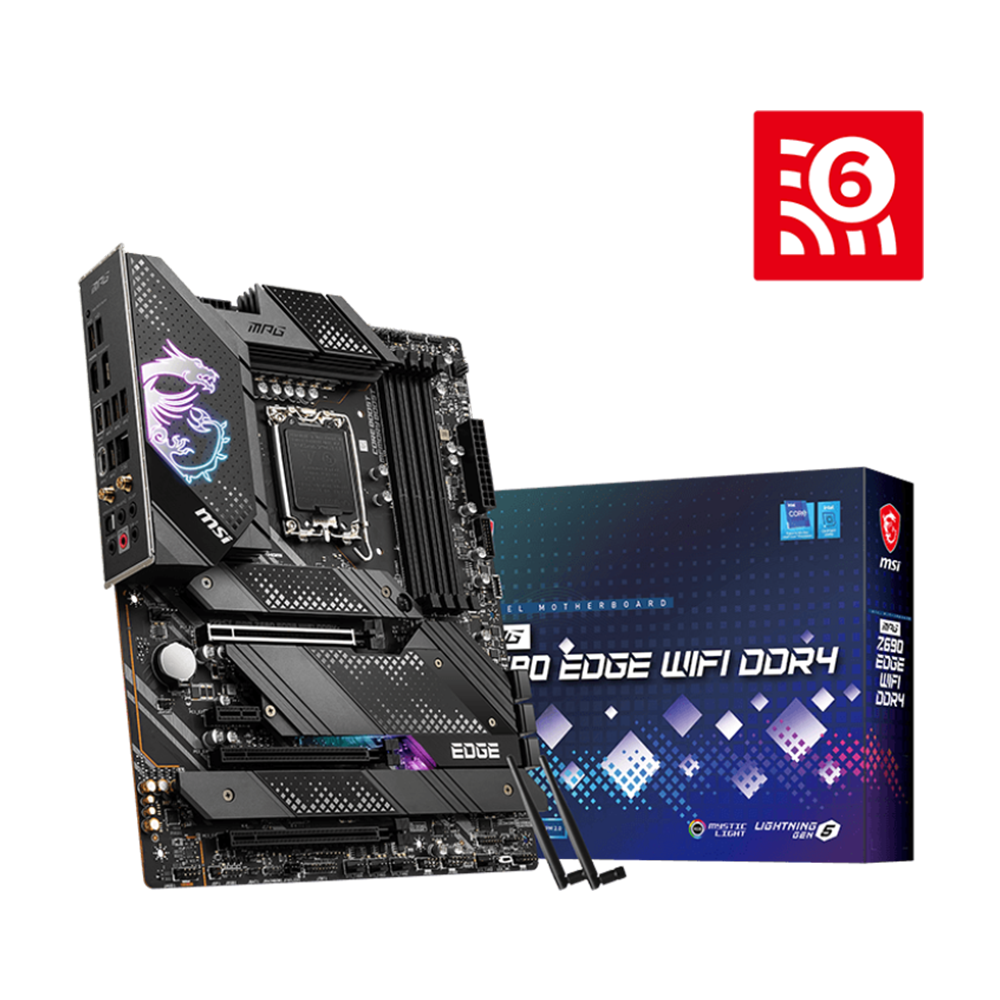

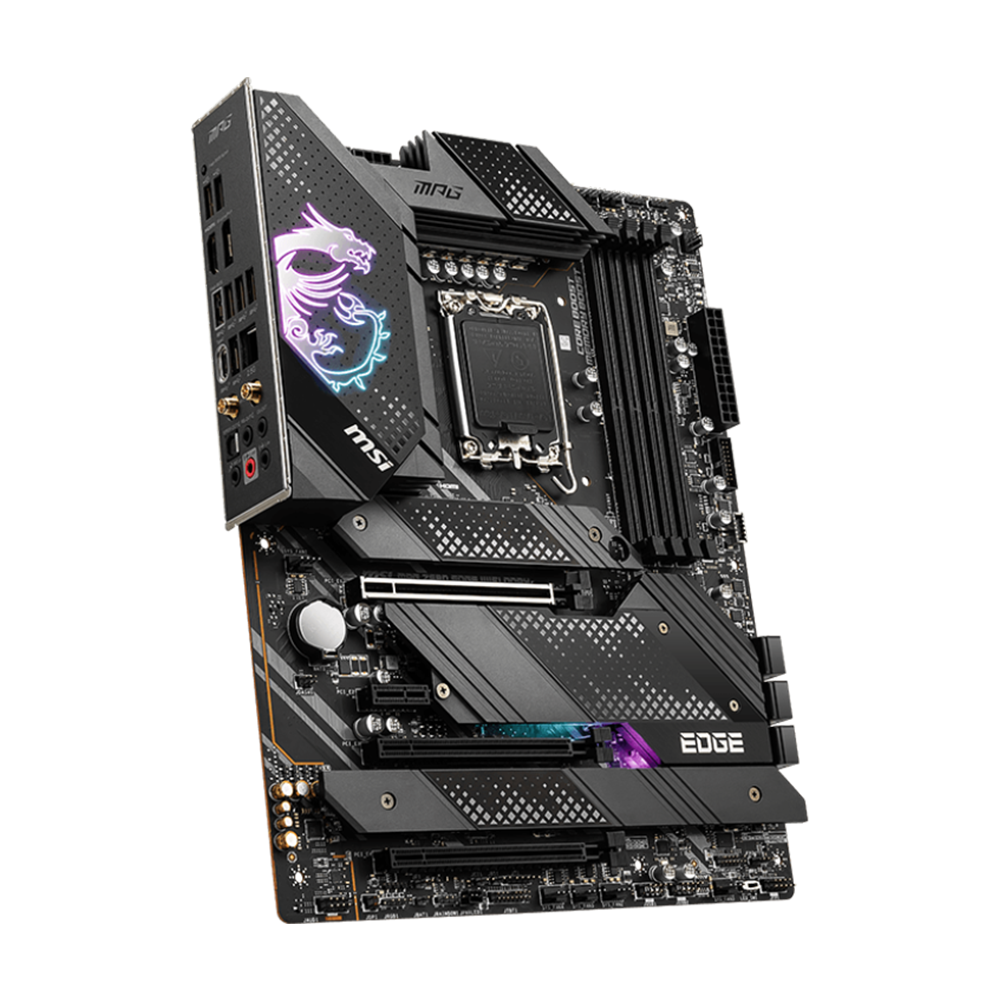

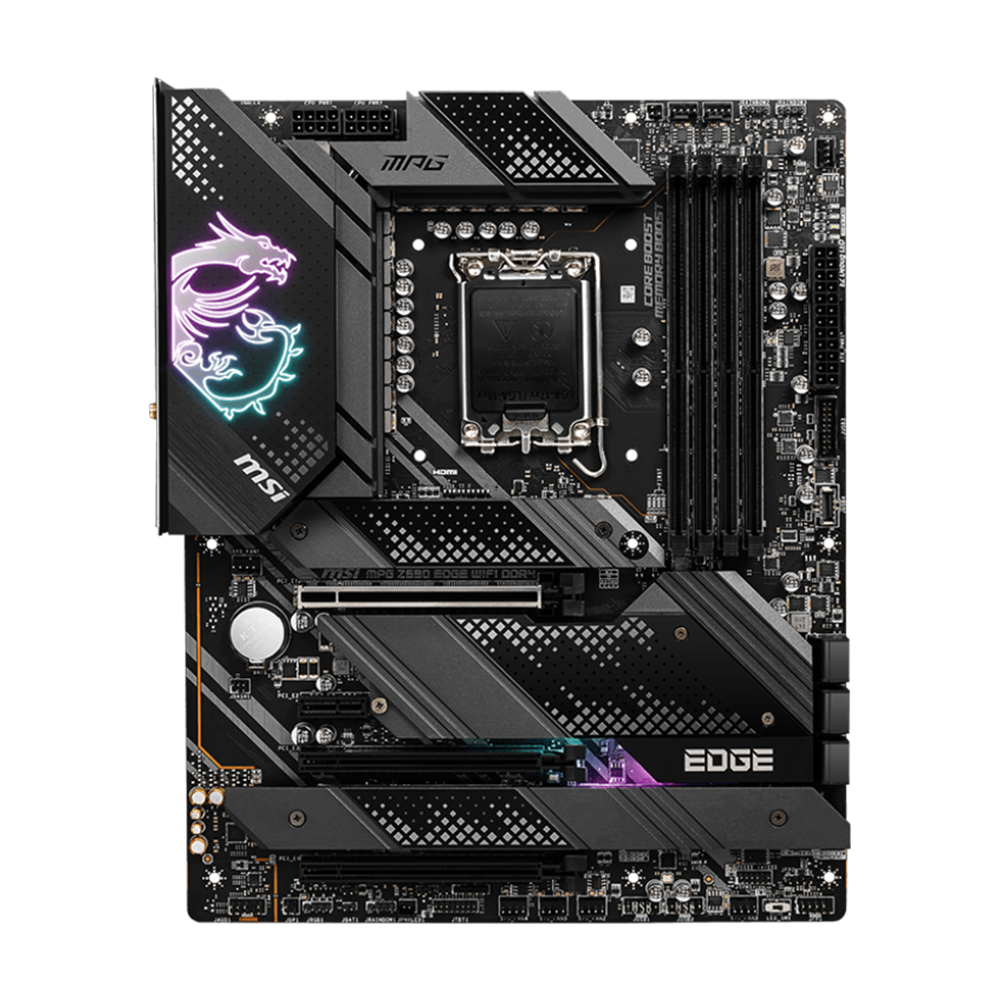

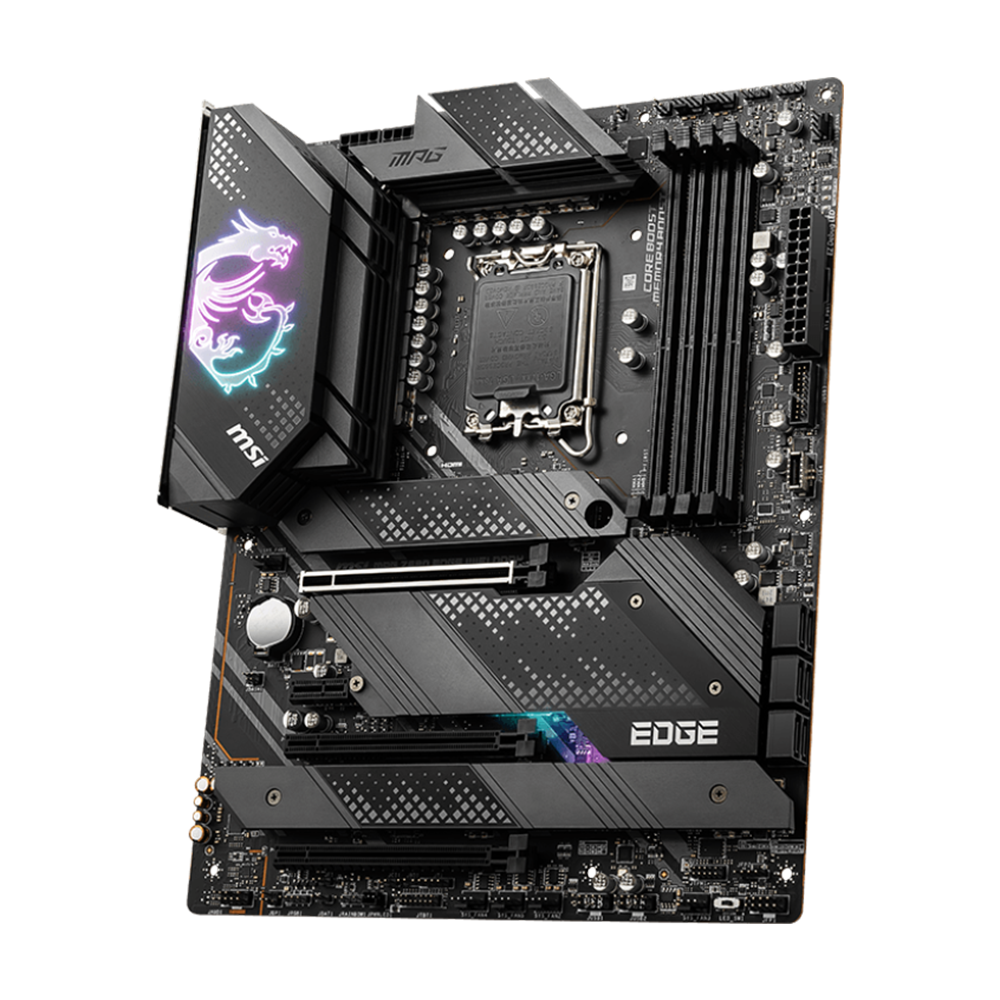

MSI MPG Z690 EDGE WIFI DDR4 ATX Motherboard - Black

MSI MPG Z690 EDGE WIFI DDR4 ATX Motherboard

EXTREME STABILITY & COMPATIBILITY TESTING

MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules, configurations and even improve overclocking.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

M.2 SHIELD FROZR

Worlds fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.

FROZR AI COOLING

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

FULLY CONTROLLABLE IN BIOS AND SOFTWARE

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

DIY 2.0 INTEGRATING WITH THE SYSTEM ENVIRONMENT

Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

Specifications

• CPU (MAX SUPPORT) : i9

• SOCKET : 1700

• CHIPSET : Intel® Z690 Chipset

• DDR4 MEMORY : 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz

• MEMORY CHANNEL : Dual

• DIMM SLOTS : 4

• MAX MEMORY (GB) : 128

• PCI-E X16 : 3

• PCI-E X1 : 1

• SATAIII : 6

• M.2 SLOT : 4

• RAID : 0/1/5/10

• LAN : 1x Intel® I225-V 2.5G LAN

• WIFI & BLUETOOTH : Intel® Wi-Fi 6 module

• USB 3.2 PORTS (FRONT) : 1(Gen 2, Type C), 2(Gen 1, Type A)

• USB 3.2 PORTS (REAR) : 1(Gen 2x2, Type C), 3(Gen 2, Type A), 2(Gen 1, Type A)

• USB 2.0 PORTS (FRONT) : 4

• USB 2.0 PORTS (REAR) : 2

• AUDIO PORTS (REAR) : 5+ Optical S/PDIF (Realtek® ALC4080 Codec)

• DISPLAYPORT : 1

• HDMI  : 1

• DIRECTX : 12

• FORM FACTOR : ATX

• CROSSFIRE : Y

• OPERATING SYSTEM : Support for Windows® 11 64-bit, Windows® 10 64-bit
