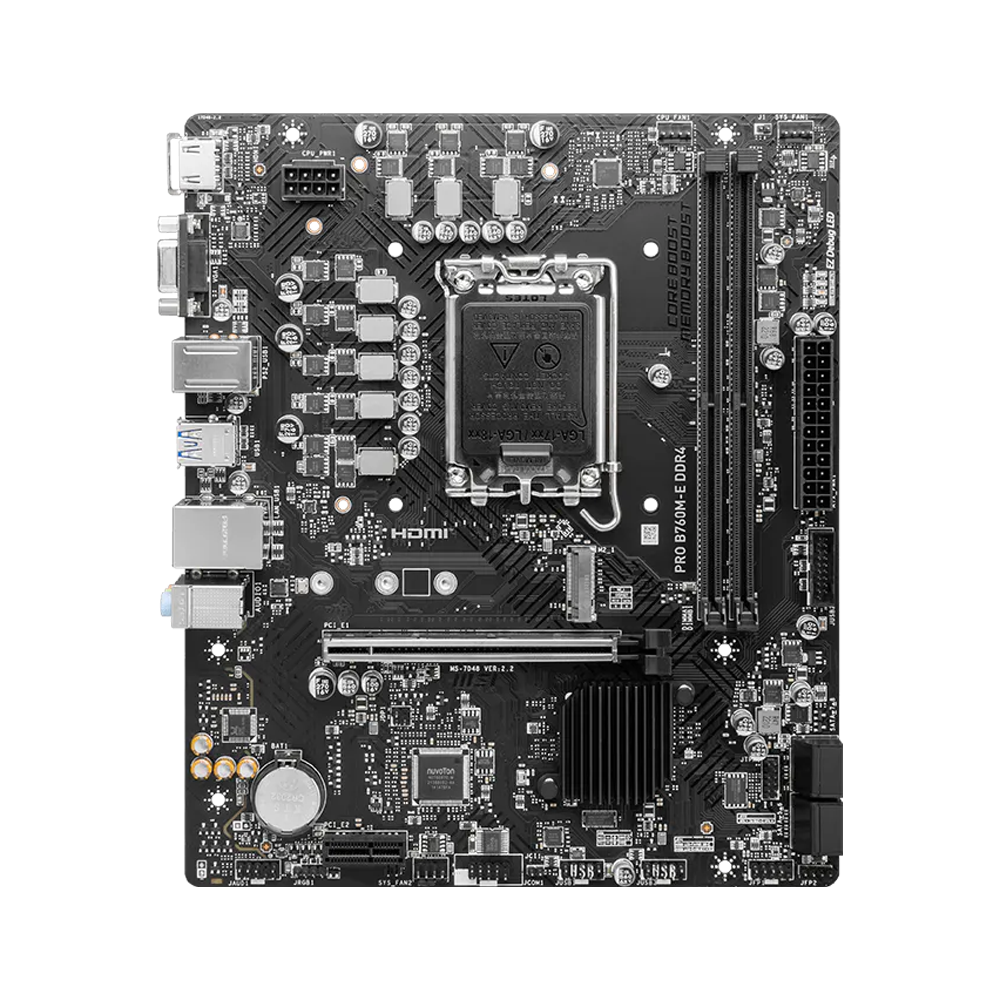

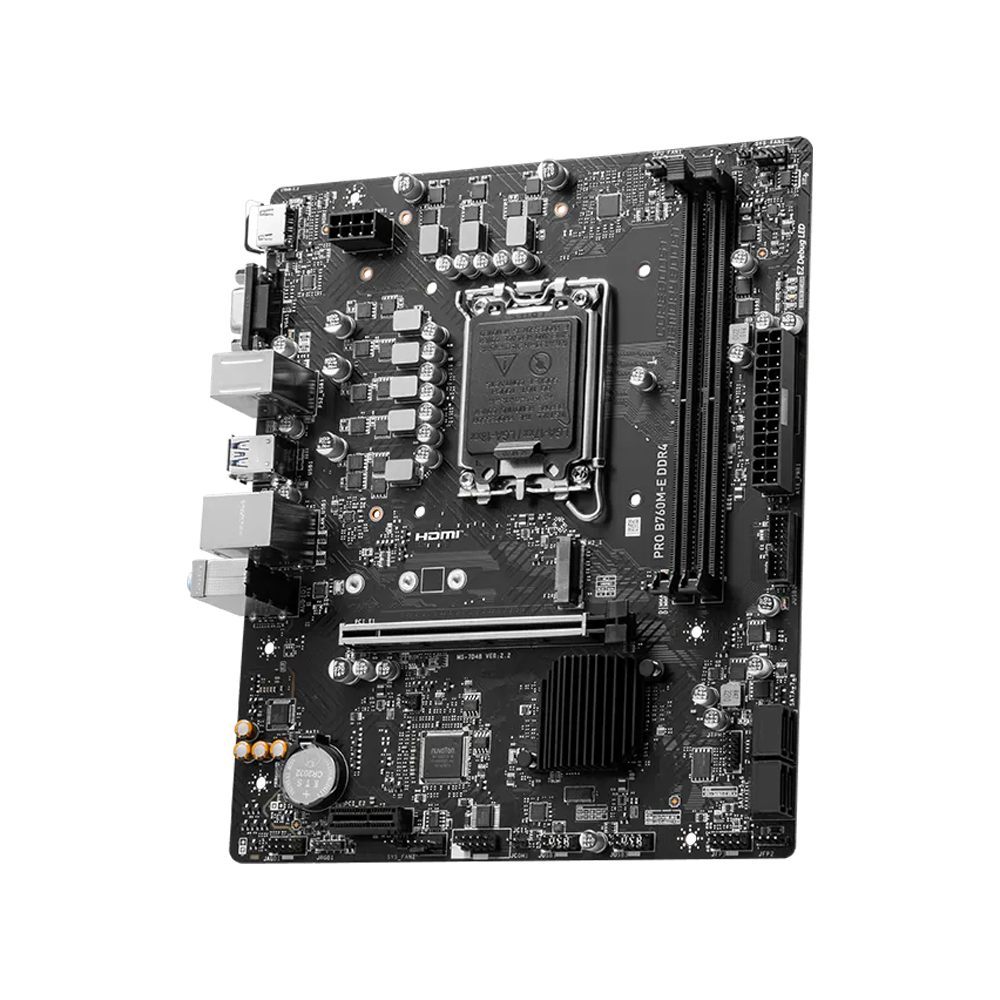

MSI PRO B760M-E DDR4 Motherboard - Black

PRO B760M-E DDR4

• Support Intel^® Core™ 14th/ 13th/ 12th Gen Processors, Intel^® Pentium^® Gold and Celeron^® Processors for LGA 1700 socket

• Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC)

• Core Boost : With premium layout and digital power design to support more cores and provide better performance

• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility

• Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2

• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

PRO B760M-E DDR4 is designed with tons of flexible tools with DDR4 memory version.

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

CORE BOOST
Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.

DDR4 Memory Solution
With MSI Memory Boost technology and premium layout design, MSI PRO Series motherboards are ready to deliver the world-class memory performance.

Bios & software

Exclusive UI of AIDA64 Extreme
MSI motherboards provide 60 days free trial of AIDA64 Extreme - MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.

Specifications

• Chipset : INTEL B760

• CPU : Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors

• LGA 1700

• Memory : 2x DDR4, Maximum Memory Capacity 64GB

• Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)

• Max. overclocking frequency:

• • 1DPC 1R Max speed up to 4800+ MHz

• • 1DPC 2R Max speed up to 4600+ MHz

• Supports Dual-Channel mode

• Supports non-ECC, un-buffered memory

• Supports Intel® Extreme Memory Profile (XMP)

• Onboard Graphics 1x HDMI™

• Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*

• 1x VGA

• Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

• *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

• Slot : 1x PCI-E x16 slot

• 1x PCI-E x1 slot

• PCI_E1 Gen PCIe 4.0 supports up to (From CPU)

• PCI_E2 Gen PCIe 3.0 supports up to (From Chipset)

• Audio : Realtek® ALC897 Codec

• 7.1-Channel High Definition Audio

• Storage 1x M.2

• M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

• 4x SATA 6G

• * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

• RAID : Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

• USB : 4x USB 2.0 (Rear)

• 4x USB 2.0 (Front)

• 2x USB 5Gbps Type A (Rear)

• 2x USB 5Gbps Type A (Front)

• LAN : Realtek® RTL8111H Gigabit LAN

• Internal IO : 1x Power Connector(ATX_PWR)

• 1x Power Connector(CPU_PWR)

• 1x CPU Fan

• 2x System Fan

• 2x Front Panel (JFP)

• 1x Chassis Intrusion (JCI)

• 1x Front Audio (JAUD)

• 1x Com Port (JCOM)

• 1x RGB LED connector(JRGB)

• 1x TPM pin header(Support TPM 2.0)

• 2x USB 2.0 ports

• 1x USB 5Gbps Type A ports

• LED FEATURE 4x EZ Debug LED

• BACK PANEL PORTS

• HDMI™

• VGA

• Keyboard / Mouse

• USB 3.2 Gen 1 5Gbps (Type-A)

• LAN port

• Audio Connectors

• USB 2.0

• USB 2.0

• OPERATING SYSTEM : Support for Windows® 11 64-bit, Windows® 10 64-bit

• BOX CONTENT

• PCB Info : mATX

• 200mmx236.16mm
