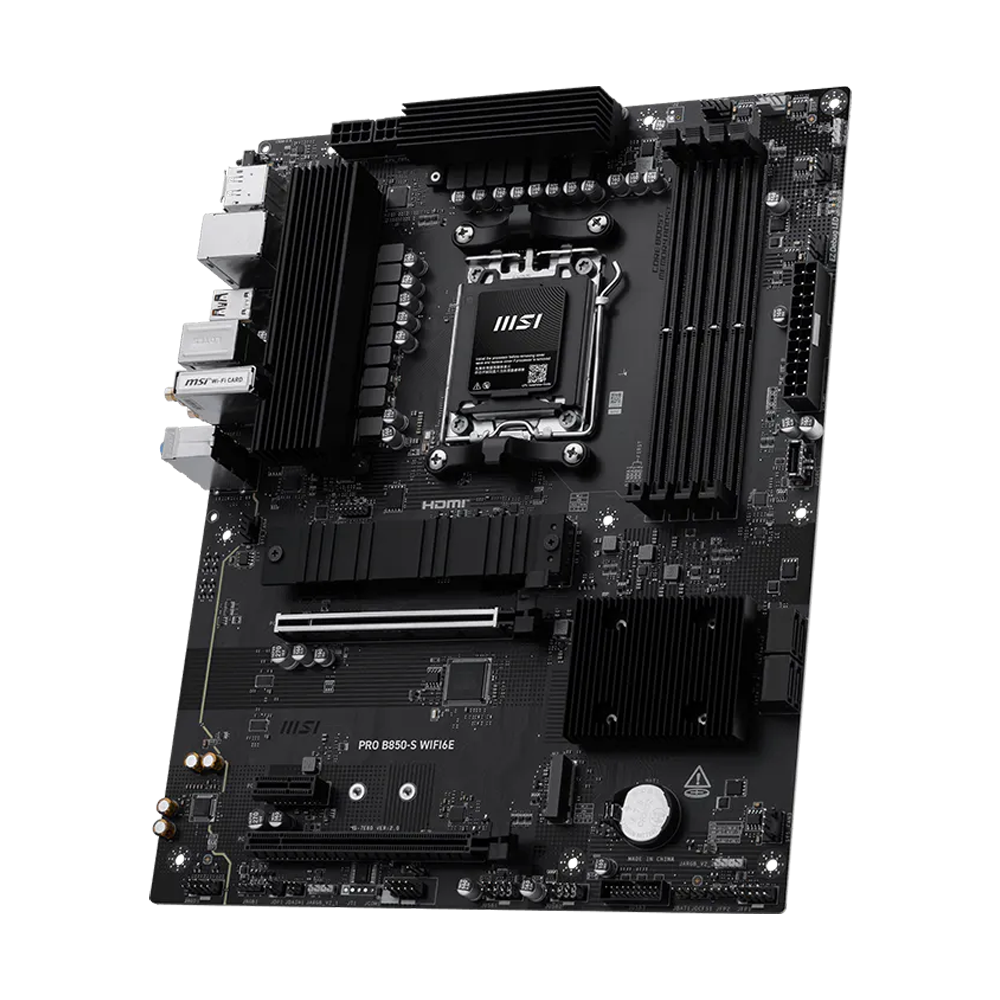

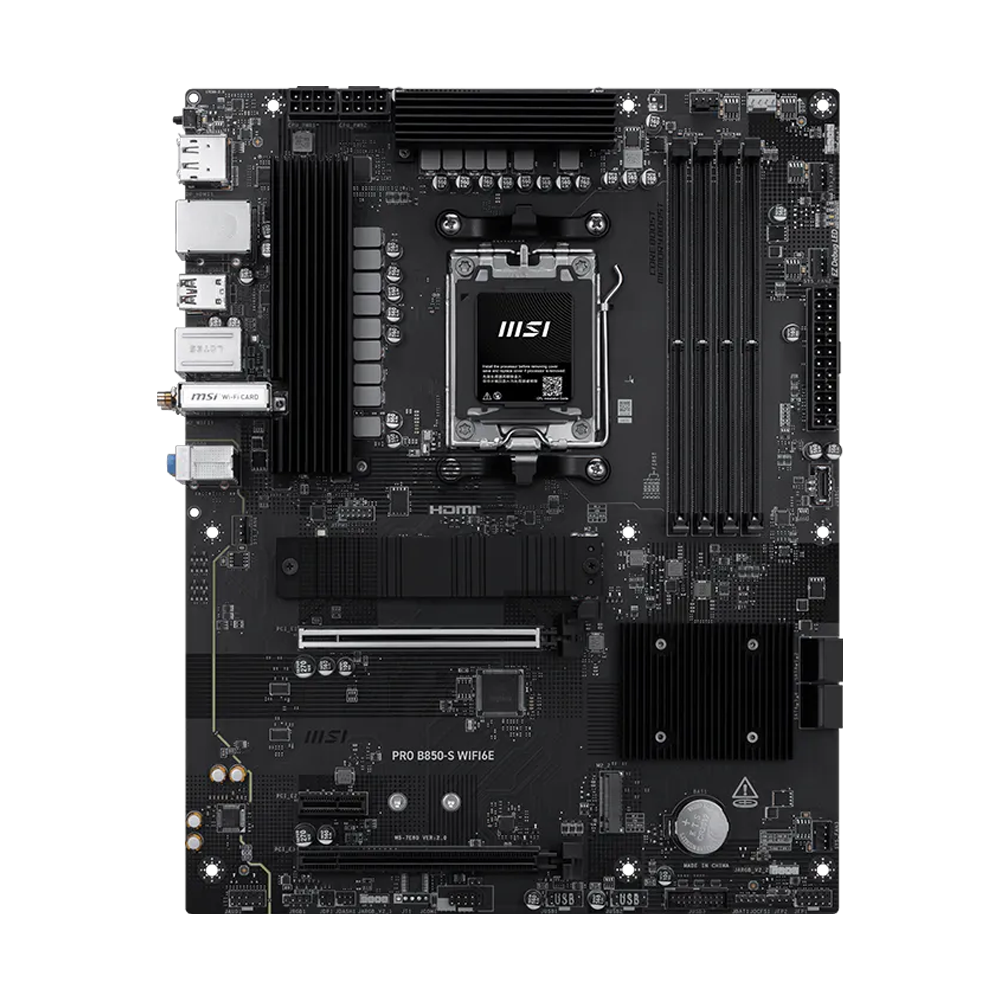

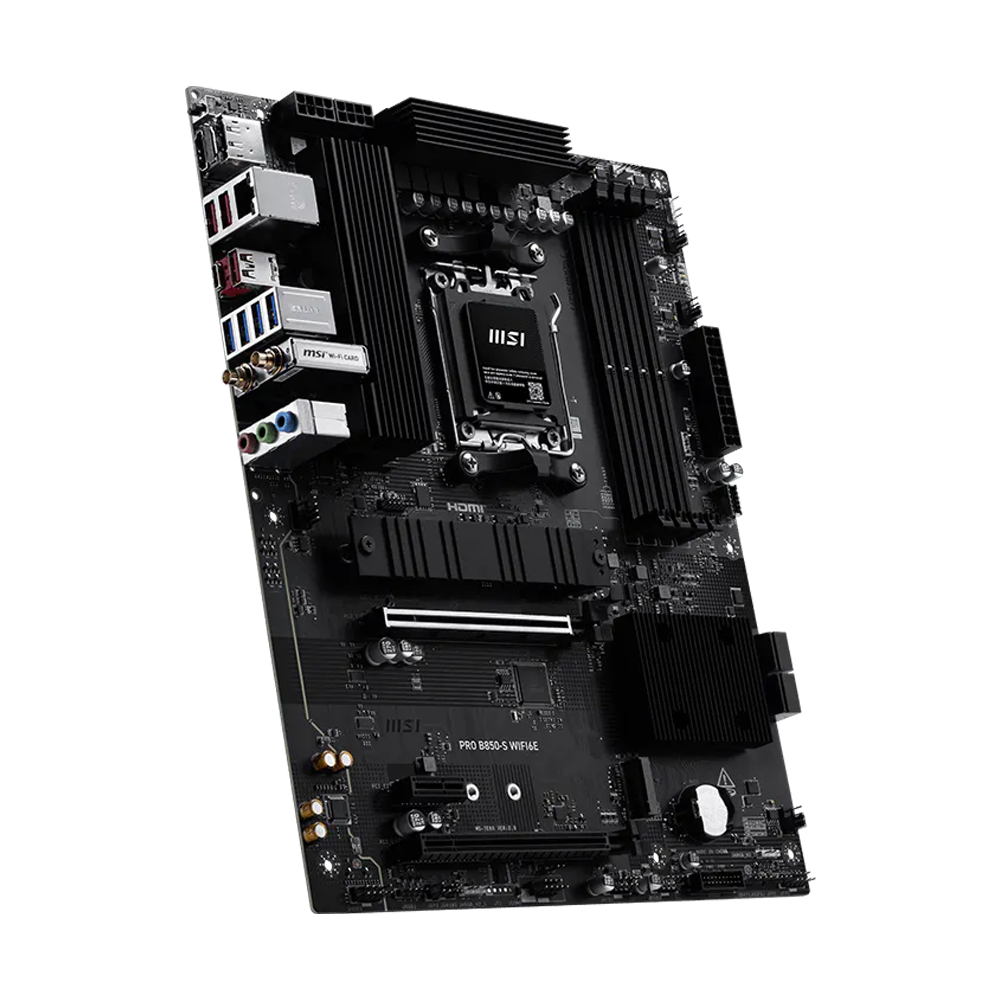

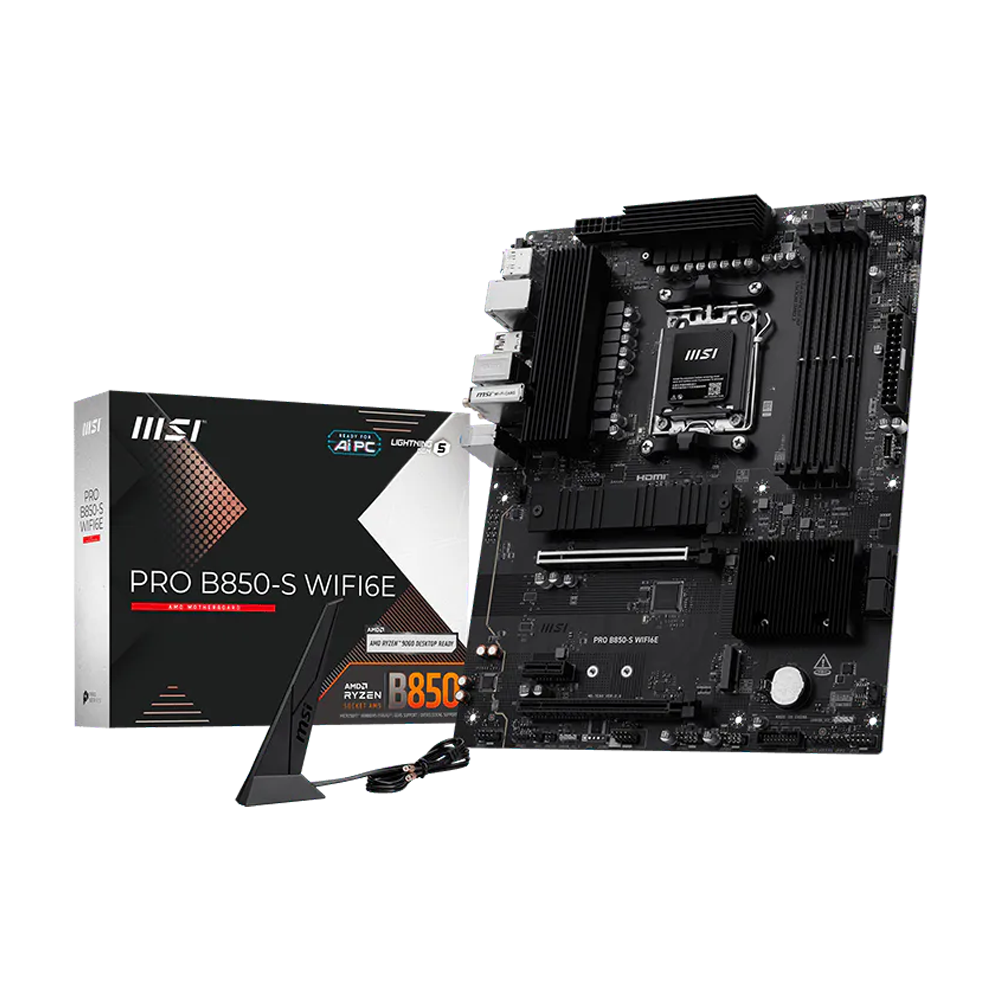

MSI PRO B850-S WIFI6E DDR5 Motherboard - Black

Key Features:

• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors

• Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)

• Ultra Performance: 12+2+1 Duet Rail Power System with P-PAK, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material

• Frozr Guard: MOSFET thermal pads rated for 7W/mK, and M.2 Shield Frozr are built for high performance system and non-stop experience

• EZ DIY: EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna

• Lightning Fast Game experience: PCIe 4.0 slot and Lightning Gen 5 x4 M.2

• 2.5G LAN with Wi-Fi 6E Solution: the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission

• Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.

PRO B850-S WIFI6E offers a simple design with a harmonious color scheme that perfectly matches black PC builds. It is engineered with many exclusive features of MSI, a Wi-Fi 6E with EZ Antenna, 2.5G LAN, and PCIe 5.0 M.2 with M.2 Shield Frozr, ready for the AMD Ryzen™ 9000 series processors.

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

ONE-FINGER

MSI’s exclusive EZ M.2 CLIP II makes M.2 installation seamless. Insert the SSD card into the slot and press it down to lock it in place with the clip. As fasten the SSD, flick the clip outwards and then the SSD is removed.  The process is smooth, and you don’t need to use your tools like before. One finger can give you perfect DIY experience.

ONE HAND

MSI motherboards circuitry ensure the case standoff keep out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard.

Power Solution

12+2+1 DRPS POWER DESIGN
Unleash and sustain the maximum performance with a flagship VRM design built with a total of 12+2+1 digital power phases. With dual power connectors, PRO B850-S WIFI6E is ready for the challenge of high-end processors.

Memory

DDR5 MEMORY SUPPORT WITH HIGH PERFORMANCE
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, PRO B850M-P WIFI is ready to deliver the world-class memory performance.

PROTECTION

Transient Voltage Suppressors (TVS)
Transient Voltage Suppressors (TVS) are safety devices used to protect against excessive voltage. All motherboard models of MSI are equipped with TVS. When the voltage abnormally rises, the TVS switches from a high-resistance state to a low-resistance state, diverting the excessive voltage to ground. This helps prevent circuit damage caused by high voltage.

FROZR SYNC

DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

FROZR CONTROL

Cooling Wizard serves as a comprehensive solution for managing fan settings across all MSI products. It ensures superior cooling performance and noise reduction for your gaming PC, offering compatibility with PWM/DC fans and pumps, customizable options, and intuitive temperature monitoring for optimal operation with one click.

Networking

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.

Storage

FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

Lightning Gen 4 PCI-e with Steel Armor

LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.

Mystic light

GLOW YOUR PC
Splash on some color and vibrant RGB lighting effects using Mystic Light utility of MSI Center, which has million colors and fancy LED effects. Enjoy the full control and creativity of your PC's lighting with one software.

BIOS

MSI’s newly designed CLICK BIOS X offers an aesthetically pleasing and user-friendly experience. The new design ensures that users of all experience levels can quickly access and adjust system configurations with ease.

Software

MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.

Specifications

• Chipset AMD B850

• CPU Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors

• Socket AM5

• Memory 4x DDR5 UDIMM, Maximum Memory Capacity 256GB

• Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s

• Ryzen™ 9000 Series Processors max. overclocking:

• • 1DPC 1R Max speed up to 8200+ MT/s

• • 1DPC 2R Max speed up to 6400+ MT/s

• • 2DPC 1R Max speed up to 6400+ MT/s

• • 2DPC 2R Max speed up to 6000+ MT/s

• Supports AMD POR Speed and JEDEC Speed

• Supports Memory Overclocking and AMD EXPOTM

• Supports Dual-Channel mode

• Supports Non-ECC, Un-buffered memory

• Supports CUDIMM, Clock Driver bypass mode only*

• * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.

• • The DIMM slots on this motherboard only have single-sided latches.

• • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration.

• Onboard Graphics 1x HDMI™

• Support HDMITM 2.1, maximum resolution of 4K 60Hz*

• 1x DisplayPort

• Support DisplayPort 1.4, maximum resolution of 4K 60Hz*

• *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

• Slot 2x PCI-E x16 slot

• 1x PCI-E x1 slot

• PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

• PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

• PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

• PCI_E1 slot

• • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors)

• • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)

• • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

• Audio Realtek® ALC897

• 7.1-Channel High Definition Audio

• Storage 2x M.2

• M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices

• M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

• 4x SATA 6G

• M2_1 slot

• • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)

• • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)

• M2_2 slot

• • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors)

• • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)

• *Please refer to the manual for M.2 SSD heatsink restrictions.

• RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices

• Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

• USB 4x USB 2.0 (Front)

• 4x USB 5Gbps Type A (Rear)

• 2x USB 5Gbps Type A (Front)

• 3x USB 10Gbps Type A (Rear)

• 1x USB 10Gbps Type C (Rear)

• 1x USB 10Gbps Type C (Front)

• LAN Realtek® 8125 2.5G LAN

• Internal IO 1x Power Connector(ATX_PWR)

• 2x Power Connector(CPU_PWR)

• 1x CPU Fan

• 1x Combo Fan (Pump_Sys Fan)

• 4x System Fan

• 2x Front Panel (JFP)

• 1x Chassis Intrusion (JCI)

• 1x Front Audio (JAUD)

• 1x Com Port (JCOM)

• 1x Tuning Controller connector(JDASH)

• 3x Addressable V2 RGB LED connector (JARGB_V2)

• 1x RGB LED connector(JRGB)

• 1x TPM pin header(Support TPM 2.0)

• 4x USB 2.0 ports

• 2x USB 5Gbps Type A ports

• 1x USB 10Gbps Type C ports

• WIRELESS LAN & BLUETOOTH Wi-Fi 6E

• The Wireless module is pre-installed in the M.2 (Key-E) slot

• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.4Gbps

• Supports 802.11 a/ b/ g/ n/ ac/ ax

• Supports Bluetooth® 5.3**, FIPS, FISMA

• * 6GHz band support may depend on every country’s regulations and Wi-Fi 6E requires Windows 11.

• ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details.

• LED FEATURE 4x EZ Debug LED

• 1x EZ Memory Detection LED

• BACK PANEL PORTS

• Clear CMOS Button

• DisplayPort

• 2.5G LAN

• USB 10Gbps Type-A

• USB 5Gbps Type-A

• Wi-Fi / Bluetooth

• Audio Connectors

• Flash BIOS Button

• HDMI™

• USB 10Gbps Type-A

• USB 10Gbps Type-C

• OPERATING SYSTEM Support for Windows® 11 64-bit
