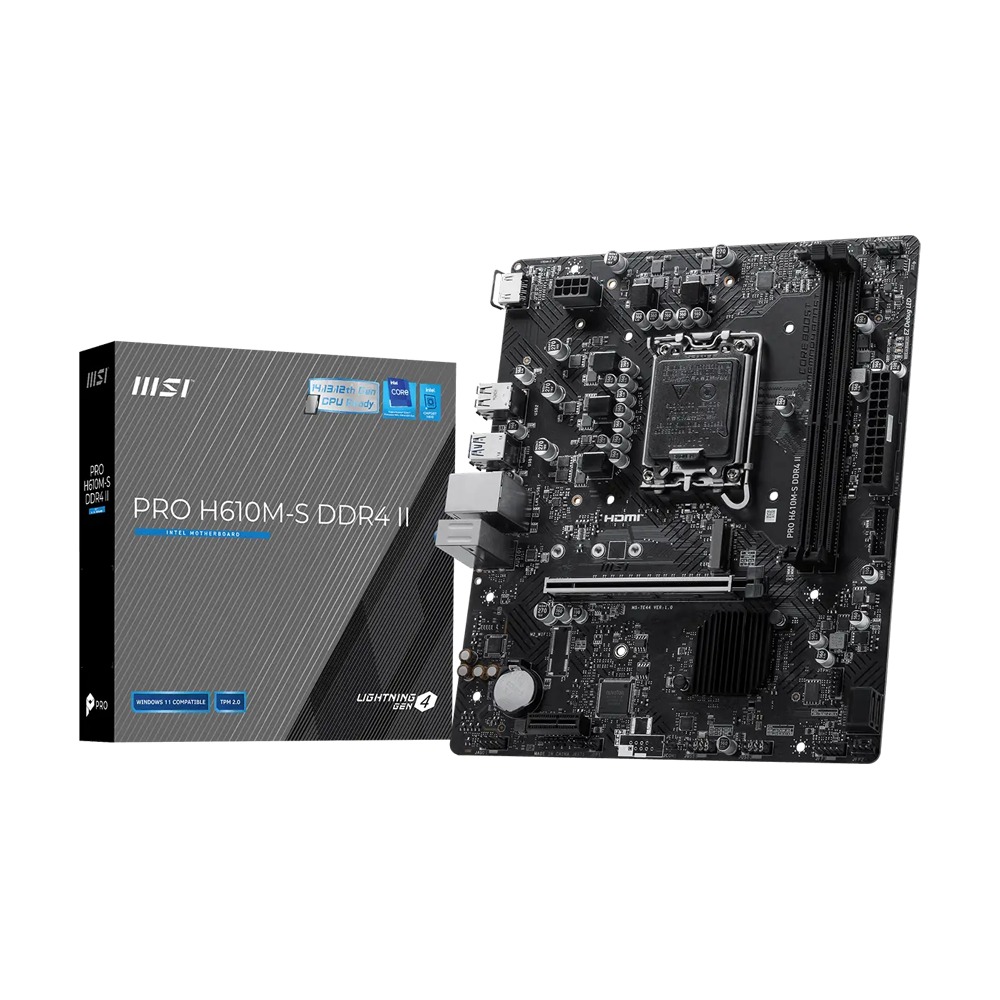

MSI PRO H610M-S DDR4 II Motherboard - Black

Key Features:

• Support Intel^® Core™ 14th/ 13th/ 12th Gen Processors, Intel^® Pentium^® Gold and Celeron^® Processors for LGA 1700 socket

• Supports DDR4 Memory, up to 3200(MAX) MT/s

• Core Boost : With premium layout and digital power design to support more cores and provide better performance

• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility

• Lightning Fast Experience: PCIe 4.0

• Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

• Audio Boost: Reward your ears with studio grade sound quality

• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

PRO H610M-S DDR4 II offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with 1G LAN and PCIe 4.0, ready for the Intel® Core 14th /13th /12th Gen processors.

MSI motherboards circuitry ensure the case standoff keep out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard.

Onboard LEDs will indicate the source of the problem so you know exactly where to look to get up and running again.

Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.

MSI AI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.

MSI AI LAN MANAGER
Automatically prioritizes games above other applications
Allows to change applications' traffic priority
Allows to customize bandwidth for each application

MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

Mystic Light

Splash on some color and vibrant RGB lighting effects using Mystic Light utility of MSI Center, which has million colors and fancy LED effects. Enjoy the full control and creativity of your PC's lighting with one software.

Specifications

• Chipset : INTEL H610

• CPU : Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors

• LGA 1700

• Memory : 2x DDR4, Maximum Memory Capacity 64GB

• Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC

• Supports Dual-Channel mode

• Supports non-ECC, un-buffered memory

• Onboard Graphics : 1x HDMI™

• Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*

• *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

• Slot : 1x PCI-E x16 slot

• 1x PCI-E x1 slot

• PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

• PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

• Audio : Realtek® ALC897 Codec

• 7.1-Channel High Definition Audio

• Storage 1x M.2

• M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices

• 2x SATA 6G

• USB : 4x USB 2.0 (Rear)

• 4x USB 2.0 (Front)

• 2x USB 5Gbps Type A (Rear)

• 2x USB 5Gbps Type A (Front)

• LAN : Realtek® RTL8111H Gigabit LAN

• Internal IO : 1x Power Connector(ATX_PWR)

• 1x Power Connector(CPU_PWR)

• 1x CPU Fan

• 1x System Fan

• 2x Front Panel (JFP)

• 1x Chassis Intrusion (JCI)

• 1x Front Audio (JAUD)

• 1x TPM pin header(Support TPM 2.0)

• 4x USB 2.0 ports

• 2x USB 5Gbps Type A ports

• LED FEATURE : 4x EZ Debug LED

• BACK PANEL PORTS

• HDMI™

• USB 2.0

• USB 5Gbps Type-A

• LAN port

• Audio Connectors

• USB 2.0

• OPERATING SYSTEM : Support for Windows® 11 64-bit, Windows® 10 64-bit

• PCB Info : mATX; 200mmx236.16mm
