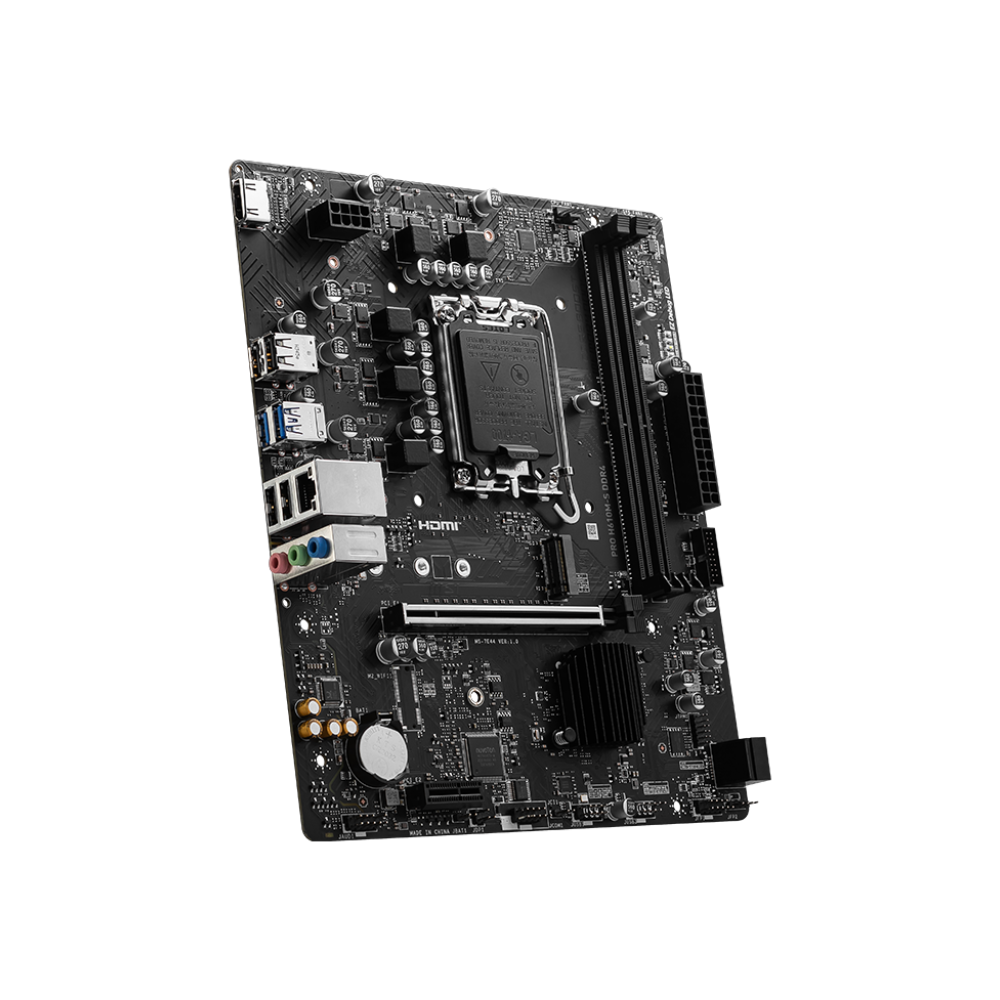

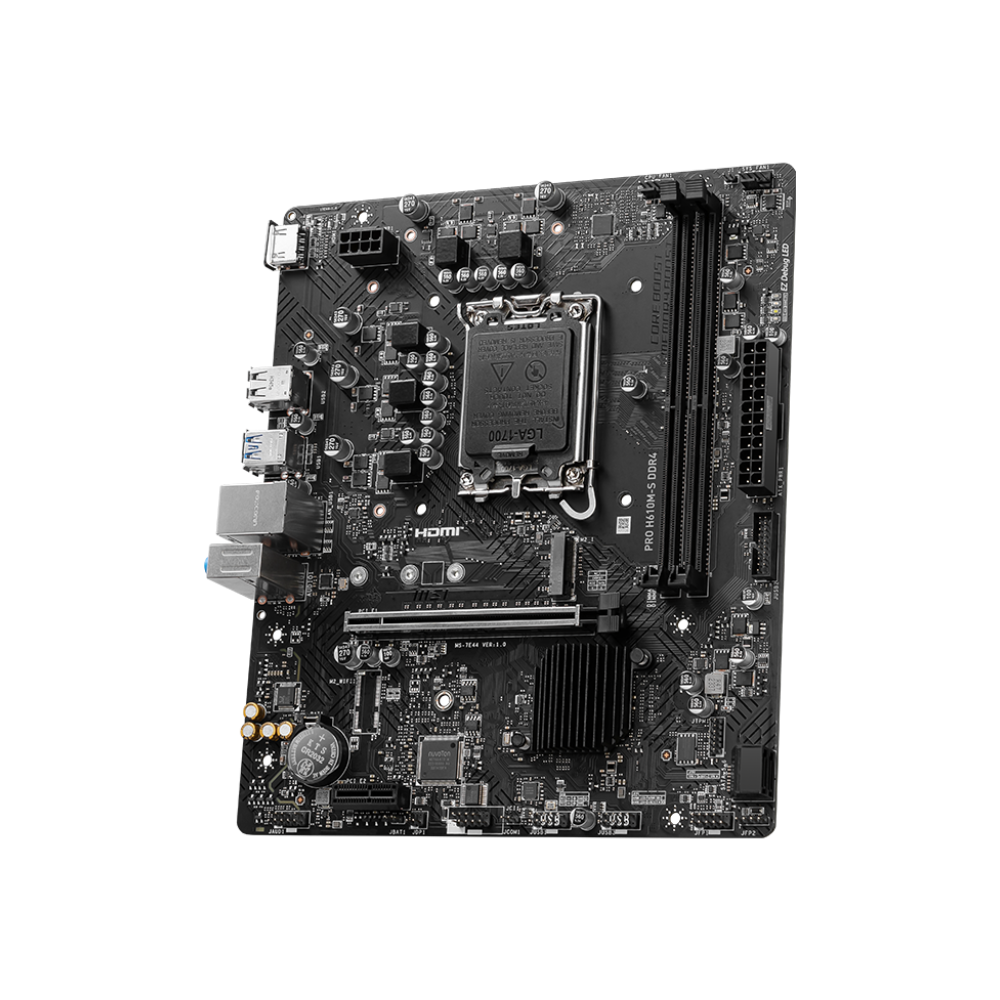

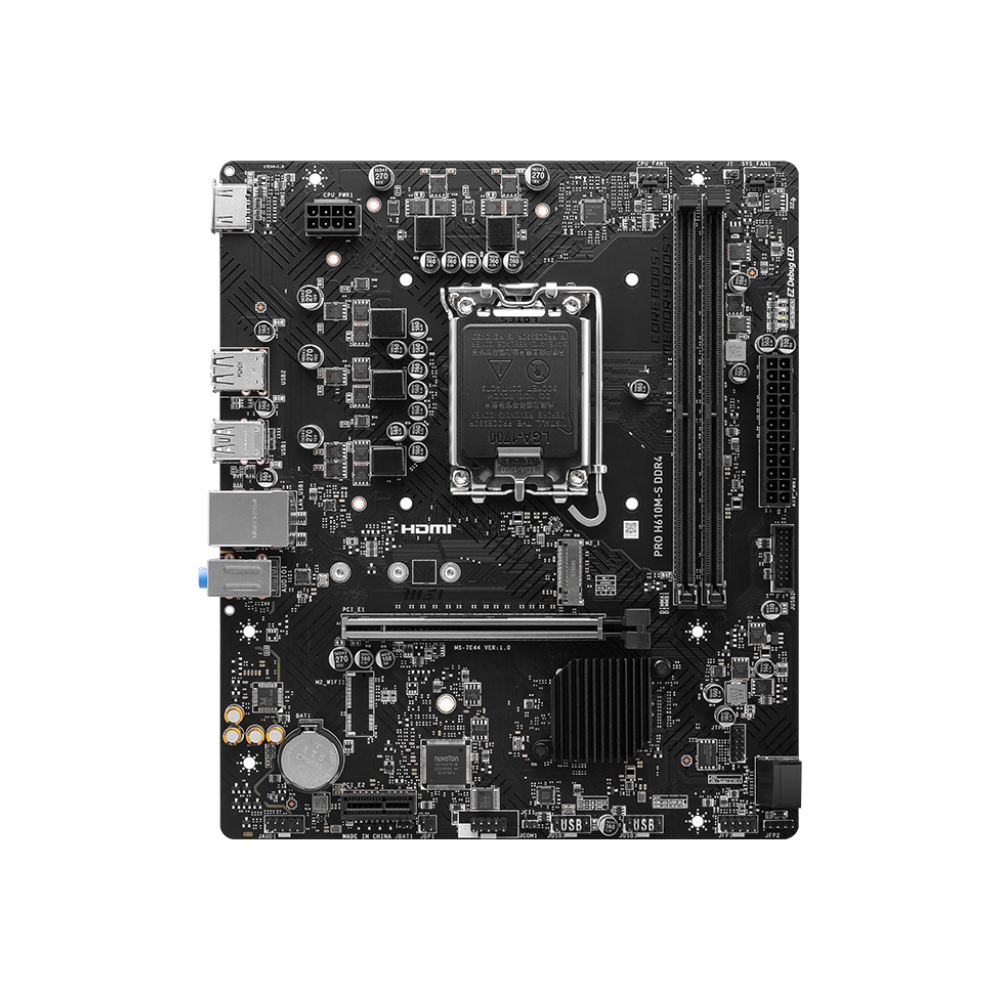

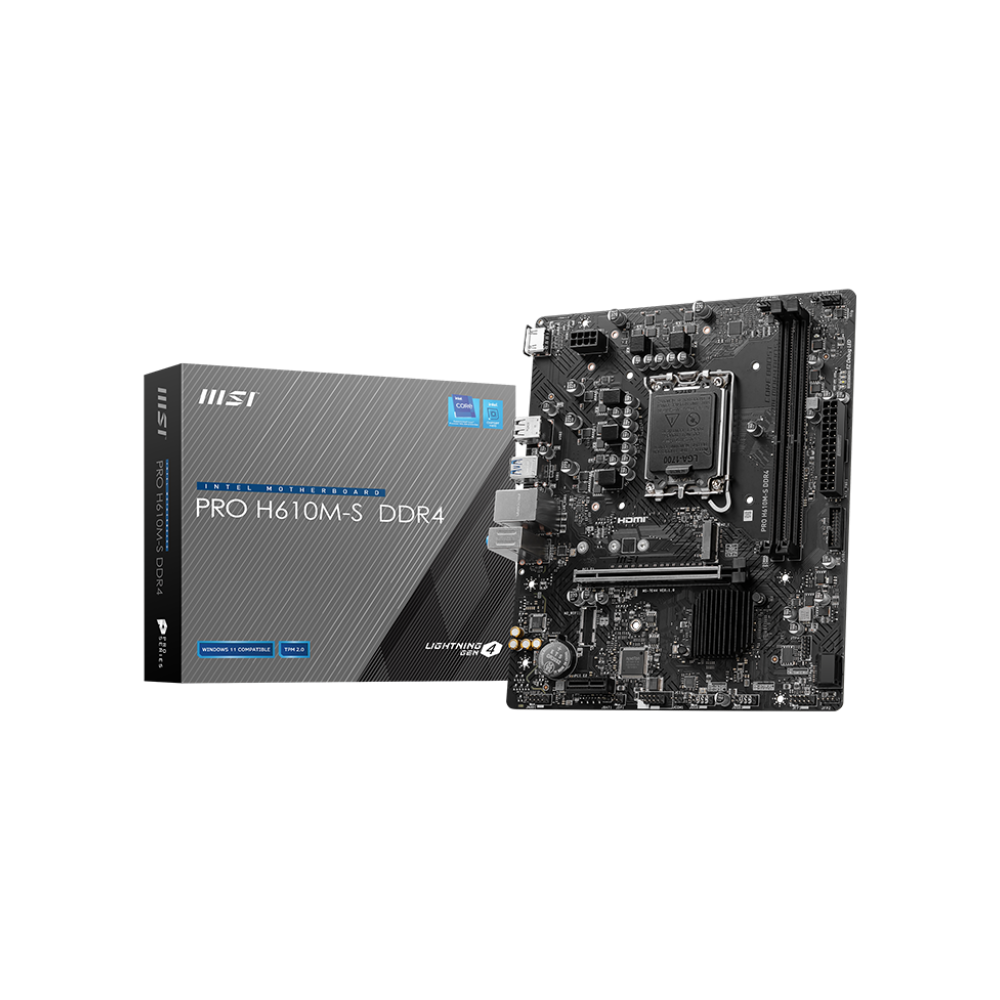

MSI PRO H610M-S DDR4 Motherboard - Black
MSI PRO H610M-S DDR4 Motherboard - Black
SKU:911-7E44-013
QR Code : 1325661
Low stock
Regular price
Sale price
Regular price
Unit price
per
Description
Description
Key Features:
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR4 Memory, up to 3200(MAX) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0
- Audio Boost: Reward your ears with studio grade sound quality
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
TAKE THE ESSENTIALS
MSI SHADOW brings a performance-focused design that delivers the gaming experience players want, making it the ideal choice when upgrading or building a gaming rig.
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
Specifications
- Chipset : INTEL H610
- CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
- LGA 1700
- Memory : 2x DDR4, Maximum Memory Capacity 64GB
- Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Onboard Graphics 1x HDMI™
- Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*
- *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
- Slot 1x PCI-E x16 slot
- 1x PCI-E x1 slot
- PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
- Audio Realtek® ALC897 Codec
- 7.1-Channel High Definition Audio
- Storage : 1x M.2
- M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices
- 2x SATA 6G
- USB 4x USB 2.0 (Rear)
- 4x USB 2.0 (Front)
- 2x USB 5Gbps Type A (Rear)
- 2x USB 5Gbps Type A (Front)
- LAN Realtek® RTL8111H Gigabit LAN
- Internal IO : 1x Power Connector(ATX_PWR)
- 1x Power Connector(CPU_PWR)
- 1x CPU Fan
- 1x System Fan
- 2x Front Panel (JFP)
- 1x Chassis Intrusion (JCI)
- 1x Front Audio (JAUD)
- 1x Com Port (JCOM)
- 1x TPM pin header(Support TPM 2.0)
- 4x USB 2.0 ports
- LED FEATURE 4x EZ Debug LED
- BACK PANEL PORTS
- HDMI™
- USB 2.0
- USB 5Gbps Type-A
- LAN port
- Audio Connectors
- USB 2.0
- OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
- BOX CONTENT
- PCB Info: mATX
- 200mmx236.16mm
