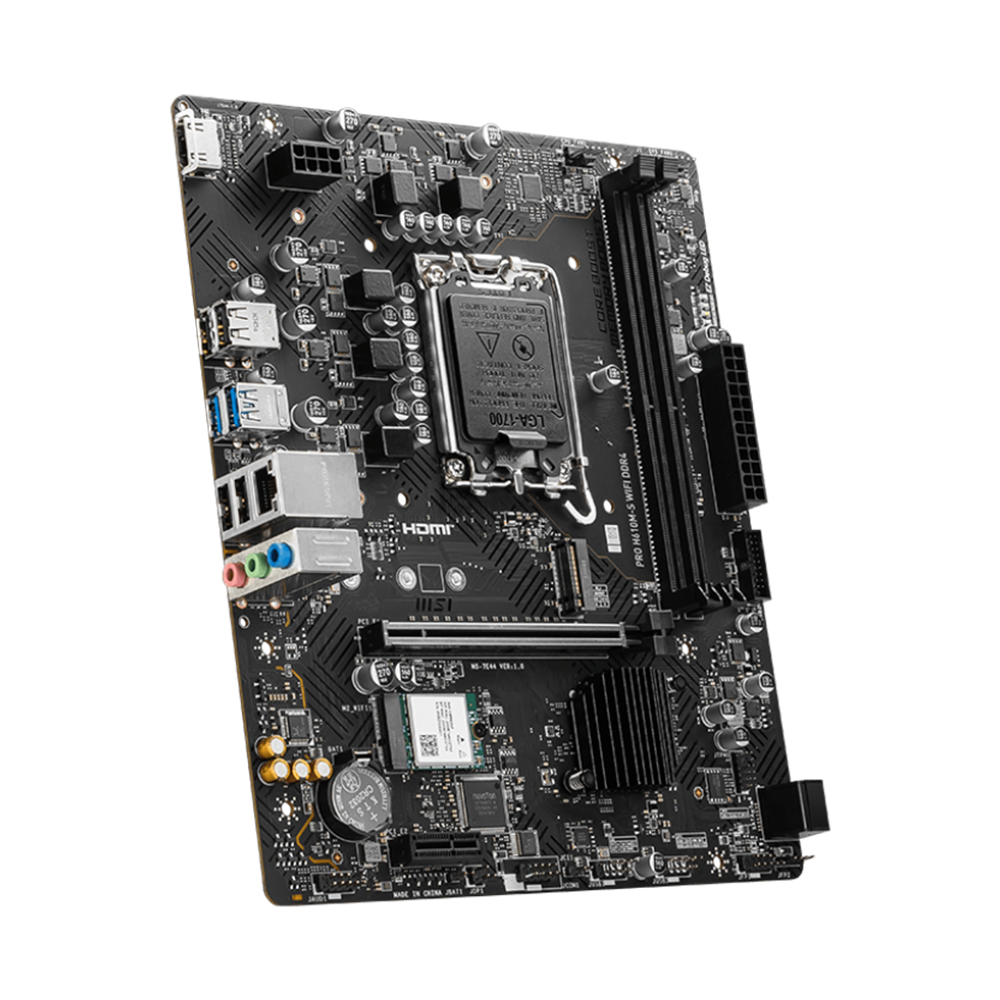

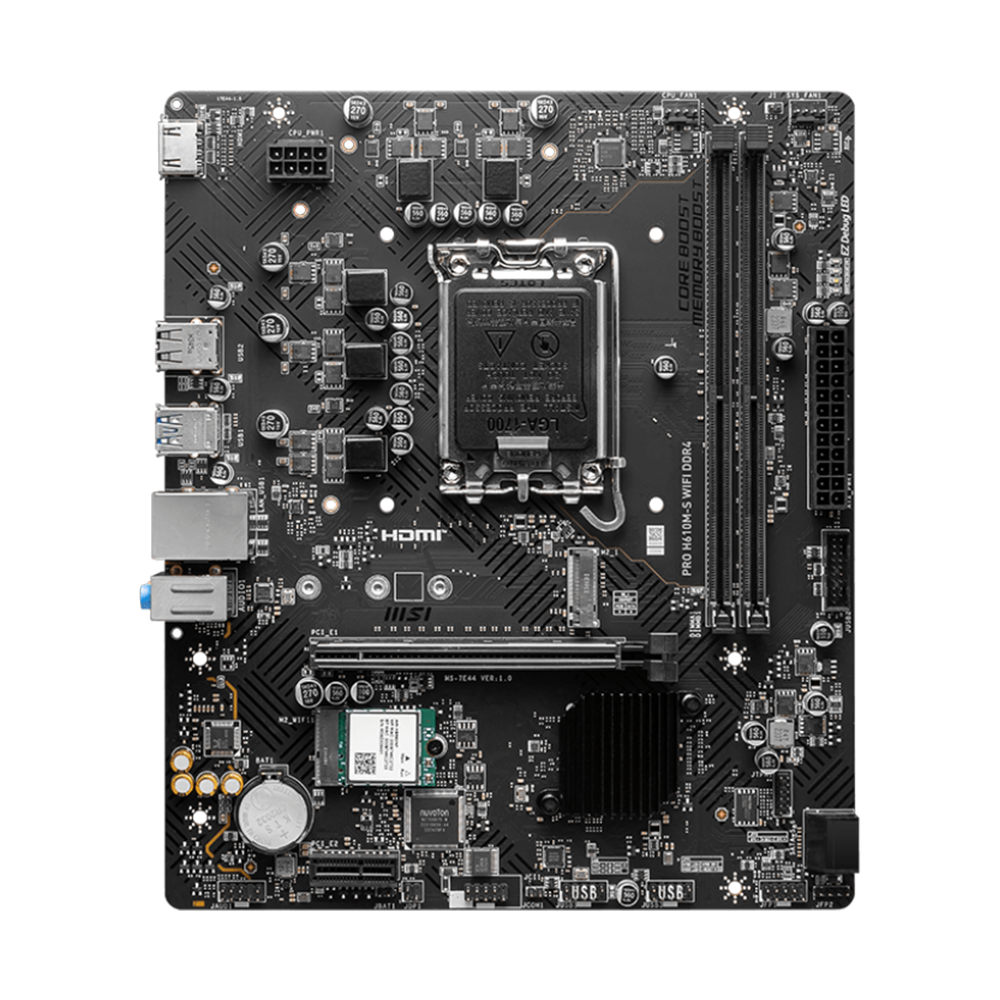

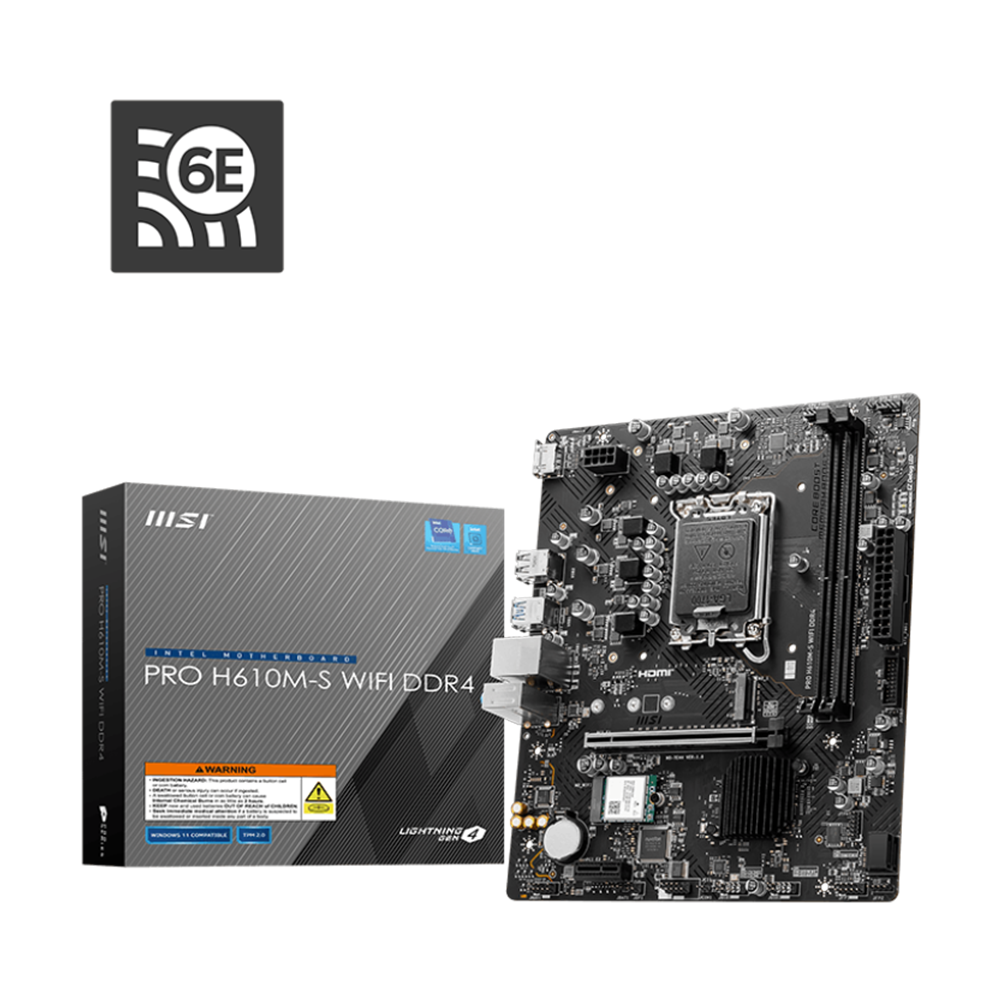

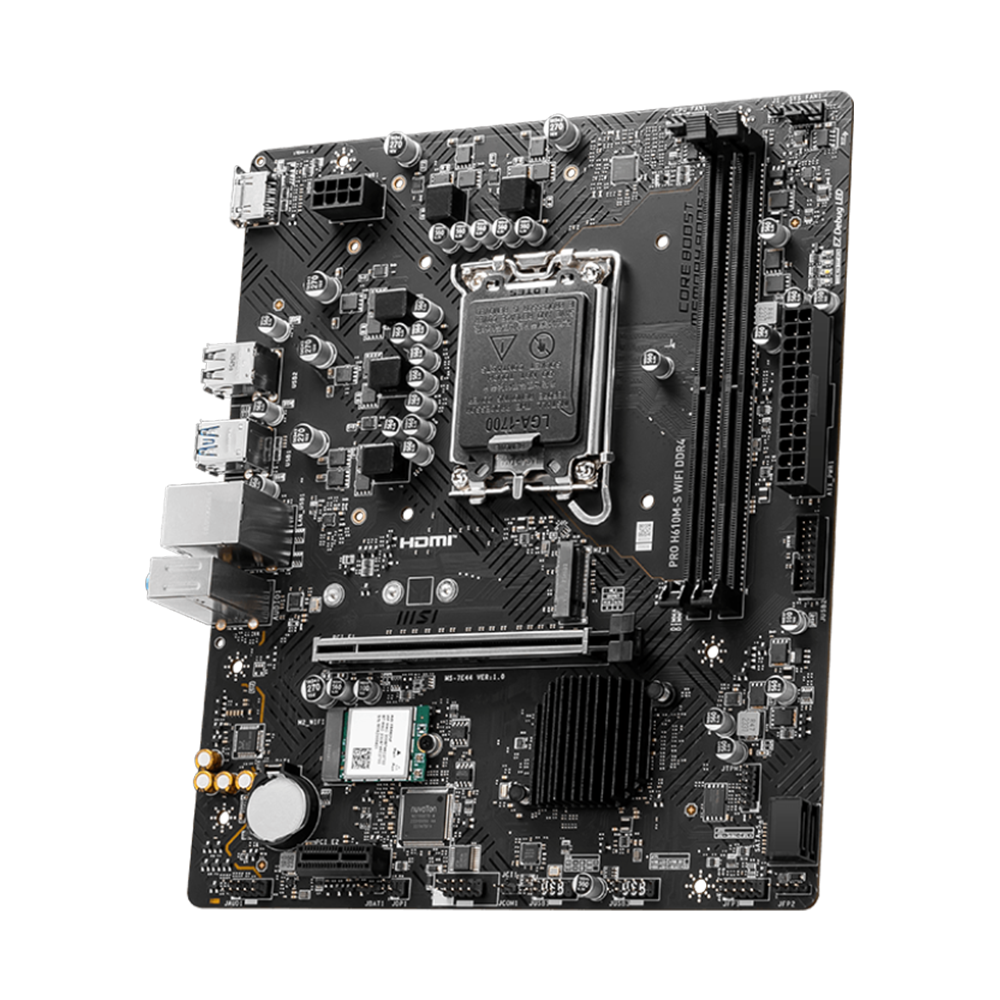

MSI PRO H610M-S DDR4 WIFI Mother Board - Black

• Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
• Supports DDR4 Memory, up to 3200(MAX) MHz
• Core Boost : With premium layout and digital power design to support more cores and provide better performance
• Memory Boost : Advanced technology to deliver pure data signals for the best performance, stability and compatibility
• Lightning Fast Experience : PCIe 4.0
• Wi-Fi 6E Solution : Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• Audio Boost : Reward your ears with studio grade sound quality
• Steel Armor : Protecting VGA cards against bending and EMI for better performance, stability and strength.

MSI PRO H610M-S DDR4 WIFI mATX Motherboard - Black

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

USER FRIENDLY DESIGN

MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker.  Makes it so easy to install your own motherboard without any issue.

FULLY CONTROLLABLE IN BIOS AND SOFTWARE

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

FROZR AI COOLING

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

CONNECTIVITY

The most important thing of DIY is expandability. MSI PRO series motherboards feature plenty possibility for prosumers’ need. Stable LAN,  faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.

Wi-Fi 6E

SURFACING WITH THE REAL MU-MIMO TECHNOLOGY

The latest Wi-Fi 6E solution supports 6GHz spectrum, Bluetooth 5.2, two-way MU-MIMO and BSS color technology, provide up to 4X network capacity and efficiency in the high signal density environment, delivering speeds up to 2400Mbps.

EXPERIENCE MORE

MSI PRO series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy extreme sound quality. Moreover, with years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance.

LIGHTNING GEN 4 PCI-E

MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.

EXTREME STABILITY & COMPATIBILITY TESTING

MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules and configurations.

CORE BOOST

Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.

Specifications

• Chipset : INTEL H610
• CPU : Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors

                            LGA 1700

• Memory  : 2x DDR4, Maximum Memory Capacity 64GB
• Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Onboard Graphics  : 1x HDMI™
• Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*
• *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
• Slot  : 1x PCI-E x16 slot

                        1x PCI-E x1 slot

                        PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

                        PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

• Audio  : Realtek® ALC897 Codec
• 7.1-Channel High Definition Audio
• Storage  : 1x M.2
• M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices
• 2x SATA 6G
• USB  : 4x USB 2.0 (Rear)
• 4x USB 2.0 (Front)
• 2x USB 5Gbps Type A (Rear)
• 2x USB 5Gbps Type A (Front)
• LAN  : Realtek® RTL8111H Gigabit LAN
• Internal IO  : 1x Power Connector(ATX_PWR)

                                    1x Power Connector(CPU_PWR)

                                    1x CPU Fan

                                    1x System Fan

                                    2x Front Panel (JFP)

                                    1x Chassis Intrusion (JCI)

                                    1x Front Audio (JAUD)

                                    1x Com Port (JCOM)

                                    1x TPM pin header(Support TPM 2.0)

                                    4x USB 2.0 ports

• WIRELESS LAN & BLUETOOTH  : Wi-Fi 6E
• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth® 5.3, FIPS, FISMA
• * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
• ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
• LED FEATURE  : 4x EZ Debug LED
• BACK PANEL PORTS

1. HDMI™
2. USB 3.2 Gen 1 5Gbps (Type-A)
3. USB 2.0
4. LAN port
5. Audio Connectors
6. USB 2.0

• OPERATING SYSTEM  : Support for Windows® 11 64-bit, Windows® 10 64-bit
• PCB Info  : mATX

                                200mmx236.16mm
