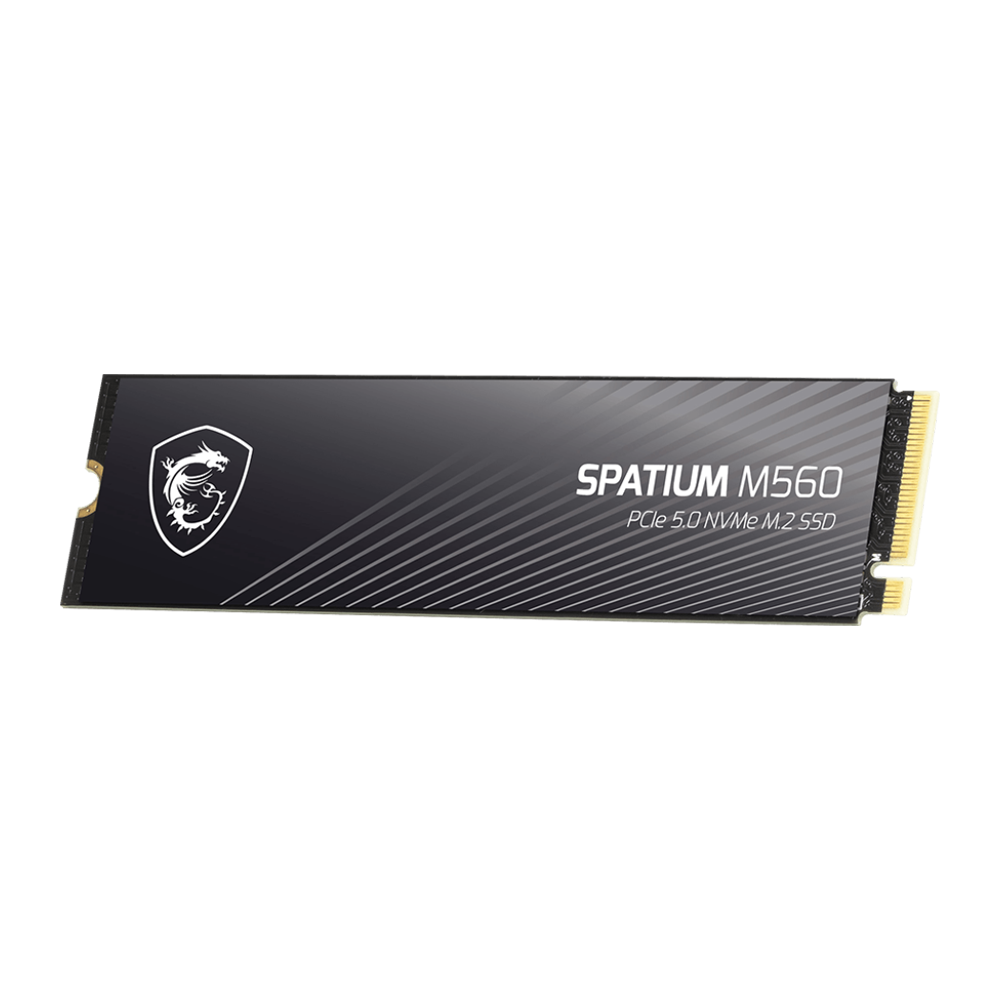

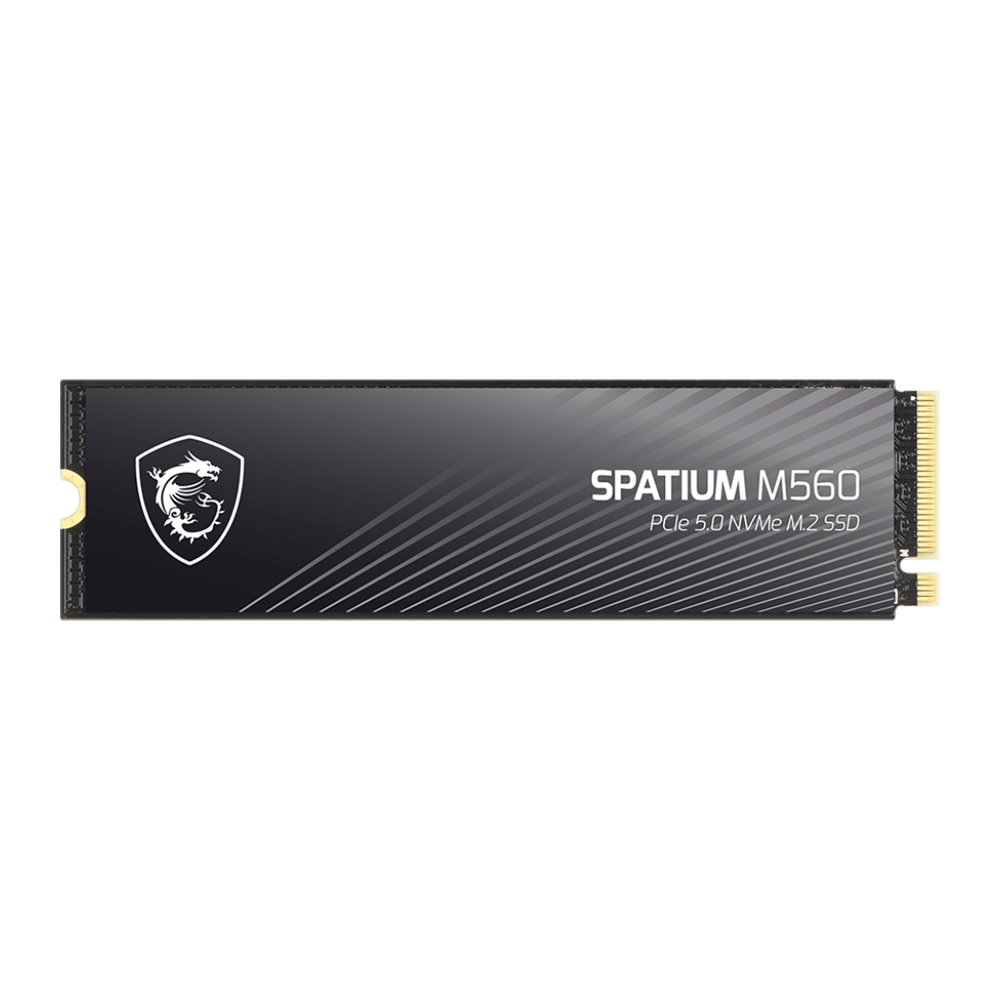

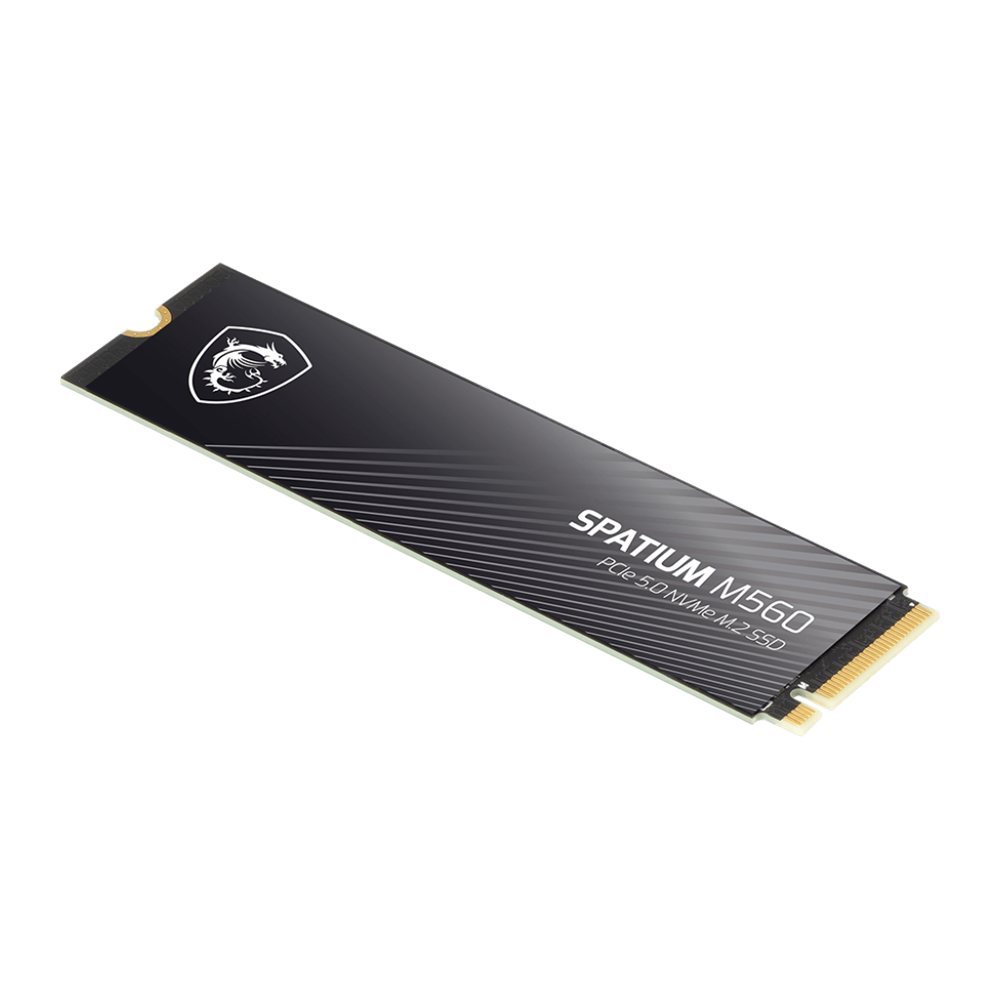

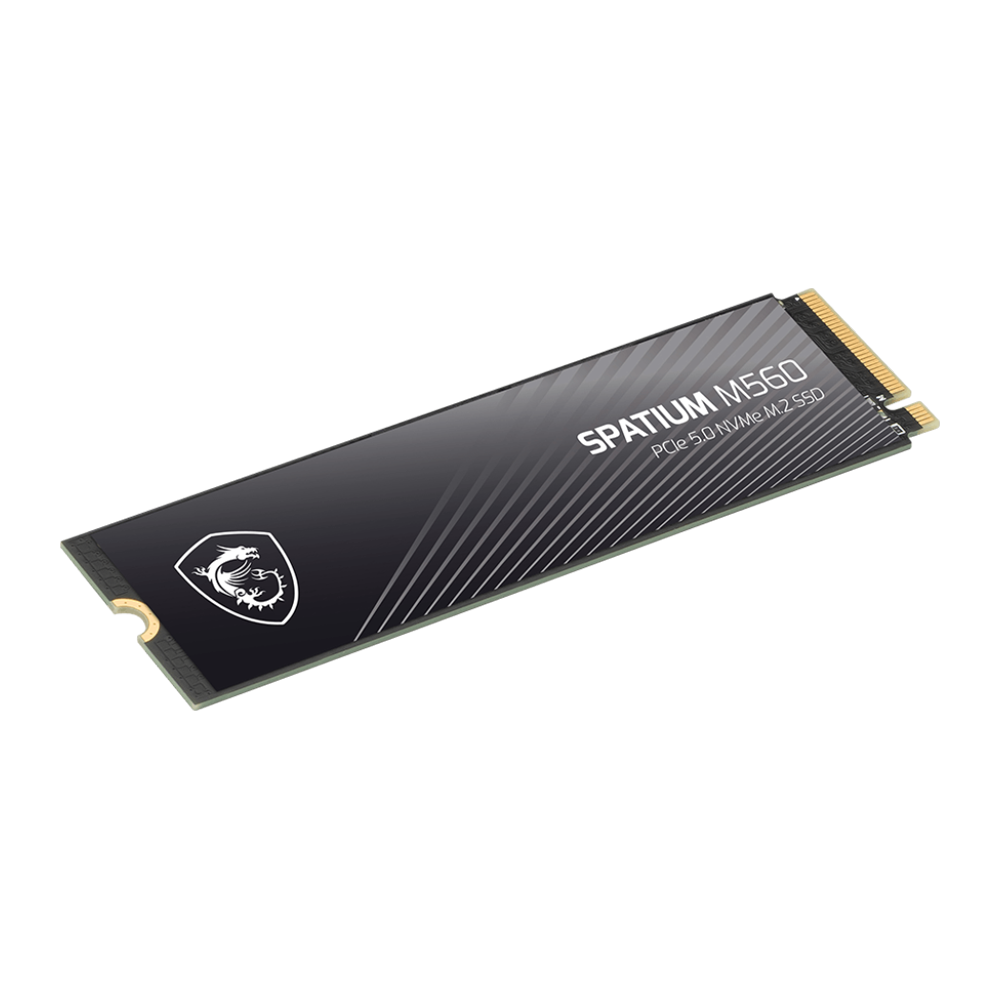

MSI SPATIUM M560 PCIe 5.0 NVMe M.2 2TB

Key Features:

• 2TB Capacity
• PCIe Gen5x4 interface and complies with the NVMe 2.0 standard
• Sequential Read speeds up to 10,300MB/s and Write speeds up to 8,700MB/s
• Up to 1200 TBW
• Built-in data security and error-correction capabilities
• M.2 2280 form factor
• Suitable for both desktop and notebook

M560 CHARGING AHEAD WITH SPEED

From the MSI universe comes storage with blazing speeds and incredible performance. Take your system to the next level with SPATIUM.

PCIe Gen5 x4 M.2 2280 SSD

Read 10,300 MB/s  Write 8,700 MB/s

SUPERCHARGED WITH PCIe 5.0

Get excited for next-generation storage performance that unites the latest PCIe Gen 5 controller technology and state-of-the-art 3D NAND flash, providing up to 1.8 times faster read/write speeds compared to the previous generation SSDs.

TAKING GIANT LEAPS

The SPATIUM M560 delivers immense performance and capabilities that effortlessly handle even the most extreme gaming or productivity workflows, representing a significant advancement over PCIe 3.0 and SATA technologies.

FULFILL UNLIMITED POTENTIAL

Built-in data security and error-correction capabilities extend the endurance and longevity of the NAND flash storage, empowering you to break records in games or take your talents to the next level.

Freeing Up Space

TRIM

To process unnecessary data efficiently and extend the life of SSD for more games or content creations.

Gaining Controls

S.M.A.R.T

To Monitor the health of the drive and identify possible issues, letting you be free from worry in games or at work.

Error Removal

ECC

To maintain your important records or files intact and ensure a nonstop gaming experience from system failure.

Steady Transfer

E2E DATA PROTECTION

To enable reliable data transfer and assist you to game and create in confidence with enhanced system stability.

A THOROUGH SHORTCUT WITHDIRECTSTORAGE

DirectStorage accelerates loading times in gameplay and high-resolution rendering, enhancing system performance by enabling hardware decompression directly from NVMe drives to GPUs and freeing up CPU resources for multitasking.

DirectStorage.

Your Performance Booster

BUILT TO WIN

With the gamers’ first attitude, SPATIUM SSDs optimized for high-performance bandwidth and throughput enable you to wait less at loading games and play to win with minimal latency.

CREATE. PRODUCE. DONE.

With the gamers’ first attitude, SPATIUM SSDs optimized for high-performance bandwidth and throughput enable you to wait less at loading games and play to win with minimal latency.

TAKE CARE OF YOUR DATA

Migrate your data, monitor drive health and performance metrics in real-time with MSI Center. Prevent loss of data using the provided Actiphy software solution which includes backup & restore functionality.

Specifications

• Model Name : SPATIUM M560 PCIe 5.0 NVMe M.2
• Capacity : 2TB
• Controller : PHISON E31T
• Flash Memory : 3D NAND
• Form Factor : M.2 2280
• Interface : PCIe Gen5x4, NVMe 2.0
• Compatibility : PCIe Gen5 /PCIe Gen4 / Gen3 / Gen2 / Gen1
• Dimensions : 80.00mm (L) x 22.00mm (W) x 2.15mm (H)
• Sequential Read up to (MB/s) : 10,300
• Sequential Write up to (MB/s) : 8,700
• Random Read 4KB up to (IOPS) : 1,300,000
• Random Write 4KB up to (IOPS) : 1,400,000
• Maximum Operating Power (W) : 5.9
• Idle Power PS3 (mW) : 50
• Low Power L1.2 (mW) : 3.5
• Operating Temperatures : 0°C – 70°C
• Storage Temperatures : 40°C – 85°C
• Terabytes Written (TBW) : Up to 1,500,000 Hours
• Mean Time Between Failure (MTBF) : Up to 1,500,000 Hours
• Advanced Features : TRIM (Performance Optimization, OS support required)

                                                   SMART (Self-Monitoring, Analysis and Reporting Technology)

                                                   LDPC (Low Density Parity Check) ECC Algorithm

                                                   End to End Data Path Protection

                                                   APST (Autonomous Power State Transition)
