NZXT 1000W ATX 3.X 80 Plus Gold Fully Modular Low Noise Power Supply - White

Key Features:

• Compatible Devices: Desktop PC
• Connector Type: ATX
• Output Wattage: 1000 Watts
• Form Factor: ATX
• Wattage: 1000
• Cooling Method: Air
• Item Dimensions (L × W × H): 6.3 × 5.91 × 3.39 inches
• Item Weight: 7.9 Pounds
• Power Supply Design: Full Modular

1000 Watt 80 PLUS Gold Fully Modular ATX 3.1 PSU

Designed for maximum performance with minimal noise, NZXT C Series Gold ATX 3.1 PSUs are ready to fuel the demands of top-tier GPUs and CPUs.

• Compliant with the ATX 3.1 standard to fuel high-performance PC components with stability, efficiency, and power spike resistance.
• Durable, heat-resistant 12V-2x6 connector pumps up to 600 watts to NVIDIA® GeForce RTX™ 50 Series graphics cards.
• 135mm fluid dynamic bearing fan with Zero Fan Mode is completely silent when under 50% load.
• 100% premium Japanese capacitors improve hold-up time and minimal ripple noise, ensuring reliable and stable power delivery.
• Fully modular design allows for only connecting essential cables, reducing clutter for better airflow and a neater build.
• Compact form factor frees up valuable room for cable management and more case airflow.
• Thanks to high-quality construction and rigorous product testing, NZXT PSUs are backed.


NZXT Gold ATX 3.1 PSU

ATX 3.1 compliant PSUs featuring high efficiency, low noise, and premium construction.]

ATX 3.1 Compliant

ATX 3.1 powers high-performance components with stable delivery and improved efficiency.

RTX 50 Series Ready

12V-2x6 cable delivers up to 600 watts of power to NVIDIA® GeForce RTX™ 50 Series GPUs.

Certified for High Efficiency & Low Noise

80 PLUS Gold Efficiency, Cybenetics Gold Efficiency, and Cybenetics A Noise Level Ratings.

Silence is Golden

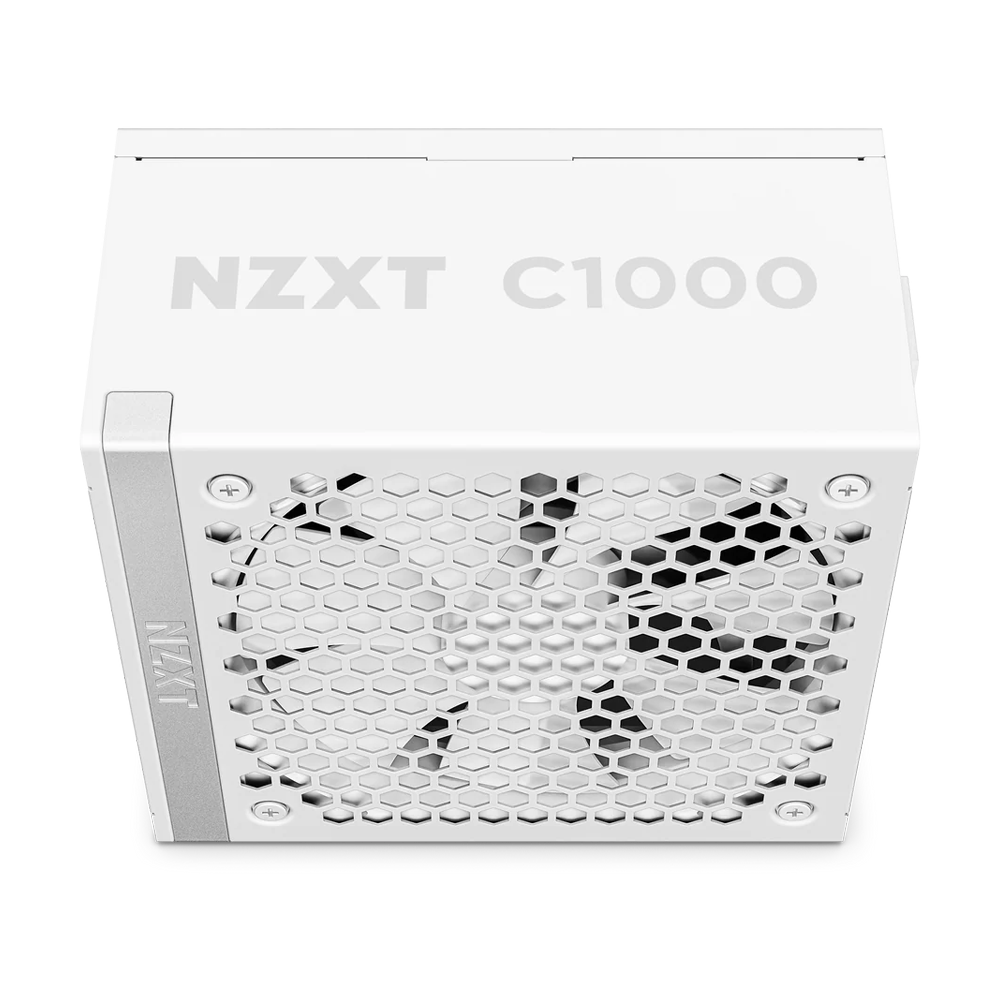

135mm FDB fan with Zero Fan Mode stops spinning under 50% load for total silence.

100% Japanese Capacitors

Improved hold-up time and reduced ripple noise for stable, reliable power delivery.

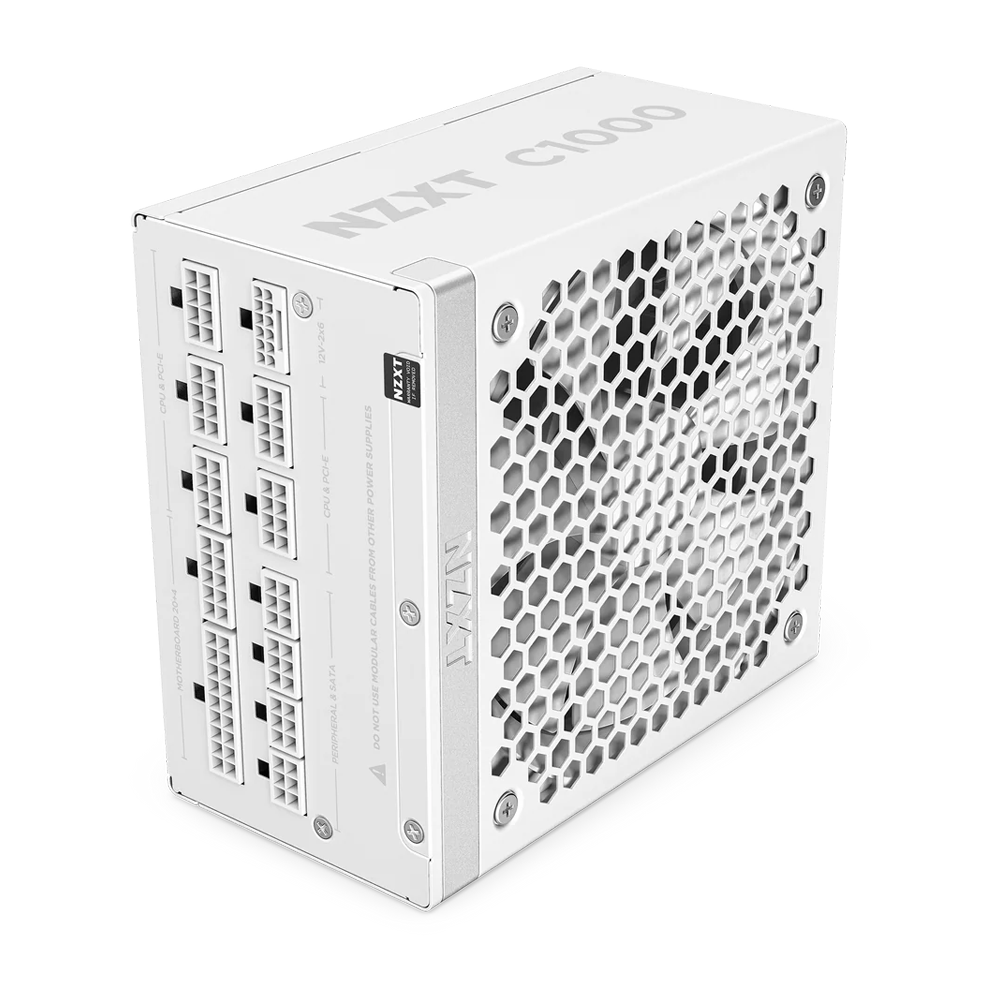

Fully Modular

Only connect the cables needed to keep a tidy build. Full cable set included.

Space-Saving Size

Compact form factor frees up room for cable management and improved airflow.

Specifications

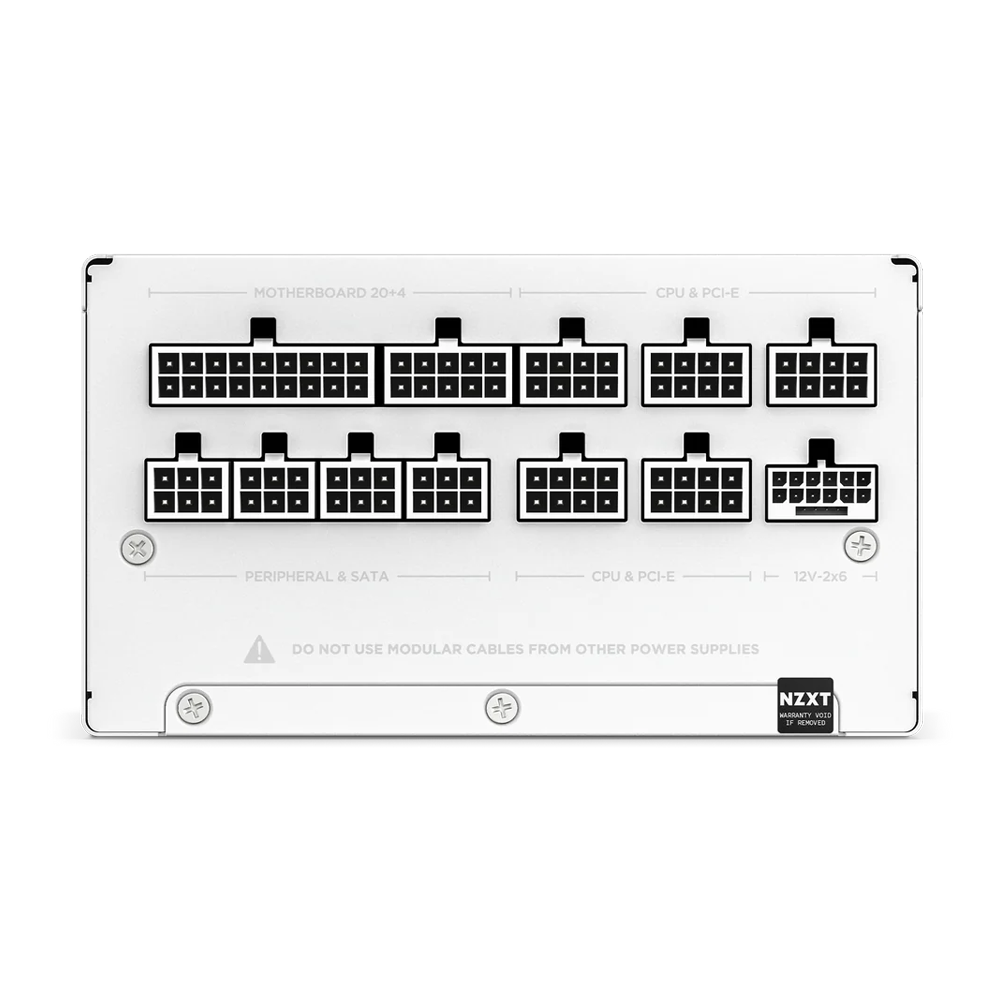

Output Connectors

• 24-pin ATX Power Cable : 1
• 4+4-pin CPU Power Cable : 1
• 8-pin CPU Power Cable : 1
• 6+2-pin PCIe Power Cable : 3
• 16-pin (12+4) 12V-2x6 PCIe Cable : 1
• SATA Cable : 12
• Peripherals Cable : 4

Cable Specs

• 24-pin ATX Power Cable : 600mm with nylon sleeving
• 4+4-pin CPU Power Cable : 700mm with nylon sleeving
• 8-pin CPU Power Cable : 700mm with nylon sleeving
• 6+2-pin PCIe Power Cable : 650mm with nylon sleeving
• 16-pin (12+4) 12V-2x6 PCIe Cable : 650mm with nylon sleeving
• SATA Cable : 500 + 150mm
• Peripherals Cable : 500 + 150mm

AC Input Rating

• 100 - 240Vac : 13A 50Hz-60Hz
• 200 - 240Vac : 6.5A 50Hz-60Hz (China & South Korea)

DC Output Rating

• 3.3V / +5V : 22A (120W)
• 12V : 83.3A (1000W)
• 5Vsb : 3A (15W)
• Total : 1000W

Energy Efficiency

• Rating : 80 Plus Gold
• 10% loading : 85.5% @115Vac
• 20% loading : 89.7% @115Vac
• 50% loading : 91.9% @115Vac
• 100% loading : 89.3% @115Vac

Electrical Features

• PF Correction : Active @0.99
• Protections : OVP / UVP / SCP / OTP / OPP / OCP

Fan Specs

• Dimensions :135 x 135 x 25 mm
• Speed : 2300 ± 10% RPM
• Airflow : 93.02 CFM (Min.)
• Noise : 44.5 dBA max
• Bearing : Fluid Dynamic Bearing (FDB)

Operation

• MTBF : 100,000 hours
• Temperature : 0 - 50 °C

Dimensions

• Width : 150 mm
• Height : 86 mm
• Depth : 160 mm

General

• Material(s) : Steel, PCB and Plastic
• Compliance Standard : ATX12V v3.1 / EPS12V v2.92
• Regulation & Certification : FCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65
