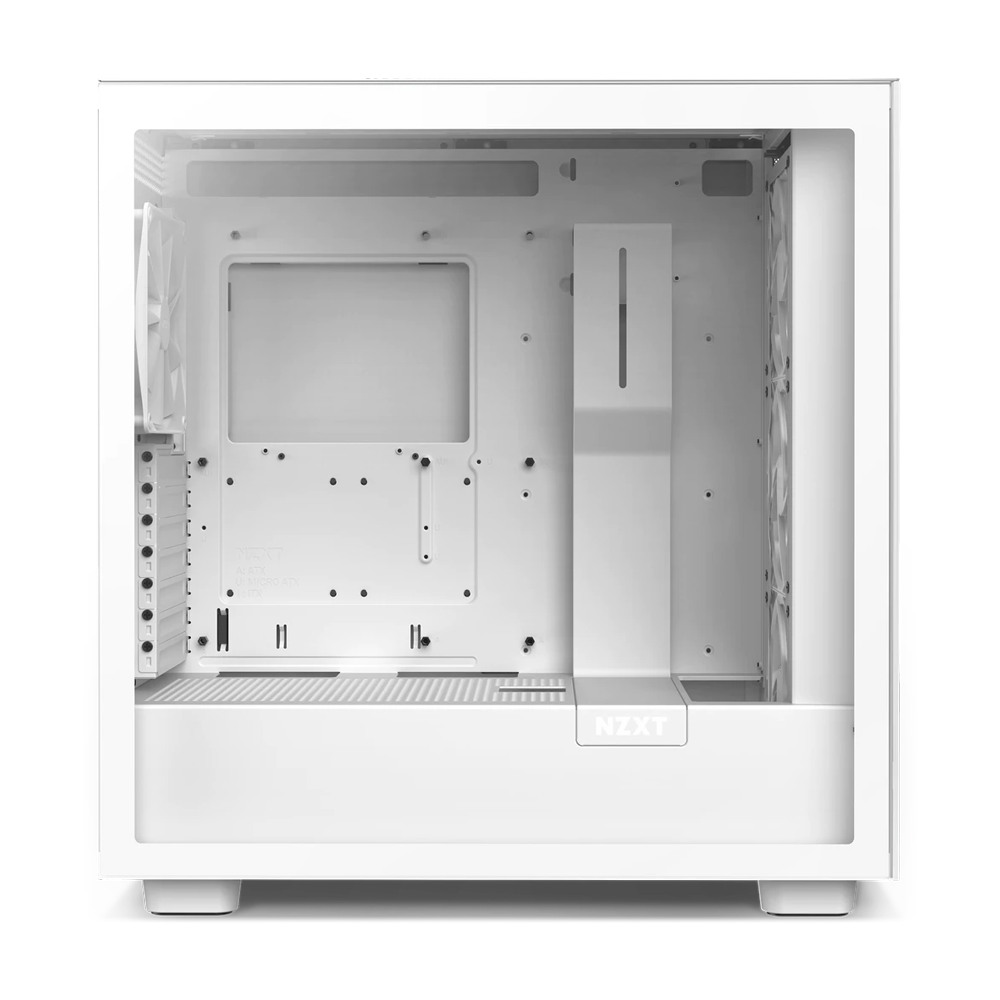

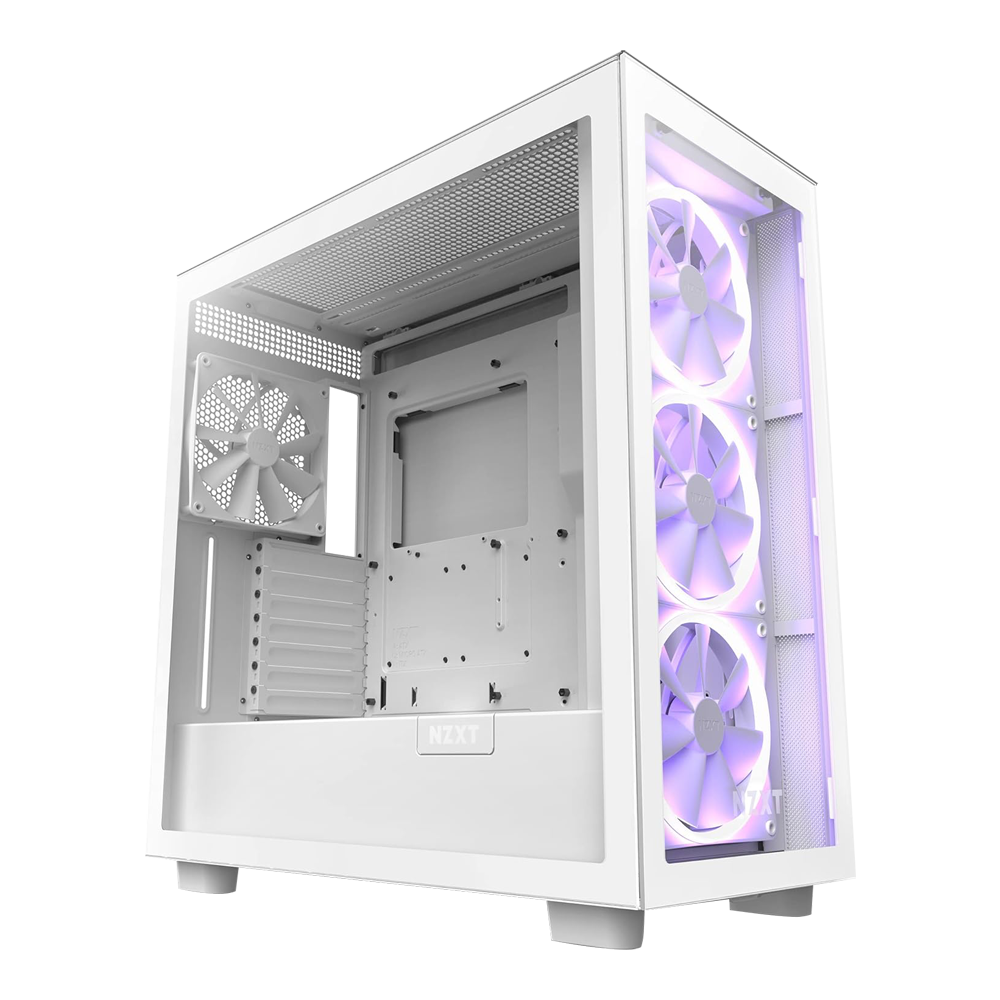

NZXT H Series H7 V1 2022 ATX Mid Tower Case - White

Key Features:

• Perforated front & top panels enable maximum thermal performance
• Intuitive cable management system with wide channels, hooks, & straps
• Tool-less access to front & side panels (tinted panels on black variant only)
• Front & top support radiators up to 360mm
• Includes two F Series Quiet 120mm Fans (Case Version)
• Supports vertical GPU mounting (Sold Separately)
• Three color options (Matte Black, Matte White, White & Black)
• Two top-mounted USB 3.2 Type-A ports
• One top-mounted USB 3.2 Type-C port

This mid-tower case is ready to bring the cool. Featuring a perforated front and top panel, alongside widened channels, hooks, straps, and toolless entry, this sleek case will keep any build cool and comfortable while offering plenty of space.

Built-In RGB Lighting

Includes three pre-installed F140 RGB Core fans on the front panel for customizable lighting.

Ready for Performance

Fits NVIDIA GeForce RTX 40 Series graphics cards with its 400mm clearance. Display your GPU vertically using the NZXT Vertical GPU Mounting Kit.*

Spacious Cooling Support

Up to 360mm radiator or 3 x 120mm fan support in the front and top panels.

Easily Route Cables

Wide cable channels with hooks, bridge and straps take the guesswork out of organized cable management.

Component Compatibility

• 2.5" SSD Support: 4+2
• 3.5" HDD Support: 2
• Expansion Slots: 7
• CPU Cooler: Max 185mm

Specifications

Key Specs

• Motherboard Support : Mini-ITX, Micro-ATX, ATX
• Enclosure Type : Mid-Tower
• Case Material : SGCC Steel, Ultra-clear Tempered Glass, Dark Tinted Tempered Glass (Black only)

Dimensions

• Height : 505mm (With Feet)
• Width : 230mm
• Depth : 480mm
• Weight : 10.05 kg

Compatibility & Clearance

• Max CPU Cooler Clearance : Up to 185mm
• Max GPU Clearance : Up to 400mm
• Front Radiator Clearance : 60mm
• Top Radiator Clearance : 30mm
• Cable Management : 18-22mm

Front I/O Ports

• USB 3.2 Gen 1 Type-A : 2
• USB 3.2 Gen 2x2 Type-C (20 Gbps) : 1
• Headset Audio Jack : 1

Expansion Slots

• Standard ; 7
• Vertical : 0
• Drive Bays
• 2.5" : 4+2
• 3.5" : 2

Fan Support

• Front : 3 x 120mm / 3 x 140mm
• Top : 3 x 120mm / 2 x 140mm
• Rear : 1 x 120mm / 1 x 140mm
• Filters : All Air Intakes

Radiator Support

• Front : Up to 360mm with Push/Pull
• Top : Up to 360mm
• Rear : Up to 140mm
• Fan Specs - F120Q (Case Version)
• Model : F120Q (Case Version)
• Speed : 1200 ± 240RPM
• Airflow : 62.18 CFM
• Static Pressure : 1.05 mm - H2O
• Noise : 25.1 dBA
• Fan Connector : 3-pin DC
• White Variant
• Model Number : CM-H71FW-01
• UPC : 815671019448
• EAN : 5060301697007
