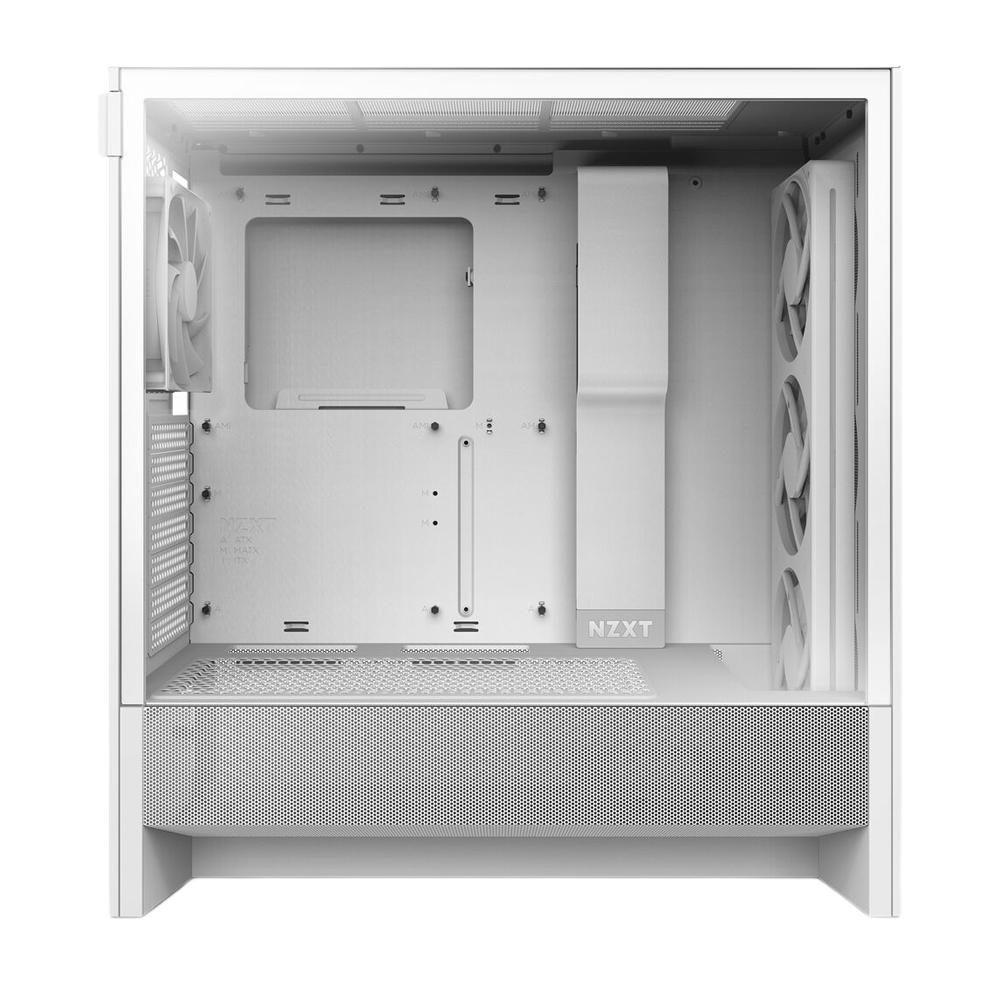

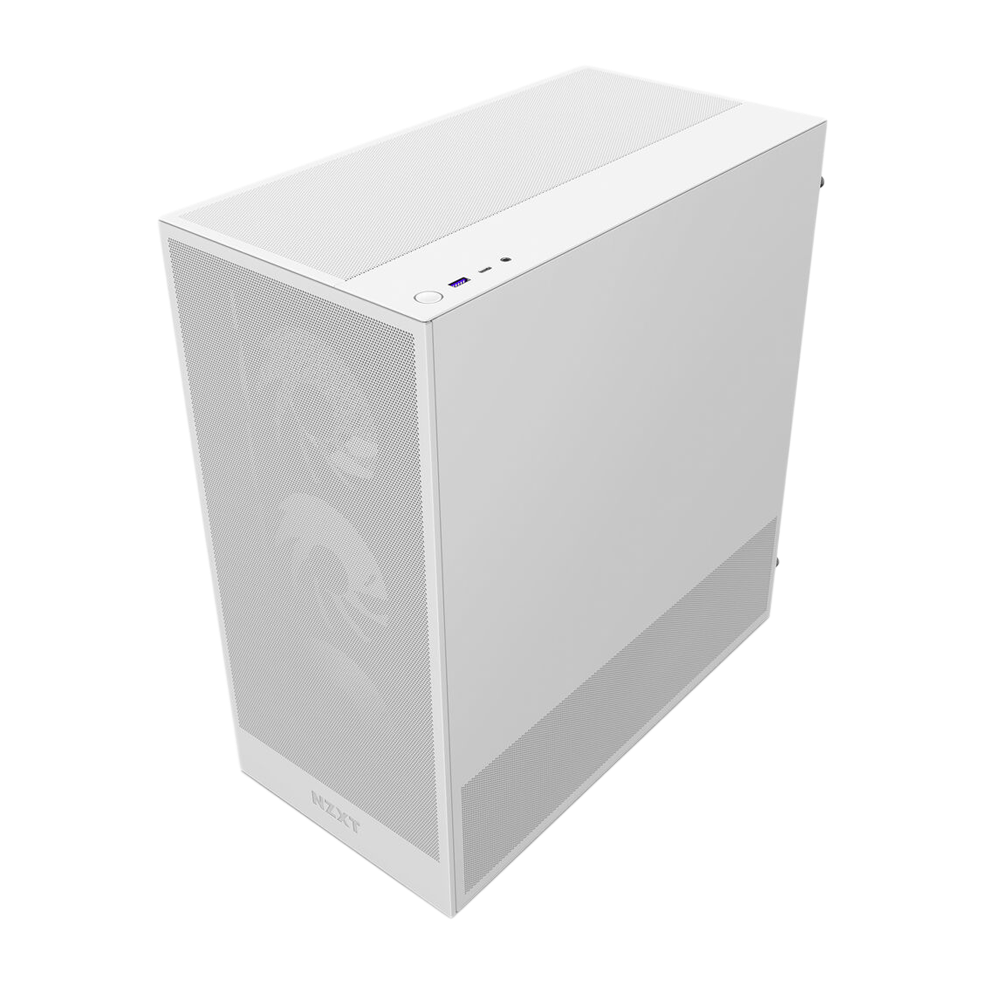

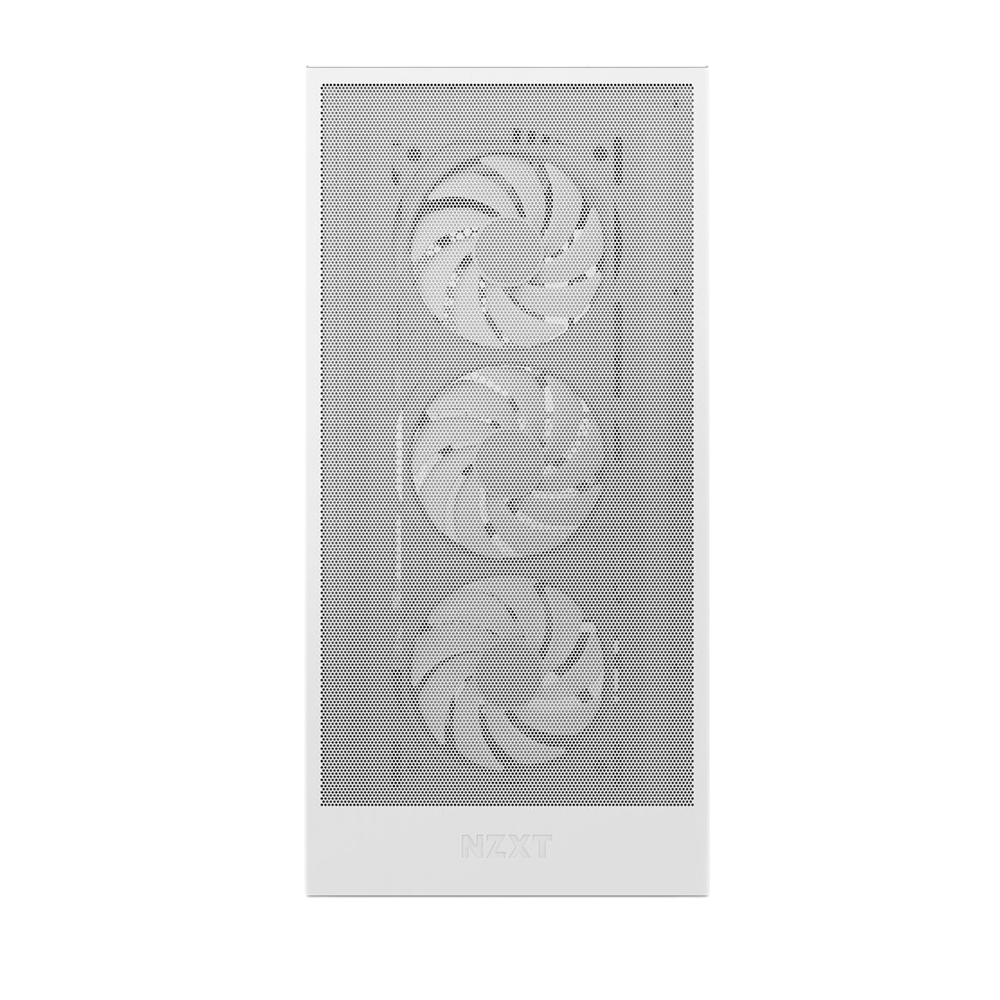

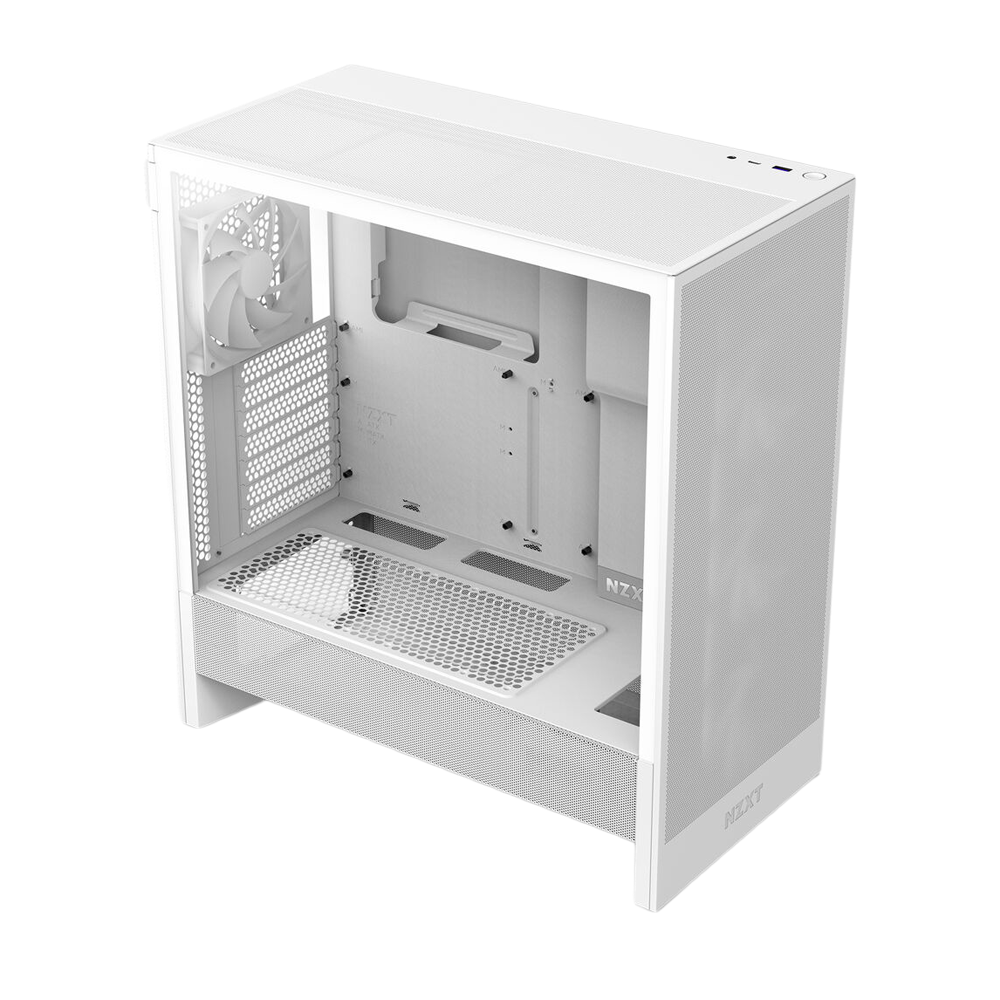

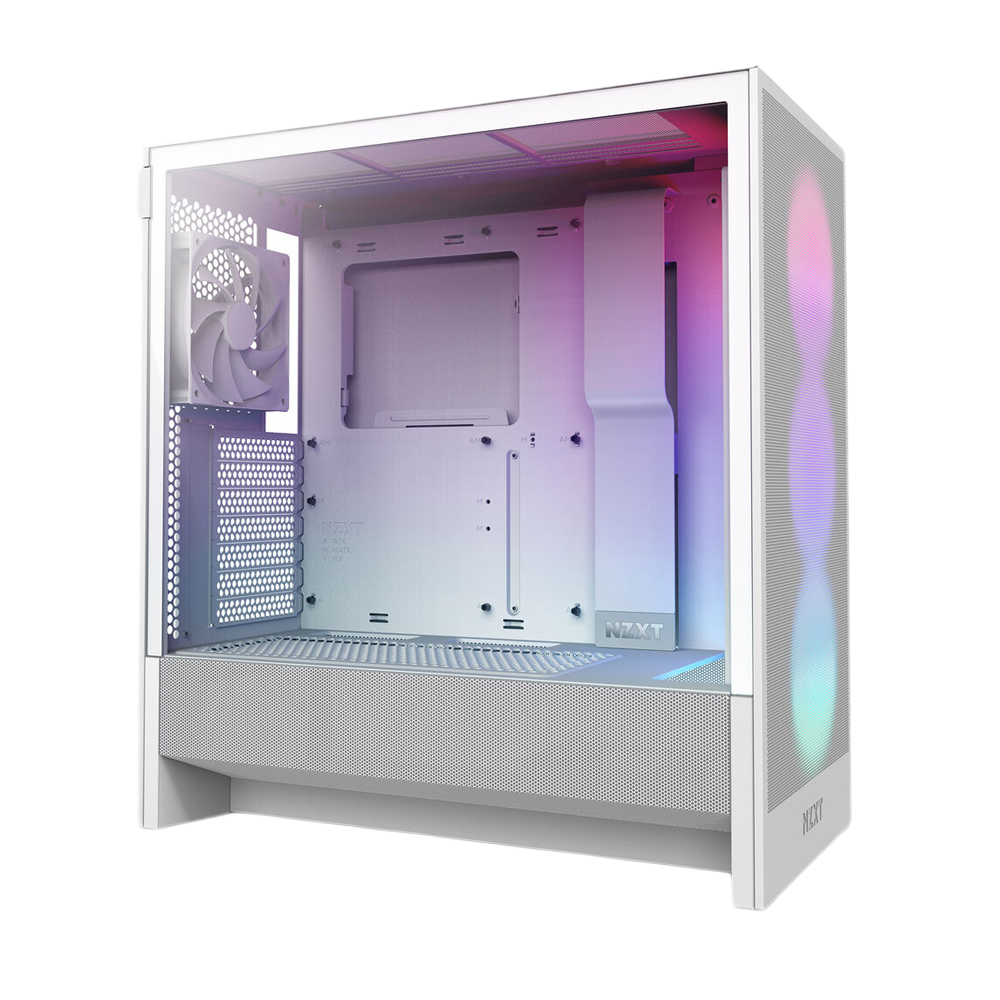

NZXT H5 Flow RGB (2024) Compact Mid-Tower ATX Case With RGB Fans - White
NZXT H5 Flow RGB (2024) Compact Mid-Tower ATX Case With RGB Fans - White
SKU:CC-H52FW-R1
QR Code : CC-H52FW-R1
In stock
Couldn't load pickup availability
Share
Description
Description
The H5 Flow RGB boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support—all in a compact mid-tower form factor.
- The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included).
- Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential.
- Ultra-fine mesh on the top, front, and side panels creates maximum airflow and filters dust.
- Equipped with a front-mounted F360 RGB Core (CV) single-frame fan and rear-mounted F120Q (CV) fan for strong out-of-the-box cooling and lighting.
- Effortlessly route and conceal cables using the wide channels, hooks, and straps.
H5 Flow RGB
Compact ATX mid-tower chassis with high airflow, optimal GPU cooling, and large radiator support.
More Air to the GPU
Mesh PSU shroud maximizes air intake from two 120mm bottom-mounted fans (not included).
Fits Large Radiators
Supports a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling setups.
Optimized for Airflow
Ultra-fine mesh panels facilitate exceptional airflow and help filter pesky dust particles.
Pre-Installed Fans*
Front-mounted F360 RGB Core fan and rear F120Q fan for out-of-the-box cooling and lighting.
Easy Cable Management
Effortlessly route and conceal cables using the wide channels, hooks, and straps.
Tool-less Access
Easily open up the front, side, and top panels without any tools.
Strong and Sleek
Crafted from thick steel and tempered glass for long-lasting quality.
Specifications
Key Specs
- Motherboard Support: E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX
- Enclosure Type : Mid-Tower
- Case Material : SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)
Dimensions
- Height (With Feet) : 465 mm (18.31 in)
- Width : 225 mm (8.86 in)
- Depth : 430 mm (16.93 in)
- Weight : 7.63 kg (16.82 lb)
Compatibility & Clearance
- CPU Cooler Height : Up to 185mm
- GPU Length : Up to 410 mm
- PSU Length : Up to 200 mm
- Cable Management : Up to 34.5 mm
- Top Mounted Radiator & Fan Combined Thickness : Up to 57 mm (140mm / 280mm)
Front I/O Ports
- USB 3.2 Gen 1 Type-A : 2
- USB 3.2 Gen 2x2 Type-C (20 Gbps) : 1
- Headset Audio Jack : 1
Expansion Slots
- Standard : 7
- Vertical : 0
Dimensions
- Height (with feet) : 465 mm / 18.31 in
- Width : 225 mm / 8.86 in
- Depth : 430 mm / 16.93 in
- Weight : 7.63 kg / 16.82 lb
Compatibility & Clearance
- CPU Cooler Height : Up to 170 mm
- GPU Length : Up to 410 mm
- PSU Length : Up to 200 mm
- Cable Management : Up to 28.7 mm
- Top Radiator : Up to 240 mm (280 mm with low-profile memory)
- Top Mounted Radiator + Fan Thickness : Up to 55 mm
Front Ports
- USB 3.2 Type-A : 1
- USB 3.2 Gen 2x2 Type-C (20 Gbps) : 1
- Headset Audio Jack : 1
Expansion Slots
- Standard : 7
- Vertical : 0
Drive Bays
- 2.5" : 2
- 3.5" : 1
Fan Support
- Front : 3 x 120 mm / 2 x 140 mm (1 x F360 RGB Core Case Version included)
- Top : 2 x 120 mm / 2 x 140 mm
- Bottom : 2 x 120 mm
- Rear : 1 x 120 mm (1 x F120Q Case Version included)
Radiator Support
- Front : Up to 360 mm
- Top : Up to 240 mm (280 mm with low-profile memory only)
- Fan Specs - F360 RGB Core (Case Version)
- Model : F360 RGB Core (Case Version)
- Speed : 1,700 ± 200 RPM
- Airflow : 50.1 CFM
- Static : 1.27 mm-H₂O
- Noise : 23.3 dBA
- Fan Connector : 3-pin DC
