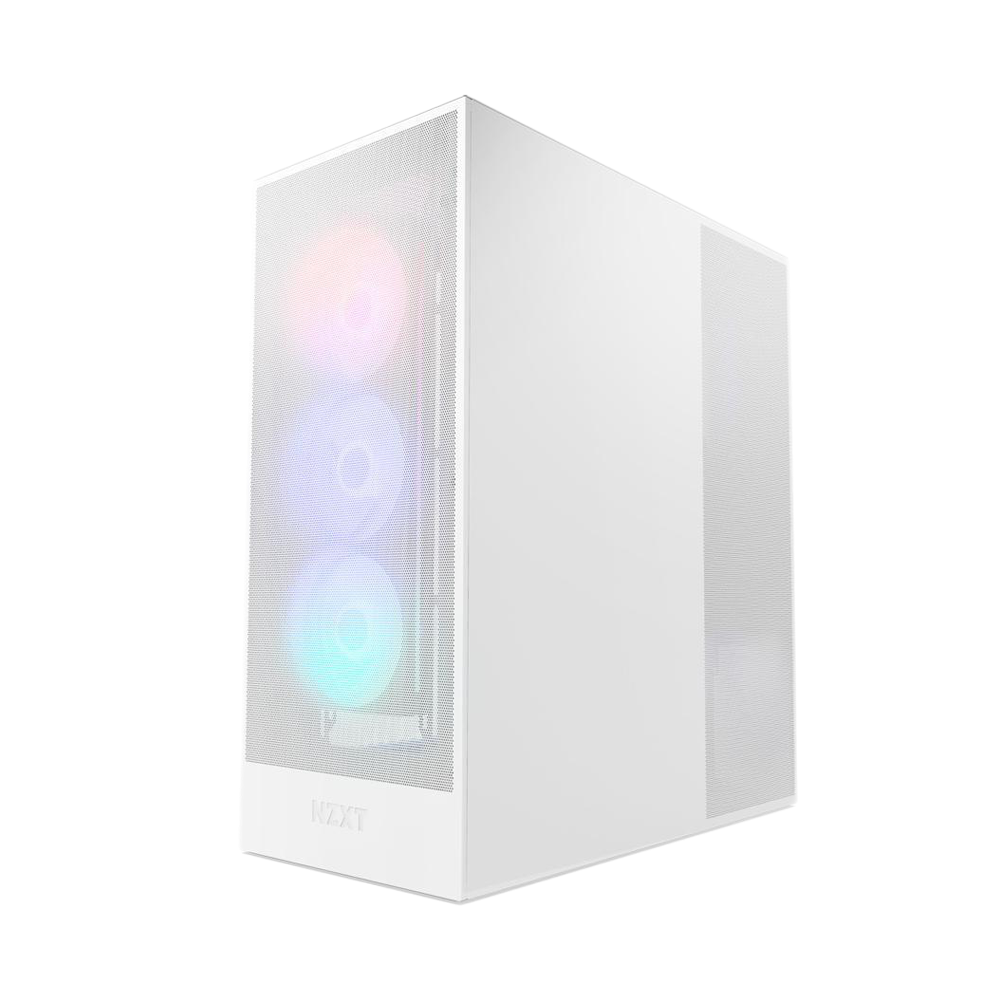

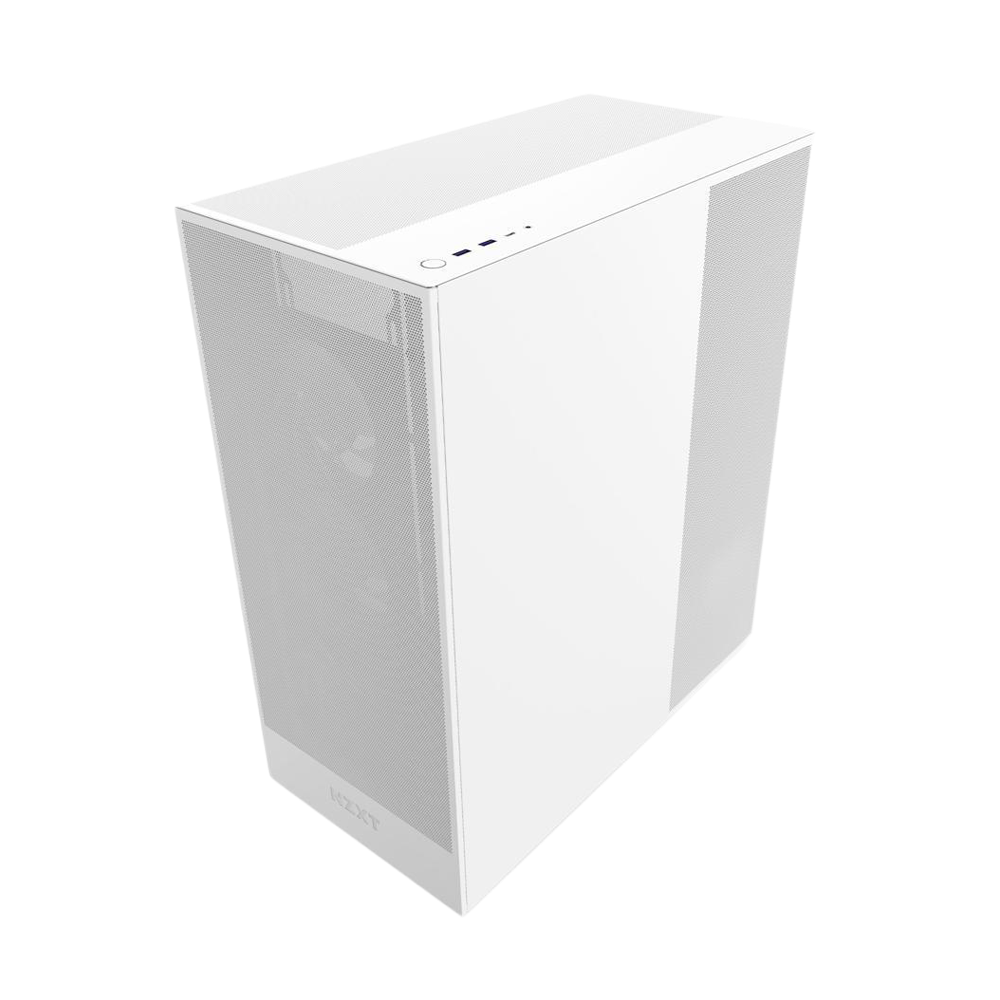

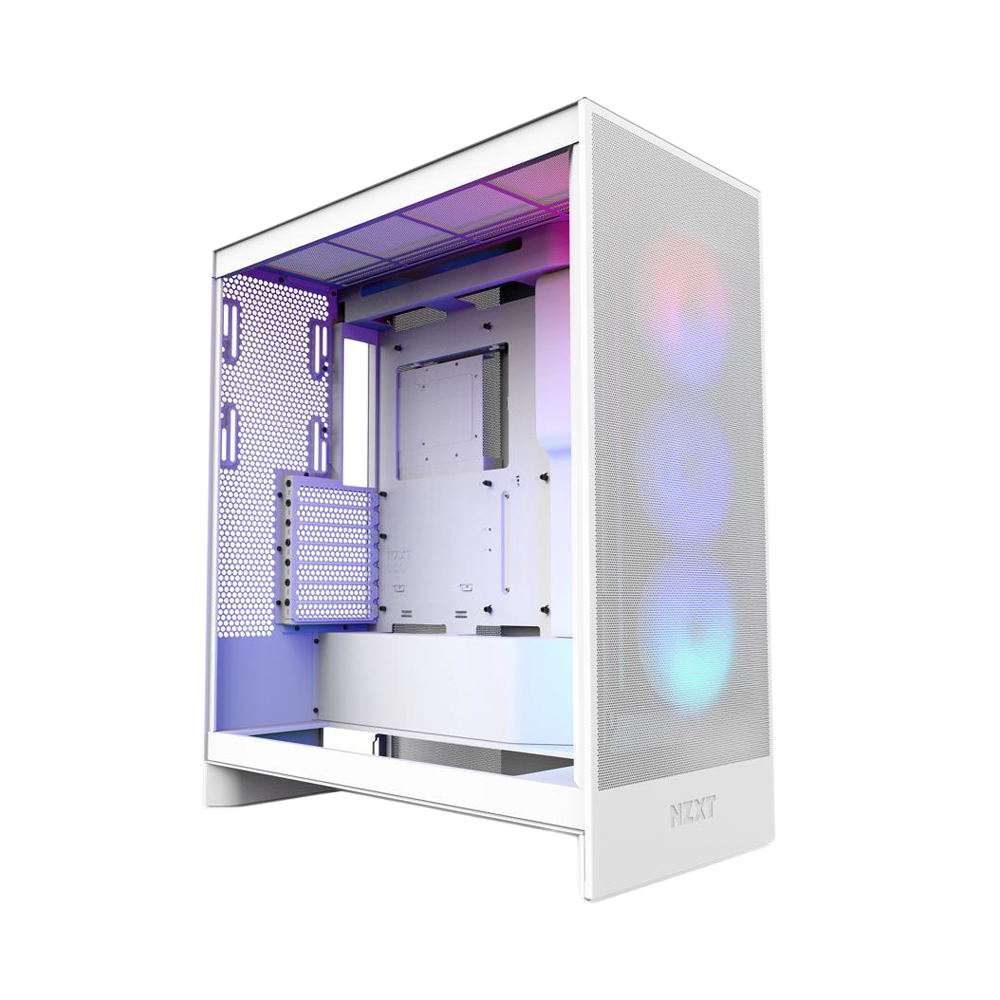

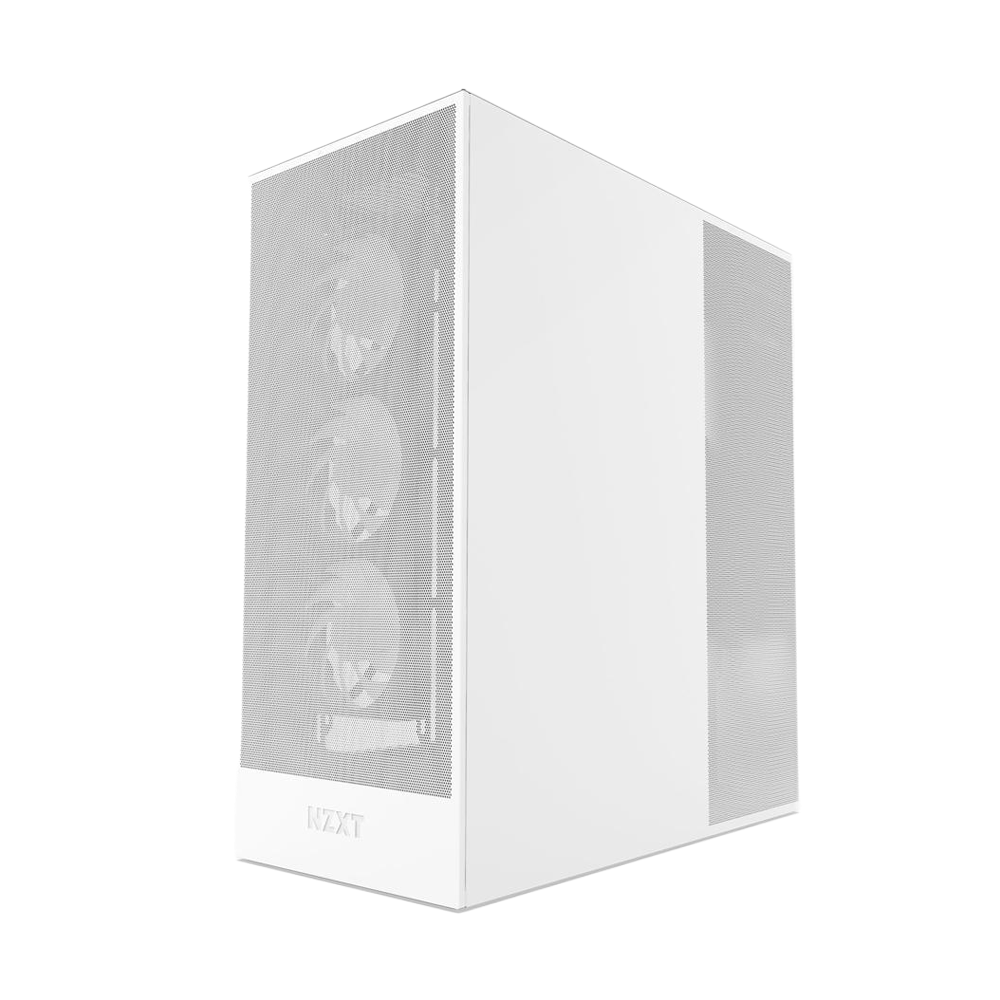

NZXT H7 Flow (2024) RGB Mid Tower ATX Case - White

NZXT H7 Flow (2024) RGB Mid Tower ATX Case - White

SKU:CM-H72FW-R1

QR Code : 1325401

In stock

Regular price KWD 52.000
Sale price KWD 52.000 Regular price
Sale
Manufacturer

Description

Key Features:

  • Motherboard Support: E-ATX (Up to 277mm), ATX, Micro-ATX, Mini-ITX
  • Enclosure Type: Mid-Tower
  • Case Material: SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)
  • Height (With Feet): 544 mm
  • Width: 244 mm
  • Depth: 468 mm
  • Weight: 11.13 kg

Mid-Tower ATX Airflow Case with RGB Fans

The H7 Flow RGB revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.

  • Supports three bottom-mounted 120mm fans for direct GPU cooling while retaining a narrow mid-tower footprint.
  • Comes equipped with a F360 RGB Core single-frame fan for exceptional out-of-the-box cooling and RGB lighting.
  • High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
  • Supports up to 420mm radiators in the front and 360mm radiators in the top for powerful cooling potential.
  • Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
  • Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
  • Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.
  • Tool-less access to the front, top, and side panels makes building and upgrading a breeze.

Dedicated GPU Cooling

Supports three bottom-mounted 120mm fans for direct GPU cooling in a narrow mid-tower footprint.

Large Radiator Support

Comes equipped with a F360 RGB Core single-frame fan for out-of-the-box cooling and RGB lighting.

Optimized for Airflow

High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.

Large Radiator Support

Supports up to a 420mm radiator in front and 360mm radiator up top for max cooling potential.

Easily Manage Cables

Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.

10-Fan Capacity

Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.

Top I/O Ports

Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.

Tool-less Panel Access

Tool-less access to the front, top, and side panels makes building and upgrading a breeze.

Specifications

Key Specs

  • Motherboard Support : E-ATX (Up to 277mm), ATX, Micro-ATX, Mini-ITX
  • Enclosure Type : Mid-Tower
  • Case Material : SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)

Dimensions

  • Height (With Feet) ; 544 mm
  • Width : 244 mm
  • Depth : 468 mm
  • Weight : 11.13 kg

Compatibility & Clearance

  • CPU Cooler Height : Up to 185mm
  • GPU Length : Up to 410 mm
  • PSU Length : Up to 200 mm
  • Cable Management : Up to 34.5 mm
  • Top Mounted Radiator & Fan Combined Thickness : Up to 57 mm (140mm / 280mm)

Front I/O Ports

  • USB 3.2 Gen 1 Type-A : 2
  • USB 3.2 Gen 2x2 Type-C (20 Gbps) : 1
  • Headset Audio Jack : 1

Expansion Slots

  • Standard : 7
  • Vertical : 0

Drive Bays

  • 2.5" : 2+2
  • 3.5" : 2

Fan Support

  • Front : 3 x 120 mm / 3 x 140 mm (1 x F360 RGB Core included)
  • Top : 3 x 120 mm / 2 x 140 mm
  • Bottom : 3 x 120 mm
  • Rear : 1 x 120 mm / 1 x 140 mm
  • Filters : High-Performance Mesh

Radiator Support

  • Front : Up to 420 mm
  • Top : Up to 360mm
  • Rear : Up to 140mm
  • Fan Specs - F360 RGB Core (Case Version)
  • Model : F360 RGB Core Fan (Case Version)
  • Speed : 1,700 ± 200 RPM
  • Airflow : 50.1 CFM
  • Static : 1.27 mm-H₂O
  • Noise : 23.3 dBA
  • Fan Connector : 3-pin DC
  • Model Number : CM-H72FW-R1
