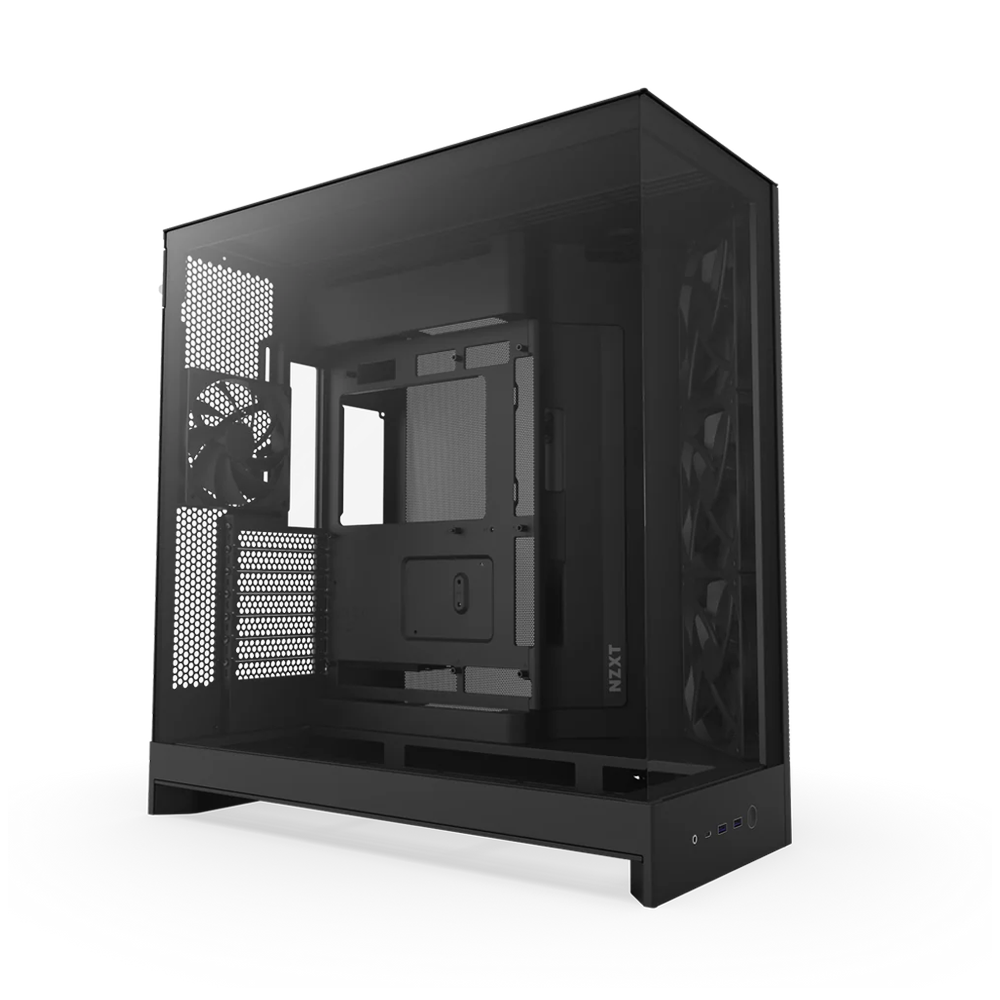

NZXT H9 Flow (2025) Dual-Chamber Mid-Tower Case - Black

Key Features:

• Dual-Chamber Design: Separates main components from the PSU and drives for improved thermal performance and cable management.

• Optimized Airflow: Perforated steel panels and angled front-right fans ensure efficient cooling for high-performance builds.

• Pre-Installed Fans: Includes three F140Q (CV) fans in the front-right and one F120Q (CV) fan in the rear. CV = Case Version (3-pin DC)

• Ten-Fan Capacity: Supports up to nine 140 mm fans across the top, front-right, and bottom, plus one 120 mm fan in the rear.

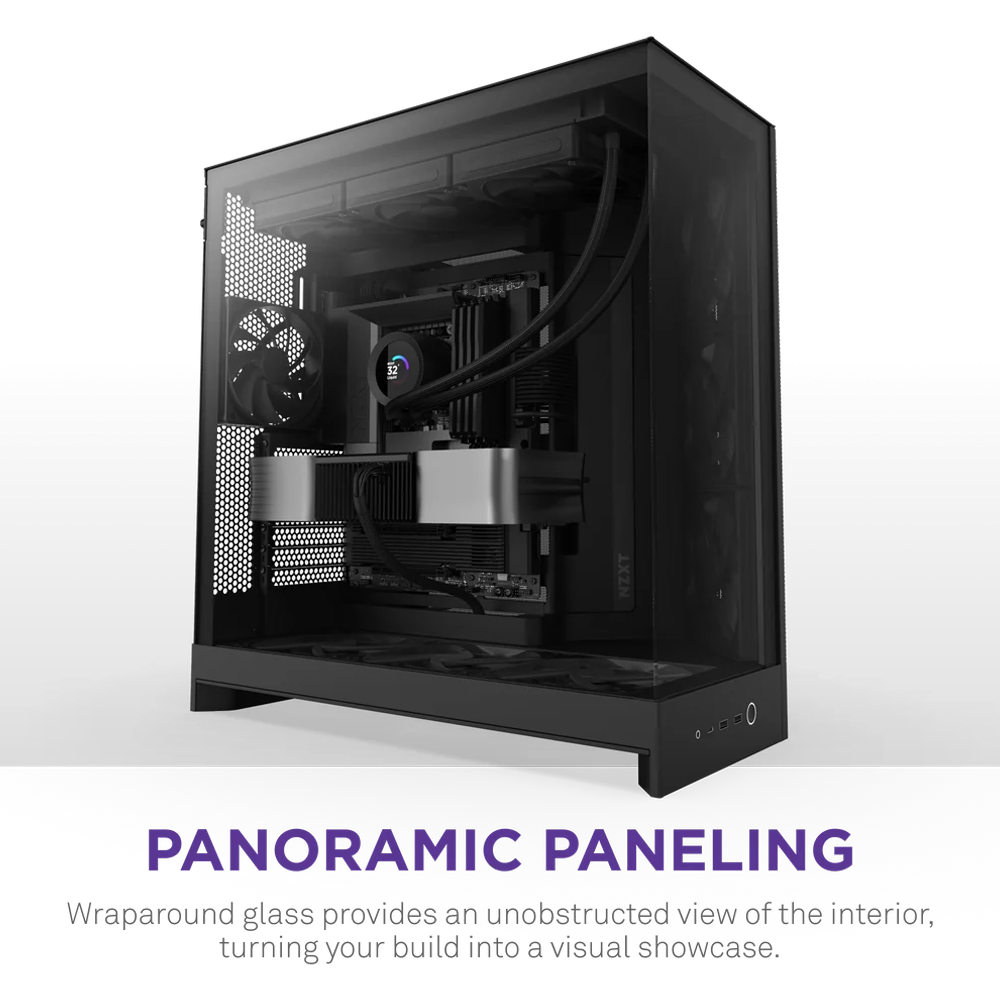

• Panoramic View: Showcase every detail of your build with seamless, wraparound tempered glass paneling.

• Large Radiators & GPUs: Fits up to a 420 mm radiator on the top and front-right, with plenty of clearance for high-end graphics cards.

• Easy Cable Management: Extra-wide channels, built-in Velcro straps, and tie-down points make cable routing effortless.

• Back-Connect Ready: Compatible with rear-connecting motherboards like ASUS BTF and MSI Project Zero for a cable-free look.

The H9 Flow is a spacious mid-tower ATX case built for high-performance builds, balancing airflow and aesthetics. Its dual-chamber design improves cooling and cable management, while perforated panels, angled fans, and ample fan and radiator support deliver optimal thermal performance.

Built to Flow. Made to Show.

The H9 Flow is a spacious, dual-chamber case built for high-performance builds, featuring extensive cooling support and wraparound glass panels for an uninterrupted view of your build.

Optimized Airflow

Angled front-right fans and an airflow-optimized layout keep temps low and performance steady.

Mesh Panels

Ultra-fine, high-airflow mesh panels maximize airflow while filtering dust.

Spacious Dual-Chamber

Separates heat-generating components for improved airflow and a cleaner build.

10-Fan Cooling

Fits up to nine 140 mm fans and one 120 mm rear fan.

Large Radiator Support

Holds up to 420 mm radiators on the top and front-right panels for versatile cooling.

Maximum Graphics

Handles GPUs up to 435 mm, giving plenty of space for top-tier graphics cards.

Back-Connect Ready

Compatible with ASUS BTF and MSI Project Zero motherboards for a cable-free look.

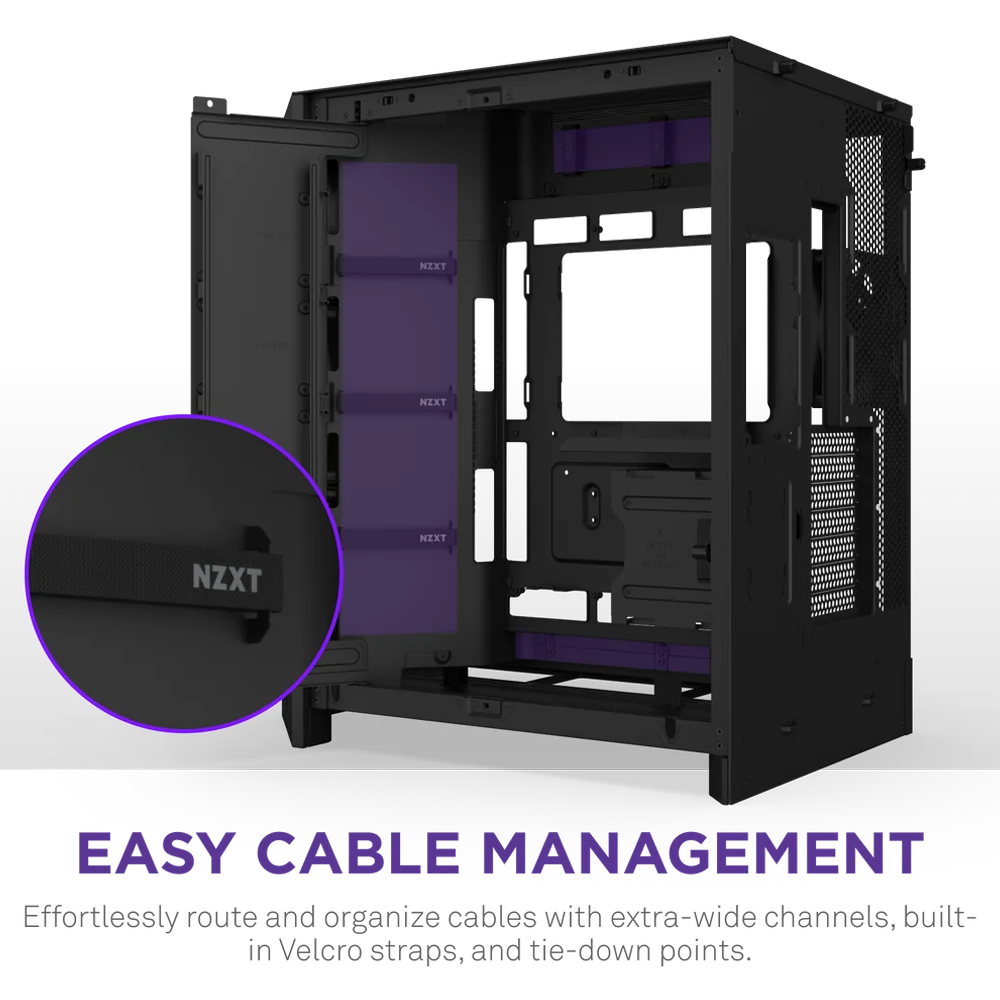

Easy Cable Management

Extra-wide channels, Velcro straps, and tie-down points make cable routing simple.

Specifications

General

• Enclosure Type : Mid-tower

• Motherboard Support : E-ATX (Up to 277 mm), ATX, Micro-ATX, Mini-ITX

• Rear-Connecting Motherboard Support : Yes (ATX)

• Power Supply Type : ATX

• Materials : SGCC steel, clear tempered glass (white), tinted tempered glass (black)

Dimensions

• Dimensions (H x W x D) : 506 x 315 x 481 mm (19.9 x 12.4 x 18.9 in)

• Volume : 76.7 L

• Weight : 12.49 kg (27.5 lb)

Clearance

• CPU Cooler Height : 165 mm (6.5 in)

• GPU Length : Up to 459 mm (with <56 mm thickness fans installed at the front-right) Up to 410 mm (with 56 mm thick 420 mm AIO and fans installed at the front-right)

• PSU Length : 200 mm (7.9 in)

• Top Radiator + Fan Thickness : Up to 80 mm (360 mm) Up to 62 mm (420 mm)

Front I/O

• USB 3.2 Type-A : 2

• USB 3.2 Gen 2x2 Type-C : 1

• Headset Jack : 1

Expansion & Drives

• Expansion Slots : 7

• 2.5" Drive Bays : 4+2

• 3.5" Drive Bays : 2

Cooling Support

• Front-Right Fans : 3 x 120 mm / 3 x 140 mm (3 included)

• Top Fans : 3 x 120 mm / 3 x 140 mm

• Bottom Fans : 3 x 120 mm / 3 x 140 mm

• Rear Fan : 1 x 120 mm (1 included)

• Front-Right Radiator : Up to 420 mm

• Top Radiator : Up to 420 mm

• Bottom Radiator : Up to 360 mm

• Rear Radiator : Up to 120 mm

Included Fan Specs

• Model : F140Q (Case Version) / F120Q (Case Version)

• Quantity : 3 / 1

• Speed : 1,350 ± 150 RPM

• Airflow : 100.25 CFM / 60.2 CFM

• Static Pressure : 1.4 mmH₂O / 1.05 mmH₂O

• Noise Level : 22.9 dBA / 24.1 dBA

• Fan Connector : 3-pin

Product Info

• Model Number : CM-H92FB-01 (Black)
