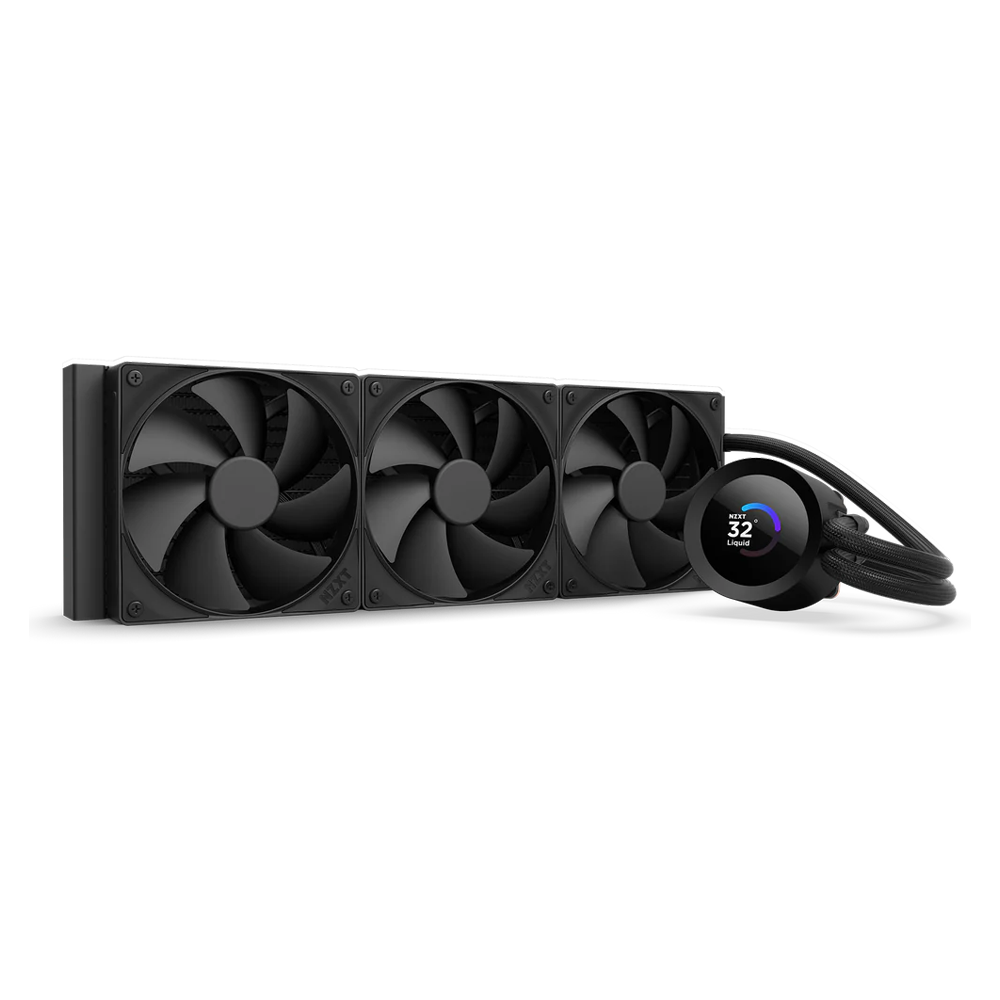

Nzxt Kraken Plus 360mm V2 Display and Radiator Fans AIO Liquid Cooler - Black

Key Features:

The Kraken Plus AIO liquid cooler features the custom-designed NZXT Turbine pump and LCD display for efficient, customizable cooling.

• High-Performance Cooling: The NZXT Turbine pump is engineered for high flow and head pressure, delivering efficient, low-noise cooling to keep your CPU performing at its best under heavy workloads.
• Custom LCD Screen: Display real-time system temps, animated GIFs, custom images, or web integrations like Spotify and YouTube on a bright 1.54" square LCD — fully customizable through NZXT CAM software.
• Quiet Airflow: High-static pressure fans move air through the radiator to dissipate heat effectively, while Zero RPM Mode stops the fans completely at low loads for silent operation.
• Easy Installation: Pre-applied thermal paste and a single breakout cable from the pump cap speed up installation and reduce cable clutter.
• Wide Compatibility: Includes tool-free mounting brackets that support the latest AMD® and Intel® CPU sockets, including AM5 and LGA 1851.
• Durable and Reliable: Reinforced rubber tubing with nylon-braided sleeving ensures long-term durability and easy routing during installation.
• Optimized Cold Plate: The split-flow copper cold plate channels coolant to the CPU’s hottest areas for better heat transfer, lower temps, and more consistent thermal performance.
• NZXT CAM Software: Use NZXT CAM to monitor temps, customize the LCD display, and control fan and pump speeds — all through an intuitive, easy-to-use interface.

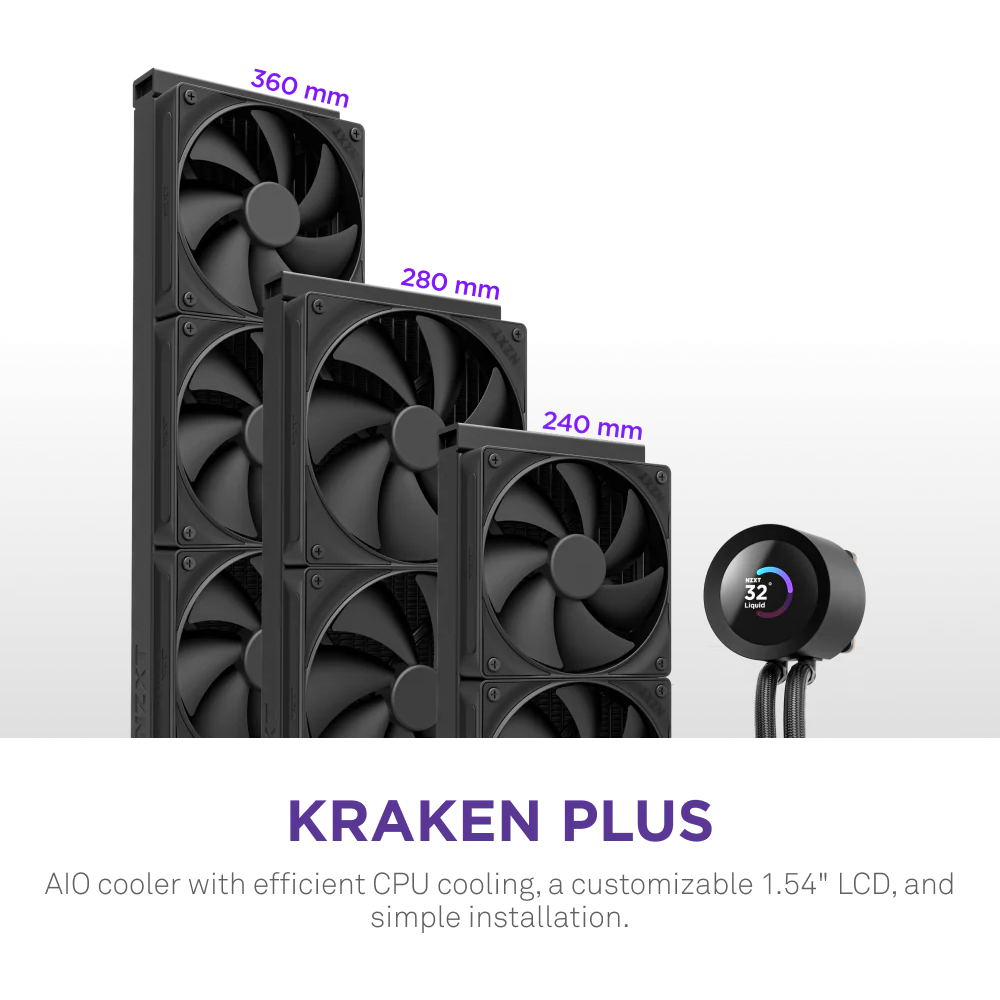

Smart Cooling. Bold Display.

Kraken Plus delivers powerful CPU cooling, a fully customizable LCD, and easy installation — designed for builders who want both performance and personalization.

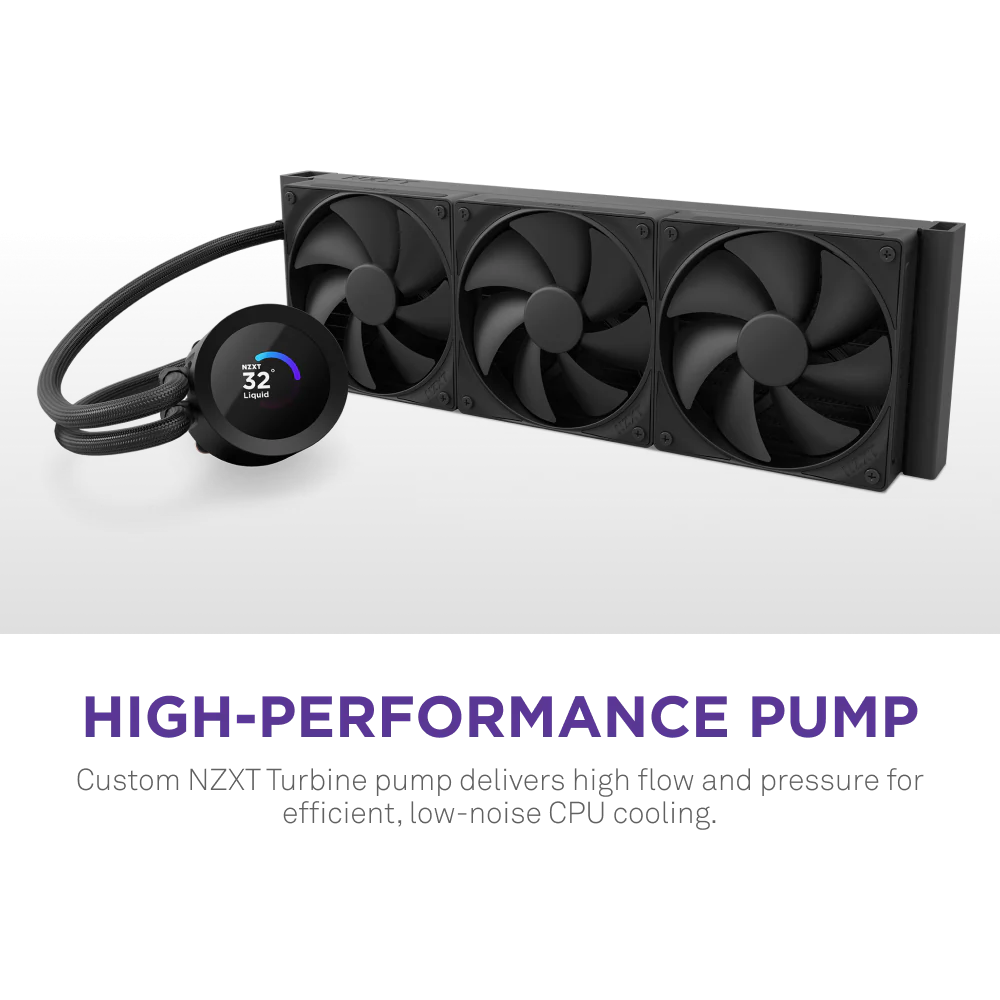

Powered by Turbine

The NZXT Turbine Pump is engineered for high flow and head pressure, delivering efficient, low-noise cooling that keeps up with demanding workloads.

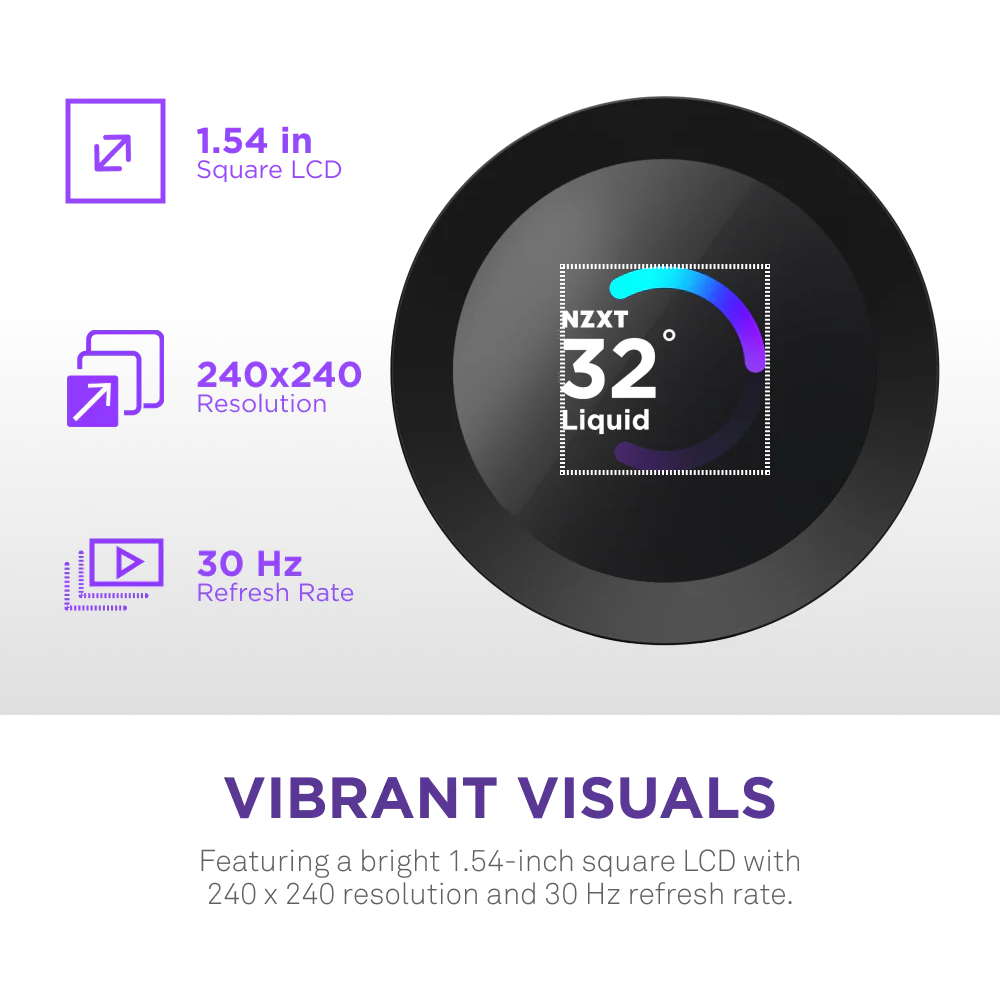

Personalization on Display

Show real-time temps, custom images, GIFs, and web integrations like Spotify and YouTube — all on a vibrant 1.54-inch square LCD, fully controlled through NZXT CAM.

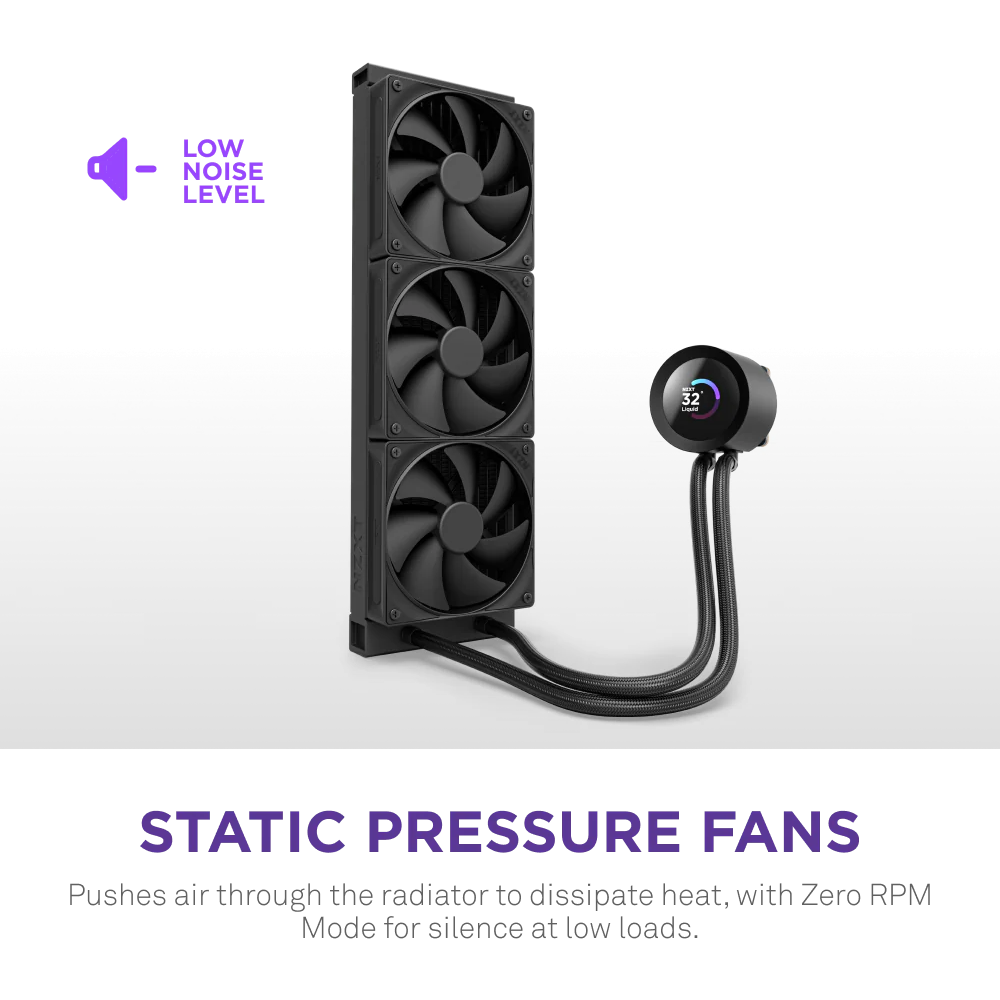

High Pressure. Low Noise.

Static pressure fans push air through the radiator for effective heat dissipation, while Zero RPM Mode keeps them silent during low loads.

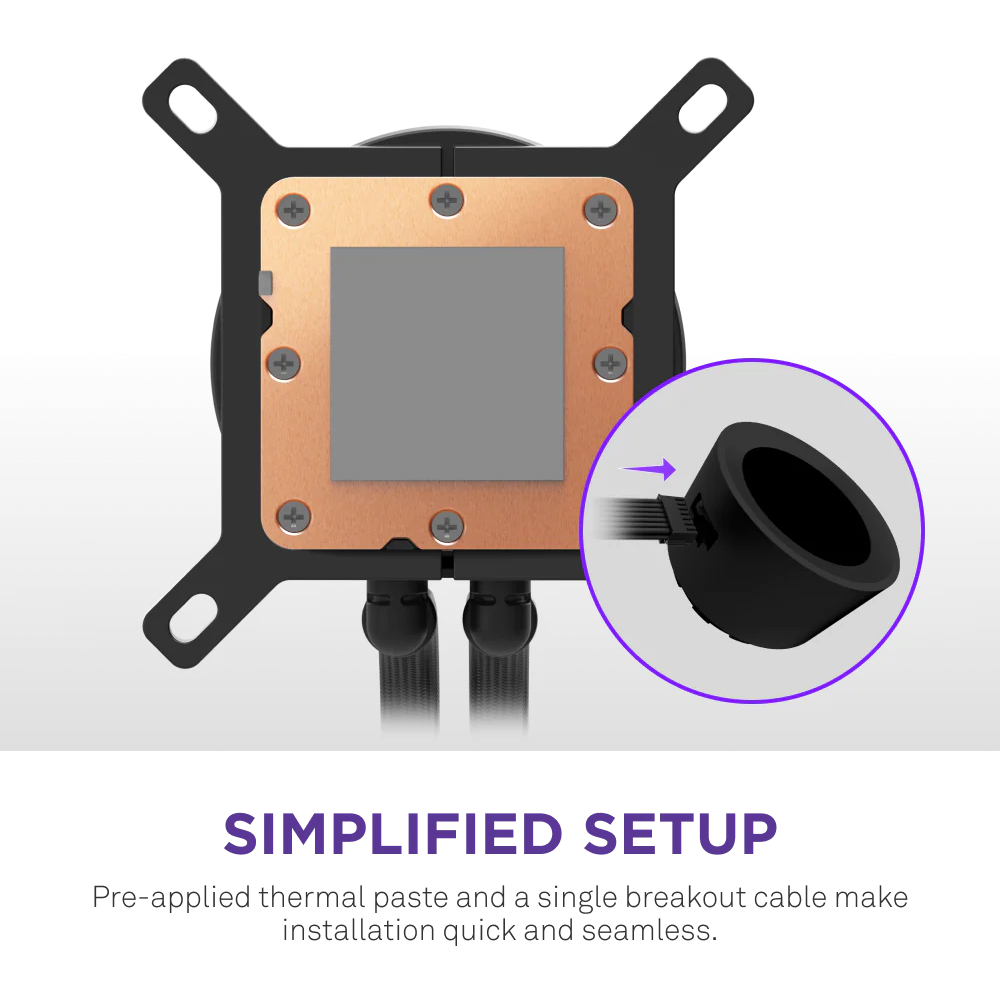

Streamlined Cabling

Integrated fan control in the pump cap and a single breakout cable help reduce clutter and make installation faster.

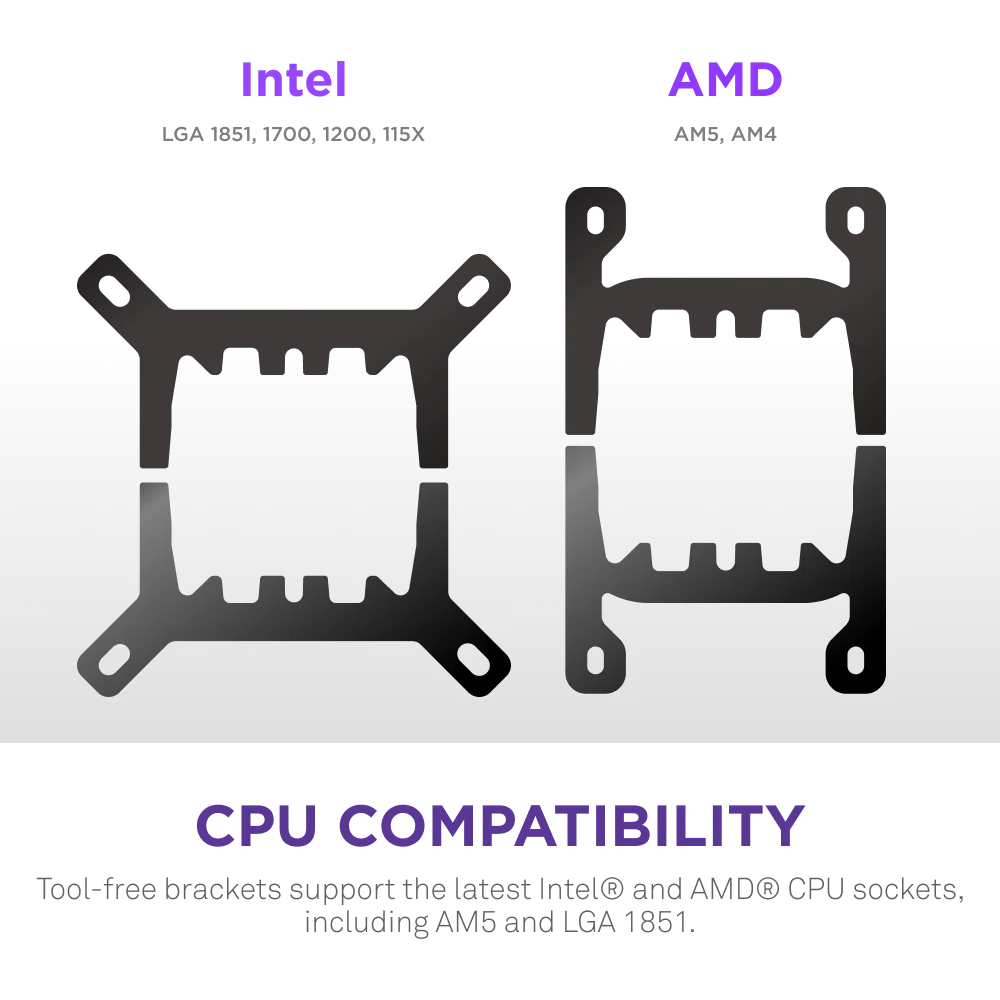

Wide Compatibility

Tool-free mounting brackets support the latest Intel® and AMD® CPU sockets.

Ready to Install

Pre-applied thermal paste for faster setup and efficient heat transfer.

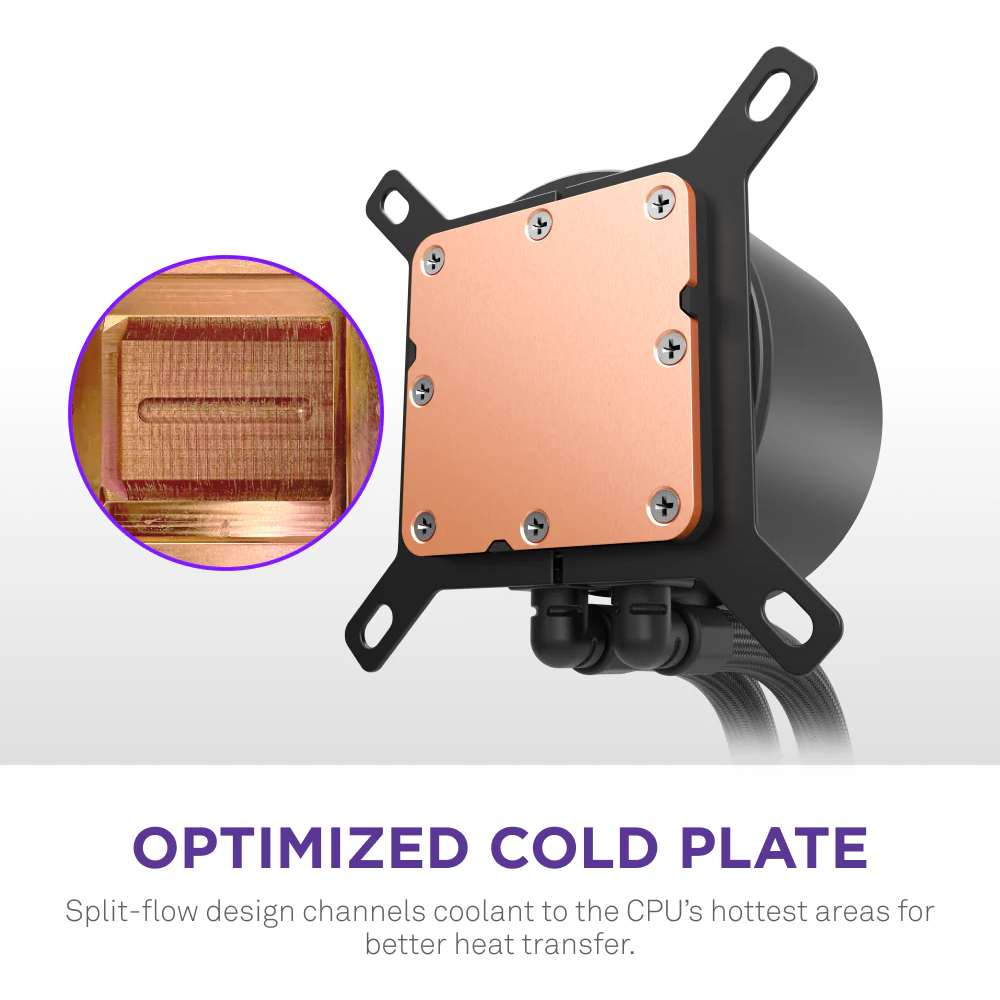

Optimized Cold Plate

Split-flow design channels coolant to the hottest areas for effective cooling.

Specifications

DISPLAY

• Panel Type : Transmissive TFT, 262K color
• Diagonal : 1.54 in / 39.1 mm
• Resolution : 240 x 240 px
• Refresh Rate : 30 Hz
• Brightness : 300 cd/m²
• Colors : 18-bit
• Orientation : Software adjustable

PUMP

• Name : NZXT Turbine
• Motor Speed : 1,200 – 2,800 ± 300 RPM
• Power : 12 V DC, 0.3 A

CAP

• Diameter : 2.87 in / 72.95 mm
• Height : 2.2 in / 55.97 mm
• Housing Material : Plastic

COLD PLATE

• Dimensions : 56 mm x 56 mm
• Type : Split flow
• Material : Copper

RADIATOR

• Dimensions (L × W × H) : 401 x 120 x 27 mm
• Material : Aluminum

TUBING

• Length : 420 mm
• Material : CIIR rubber with Nylon braided sleeve

FAN SPECS

• Model : F120P Static Pressure Fan
• Color : Black
• Dimensions : 120 x 120 x 25 mm
• Quantity : 3
• Speed : 500 - 2,000 ± 200 RPM
• Airflow : 73.47 CFM
• Static Pressure : 4.50 mm-H₂O
• Noise Level : 30.0 dBA
• Power Consumption : 12 V DC, 0.18 A, 2.16 W
• Connector : 4-pin PWM
• Bearing : Fluid Dynamic Bearing
• Lifespan : 60,000 hours
• LED Quantity : N/A
• Cable Length : 600 mm
• Materials : Plastic, rubber, PCB

SOCKET SUPPORT

• Intel® : LGA 1851/1700, 1200/115X
• AMD® : AM5, AM4

CPU SUPPORT

• Intel® : Intel Core i9 / Core i7 / Core i5 / Core i3 / Pentium / Celeron
