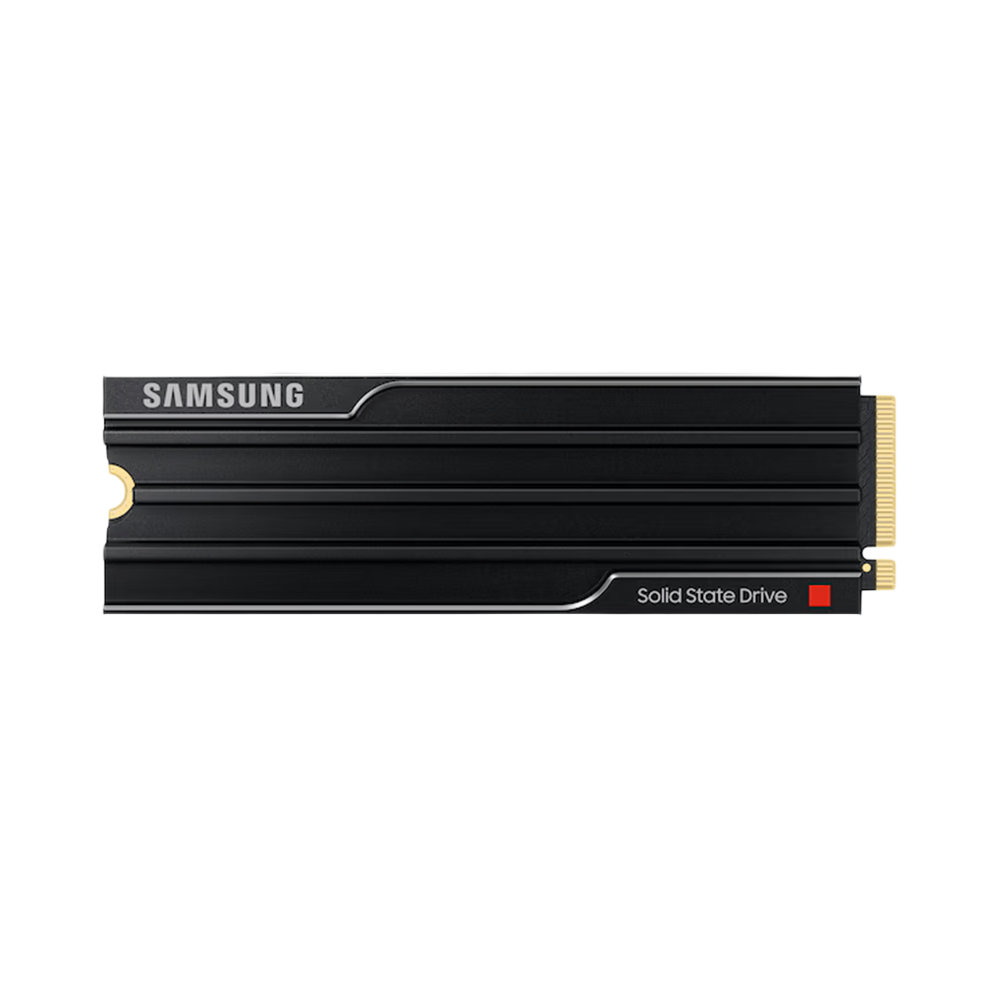

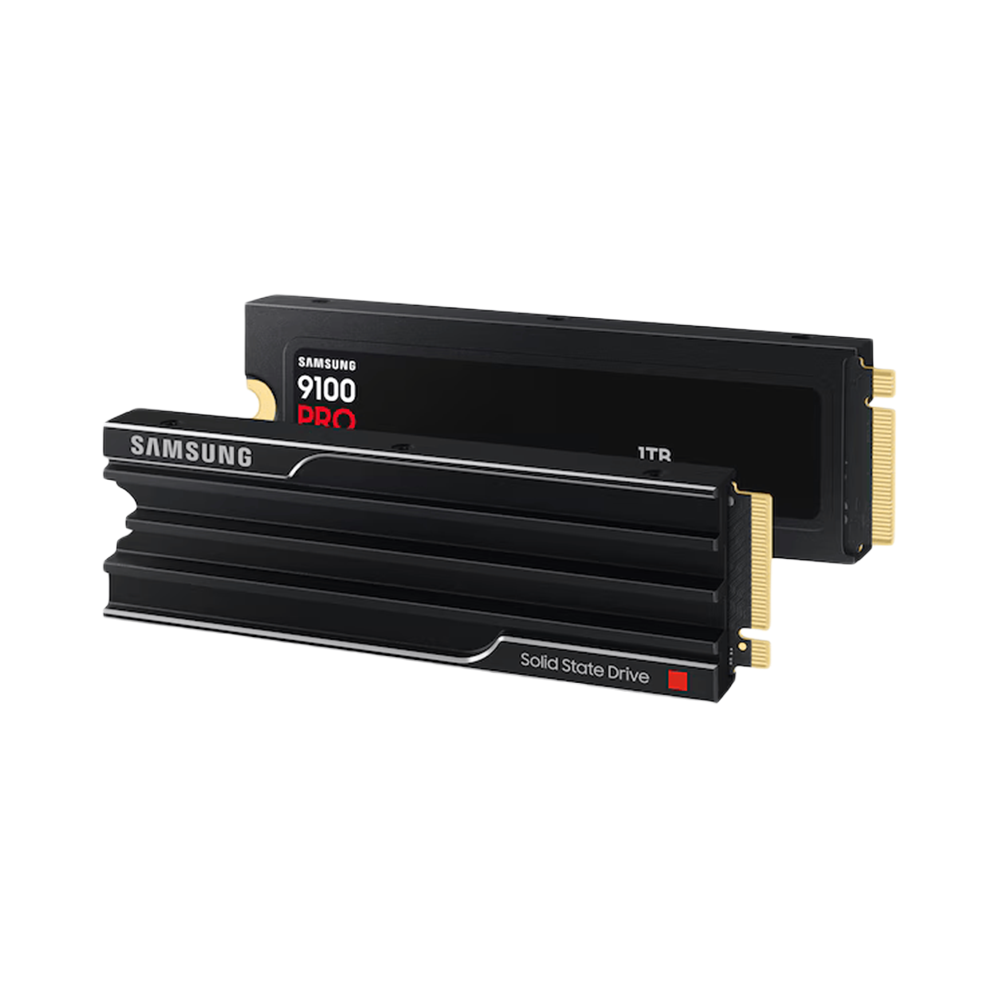

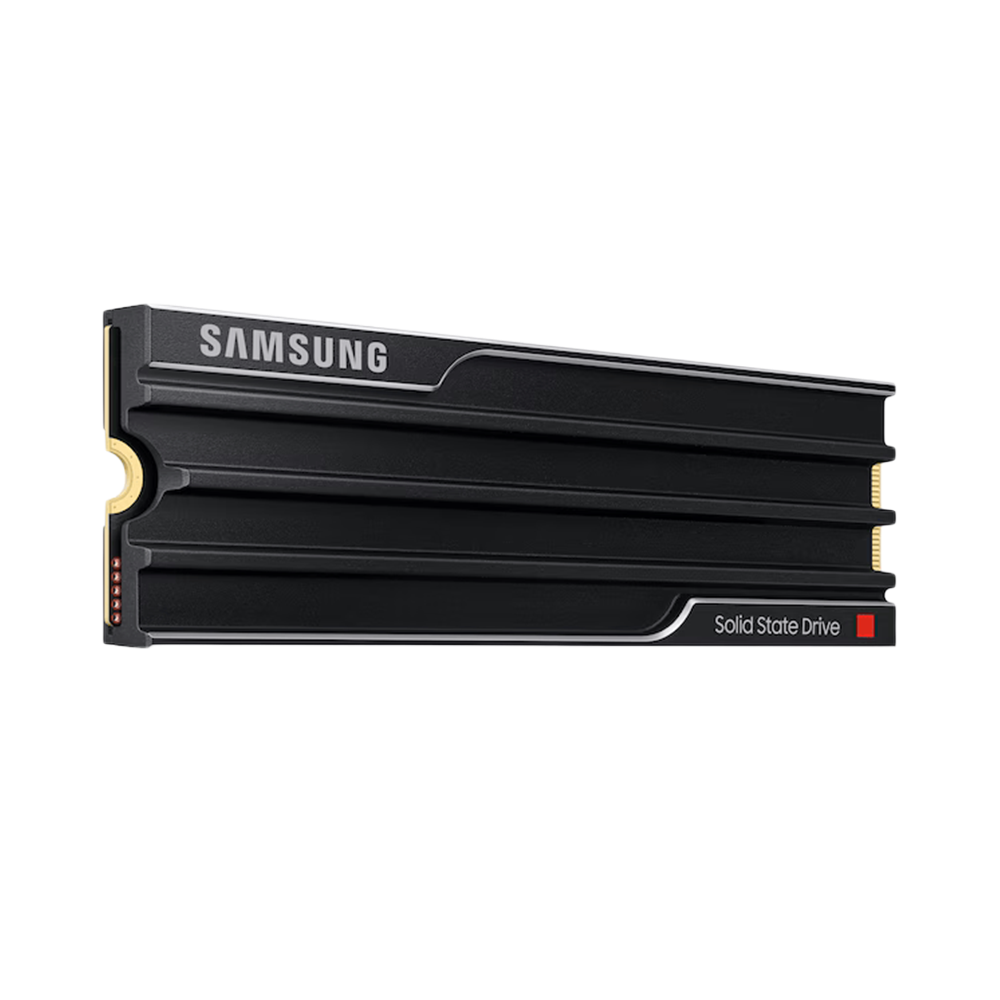

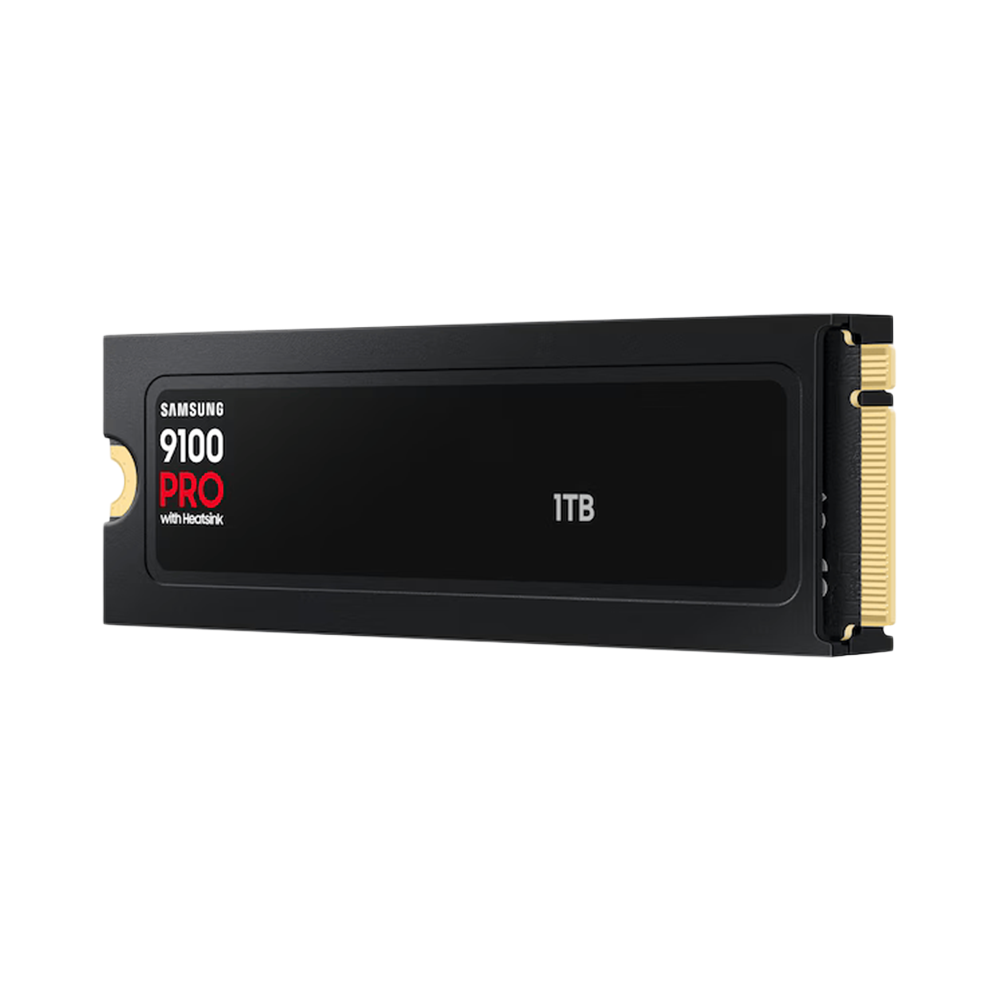

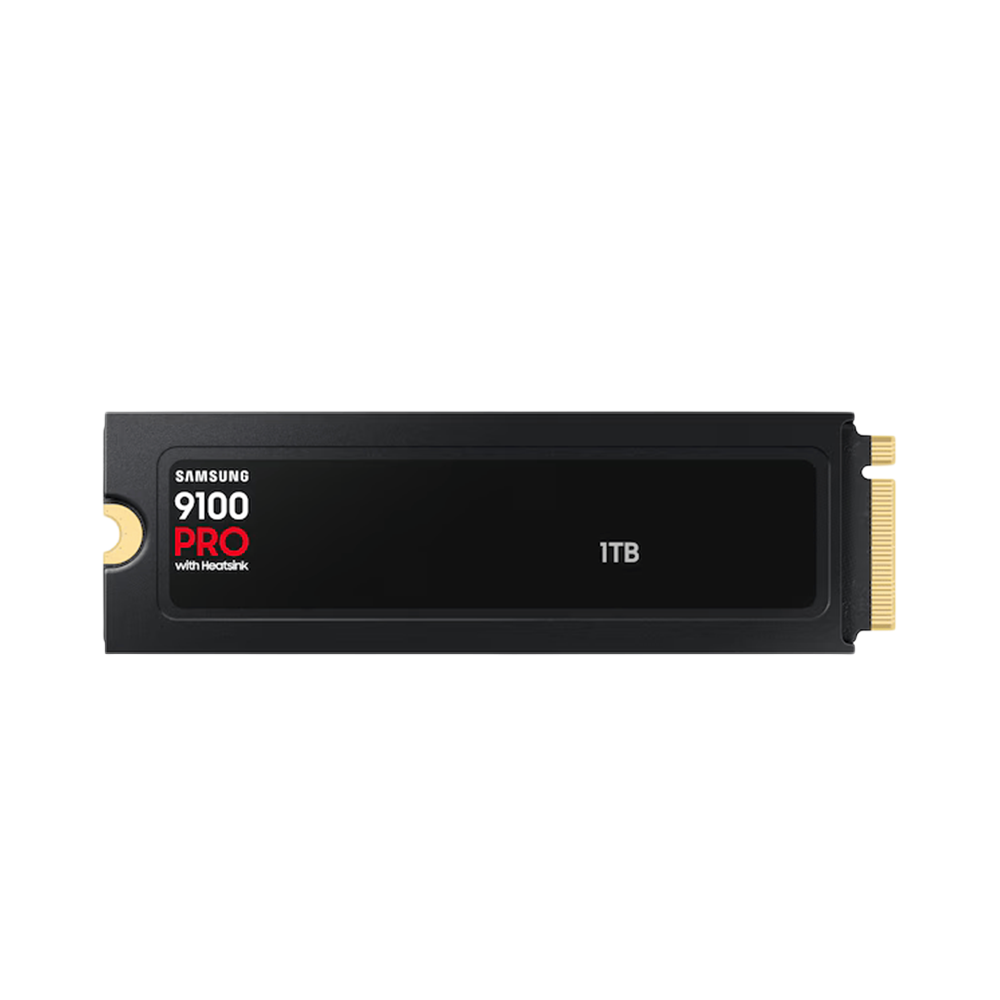

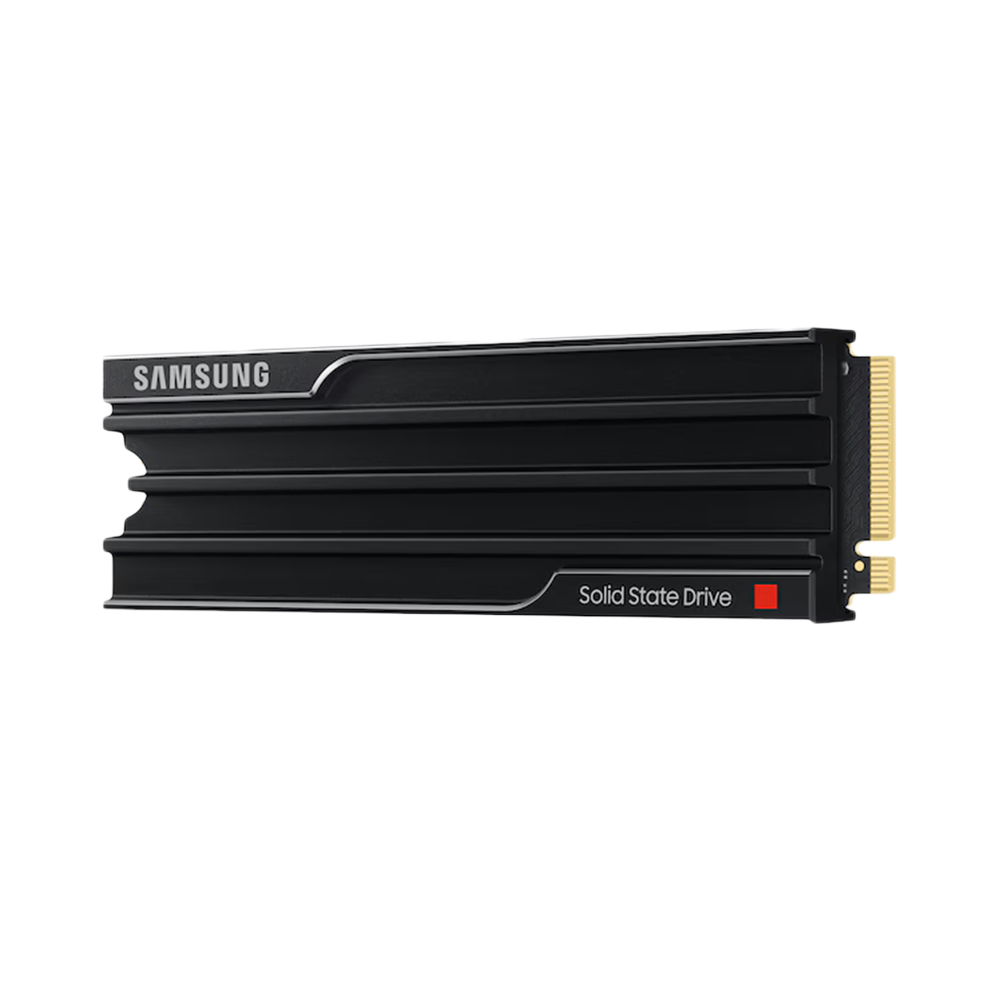

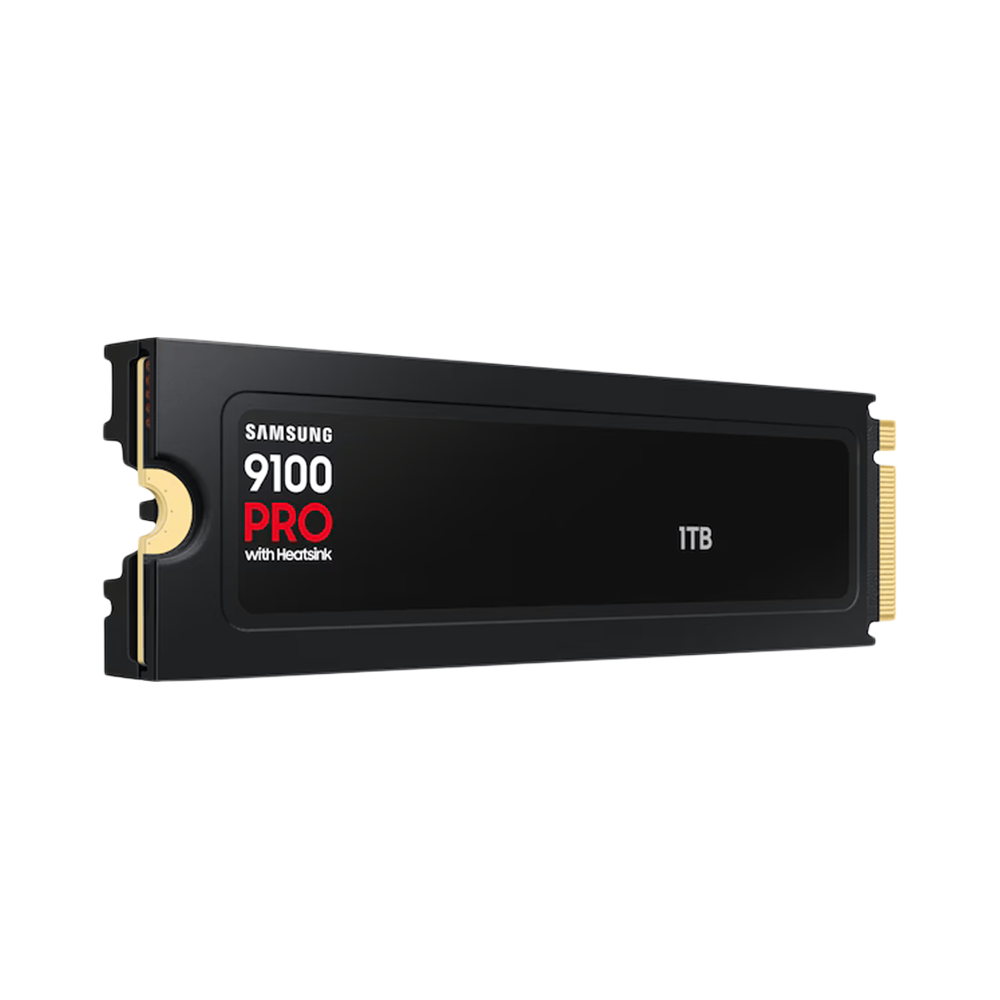

SAMSUNG 9100 PRO With Heatsink PCIe 5.0x4 M.2 - 1TB

Key Features:

• 1 TB
• PCIe® 5.0 Performance : Max 14,700/13,300 MB/s sequential speeds,two times faster than 990 PRO.
• Expanded Experience : Supermassive capacitywith exceptional compatibility.
• Innovative Power & Thermal Control : Up to 49% enhanced power efficiencywith advanced thermal control.

Breakthrough PCIe® 5.0 performance
Push PCIe® 5.0 performance to the max. 9100 PRO with Heatsink achieves lightning-fast sequential read/write speeds up to 14,700/13,300 MB/s, two times faster than 990 PRO. Leave Gen4 limits behind with random read/write speeds up to 2,200K/2,600K IOPS, only possible by Gen5.

Every task, powerfully parallel
Speed past productivity limits. Exhilarating random read/write speeds enable ultra-fast parallel processing for countless fragmented data, at up to 2,200K/2,600K IOPS. Experience superior output and instant loads for huge games, high-performance tasks, and even AI applications.

Create with AI in an instant
Intelligence redefines performance. Defy your limits in work and play with an on-board AI PC and AI content generation, fuelled by 9100 PRO with Heatsink’s exhilarating random read/write speeds up to 2,200K/2,600K IOPS. Swift loads, smooth gameplay, seamless performance.

Conquer any game instantly
Boundless gaming freedom. Join forces with the 9100 PRO with Heatsink on PC, laptop, or PlayStation® 5, and experience otherworldly performance with the latest PCIe® 5.0 interfaces. Equip yourself with the ultimate winning edge to devastate opponents and reign supreme. Any arena, any device.

Extraordinary thermal efficiency
Peak performance, uninterrupted. The advanced 5nm controller power architecture enhances power efficiency up to 49% over 990 PRO. Exceptional thermal control ensures nothing disrupts your flow, so you can keep the most demanding programs running with the max possible power of PCIe® 5.0.

Slim build. Seamless fit.
Super slim fit. 9100 PRO with Heatsink boasts an incredibly thin 8.8mmT body, compatible with PlayStation® 5, PC, and on laptops, meeting PCI-SIG® D8 specs. Overcome space limits and get ultimate design flexibility to build your most efficient, high-performance system, with the compact M.2 form factor.

Secure every victory
Lock in every win with astronomical 8TB capacity. 9100 PRO with Heatsink delivers unthinkably vast space to expand your ever-growing game library. Break free from storage constraints, save every title, and never delete a favorite again.

Samsung Magician software
Make your SSD work like magic. Samsung Magician software's optimization tools ensure the best SSD performance. It's a safe and easy way to migrate all your data for a Samsung SSD upgrade. Protect valuable data, monitor drive health, and get the latest firmware updates.

Bringing innovations to life
For decades, Samsung’s NAND flash memory has powered groundbreaking technologies that have changed every part of our daily lives. This NAND flash technology also powers our consumer SSDs, making room for the next big push of innovation.

Specifications

• Interface : PCIe® 5.0 x4, NVMe™ 2.0
• Sequential Read : Up to 14,700 MB/s * Performance may vary based on system hardware & configuration
• Sequential Write : Up to 13,300 MB/s * Performance may vary based on system hardware & configuration
• Application : Client PCs, Game Consoles
• Weight : Max 30.0g Weight
• Dimension (WxHxD) : Max 80.15 x Max 25 x Max 8.88mm (with Heatsink)

General Feature

• Application : Client PCs, Game Consoles
• Capacity : 1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
• Form Factor : M.2 (2280)
• Interface : PCIe® 5.0 x4, NVMe™ 2.0
• Dimension (WxHxD) : Max 80.15 x Max 25 x Max 8.88mm (with Heatsink)
• Weight : Max 30.0g Weight
• Storage Memory : Samsung V-NAND TLC
• Controller : Samsung in-house Controller
• Cache Memory : Samsung 1GB Low Power DDR4X SDRAM

Special Feature

• TRIM Support : Supported
• S.M.A.R.T Support : Supported
• GC (Garbage Collection) : Auto Garbage Collection Algorithm
• Encryption Support : AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
• WWN Support : Not supported
• Device Sleep Mode Support : Yes

Performance

• Sequential Read : Up to 14,700 MB/s * Performance may vary based on system hardware & configuration
• Sequential Write : Up to 13,300 MB/s * Performance may vary based on system hardware & configuration
• Random Read : Up to 1,850,000 IOPS * Performance may vary based on system hardware & configuration
• Random Write : Up to 2,600,000 IOPS * Performance may vary based on system hardware & configuration
• Environment : Average Power Consumption (system level)
• Average: Read 7.6 W / Write 7.2 W* Actual power consumption may vary depending on system hardware & configuration
• Power consumption (Idle) : Typical 4 mW * Actual power consumption may vary depending on system hardware & configuration
• Power Consumption (Device Sleep) : Typical 3.3 mW * Actual power consumption may vary depending on system hardware & configuration
• Allowable Voltage : 3.3 V ± 5 % Allowable voltage
• Reliability (MTBF) : 1.5 Million Hours Reliability (MTBF)
• Operating Temperature : 0 - 70 ℃ Operating Temperature
• Shock : 1,500 G & 0.5 ms (Half sine)

Accessories

• Installation Kit : Not Available

Software

• Management SW : Magician Software for SSD management
