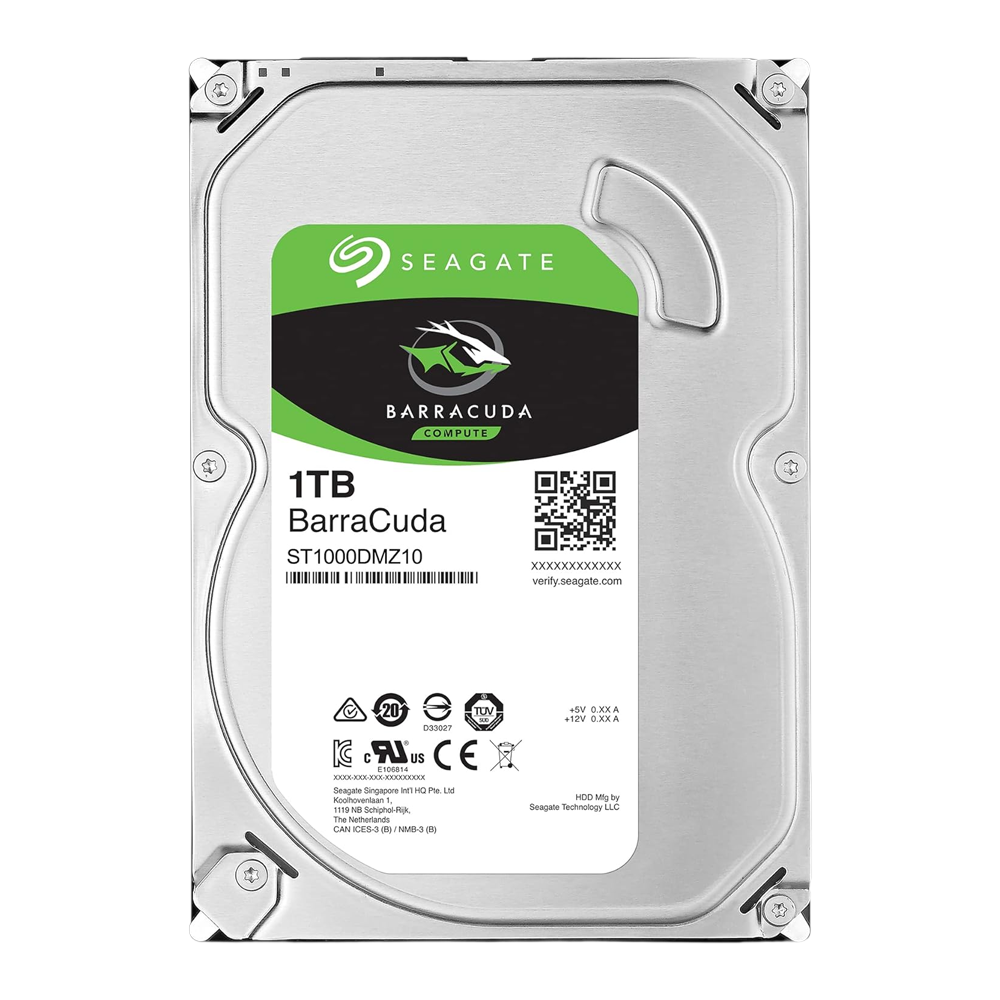

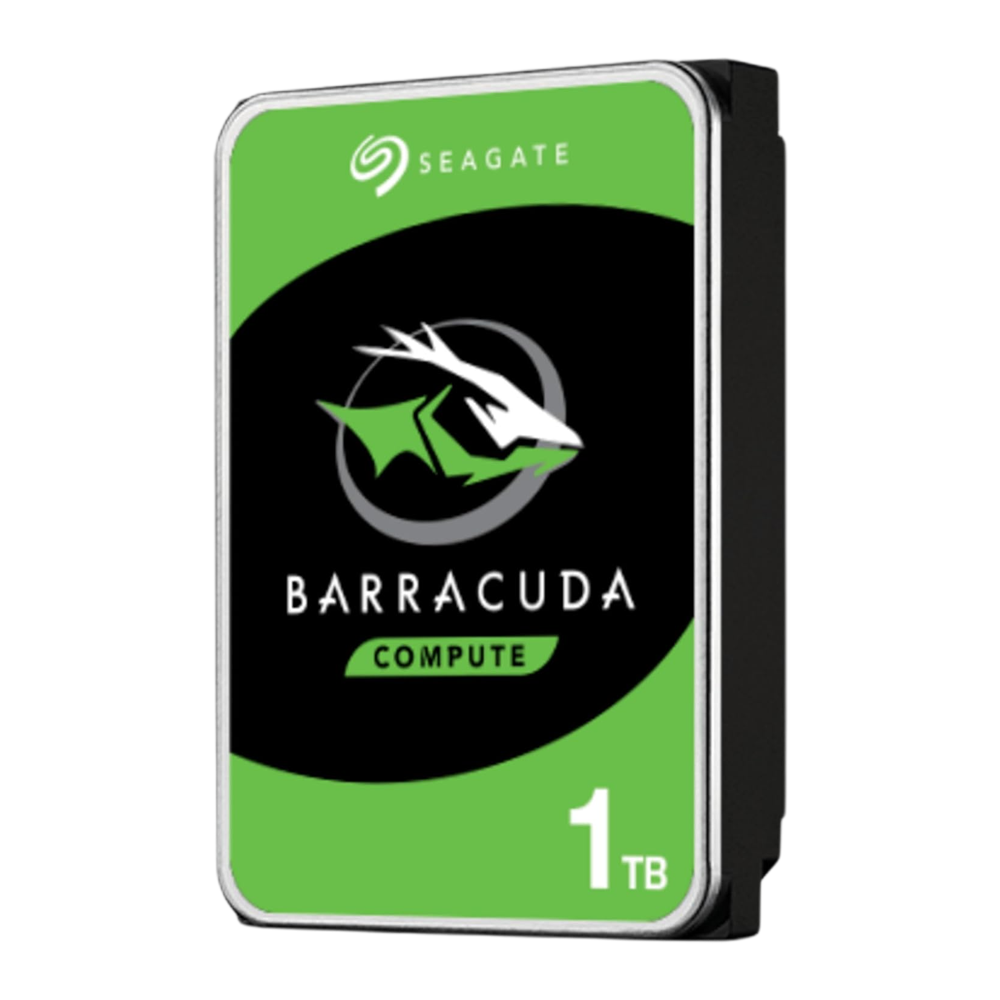

Seagate 1TB BarraCuda SATA III 3.5 Inch Internal HDD
Seagate 1TB BarraCuda SATA III 3.5 Inch Internal HDD
SKU:ST1000DM010
QR Code : 1228763
Out of stock
Description
Description
- 7200 RPM spindle speed
- Full-track multiple-sector transfer capability without local processor intervention
- Hotplug operation per Serial ATA Revision 3.2
- High instantaneous (burst) data transfer rates of up to 600 MB/s
- Native Command Queuing with command ordering to increase performance in demanding applications
- Seagate AcuTrac servo technology for dependable performance, even with hard drive track widths of only 75 nm
- Seagate OptiCache technology boosts overall performance by as much as 45% over the previous generation
SEAGATE BarraCuda SATA III 3.5 Inch Internal HDD - 1TB
The BarraCuda SATA III 3.5" Internal HDD from Seagate features 1TB storage capacity and comes equipped with 64MB of cache memory and a SATA III interface. The interface is backward compatible with SATA II 3 Gb/s and SATA 1.5 Gb/s equipment. The drive supports a maximum internal data transfer rate of 2147 MB/s and an average rate of 156 MB/s.
- 7200 RPM spindle speed
- Full-track multiple-sector transfer capability without local processor intervention
- Hotplug operation per Serial ATA Revision 3.2
- High instantaneous (burst) data transfer rates of up to 600 MB/s
- Native Command Queuing with command ordering to increase performance in demanding applications
- Seagate AcuTrac servo technology for dependable performance, even with hard drive track widths of only 75 nm
- Seagate OptiCache technology boosts overall performance by as much as 45% over the previous generation
- Seagate SmartAlign technology provides for migration to Advanced Format 4K sectors
- SeaTools diagnostic software performs a drive self-test that eliminates unnecessary drive returns
- On-the-fly error-correction algorithms
- Support for S.M.A.R.T. drive monitoring and reporting
- Supports latching SATA cables and connectors
- TGMR recording technology provides the drives with increased areal density
- Worldwide Name (WWN) capability uniquely identifies the drive
- RoHS compliant
Specifications
|
Formatted Capacity |
1 TB |
|
Guaranteed Sectors |
1,953,525,168 |
|
Heads |
2 |
|
Disks |
1 |
|
Interface |
SATA 6 Gb/s |
|
Recording Method |
TGMR |
|
Bytes per Sector |
4096 |
|
Default Sectors Per Track |
63 |
|
Default Read/Write Heads |
16 |
|
Default Cylinders |
16,383 |
|
Recording Density |
1807 kFCI maximum |
|
Track Density |
Average: 352 ktracks/in |
|
Areal Density |
Average: 625 Gb/in2 |
|
Spindle Speed |
7200 RPM |
|
Internal Data Transfer Rate |
2147 Mb/s maximum |
|
Average Data Rate (Read/Write) |
156 MB/s |
|
Maximum Sustained Data Rate, OD Read |
210 MB/s |
|
I/O Data-Transfer Rate |
600 MB/s maximum |
|
Cache Buffer |
64 MB |
|
Average Latency |
4.16 ms |
|
Power-On or Standby to Ready |
10 sec maximum |
|
Startup Current, Typical (12 V) |
2 A |
|
Voltage Tolerance (Including Noise) |
5 V: ±5% 12 V: +10% / -7.5% |
|
Non-Recoverable Read Errors |
1 per 1014 bits read |
|
Annualized Failure Rate (AFR) |
<1.0% based on 2400 POH |
|
Contact Start-Stop Cycles |
At 77°F (25°C) and 50% Relative Humidity: 50,000 |
|
Seek Time |
Track-to-Track: Read: 1 ms Write: 1.2 ms Average: Read: 8.5 ms Write: 9.5 ms Average Latency: 4.16 ms |
|
Temperature |
Non-Operating Ambient Temperature: -40 to 158°F (-40 to 70°C) Operating Ambient Temperature: 32°F (0°C) minimum Operating Temperature (Drive Case): 140°F (60°C) |
|
Temperature Gradient |
Operating: 68°F (20°C) maximum per hour Non-Operating: 86°F (30°C) maximum per hour |
|
Relative Humidity |
Operating: 5 to 95% Non-Operating: 5 to 95% |
|
Relative Humidity Gradient |
30% maximum per hour |
|
Wet Bulb Temperature, Operating/Non-Operating |
78.8°F (28°C) maximum / 84.2°F (29°C) maximum |
|
Operating Altitude |
Operating: -1000 to 10,000' (-304.8 to 3048 m) Non-Operating: -1000 to 40,000' (-304.8 to 12,192 m) |
|
Shock |
Operational: 80 Gs at 2 maximum Non-Operational: 350 Gs at 2ms maximum |
|
Vibration |
Operating: 2 to 22 Hz: 0.25 Gs, limited displacement 22 to 350 Hz: 0.50 Gs 350 to 500 Hz: 0.25 Gs Non-Operating: 5 to 22 Hz: 3.0 Gs 22 to 350 Hz: 3.0 Gs 350 to 500 Hz: 3.0 Gs |
|
Drive Acoustics (Sound Power) |
Idle: Typical: 2.2 bels Maximum: 2.3 bels Seek: Typical: 2.3 bels Maximum: 2.4 bels |
|
Dimensions |
0.8 x 4.0 x 5.8" (2.0 x 10.2 x 14.7 cm) |
|
Weight |
0.88 lb (0.4 kg) |
