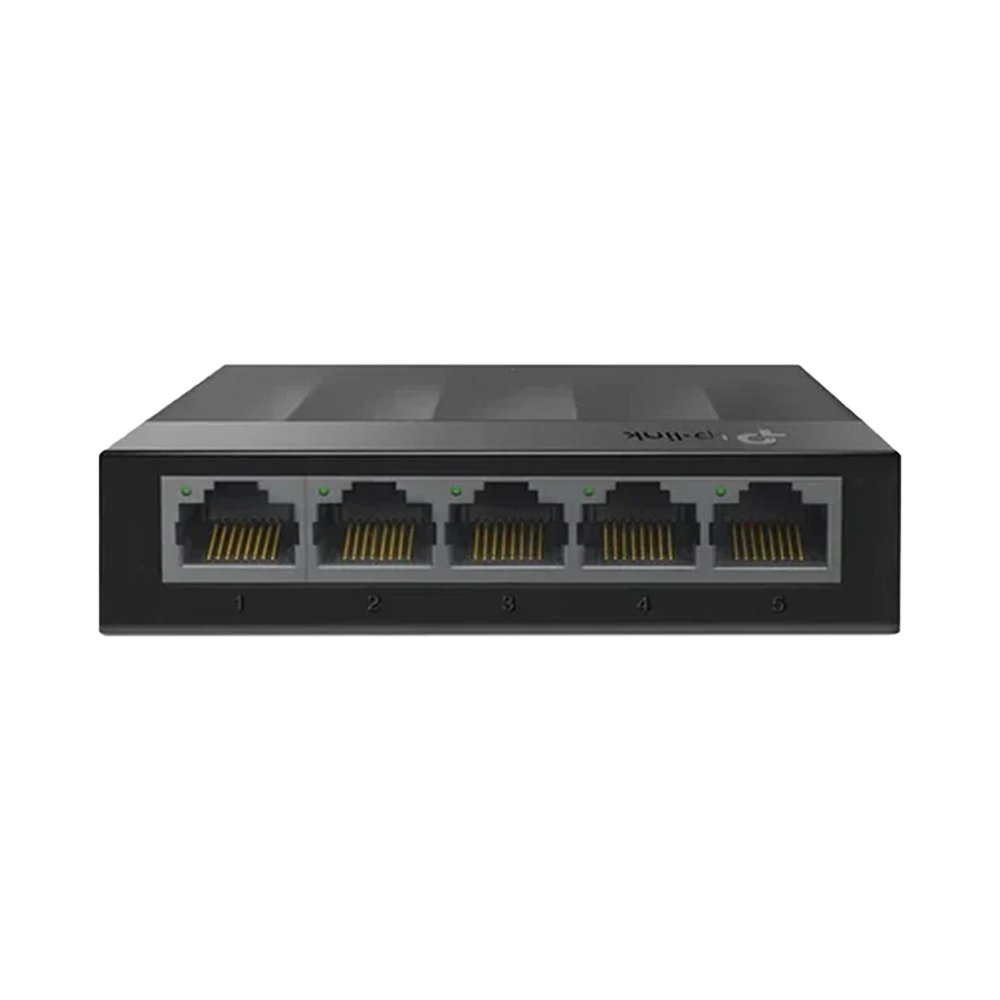

TP-Link 5-Port Gigabit Desktop Switch

Key Features:

• 5 - 10/100/1000Mbps Auto-Negotiation RJ45 port, supporting Auto-MDI/MDIX
• Green Ethernet technology saves power
• IEEE 802.3X flow control provides reliable data transfer
• Plastic casing, desktop or wall-mounting design
• Plug and play, no configuration needed
• Fanless design ensures quiet operation

5-Port 10/100/1000Mbps Desktop Switch

Specifications

HARDWARE FEATURES

• Standards and Protocols : IEEE 802.3i/802.3u/ 802.3ab/802.3x
• Interface : 5 - 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
• Fan Quantity : Fanless
• External Power Supply : External Power Adapter (Output: 5VDC/0.6A)
• Dimensions ( W x D x H ) : 3.5 — 2.8 — 0.9 in. (90 — 72 — 23 mm)
• Max Power Consumption : 3.7W
• Max Heat Dissipation : 12.617 BTU/h

PERFORMANCE

• Switching Capacity : 10 Gbps
• Packet Forwarding Rate : 7.4 Mpps
• MAC Address Table : 2K
• Packet Buffer Memory : 1.5 Mb
• Jumbo Frame : 16 KB

SOFTWARE FEATURES

• Advanced Features Green Technology
• 802.3X Flow Control
• Back Pressure
• Transfer Method : Store and Forward

OTHERS

• Certification : CE, FCC, RoHS
• Package Contents : 5-Port 10/100/1000Mbps Desktop Switch

                                              Power Adapter

                                              Installation Guide

• Environment : Operating Temperature: 0°C~40°C (32°F~104°F)
• Storage Temperature : -40ƒ~60ƒ (-40‰~140‰)
• Operating Humidity : 10% ~ 90% non-condensing
• Storage Humidity : 5%~90% non-condensing
