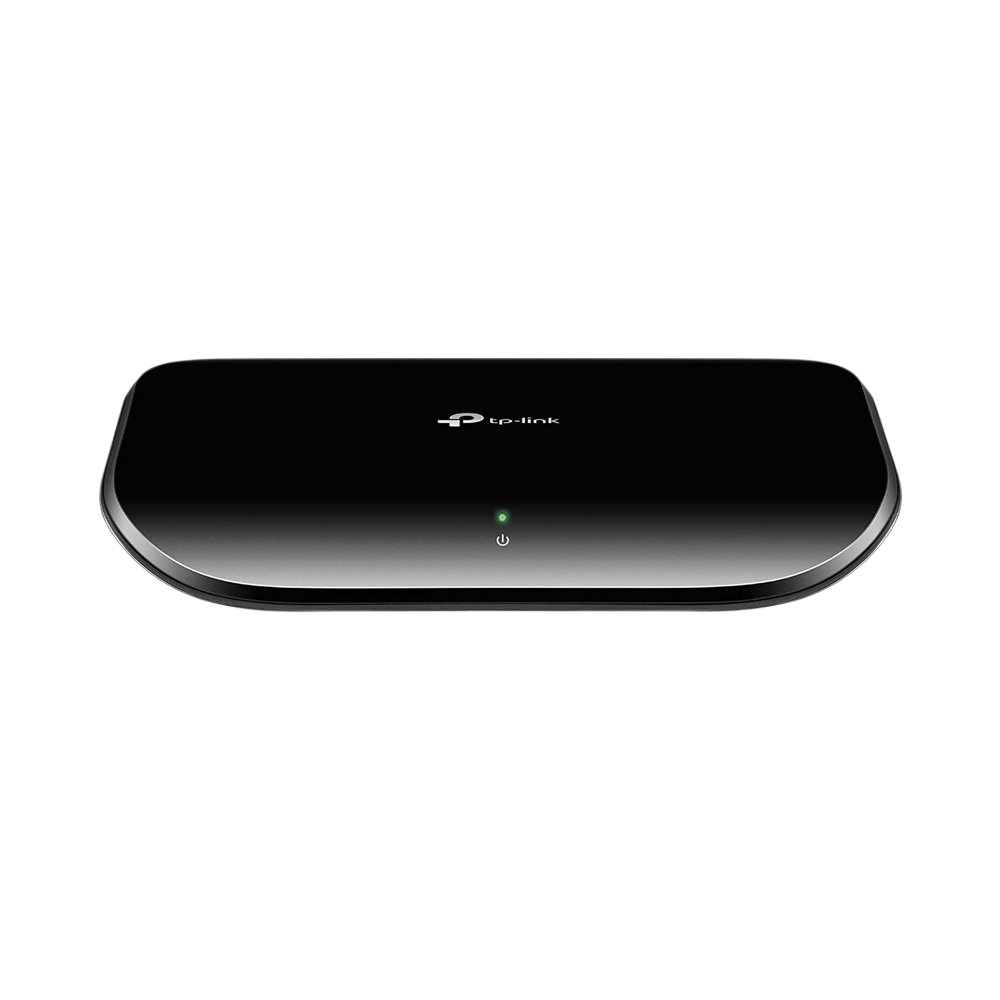

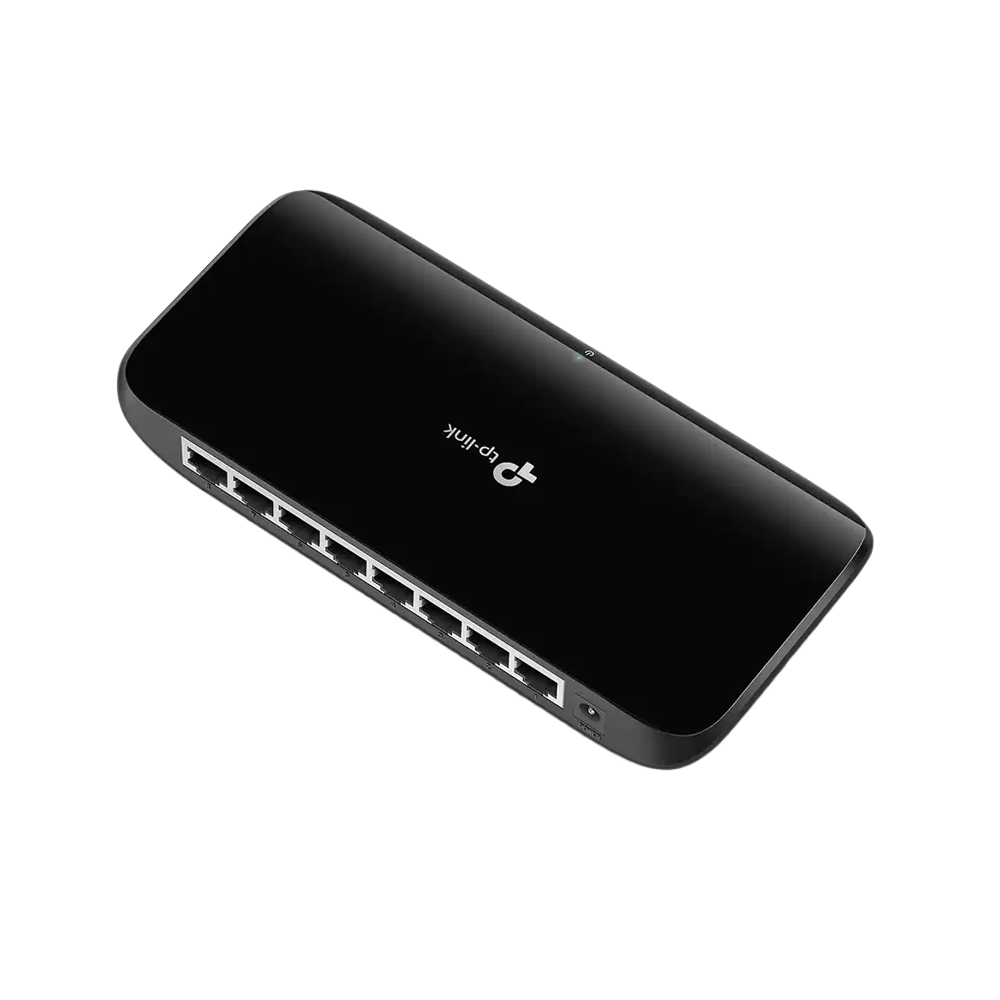

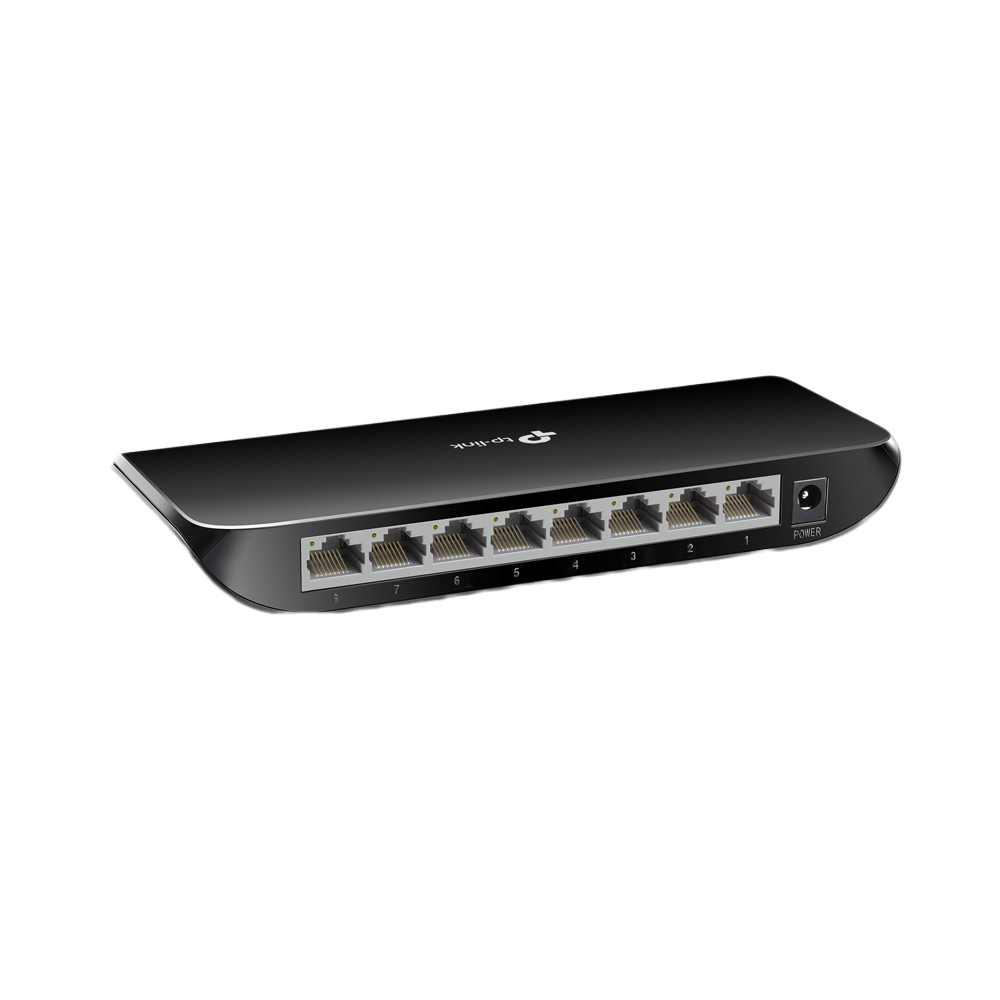

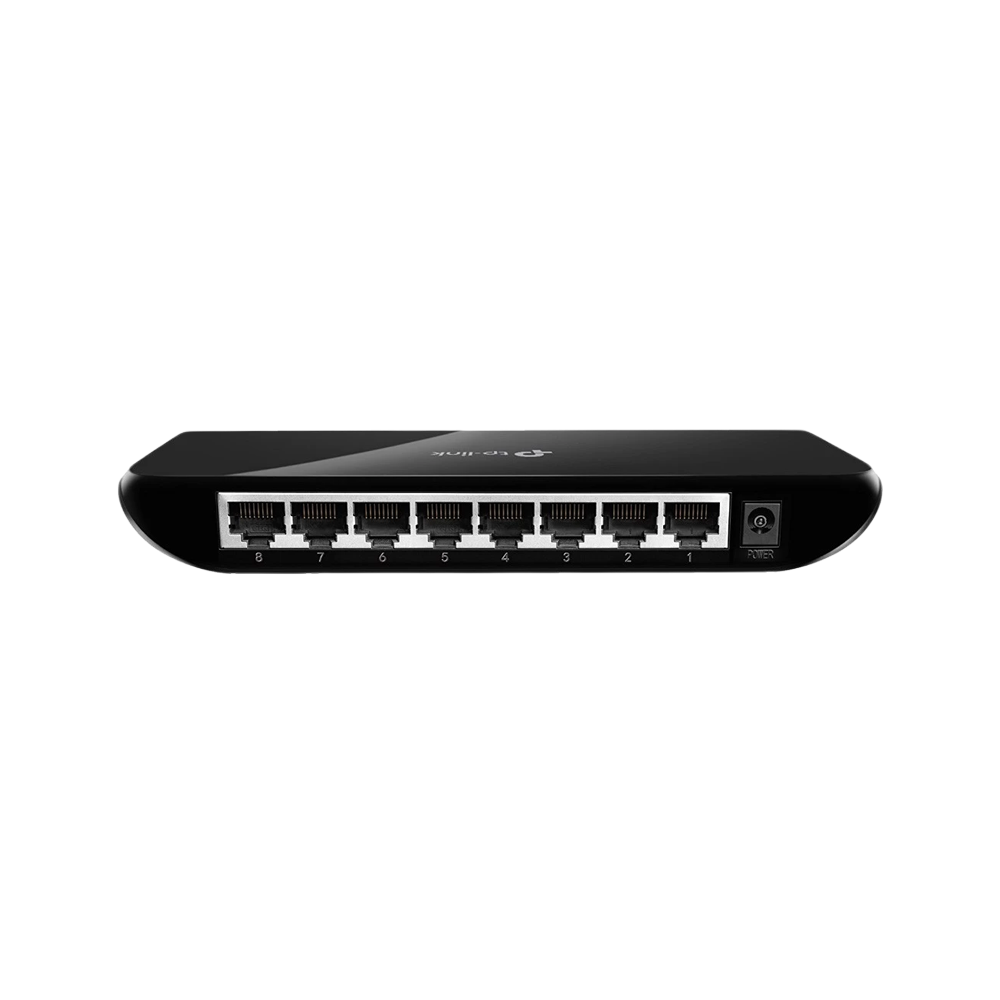

TP LINK 8-Port Gigabit Desktop Switch

TP LINK 8-Port Gigabit Desktop Switch

Bring You Lighter Network Life

The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable.

With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.

Go Green with Your Ethernet

The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint.

Gigabit Ports For Faster Speeds

Increase the speed of your network with the LS1008G 8-port Gigabit desktop switch. Non-blocking, 8× 10/100/1000Mbps ports enable instant transferring of large, bandwidth intensive files without interference

Use Where You Need, However You Need

The LS1008G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses

Specifications:-

• Standards and Protocols : IEEE 802.3i/802.3u/ 802.3ab/802.3x

• Interface : 8× 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports

• Fan Quantity : Fanless

• External Power Supply

• External Power Adapter : • V1, V3: 9VDC / 0.6A, • V2: 5VDC / 0.6A

• Dimensions ( W x D x H ) : 5.0 × 2.6 × 0.9 in. (127 × 66.5 × 23 mm)

• Max Power Consumption : 3.9W

• Max Heat Dissipation : 13.299 BTU/h

• Performance

• Switching Capacity : 16 Gbps

• Packet Forwarding Rate : 11.9 Mpps

• MAC Address Table : 4K

• Packet Buffer Memory : 1.5 Mb

• Jumbo Frame : 16 KB

Software Features

• Advanced Features

• Green Technology

• 802.3X Flow Control

• Back Pressure

• Transfer Method

• Store and Forward

Others

• Certification

• CE, FCC, RoHS

• Package Contents

• 8-Port 10/100/1000Mbps Desktop Switch

• Power Adapter

• Installation Guide

• Environment

• Operating Temperature: 0°C~40°C (32°F~104°F)

• Storage Temperature: -40℃~60℃ (-40℉~140℉)

• Operating Humidity: 10% ~ 90% non-condensing

• Storage Humidity: 5%~90% non-condensing
