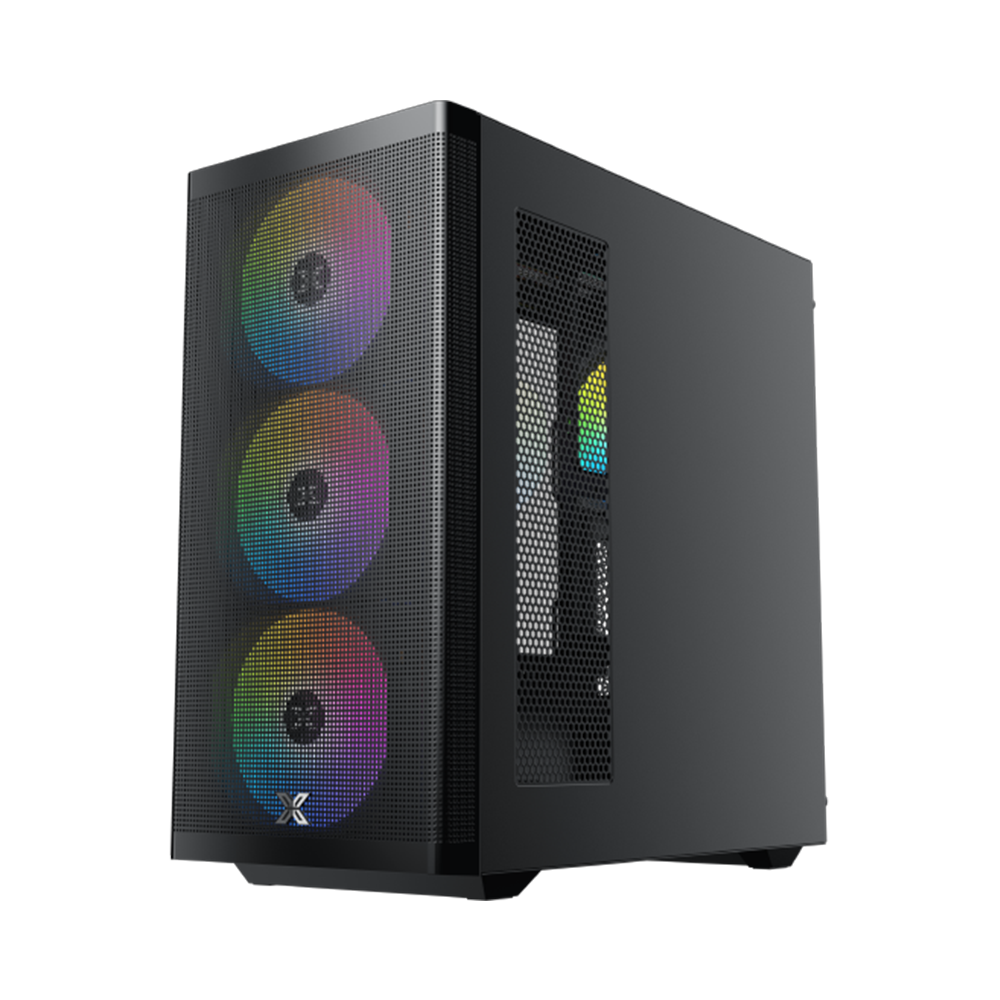

XIGMATEK OSIRIS E-ATX Case - Black
XIGMATEK OSIRIS E-ATX Case - Black
SKU:EN46803
QR Code : 1326567
In stock
Description
Description
Key Features:
Osiris (EATX, U3x1+U2x2, Mesh Grill FP & Left TG, 4PCS 140mm Y40A & ARGB Remote Control Box)
Elegant MeshFront panel
Superior Airflow and Ventilation Design
Top & BottomDust Filter
Support Motherboard up to E-ATX
Support ATX Back Plug Motherboard
Supported Model:
- ATX: ASUS TUF GAMING Z790-BTF WIFI
- MSI Z790 PROJECT ZERO
- M-ATX:
- ASUS TUF B760M-BTF WIFI-D4
- ASUS TUF GAMING B760M-BTF WIFI D4 and more to come.
Fan Support
- Front: 120mm x3 or 140mm x3
- MB: 120mm x2 (E-ATX MB Width ≤28.5cm)
- Top: 120mm x3 or 140mm x2
- PSU Shroud: 120mm x2
- Rear: 120mm x1 or 140mm x1
Radiator Support
- Front: 240/280/360
- MB: 240 (E-ATX MB Width ≤28.5cm)
- Top: 240/280/360
- Rear: 120
CPU Cooler Clearance up to 180mm
GPU Length Limitation
- 285mm (Fan on MB Panel)
- 400mm (No Fan on MB Panel)
PSU Limitation up to 220mm
Support GPU Vertical Installation
Drive Support
- HDD Cage: 3.5″ x2 & 2.5″ x1
Drive Support
- SSD Bracket: 2.5″ x2
Top Mount I/O Ports
• Power Button
• Reset Button
• HD Audio Jack
• USB 3.0 x1
• USB 2.0 x2
Specifications
- Product Name : Osiris
- Dimensions : 465x238x481mm (LxWxH)
- Motherboard Support : E-ATX
ATX (Support Back Plug)
Micro ATX (Support Back Plug)
Mini ITX
- Drive Bays
HDD Cage: 3.5″ x2 & 2.5″ x1
SSD Bracket: 2.5″ x2
- Fan Support
- Front: 120mm x3 or 140mm x3
- MB: 120mm x2 (E-ATX MB Width ≤28.5cm)
- Top: 120mm x3 or 140mm x2
- PSU Shroud: 120mm x2
- Rear: 120mm x1 or 140mm x1
- PSU Length Limitation : 220mm
- CPU Cooler Clearance : 180mm
- Material : Steel
- Power Supply : Standard PS2 ATX PSU Expansion Slots : 7 Standard Slots, Support Vertical GPU Card (90 Degree)
- I/O Panel : USB 3.0 x1
USB 2.0 x2
HD Audio
- Radiator Support
Front: 240/280/360
MB: 240 (E-ATX MB Width ≤28.5cm)
Top: 240/280/360
Rear: 120
- GPU Length Limitation
285mm (Fan on MB Panel)
400mm (No Fan on MB Panel)
