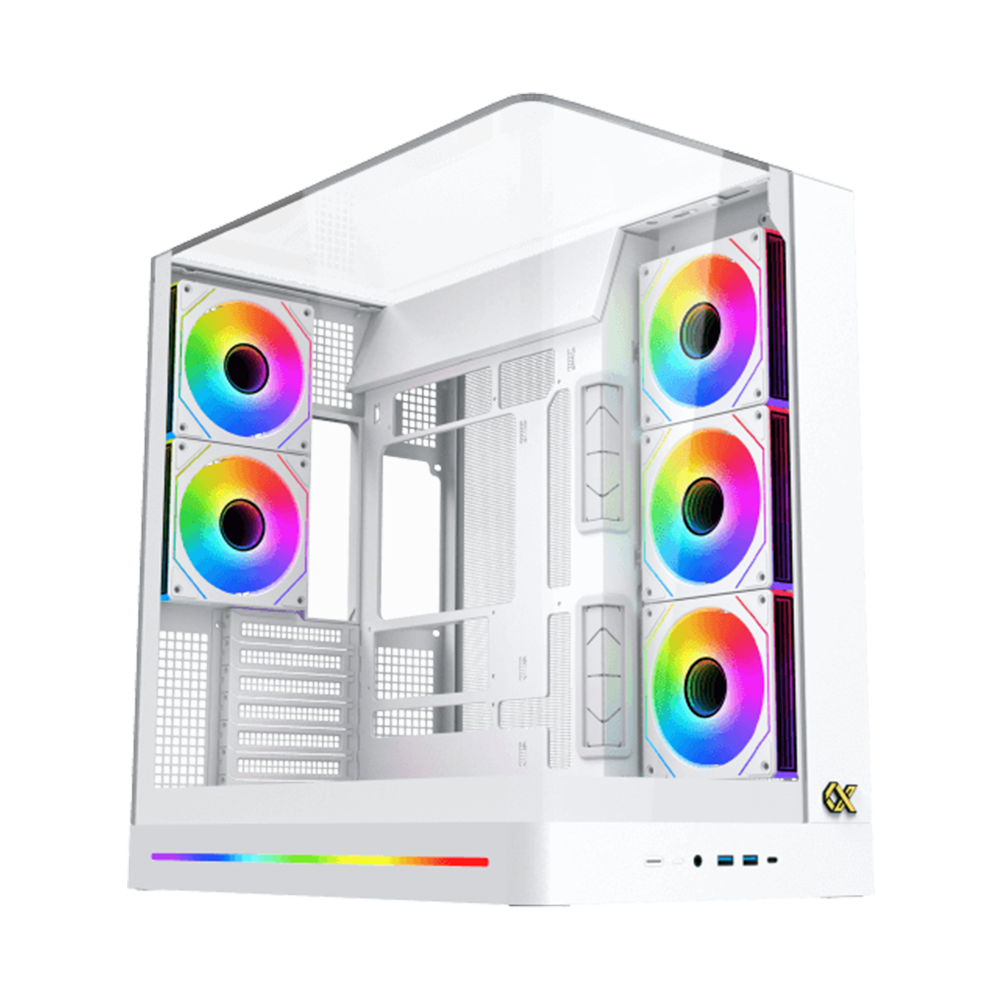

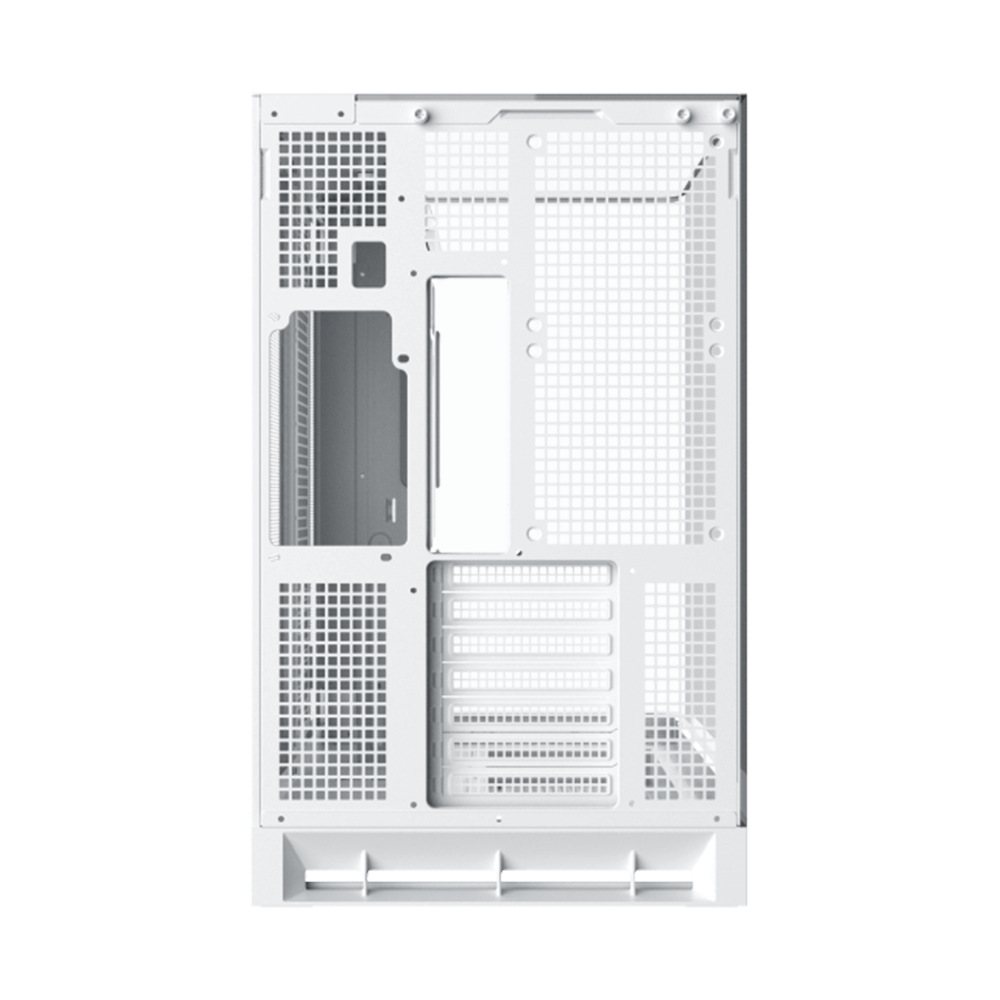

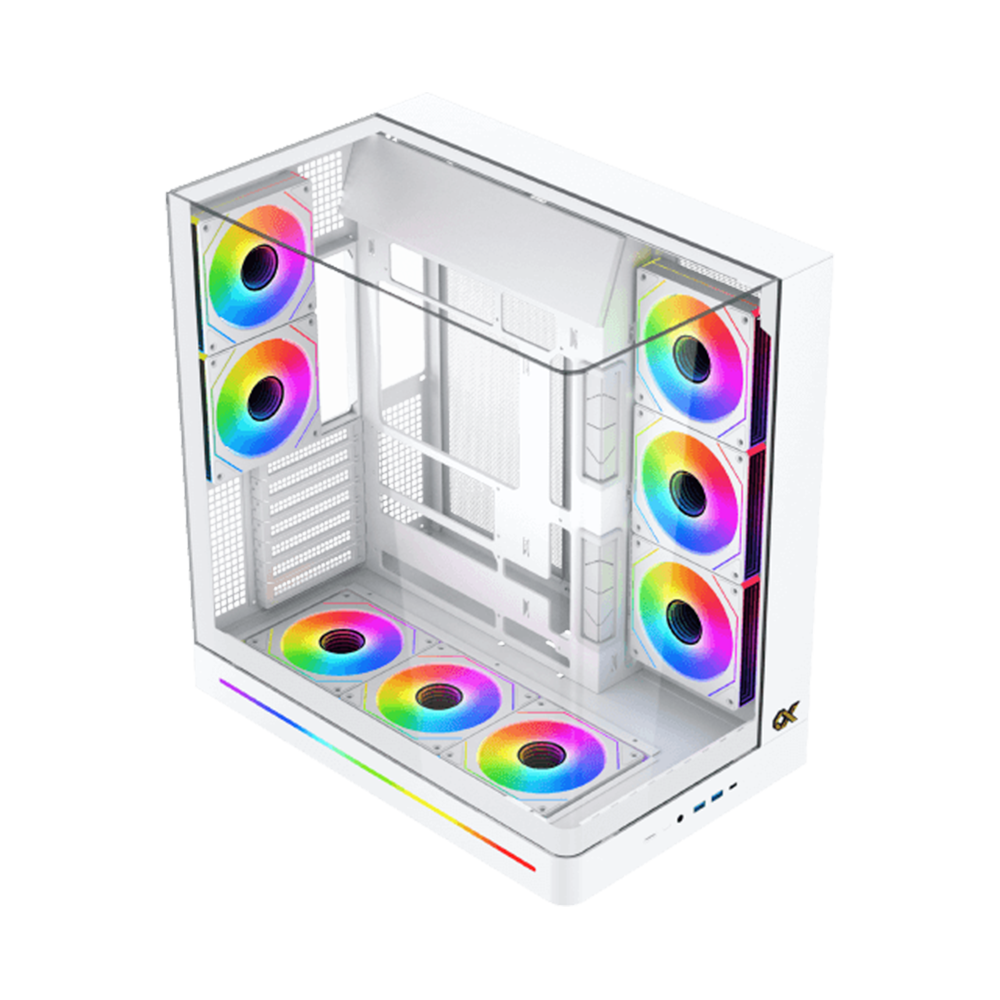

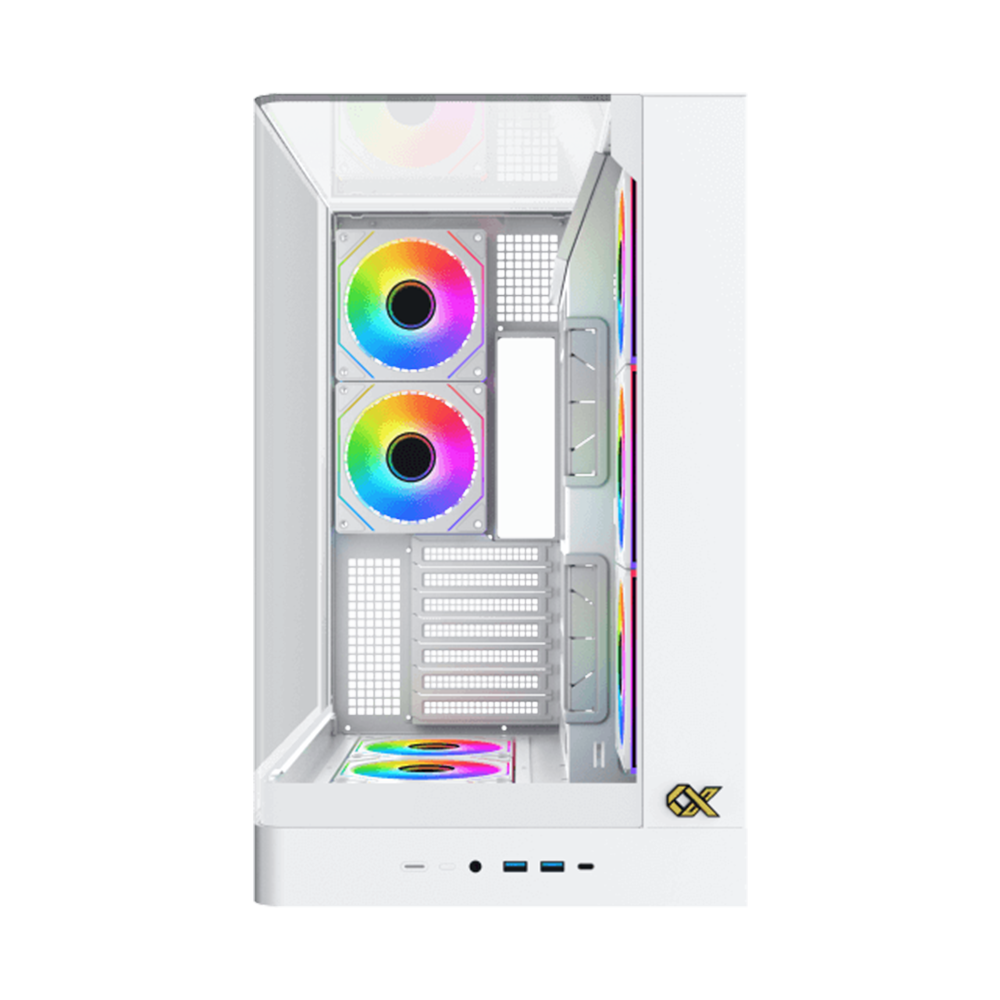

XIGMATEK Pano II Arctic Case - White
XIGMATEK Pano II Arctic Case - White
SKU:EN48425
QR Code : 1327793
Low stock
Regular price
Sale price
Regular price
Unit price
per
Description
Description
Key Features:
- Model: Pano II (Black)
- Form Factor: ATX mid‑tower case
- Motherboard Support: ATX, Micro‑ATX, Mini‑ITX
- Pre‑installed Fans: 6× H22A Reverse ARGB fans (optimized for intake airflow with reverse blade design)
- 2× H22A ARGB fans (standard orientation for exhaust)
- Fan Support: Up to 10× 120 mm fans total
- Radiator Support:Front: up to 360 mm; Top: up to 360 mm; Rear: up to 120 mm
- ARGB & PWM Remote Control Box: Included for synchronized lighting and fan speed control
Pano II Arctic (WH,U3x2+Type C,Curved TG,6PCS H22A WH Reverse & 2PCS H22A WH,ARGB & PWM Remote Control Box).
9″Multi Display LCD Panel
(Secondary Monitor)
Support Windows 10 & 11 Multiple Display Duplicate or Extend Mode
(HDMI & USB Power Cables) Full HD+ Resolution (1920×462)
ARGB & PWM
Remote Controller
• ARGB & PWM Control Box & Remote Control
• 5V: Total 40W maximum
• 12V: Total 36W maximum
• Caution: Please Do Not Over Power the ARGB & PWM Control Box, It Is Dangerous and Might Cause Damage!
Specifications
- Product Name : Pano II Arctic
- Dimensions : 447x285x466mm (LxWxH)
- Motherboard Support : E-ATX(≤285mm)
- ATX (Support Back Plug)
- M-ATX (Support Back Plug)
- ITX
- Drive Bays : SSD/HDD Mounting Flip Cover :
- 3.5″ x2 & 2.5″ x1 or 3.5″ x1 & 2.5″ x2
- or 2.5″ x3
- Fan Support : Side: 120mm x3
- Bottom: 120mm x3
- Rear: 120mm x2
- PSU Length Limitation : 165mm
- CPU Cooler Clearance : 165mm
- Material : Steel
- Power Supply : Standard PS2 ATX PSU
- Expansion Slots : 7 Standard Slots
- I/O Panel : USB-C
- USB3.0 x2
- HD Audio
- Radiator Support : Side: 240/360
- Rear: 120
- GPU Length Limitation : 400mm
- (Support GPU Horizontal or
- Vertical Installation,
- Vertical GPU Bracket Included)
