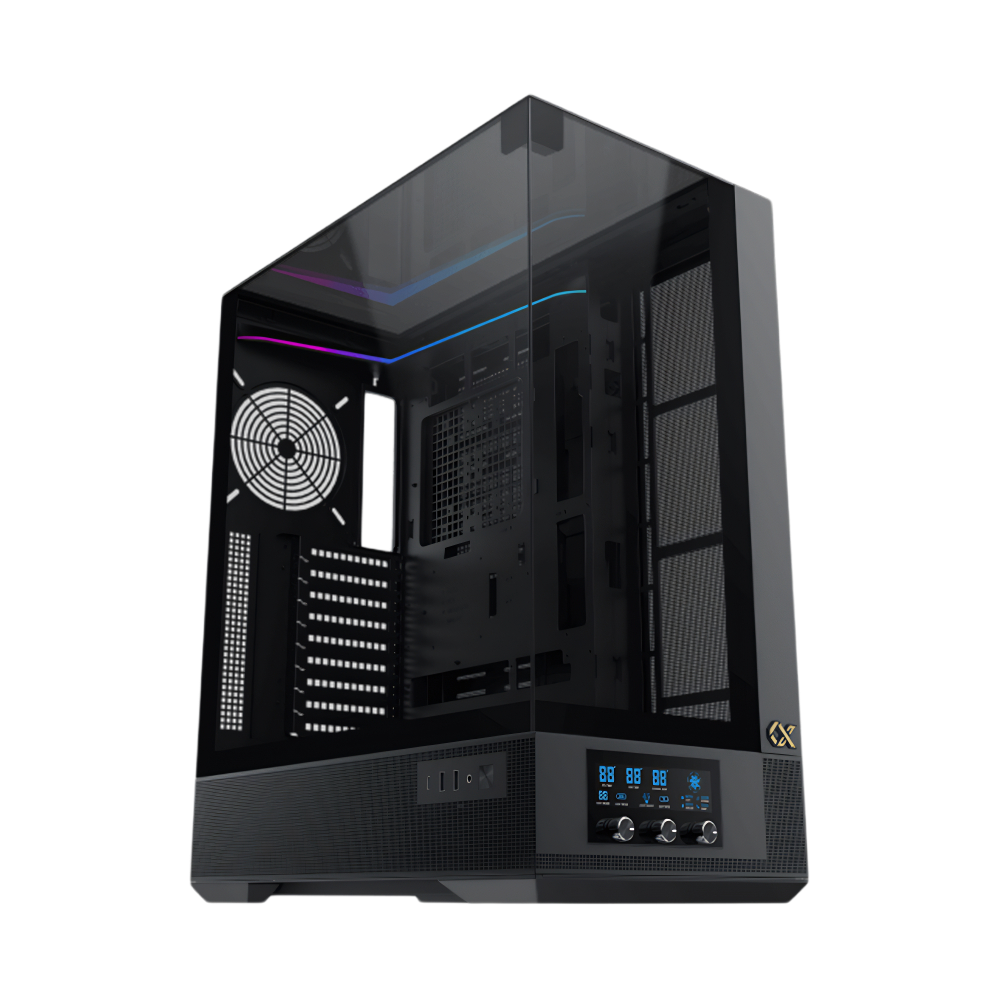

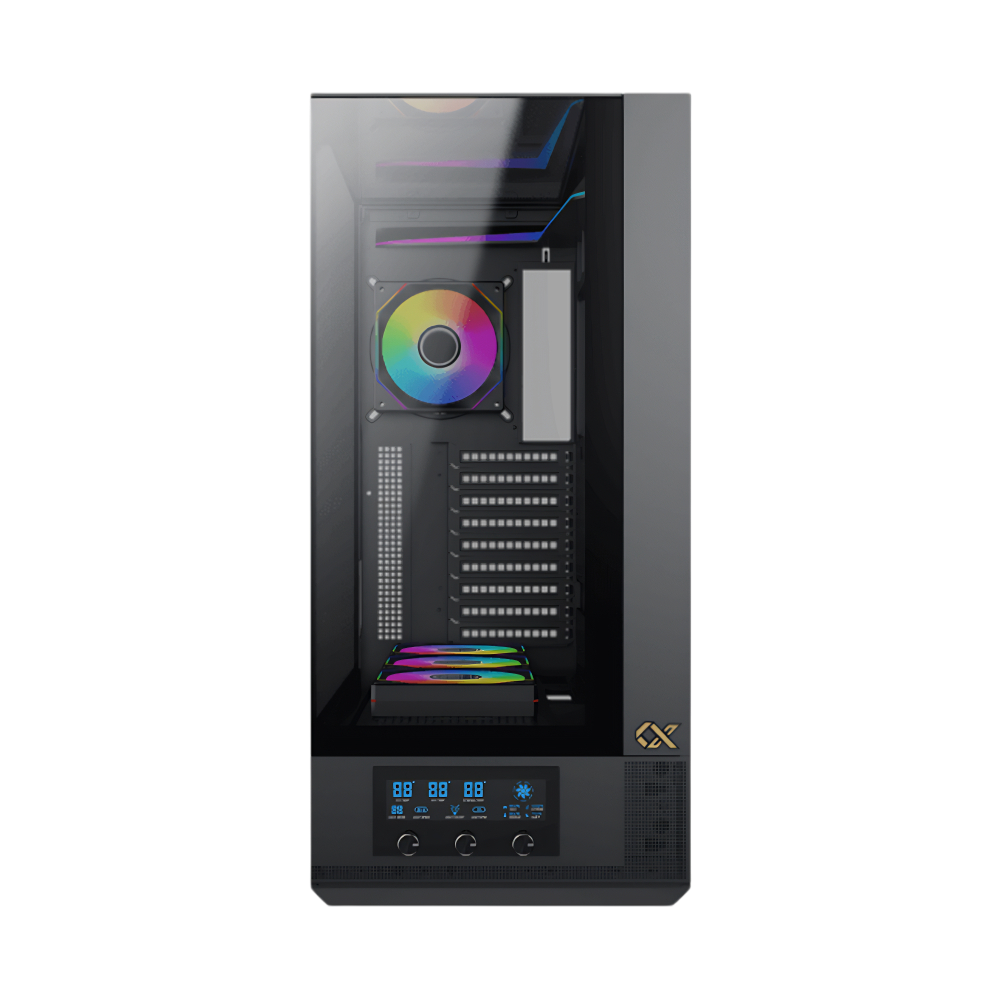

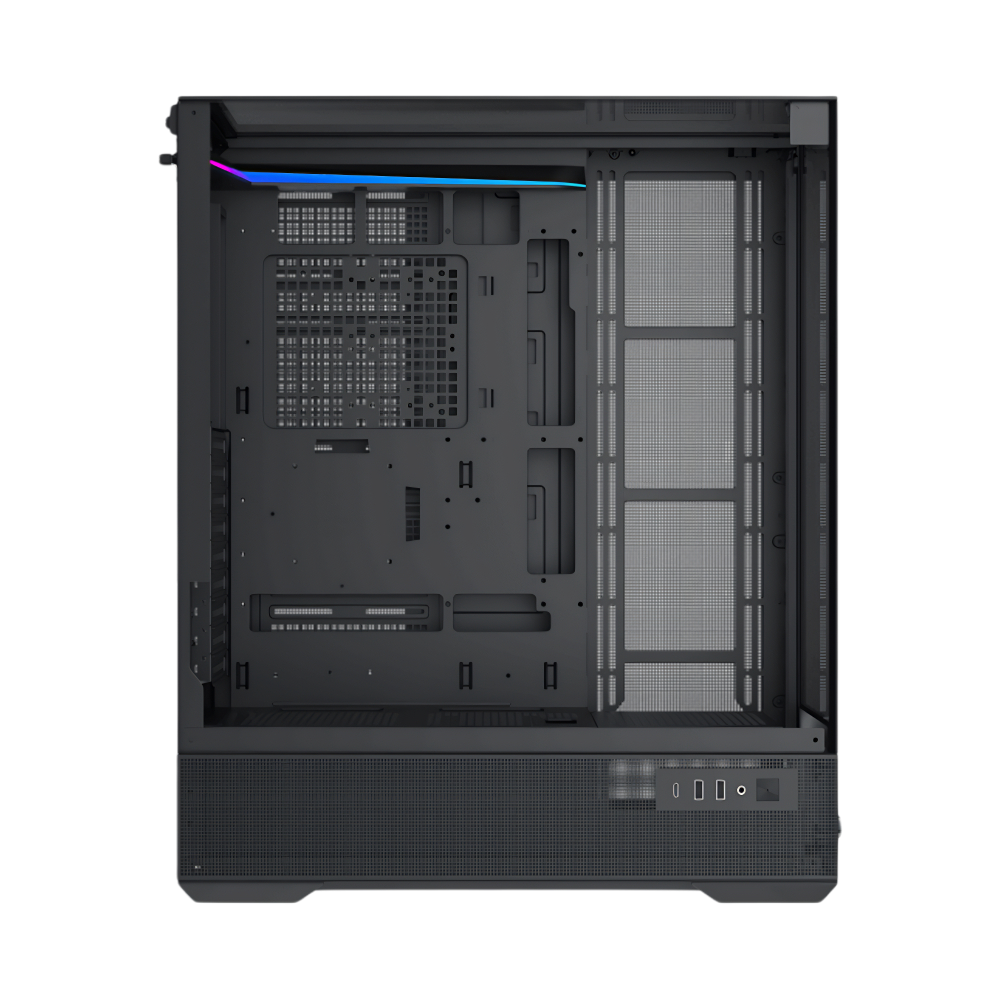

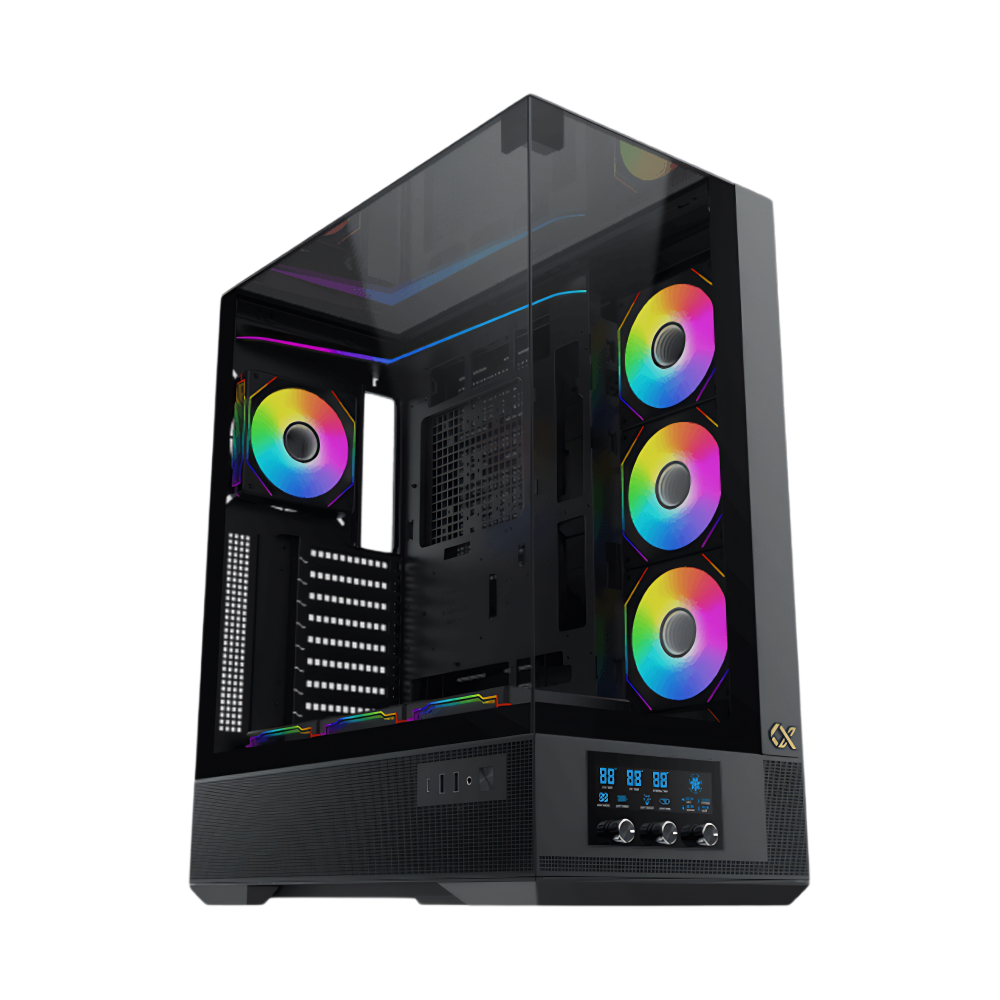

XIGMATEK VISION PRO ARGB LED ATX Case - Black

• Smart Fan Control - LCD Display Panel
• Smart Fan Control LCD Display Panel User Guide
• 3 Tempered Glass Panel Design
• Superior Airflow and Ventilation Design
• Traditional Fan Blade - 800-2200 RPM PWM Fan Pre-installed on Rear Side
• Reverse Fan Blade - 800-2200 RPM PWM Fan Pre-installed on MB & PSU Shroud Panel Side
• Side I/O Ports : Power Button , HD Audio Jack, USB 3.0 x 2, Type C

XIGMATEK VISION PRO ARGB LED ATX Mid Tower Case - Black

Vision Pro (BK, EATX, U3x2 & Type C, 3PCS TG, 1PC G24A+7PCS G24A Reverse+ARGB LED Fan Control Panel)

3 Tempered Glass Panel Design

Superior Airflow and Ventilation Design

Traditional Fan Blade - 800-2200 RPM PWM Fan Pre-installed on Rear Side

Reverse Fan Blade - 800-2200 RPM PWM Fan Pre-installed on MB & PSU Shroud Panel Side

Smart Fan Control - LCD Display Panel

Smart Fan Control LCD Display Panel User Guide

Left Control Knob

• Rotate: RGB Light Display Control
• Short Press: RGB LED Speed Control

Middle Control Knob

• Short Press: RGB Light On/Off
• Long Press: ARGB Motherboard SYNC Switch

Right Control Knob

• Rotate: 4 Fan Speed Control (800/1200/1700/2200 RPM)

Support Motherboard up to E-ATX

• Support ATX Back Plug Motherboard
• Supported Model: ASUS TX GAMING B760-BTF
• ASUS TUF GAMING Z790-BTF WIFI
• ROG MAXIMUS Z790 HERO BTF and more to come.

Fan Support : MB: 120mm x4 or 140mmx3

• PSU Shroud: 120mm x3
• Rear: 120mm or 140mm x1
• SSD/HDD Mounting Bracket: 120mm x1

ARGB & PWM Hub

• Radiator Support : MB: 240/280/360/420/480
• (EATX MB Width ≤ 290mm)

PSU Limitation up to 220mm

CPU Cooler Clearance up to 180 mm

GPU Length Limitation up to 420mm

Support GPU Vertical Installation

SSD/HDD Mounting Bracket (Rear MB Panel) 3.5″ x1 or 2.5″ x2

SSD/HDD Mounting Flip Cover

• Option A: 3.5″ x3 or 3.5″ x3 & 2.5″ x1 or 3.5″ x2 & 2.5″ x2
• (SSD/HDD Mounting Bracket without 3.5″ HDD or 12cm Fan)

SSD/HDD Mounting Flip Cover

• Option B: 3.5″ x2 or 3.5″ x1 & 2.5″ x1
• (SSD/HDD Mounting Bracket with 3.5″ HDD or 12cm Fan)

SSD/HDD Mounting Flip Cover

Bottom-Mounted Magnetic Dust Filter

Side I/O Ports

• Power Button
• HD Audio Jack
• USB 3.0 x2
• Type C

Specifications

• Product Name : Vision Pro
• Dimensions : 450x258x533mm (LxWxH)
• Fan Support : MB: 120mm x4 or 140mmx3

                                        PSU Shroud: 120mm x3

                                        Rear: 120mm or 140mm x1

                                        SSD/HDD Mounting Bracket: 120mm x1

• Drive Bays : SSD/HDD Mounting Bracket (Rear MB Panel)

                                    3.5″ x1 or 2.5″ x2

                SSD/HDD Mounting Flip Cover : Option A:

                    3.5″ x3 or 3.5″ x3 & 2.5″ x1 or 3.5″ x2 & 2.5″ x2

                (SSD/HDD Mounting Bracket without 3.5″ HDD or 12cm Fan)

                Option B:

                    3.5″ x2 or 3.5″ x1 & 2.5″ x1

                    (SSD/HDD Mounting Bracket with 3.5″ HDD or 12cm Fan)

• CPU Cooler Clearance : 180mm
• Material : Steel
• Expansion Slots : 9 Standard Slots

                                (Support GPU Horizontal or Vertical Installation)

• Motherboard Support : EATX

                                                    ATX (Support Back Plug)

                                                    Micro ATX

                                                    Mini ITX

• Power Supply : Standard PS2 ATX PSU
• Radiator Support : MB: 240/280/360/420/480
• (EATX MB Width ≤ 290mm)
• I/O Panel : USB3.0 x2

                                  Type C

                                  HD Audio

• PSU Length Limitation : 220mm
• GPU Length Limitation : 420mm
