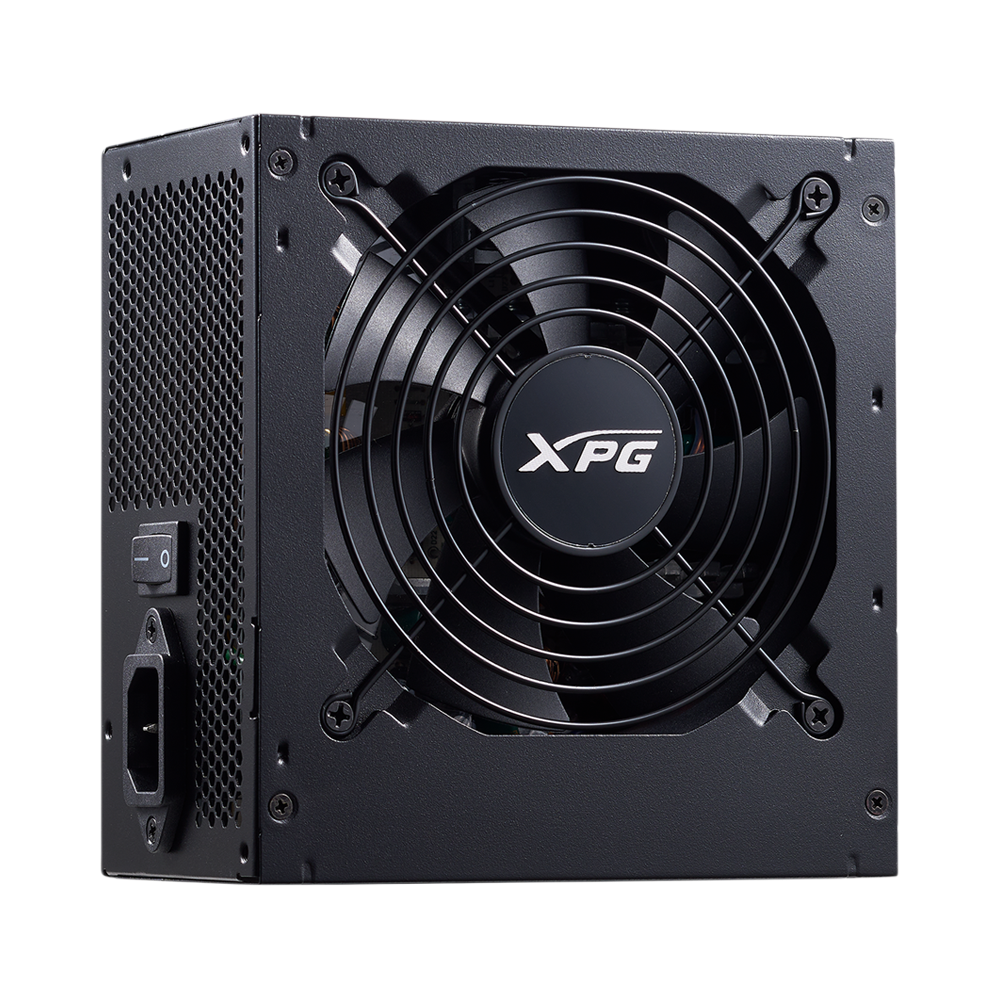

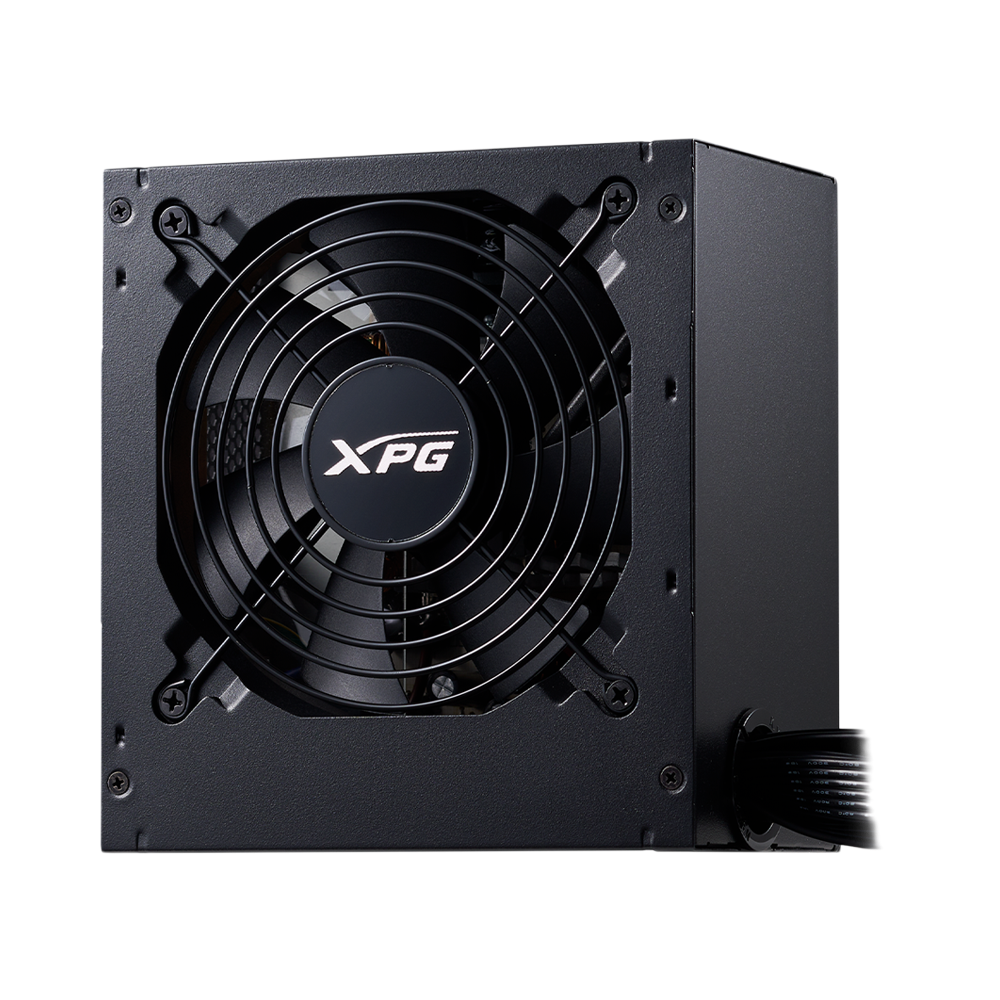

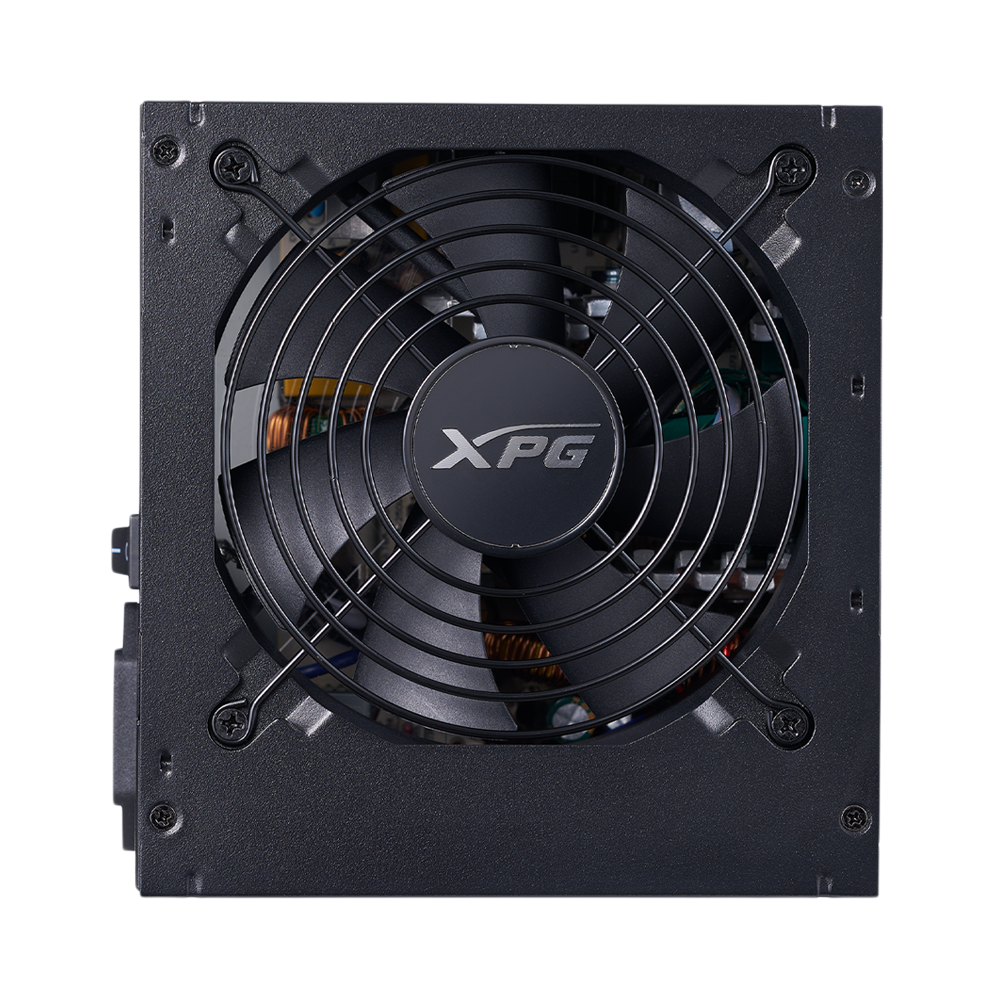

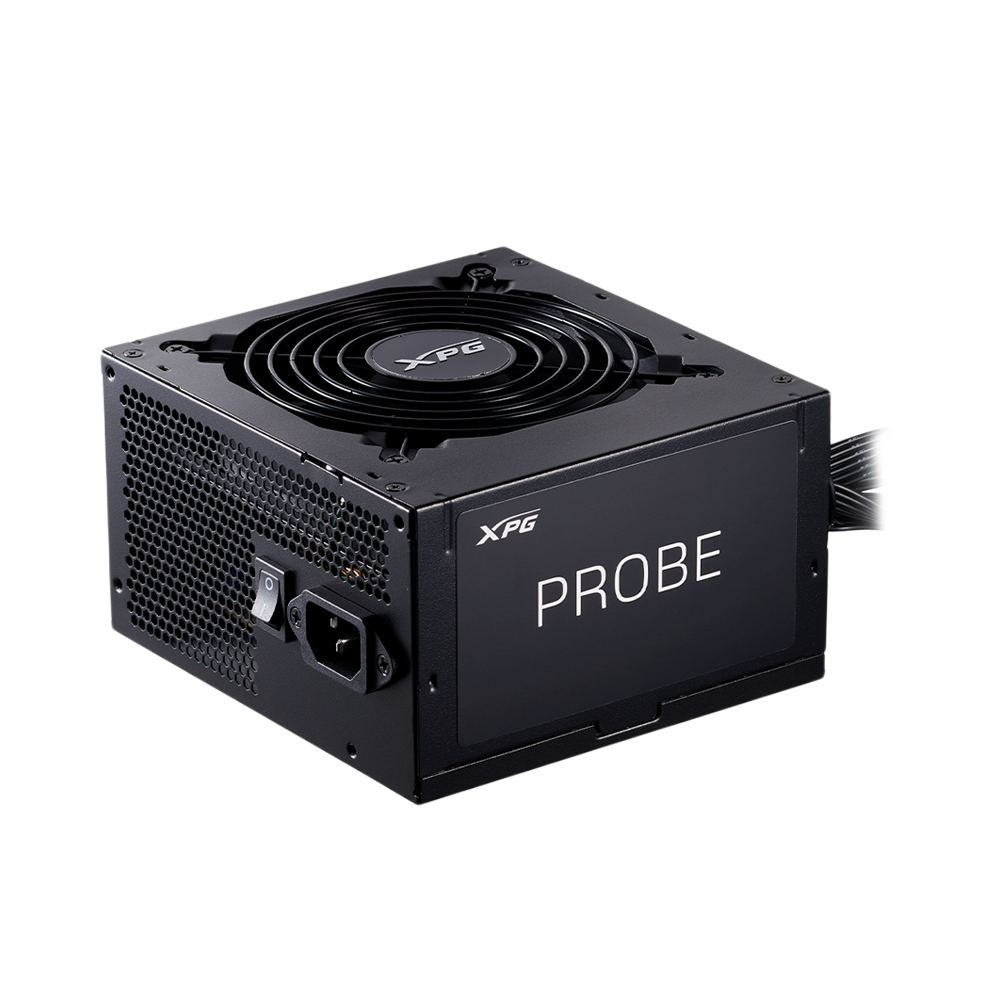

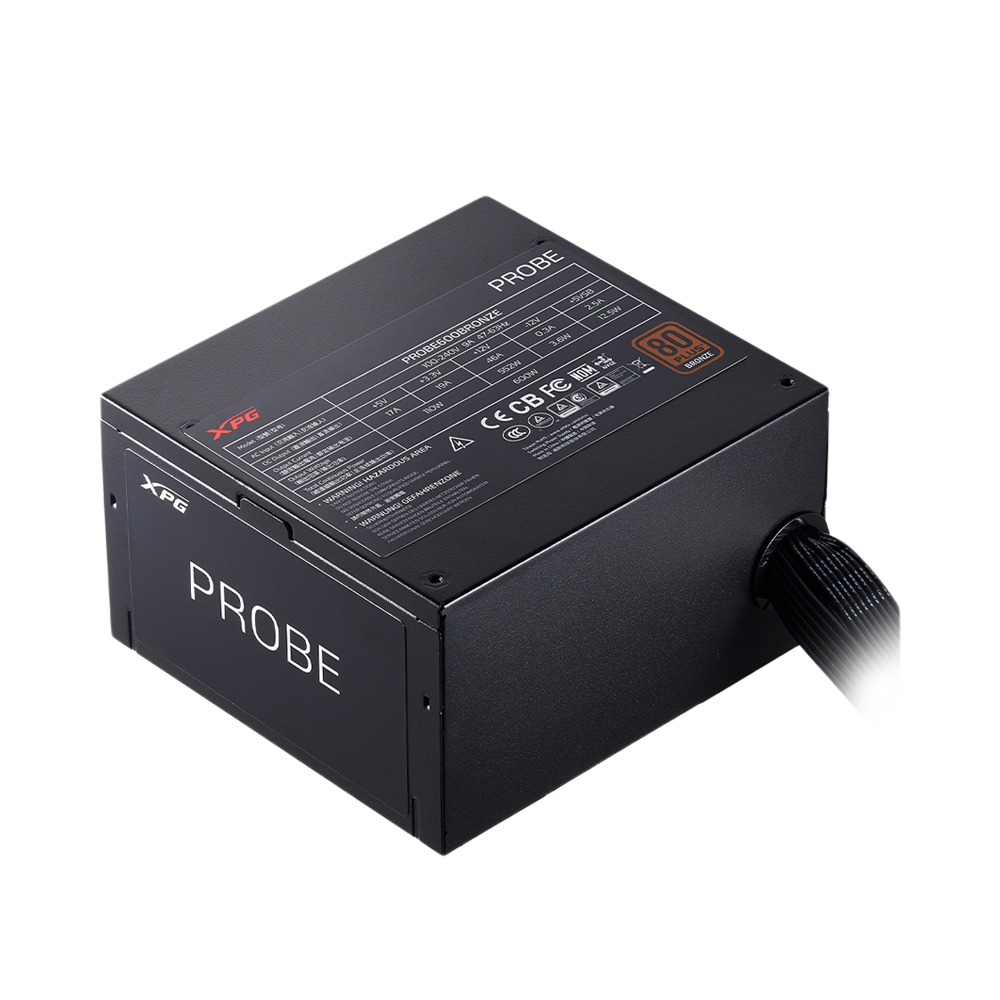

XPG PROBE 600W - 80 Plus Bronze Power Supply Unit - Black

Key Features:

• Total Power Output : 600W
• Form Factor : ATX 2.52
• Efficiency : 80 PLUS Bronze (up to 87% @ 50% load)
• Modular Cabling : Yes
• Fan Specs : 120mm sleeve bearing, 2400 ±10% RPM
• Cooling Curve : Intelligent fan curve for quiet cooling
• MTBF : >100,000 hours @ 25°C
• Safety Protections : OVP, UVP, SCP, OPP, OTP, SIP
• Connectors: 1× ATX 24-pin, 2× EPS 8-pin, 2× Molex, 5× SATA
• Dimensions : 140 × 150 × 86 mm
• Weight: ~1480g
• Certifications: CB, CE, FCC, TUV, cTUVus, BSMI, CCC, NOM, FCC IC, UKCA, EAC, RCM

PROBE
VIABLE, APPLIABLE, & RELIABLE
With up to 87% efficiency at 50% load and a 120mm low-noise fan featuring an intelligent curve, XPG PROBE is designed to deliver stable and reliable power to your system!

80 Plus Bronze Efficiency
XPG PROBE exceeds 80 Plus Bronze certification requirements with up to 87% efficiency at 50% load, ensuring stable power delivery to all components, minimizing the risk of power-related damage.

Enhanced Safety in Operation
Unlike most Bronze power supply units, XPG PROBE is ATX v2.52 compliant, enhancing overall reliability and providing safer operation for your current and future hardware.

Compact Size for Easy Installation
With a compact 140mm length, XPG PROBE allows for easier installation in mainstream PC cases and reduced cable clutter.

Intelligent Fan-Curve Design
The 120mm low-noise sleeve-bearing fan, featuring an intelligent curve design, keeps the power supply cool without excessive noise, thus reducing power consumption for cooling and improving overall energy efficiency.

Long, Reliable Lifespan
XPG PROBE comes with premium capacitors with a 105°C rating, offering greater reliability, premium efficiency, and a longer lifespan.

Six Industrial Safeguards
XPG PROBE offers 6 industrial-grade protections, shielding your system from over-power, over-voltage, surge and inrush, under-voltage, short circuits, and over temperature.

Specifications

• Dimensions (L x W x H) : 140 x 150 x 86mm
• 80 Plus Rating : BRONZE
• ATX Version : ATX 2.52
• Protections : OVP / OPP / SCP / UVP / OTP / SIP
• Certification : CB, CE, FCC, TUV, cTUVus, BSMI, CCC, NOM, FCC IC, UKCA,EAC, RCM
• PFC : > 0.99 @ Typical load
• Input Voltage : 100-240V, 47~63Hz
• Input Current : 9A - 10A
• Input Frequency : 47 - 63Hz
• DC Output Voltage : +5V | +3.3V | +12V | -12V | +5Vsb
• Total Output :600W: +5V: 17A, +3.3V:19A, +12V:46A, -12V:0.3A, +5Vsb:2.5A
• Power Excursion : Total:700W +5V/+3.3V:110W, +12V:648W, -12V:3.6W, +5Vsb:12.5W Total:600W +5V/+3.3V:110W, +12V:552W, -12V:3.6W, +5Vsb:12.5W
• Operating Temperature : 0~40°C
• Fan Size : 120mm
• Fan Bearing : Sleeve Bearing Fan
• Fan Speed : 2400 ± 10% RPM
• MTBF : >100,000 hours @ 25°C
• ATX 24 Pin Connector : 1
• EPS 8 (4+4) Pin Connector : 2
• Molex 4 Pin Connector : 2
• SATA Connector : 5
• Weight : 600W:1480.1g
