Dual 40 series GPU support
ATX 3.1 support & two durable 90° 12V-2x6 cables
Advanced heat dissipation
Ultra-quiet Mobius fan
80 Plus Platinum certification
Fully Modular
Quietly Supreme
V Platinum V2 delivers silent operation, featuring an ultra-quiet Mobius fan, a protective conformal coating heatsink, smart thermal control, zero-RPM fan mode, fully modular cabling, and 80 Plus Platinum efficiency.
Silent fan performance with a zero speed mode
A quieter, speedier fan features lower noise level output and improved airflow thanks to a higher RPM.
Quietly Supreme
V Platinum V2 delivers silent operation, featuring an ultra-quiet Mobius fan, a protective conformal coating heatsink, smart thermal control, zero-RPM fan mode, fully modular cabling, and 80 Plus Platinum efficiency, backed.
Advanced heat dissipation
Purple anodic-coated heat sink with bevel cut lowers average temperatures, compared to traditional heat sinks. Bevel cuts bring out the heat source more effectively, and after concentrating the flow field, benefiting the heat dissipation.
Mobius fan featuring a Ring Blade Design (RBD) for advanced heat dissipation
An angled inner frame rim with chamfered side vents boosts airflow draw, maximizing force induced air pressure and diminishing dead air.
Certified Efficiency
An interleaved PFC decreases power loss and improves efficiency by minimizing current, reducing interference, and reducing output capacitor ripple current.
Two Durable 90° 12v-2x6 Cables & ATX 3.1 Support
Includes ATX 3.1 support and two 90° 12V-2x6 connectors featuring more reliability, higher electrical durability, improved safety, and the capacity to deliver up to 600W per connector, totaling an impressive 1200W output to empower your GPU.
Fully Modular Cabling
A modular cable management design reduces clutter, increases airflow, and improves overall efficiency as well as thermal performance.
Model : MPZ-G002-AFAP
ATX Version : ATX 12V Ver. 3.1
PFC : Active PFC
Input Voltage : 100-240V
Input Current : 16-8A
Input Frequency : 50-60Hz
Dimensions (L x W x H) : 160 x 150 x 86 mm
Fan Size : 135mm
Fan Bearing : LDB
Fan Speed : 2400±10% RPM
Efficiency : ≥ 92% @ Typical Load
80 PLUS Rating : 80 PLUS Platinum
ErP 2014 Lot 3 : Yes
Operating Temperature : 0-50°C
Power Good Signal : 100 - 150 ms
Hold Up Time : ≥ 16ms
MTBF : >100,000 Hours
Protections : OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection
Regulatoryc : TUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region's requests.)

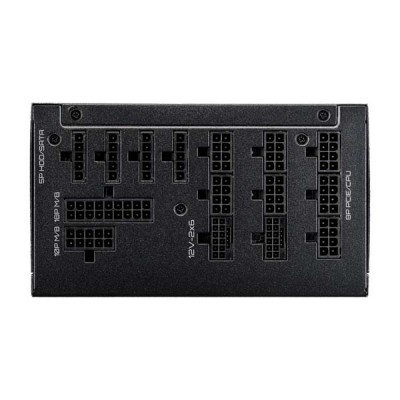

ATX 24 Pin Connectors : 1
EPS 4+4 Pin Connectors : 1
EPS 8 Pin Connector : 1
SATA Connectors : 16
Peripheral 4 Pin Connectors : 4
PCI-e 6+2 Pin Connectors : 5
12V-2x6 Connectors : 2
Series : V Platinum Series
80 Plus Efficiency : Platinum
Modular : Fully Modular
Category : Above 750W
Form Factor : ATX
Watts : 1600W
