ATX 3.1 support
High temperature resilience
Quiet HDB fan
80 Plus Bronze certified efficiency
Embossed cable

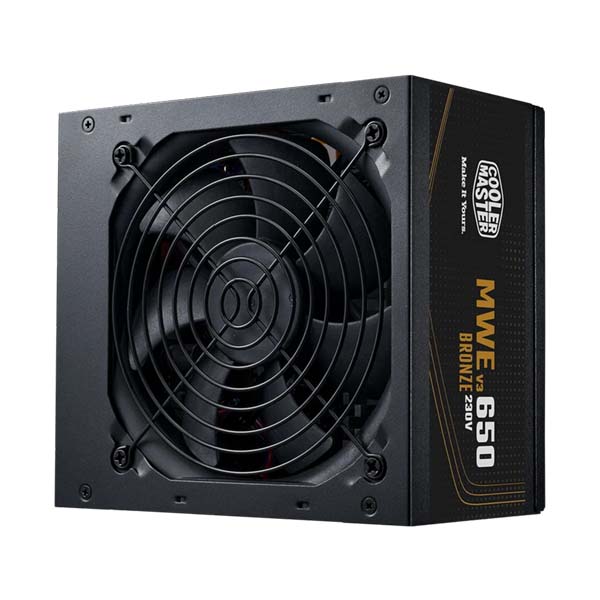

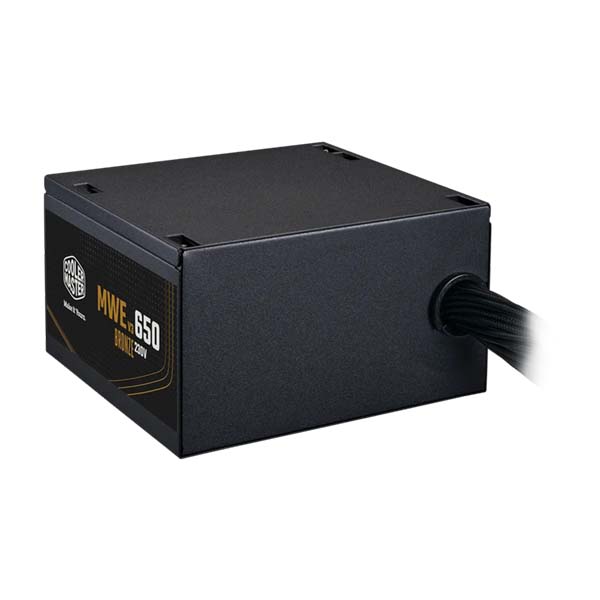

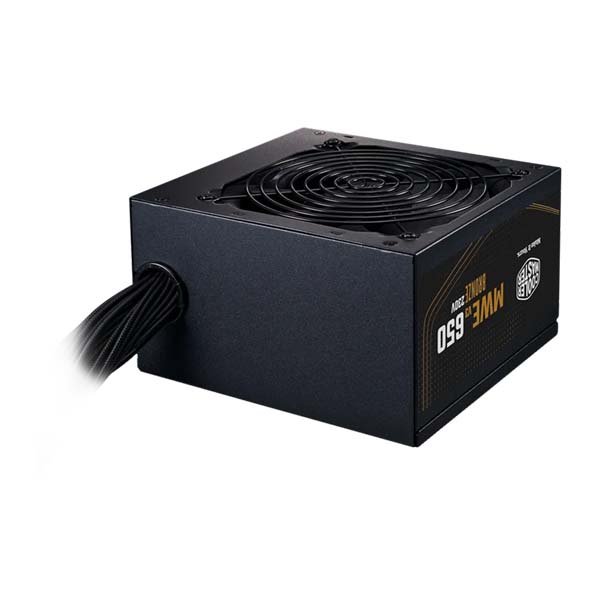

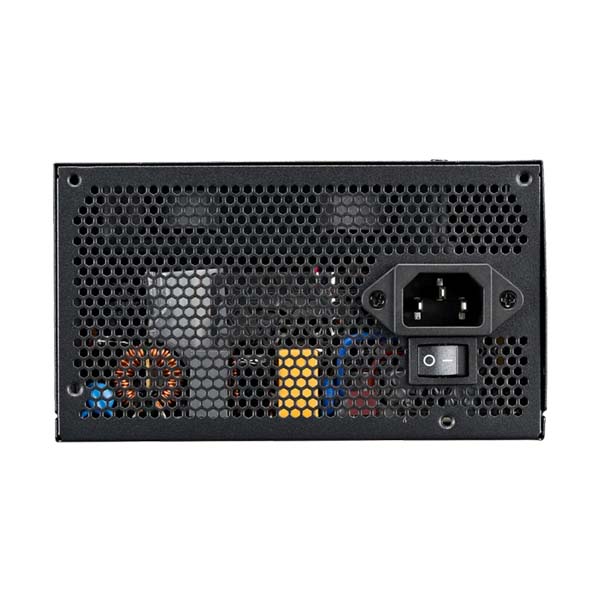

Power Evolved MWE Bronze 650 V3 230V
Power Evolved
Cooler Master presents the MWE Bronze V3 230V, the upgraded version of the MWE Bronze featuring ATX 3.1 support, high temperature resilience, a smart DC-to-DC + LLC circuit design, a quiet HDB fan, 80 Plus Bronze efficiency, an embossed cable.
ATX 3.1 Support
Compliant with ATX 3.1 to fully support a peak power 1.5 times higher than the rated maximum wattage, this unit is ideal for use with the 40 series GPUs.
Embossed Cable
An embossed cable texture provides a softer and overall improved grip with a pleasing aesthetic.
Quiet HDB Fan
A hydrodynamic bearing fan delivers long-lasting quiet and effective cooling.
High Temperature Resilience
A 40°C operating temperature allows for pushing your machine to the limits.
Model : MPE-6501-ACABW-3B
ATX Version : ATX 12V Ver. 3.1
PFC : Active PFC
Input Voltage : 200-240V
Input Current : 5A
Input Frequency : 50-60Hz
Dimensions (L x W x H) : 140 x 150 x 86 mm / 5.5 x 5.9 x 3.4 inch
Fan Size : 120mm
Fan Bearing : HDB
Efficiency : >88% @ Typical Load
80 PLUS Rating :80 PLUS Bronze EU 230V
ErP 2014 Lot 3 : Yes
Operating Temperature : 0-40°C
Power Good Signal : 100 - 150 ms
Hold Up Time : >16ms
MTBF : >100,000 Hours
Protections : UVP / OVP / OPP / OTP / SCP
Regulatory ; TUV, CE, FCC, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (based on region's request.)
ATX 24 Pin Connectors : 1
EPS 8 Pin / 4+4 Pin Connectors : 2
SATA Connectors : 6
Peripheral 4 Pin Connectors : 3
PCI-e 6+2 Pin Connectors : 4
Series : MWE Bronze Series
Category : 500 to 750W
Modular : Non Modular
80 Plus Efficiency : Bronze
Form Factor : ATX
Watts : 650W
