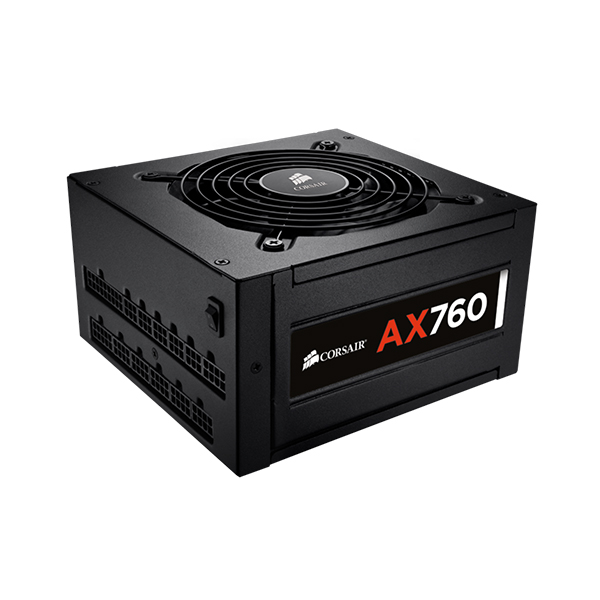

Corsair AX760 AX Series Power Supply

AX Seriesâ„¢ PSUs offer world-class performance, with 80 PLUS PLATINUM-certified efficiency, low noise, fully modular cable sets, and high reliability for extreme performance systems.

STABLE POWER DELIVERY, SILENT OPERATION, LESS ENERGY CONSUMPTION, AND EASIER, BETTER-LOOKING BUILDS

The AX760 offers ultra-clean power delivery for protecting your PC’s critical components. The efficient design uses less power and operates silently at low to medium loads, and the fully modular cable set helps make installation fast and easy, with better-looking results.

LESS HEAT GENERATION AND LOWER OPERATING COSTS

Excess heat means wasted energy. 80 PLUS Platinum certified efficiency means less waste.

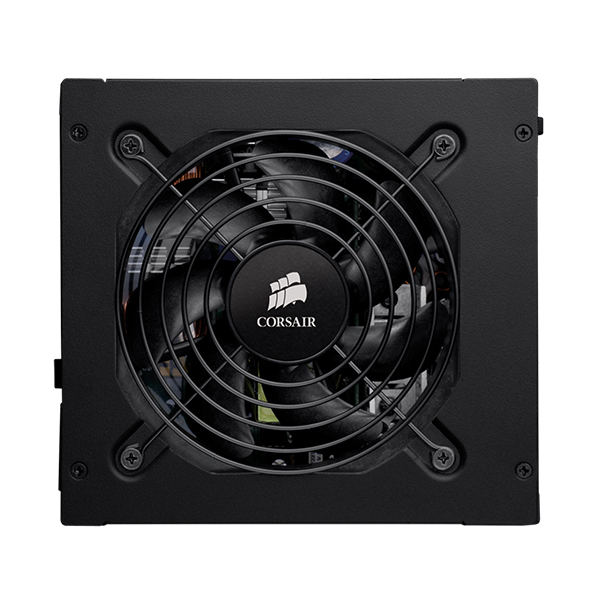

ZERO RPM MODE FOR SILENT OPERATION AT LOW LOADS

The fan doesn’t even spin when your system is idle or doing basic work like surfing the web or running office applications.

EASY INSTALLATION

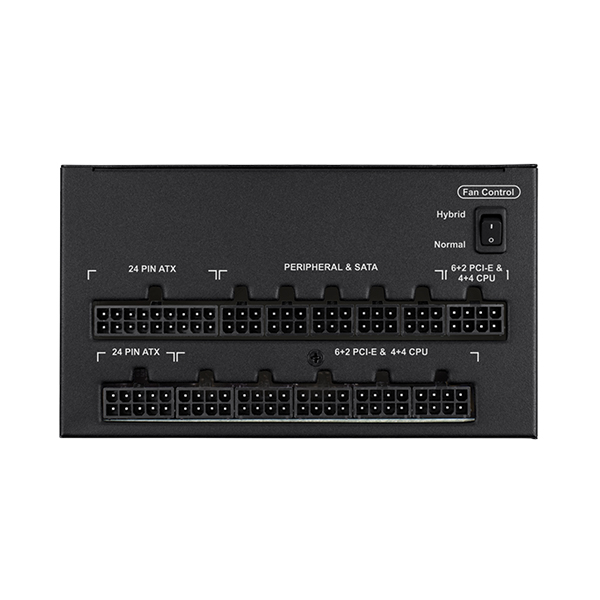

The fully modular cable set lets you use only the cables you need. You can install the AX Series first and then add cables one-by-one without having to deal with the dreaded “cable octopus."

STABLE, RELIABLE POWER OUTPUT

High-quality components and careful design help ensure maximum protection for your PC’s components.

EASY INSTALLATION

The fully modular cable set lets you use only the cables you need. You can install the AX Series first and then add cables one-by-one without having to deal with the dreaded “cable octopus."

STABLE, RELIABLE POWER OUTPUT

High-quality components and careful design help ensure maximum protection for your PC’s components.

CLEAN, STABLE POWER DELIVERY

High-quality capacitors, a dedicated single +12V rail and a PF value of 0.99 give you reliable power output with extremely low ripple and noise. Over-voltage, under-voltage, over-current, and short circuit protection provide maximum safety for your critical system components. And, AX860 is engineered to meet maximum power output at a server-grade 50° C temperature rating.

WIDE COMPATIBILITY

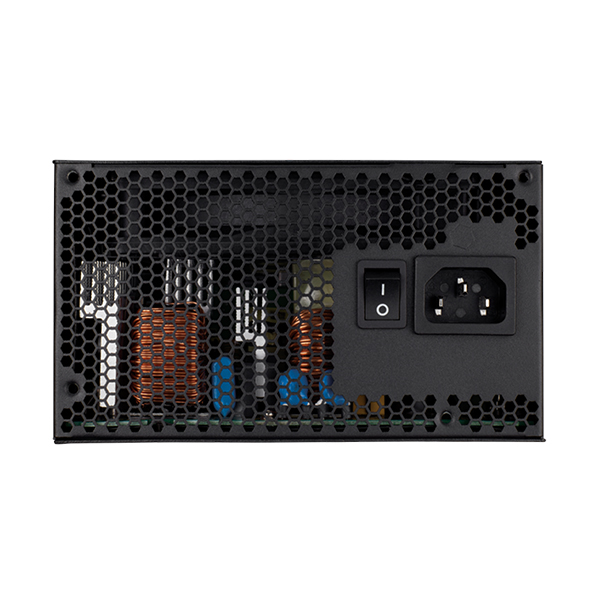

The AX Series conforms to ATX12V v2.31 and EPS 2.92 standards, and is backward compatible with the ATX12V 2.2 and ATX12V 2.01 standards. It accepts universal AC input from 90V - 264V. Safety approvals include cTUVus, CE, CB, FCC Class B, TÃœV, CCC, and C-tick

Product Specifications

• ATX Connector : 1
• Adjustable Single/Multi 12V Rail : No
• ATX12V Version : v2.4
• Continuous output rated temperature C : 50°C
• Continuous power W : 760 Watts
• Corsair Link Support : No
• Fan bearing technology : Dual Ball Bearing
• Fan size mm : 120mm
• MTBF hours : 100,000 hours
• Multi-GPU ready : YES
• Power : 760 Watts
• 80 PLUS Efficiency : Platinum
• PSU Form Factor : ATX
• Zero RPM Mode : Yes
• Cable Type : Low-Profile, All Black
• C-Link Ready : No
• Dimensions : 150mm x 86mm x 160mm
• EPS Connector : 2
• Floppy Connector : 2
• Modular : Fully
• PCI-E Connector : 6
• Plug Type : EU
• SATA Connector : 12
