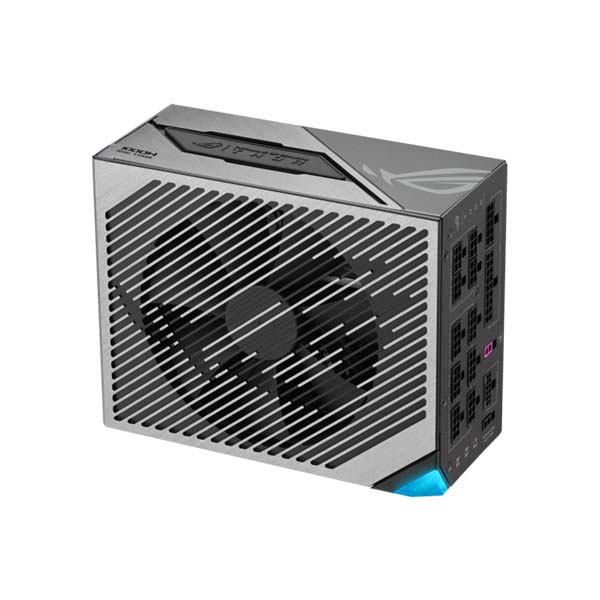

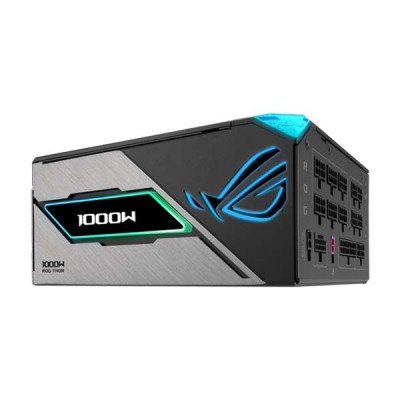

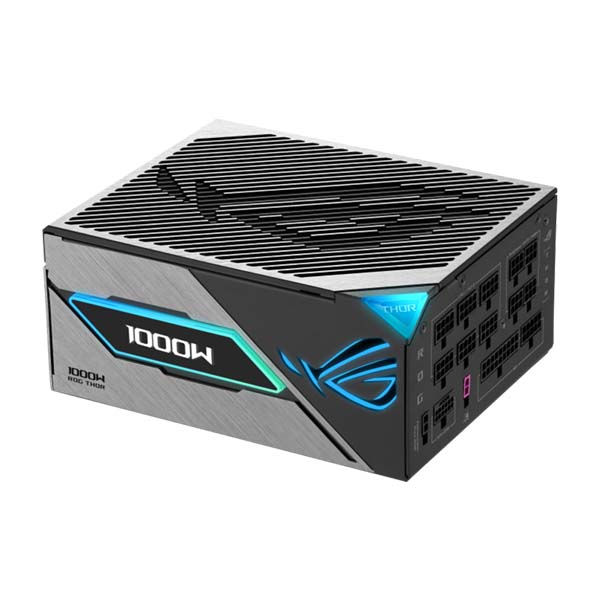

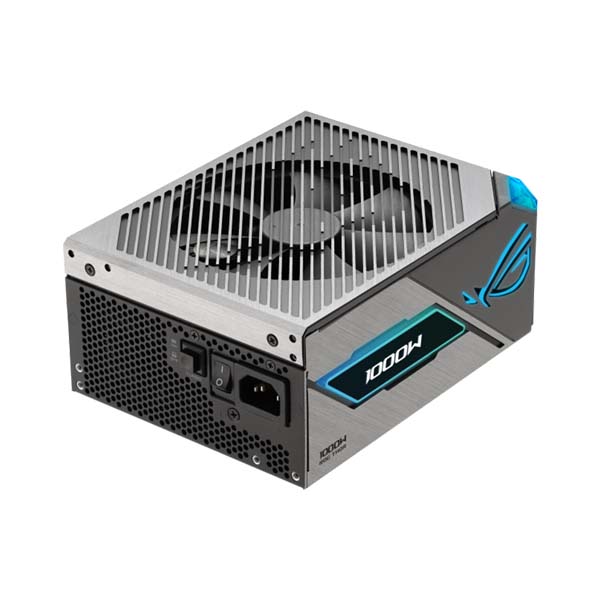

ASUS ROG THOR 1000W Platinum III - 80 Plus Platinum ATX 3.1 PCIe GEN 5 Power Supply Unit - Black

Featuring a GaN MOSFET, “GPU-First” patented intelligent voltage stabilizer and a magnetic OLED display, ROG Thor 1000W Platinum III delivers unmatched performance and rock-solid stability for your ultimate PC build.

ROG THOR 1000W PLATINUM III

ULTIMATE POWER. UNMATCHED STABILITY.

The ROG Thor 1000W Platinum III delivers the ultimate power and stability demanded by gamers. A next-gen GaN MOSFET delivers superior efficiency, and "GPU-First" voltage sensing features a patented-intelligent voltage stabilizer, ensuring top-tier performance and stability. Meanwhile, there is Turbo Mode for maximum cooling when overclocking or for other demanding workloads.

The ROG Thor 1000W Platinum III also features the signature Thor OLED display, now upgraded for easy magnetic attachment – it can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.

ENGINEERING

GaN MOSFET

The ROG Thor 1000W Platinum III PSU boasts an innovative GaN MOSFET that deliver up to 30% more power efficiency than standard MOSFETs. Plus, the smaller size of a GaN MOSFET allows for a more organized internal layout. This optimized design provides space for larger heatsinks and enhanced airflow, improving heat dissipation.

COOLING

ROG Heatsinks

Cool under pressure

ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.

Magnetic OLED Display

This detachable magnetic OLED display showcases real-time power draw, providing insights to your system's performance and efficiency. The magnetic attachment can be swapped to either side of the unit for fan-up or fan-down PSU installation, depending on the design of your case, so you can maintain optimal airflow without compromising monitoring.

Turbo Mode

Turbo Mode unlocks support for extended power excursions, courtesy of a fine-tuned fan curve and premium components. Enjoy unwavering performance when you need it most, and switch between peak performance and ultimate silence with just a press of the Turbo Mode button on the rear of the PSU.

Etched Cables

Made from a pliable premium material, these etched cables are easily flexible during installation, and they operate at temperatures 50°C lower than the safety limit when routed for cable management. These cables also meet the rigorous standards of the UL1581 flame test and UL758 certification, helping to ensure a smooth PC DIY experience and exceptional safety.

DIY-friendly CPU Power Connector

Engineered with a distinct clip between the 4+4 pin connectors and a unique color scheme, this CPU power cable simplifies cable identification during installation. The integrated clip helps to ensure a secure and effortless connection to the motherboard's CPU power connector, streamlining the build process and instilling confidence in your PC setup.

Aura Sync

The ROG Thor 1000W Platinum III has addressable Aura RGB LEDs built in, ready to accent an Aura-compatible rig with an array of colors and lighting effects*. Users of Aura-sync compatible ASUS and ROG graphics cards can also enjoy Smart Mode, a lighting effect that changes color according to GPU temperature.

Specifications

• Model : ROG Thor 1000W Platinum III

• PFC Type : Active PFC

• ATX Standard : ATX 3.1

• Dimensions : 190 x 150 x 86 mm

• Efficiency : 80Plus Platinum

• MTBF : >120,000 hrs @ 25°C

• Protection Features : OPP/OVP/UVP/SCP/OCP/OTP

• Hazardous Materials : ROHS

• AC Input Range : 100-240Vac

• DC Output Voltage : +3.3V +5V +12V -12V +5Vsb

• Maximum Load : 30A 25A 83.33A 0.3A 3A

• Combined Load : 125W 125W 1000W 3.6W 15W

• Total Output : 1000W

Cable Connectors

• MB 24/20-pin x 1

• CPU 4+4-pin x 2

• PCI-E 16-pin x 1

• PCI-E 6+2-pin x 4

• SATA x 7

• PERIPHERAL x 6

Package Contents

• Power Cord x 1

• Motherboard Power Cable x 1 (610mm)

• CPU Cable x 2 (1000mm)

• PCI-E Gen 5.1 16-pin Cable x 1 (750mm)

• PCI-E Cable 1-to-1 x 4 (750mm)

• SATA Cable 1-to-4 x 1 (400+120+120+120mm)

• SATA Cable 1-to-3 x 1 (400+120+120mm)

• Peripheral 1-to-3 x 2 (400+150+150mm)

• Addressable RGB Cable x 1 (800mm)

• ROG sticker x 1

• ROG cable tie x 6

• Chassis Screws Package x 1

• Cable Tie x 12

• User Manual x 1

Weight

• 2.37KG

AURA SYNC

• ARGB

Cybenetics Noise Level Certification

• A++

0dB Technology

• Supported. The fan shuts off entirely when the PSU is under certain load

0dB Fan Button

• Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels.
