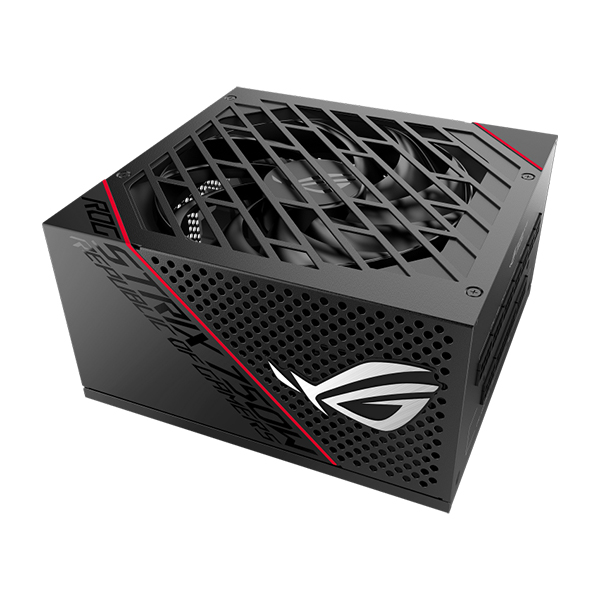

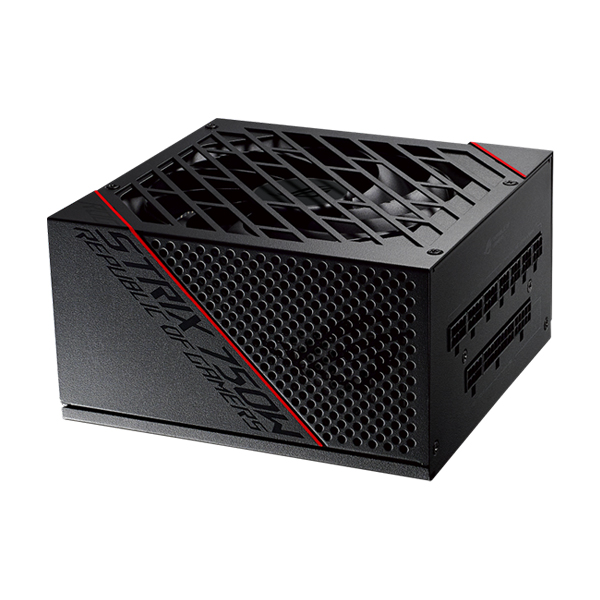

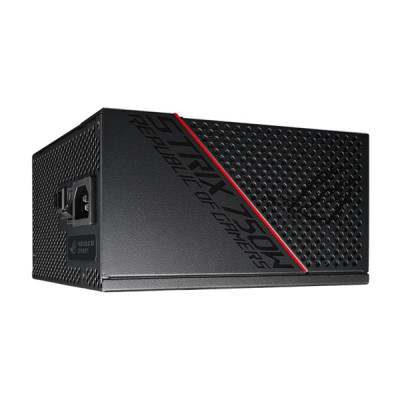

Asus ROG Strix 750W Gold Modular Power Supply

The ROG Strix 750W Gold PSU brings premium cooling performance to the mainstream.

Frozen Silence

The ROG Strix Series PSUs bring high-end cooling and premium components together for an ultra-quiet high-performance product aimed at core gamers. In terms of cooling, massive ROG heatsinks trickle down from the mighty ROG Thor series and Axial-tech fan design from our premium NVIDIA RTXâ„¢ graphics cards also make an appearance. Below the surface, low RDS (on) MOSFETs and premium Japanese capacitors take on power delivery with ease. The result is an incredibly quiet and efficient power supply with the reserves to handle the most intense gaming scenarios.

ROG Heatsinks

The integrated ROG heatsinks have 2x more volume than traditional designs, resulting in significantly lower temperatures inside Strix PSUs. This extends the lifespan of components and allows 0dB operation for a longer duration than standard designs. The heatsinks are so effective that fan noise stays whisper quiet, even under full load.

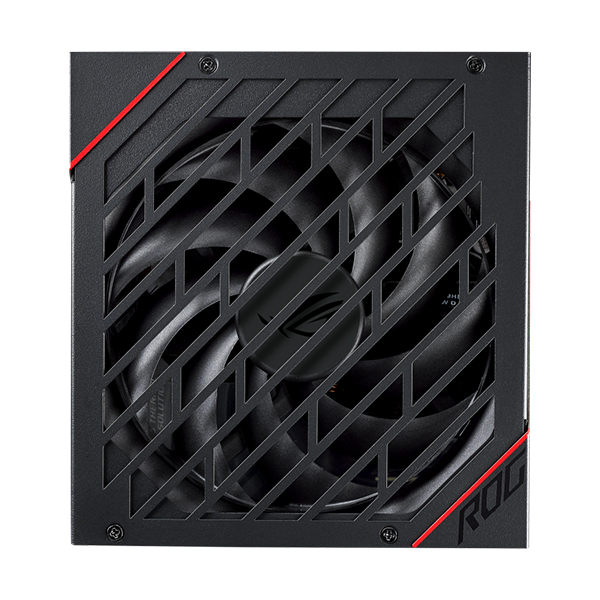

Axial-tech Fan Design

Originally the result of R&D efforts for top-end ROG graphics cards, Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. The enhanced efficiency allows the fan to keep things cool at low RPMs, resulting in less overall system noise and increased component lifespan.

Dual Ball Fan Bearings

Different bearing types have unique pros and cons. In a PSU, durability is paramount, so we built a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.

0dB Technology

An onboard controller brings the 135mm fan to a standstill when total draw power (TDP) is below 40%, letting you enjoy light gaming in relative silence. Above 40% TDP, the fans automatically start up again.

80 Plus Gold Certification

Top-end Japanese capacitors ensure efficient operation and have helped the Strix earn an 80 PLUS Gold certification. The increased efficiency also results in less heat, reducing noise and increasing reliability.

Fully Modular Cables

Keep your rig neat and tidy with fully modular cables. One 24-pin, two 6+2-pin PCI-e, and two 8-pin CPU cables come with embedded capacitors that reduce voltage ripple, and the included CableMod coupon will set you on your way towards next-level customisation.

Cosmetic Customization

Getting everything looking right can be a challenging aspect of any setup. The ROG Strix Series PSUs aim to make your life a little easier with a convenient magnetic logo and stickers that help you reskin the visible side to your liking.

Fully Modular Cables

Plug in

Keep your rig neat and tidy with fully modular cables. One 24-pin, two 6+2-pin PCI-e, and two 8-pin CPU cables come with embedded capacitors that reduce voltage ripple, and the included CableMod coupon will set you on your way towards next-level customization.

Specifications

• Intel Specification : ATX12V

• Dimensions : 16 x 15 x 8.6 Centimeter

• Efficiency : 80Plus Gold

• Protection Features : OPP/OVP/SCP/OCP/OTP

• Hazardous Materials : ROHS

• AC Input Range : 100-240Vac

• RGB Connector : NA

• Thermal Features : ROG Thermal Solution

• Fan Size : 135mm

• DC Output Voltage : +3.3V +5V +12V -12V +5Vsb

• Maximum Load : 20A 20A 62A 0.3A 3A

• Total Output : 750W

Connectors

• MB 24/20-pin x 1

• CPU 4+4-pin x 2

• PCI-E 6+2-pin x 4

• SATA x 8

• Peripheral x 3

Package Contents

• Power Cord x 1

• Motherboard Power cable x 1

• CPU Cable 1000mm x 2

• PCI-E Cable x 2

• SATA Cable x 2

• Peripheral x 1

• Join the ROG badge x 2

• ROG logo magnet x 1

• ROG label x 3
