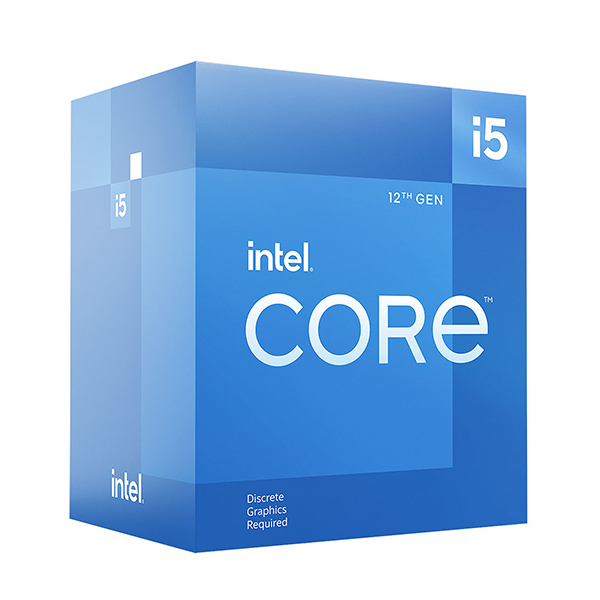

Intel Core i5-12400F LGA 1700 12th Gen Processor

Power up your productivity, gaming, and content-creation experiences by installing the Intel Core i5-12400F 2.5 GHz 6-Core LGA 1700 Processor into your desktop computer system. Built using the Alder Lake architecture with the Intel 7 process, this 12th generation 2.5 GHz desktop processor's six Performance cores support up to 12 threads and provide the speed for demanding applications and games. Additionally, this processor has a 4.4 GHz Boost 2.0 frequency with 18MB of cache for fast and reliable performance. The Core i5-12400F also includes support for up to PCI Express 5.0 and dual-channel DDR5 memory at 4800 MHz to help run and multitask a variety of demanding applications.

The Core i5-12400F does not include integrated graphics, meaning that users will need to purchase a separate dedicated graphics card. An Intel Laminar RM1 thermal solution is included. The processor is compatible with Intel LGA 1700 socket motherboards and is backed by a 3-year warranty.

PCIe 4.0 & 5.0

This processor supports up to four PCIe 4.0 and sixteen PCIe 5.0 lanes, delivering 20 lanes in total for exceptional data throughput with compatible devices.

Intel Deep Learning Boost

Accelerates AI inference to improve performance for deep learning workloads.
Gaussian & Neural Accelerator 3.0
Gaussian and Neural Accelerator 3.0 (GNA) technology helps with noise suppression while enhancing background blurring during video chats.

Specifications

Essentials

• Product Collection : 12th Generation Intel® Coreâ„¢ i5 Processors

• Code Name : Products formerly Alder Lake

• Vertical Segment : Desktop

• Processor Number : i5-12400F

• Lithography : Intel 7

• Use Conditions : PC/Client/Tablet

CPU Specifications

• Total Cores : 6

• # of Performance-cores : 6

• # of Efficient-cores : 0

• Total Threads : 12

• Max Turbo Frequency : 4.40 GHz

• Performance-core Max Turbo Frequency : 4.40 GHz

• Performance-core Base Frequency : 2.50 GHz

• Cache : 18 MB Intel® Smart Cache

• Total L2 Cache 7.5 MB

• Processor Base Power : 65 W

• Maximum Turbo Power : 117 W

Supplemental Information

• Embedded Options Available : No

• Datasheet : View now

Memory Specifications

• Max Memory Size (dependent on memory type) : 128 GB

• Memory Types Up to DDR5 4800 MT/s

• Up to DDR4 3200 MT/s

• Max # of Memory Channels 2

• Max Memory Bandwidth 76.8 GB/s

Expansion Options

• Direct Media Interface (DMI) Revision : 4.0

• Max # of DMI Lanes : 8

• Scalability : 1S Only

• PCI Express Revision : 5.0 and 4.0

• PCI Express Configurations : Up to 1x16+4, 2x8+4

• Max # of PCI Express Lanes : 20

• Package Specifications

• Sockets Supported : FCLGA1700

• Max CPU Configuration : 1

• Thermal Solution Specification : PCG 2020C

• TJUNCTION : 100°C

• Package Size : 45.0 mm x 37.5 mm

Advanced Technologies

• Intel® Gaussian & Neural Accelerator : 3.0

• Intel® Thread Director : No

• Intel® Deep Learning Boost (Intel® DL Boost) : Yes

• Intel® Optane Memory Supported : Yes

• Intel® Speed Shift Technology : Yes

• Intel® Turbo Boost Max Technology 3.0 : No

• Intel® Turbo Boost Technology : 2.0

• Intel® Hyper-Threading Technology : Yes

• Intel® Virtualization Technology (VT-x) : Yes

• Intel® Virtualization Technology for Directed I/O (VT-d) : Yes

• Intel® VT-x with Extended Page Tables (EPT) : Yes

• Intel® 64 : Yes

• Instruction Set : 64-bit

• Instruction Set Extensions : Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2

• Idle States : Yes

• Enhanced Intel SpeedStep® Technology : Yes

• Thermal Monitoring Technologies : Yes

• Intel® Volume Management Device (VMD) : Yes

Security & Reliability

• Intel® Standard Manageability (ISM) : Yes

• Intel® AES New Instructions : Yes

• Secure Key : Yes

• Intel® OS Guard : Yes

• Execute Disable Bit : Yes

• Intel® Boot Guard : Yes

• Mode-based Execute Control (MBEC) : Yes

• Intel® Control-Flow Enforcement Technology : Yes
