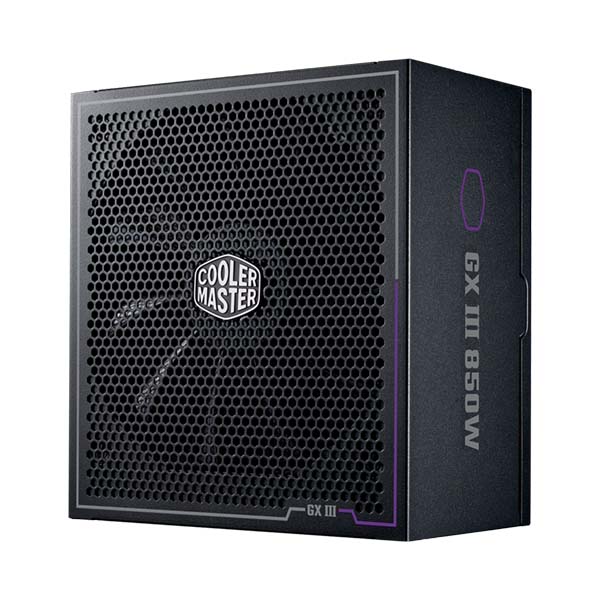

COOLER MASTER GX III GOLD 850W - 80 Plus Gold Gen 5.0 Fully Modular Power Supply Unit - Black

STRENGTH IN ELEGANCE

Cooler Master presents the GX III Gold featuring exceptional efficiency, low noise output, and superb reliability.

Innovative, streamlined design

The innovative design streamlines the overall aesthetic of the unit and greatly improves airflow.

ATX 3.0 support & a durable 90-degree 12VHPWR cable

Includes ATX 3.0 support and a 90-degree 12+4pin (12VHPWR) PCIe 5.0 connector featuring higher electrical durability, improved safety, and capable of bringing up to 300W to your GPU.

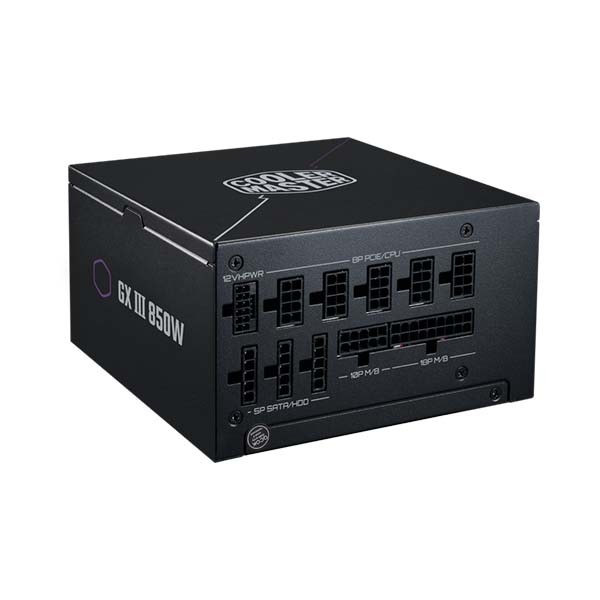

Fully modular cabling

Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.

SILENT FAN PERFORMANCE WITH A ZERO-RPM MODE

This unit has received a Cybenetics A- noise level certification and includes a smart thermal control mode that defaults to zero spin.

Specifications

• Model  : MPX-8503-AFAG

• ATX Version  : ATX 12V Ver. 3.0

• PFC : Active PFC

• Input Voltage  : 100-240V

• Input Current  : 10-5A

• Input Frequency  : 50-60Hz

• Dimensions (L x W x H)  : 160 x 150 x 86 mm

• Fan Size:  135mm

• Fan Bearing  : HDB

• Fan Speed : 1900 RPM

• Efficiency : ≥90% @ Typical Load

• 80 PLUS Rating :  80 PLUS Gold

• ErP 2014 Lot 3  : Yes

• Operating Temperature :  0-50°C

• Power Good Signal  :  100 - 150 ms

• Hold Up Time :  >16ms

• MTBF  :  >100,000 Hours

• Protections : OPP, OVP, OTP, OCP, SCP, UVP, Surge and Inrush Protection

• Regulatory  : cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (based on region's request.)

• ATX 24 Pin Connectors : 1

• EPS 4+4 Pin Connectors  :  1

• EPS 8 Pin Connector  : 1

• SATA Connectors : 8

• Peripheral 4 Pin Connectors :  4

• PCI-e 6+2 Pin Connectors  : 3

• 12VHPWR Connector  ;  1

• Series  : GX Series

• 80 Plus  : Gold

• Modular  : Fully Modular

• Wattage : Above 750W
