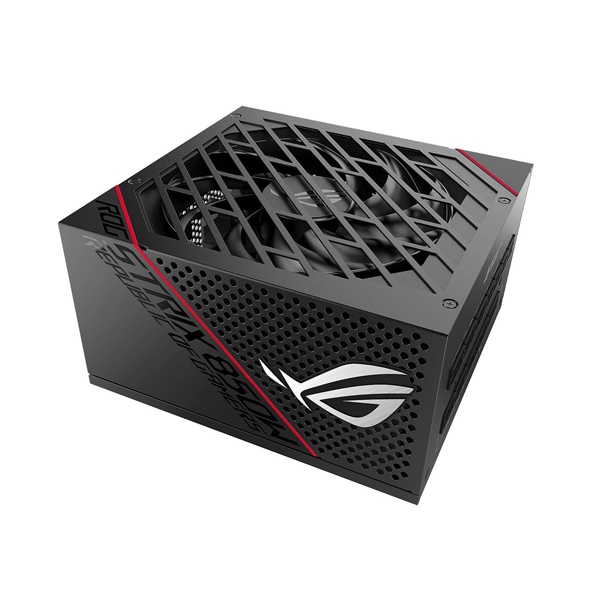

Asus ROG STRIX 850W Modular 80+ Gold Power Supply

The ROG Strix 850W Gold PSU brings premium cooling performance to the mainstream.

Frozen Silence

The ROG Strix Series PSUs bring high-end cooling and premium components together for an ultra-quiet high-performance product aimed at core gamers. Massive ROG heatsinks trickle down from the mighty ROG Thor series and Axial-tech fan design from our premium NVIDIA RTXâ„¢ graphics cards also make an appearance. Below the surface, low RDS (on) MOSFETs and premium Japanese capacitors take on power delivery with ease. The result is an incredibly quiet and efficient power supply with the reserves to handle the most intense gaming scenarios.

ROG Heatsinks

Let it sink in

The integrated ROG heatsinks have 2x more volume than traditional designs, resulting in significantly lower temperatures inside ROG Strix Series PSUs. This extends the lifespan of components and allows 0dB operation for a longer duration than standard designs. The heatsinks are so effective that fan noise stays whisper quiet, even under full load.

80 Plus Gold Certification

Heart of gold

Top-end Japanese capacitors ensure efficient operation and have helped the Strix earn an 80 PLUS Gold certification. The increased efficiency also results in less heat, reducing noise and increasing reliability.

Cosmetic Customization

A e s t h e t i c

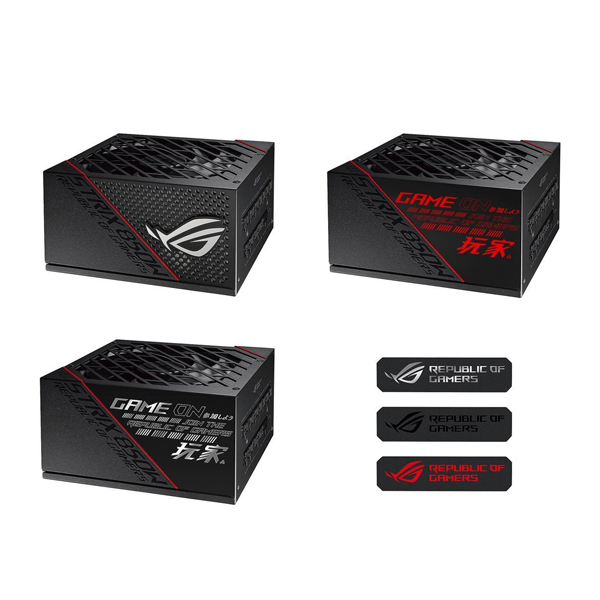

Getting everything looking right can be a challenging aspect of any setup. The ROG Strix Series PSUs aim to make your life a little easier with a convenient magnetic logo and stickers that help you reskin the visible side to your liking.

Specifications

• Intel Specification

ATX 12V

• Dimensions

16 x 15 x 8.6 Centimeter

• Efficiency

80Plus Gold

• Protection Features

OPP/OVP/SCP/OCP/OTP

• Hazardous Materials

ROHS

• AC Input Range

100-240Vac

• Thermal Features

ROG Thermal Solution

• Fan Size

135 mm

• DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

• Maximum Load

20A 20A 70A 0.3A 3A

• Combined Load

100W 100W 840W 3.6W 15W

• Total Output

850W

• Connectors

MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 6+2-pin x 6
SATA x 8
PERIPHERAL x 6

• Package Contents

Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable 1000mm x 2 (1000mm)
PCI-E Cable x 3 (675mm)
SATA Cable x 2 (810mm/860mm)
Peripheral x 2 (450mm)
Join the ROG badge x 2
ROG logo magnet x 1
ROG label x 3
*MB/ CPU/ PCI-E cables come with embedded capacitors in the middle.

• Weight

Single Card (KG) 1.825
Product Weight (with packing) (KG) 3.48
