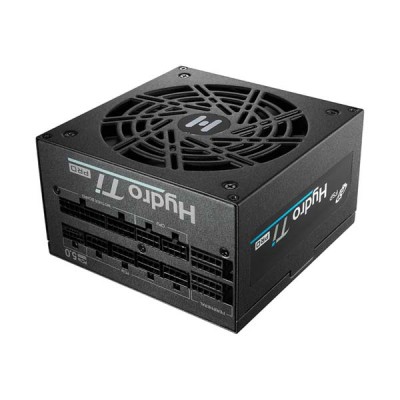

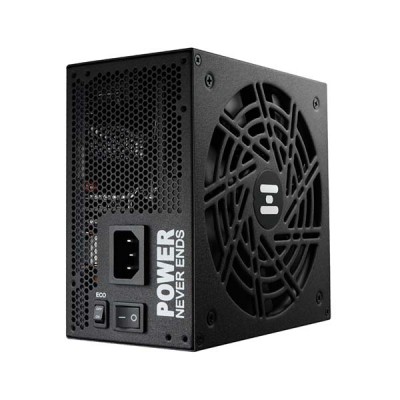

FSP HYDRO Ti PRO 1000W - 80 Plus Titanium Fully Modular Gen 5.0 Power Supply Unit - Black

New ATX PSU Specifications

Updated ATX 3.0 specifications for the next-generation hardware power demands and ensure users get the most stable and cost-optimized performance possible with the highest power efficiency.

Ultra Power Density

Compared to general high-efficiency & high wattage PSU 170mm length, Hydro Ti PRO series delivers high power with shorter size of 150mm.

80 Plus® Titanium Certification

Hydro Ti PRO series is a power supply with 80 PLUS® Titanium provides over 94% efficiency at the load of 50 % and Cybenetics-certified for lower power consumption.

Lambda A++ Certification

Hydro Ti PRO ATX3.0(PCIe5.0) 1000W got Lambda A++ noise rating. By averaging the noise measurements that take from Cybenetics test results.

Smarter, Quieter and Longer Lasting Eco Friendly Fan

Under 50% loading, you will enjoy Zero RPM experience when eco semi-fanless fan control switch is on, , and get the benefit of long lifespan from a 135mm fluid dynamic bearing fan.

Off-Wet, Off-Dust and Off-Stain Coating

Covered with exclusive conformal coating which guarantees to offer better and reliable performance in harsh environments and is tested to work in environments up to 95% relative humidity.

LLC Topology

Zero voltage switching of the main switches thereby dramatically lowering switching losses and boosting efficiency.

450V, 105°C Japanese E-Capacitors

Hydro Ti PRO series uses Japanese bulk capacitors to ensure a longer lifetime and protect your equipment from the infamous capacitor leakage problem.

Unleash +12V Power Output

VGA card is a power-hungry component that needs most power. A single +12V rail design can deliver stable power and avoid any overloading conditions.

Fully Modular Design

Fully-modular design not just for easier installation, but also provides your system a neat and tidy look.

Stylish & Changeable Side Sticker

Includes unique side stickers for DIY enthusiasts and gamers.

Specifications

• Model  : HTI-1000M

• Rated Output Power  : 1000W

• Form Factor  : ATX

• 80 PLUS Certification  : Titanium

• Input Voltage  : 100-240V

• Input Current   : 13-6A

• Input Frequency  :   50-60Hz

• PFC   : Active PFC

• Efficiency  :  ≥94% at typical load

• Fan Type :  FDB fan, 135mm

• Dimensions(L x W x H)   : 150×150×86 mm

• Protection  : OCP, OVP, OPP, SCP, OTP
